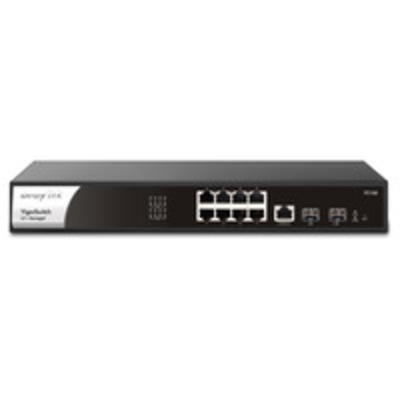

VSP2100-K 8-Port Gigabit Layer 2+ Managed PoE+ Switch With 2 SFP
Uplink Ports

Product Description

Vigor Switch P2100\n 8-Port Gigabit Layer 2+ Managed Po E+ Switch with 2 SFP Uplink Ports\n The Vigor Switch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a Dray Tek Vigor router. The enterprise-level features allow your business to improve network stability & security.\n\n The Vigor Switch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 Po E / Po E+ enabled Gigabit LAN ports.\n\n The Vigor Switch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned & monitored by one of Dray Tek&153;s central management platforms. These include the Vigor ACS management platform, Vigor Connect on-site management & Dray Tek&153;s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network & configure an entire Dray Tek network remotely.\n\n\n\n\n\n\n\n Power over Ethernet\n\n\n\n\n The Vigor Switch P2100 is an 8-port Po E (Power over Ethernet) switch, providing power on all ports to any Po E-enabled device, such as IP phones, wireless access points or IP cameras over the Ethernet cable. There are 2 additional SFP module slots for Ethernet & Fibre uplinks, with suitable SFP modules installed.\n\n As well as removing the need for local (at the desk) power supplies, making for tidier installations, Po E ensures power efficiency, providing only the power needed, as well as allowing for time schedules for powering up/down & remote rebooting.\n\n Power is provided only when required & allows for installation of devices where there is no mains power, particularly useful for wireless access points such as the ceiling-mounted Vigor AP 960C.\n\n The Vigor Switch P2100 has a total power budget of up to 140 watts for all connected Po E devices, allowing for connection of both standard Po E (802.3af) & High-Power Po E (802.3at) devices at up to 30 watts per port.\n\n\n\n\n Vigor Switch P2100\n\n\n\n Product Code\n EAN\n Product Name\n Description\n\n\n\n\n VSP2100-K\n 4710484742896\n Vigor Switch P2100 (UK/IE)\n 8-port Gigabit L2+ Managed Po E+ switch with 2 SFP Uplink ports\n\n\n\n Key Specifications\n\n 8 x RJ-45 Gigabit Ethernet Ports with Po E+\n 140-watt Power-over-Ethernet budget for demanding applications\n Cloud Managed with Vigor ACS\n 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN\n ONVIF IP Camera Surveillance Management with Po E Device Check\n Access Control List (ACL) for port & traffic level security\n Port Mirroring & Link Aggregation\n IGMP Snooping & Querying\n IPv 4 & IPv 6 Support with IP Conflict Prevention\n Centrally managed or standalone operation\n\n\n\n\n Technical

Specification (UK Hardware Spec.)\n Physical Interfaces\n\n 8 RJ-45 Ethernet Ports " 10/100/1000 Mbps\n 2 SFP Ports " 1000 Mbps\n Console Port (RJ-45 physical, RS-232 electrical)\n Factory Reset Button\n\n Po E Specification\n\n 8 Power over Ethernet LAN ports
- Po E PSE Mode A\n IEEE 802.3af Po E & 802.3at Po E+ (High Power) compliant\n 140 Watts Total Power Budget for Po E\n Up to 30 watts per port\n Auto Detection of Powered Device (PD) & Consumption Levels\n Per Port Po E Status LED Indicators\n Alert LED & Mail Alert for high Po E Usage\n Port Power Consumption Monitoring via Web Interface & CLI\n Circuit Protection to Prevent Power Interference between Ports\n Po E PD Monitoring & Maintenance Features (per port)\n\n Scheduling\n Po E PD Priority\n Restart Po E PD if not responding to ping\n Restart Po E IP Camera if not providing camera output\n\n\n\n VLAN\n\n 802.1q Tag-based VLAN\n Port-based & MAC-based VLANs\n Qin Q (Basic)\n GVRP " General VLAN Registration Protocol\n Up to 256 VLANs (out of 4096 VLAN IDs)\n 802.1v Protocol-Based VLAN\n Voice VLAN (OUI Mode)\n Surveillance VLAN (OUI Mode)\n Protocol VLAN\n MAC-based VLAN\n Management VLAN\n Port Isolation\n\n Qo S (Quality of Service)\n\n Support 8 priority queues\n Port-Based rate control (Ingress & Egress)\n Priority queue schedule (WRR or Strict Priority)\n Rate Limit\n Class of Service\n\n 802.1p Co S\n DSCP\n Co S-DSCP\n IP Precedence To S\n\n\n\n Network Security\n\n IP Source Guard with ARP inspection\n Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)\n Do S Attack protection\n AAA Authentication\n MAC Authentication\n Protected Port / Port Isolation\n Static Port Security\n Dynamic ARP Inspection\n DHCP Snooping with Option 82\n Loop Detection & Prevention\n Access Control Lists (ACL)\n\n Up to 512 ACL Entries\n Source & destination MAC\n VLAN ID\n IPv 4/v 6 address\n Protocol\n TCP/UDP port\n\n\n\n Spanning Tree\n\n Spanning Tree Protocol (STP)\n Rapid Spanning Tree Protocol (RSTP)\n Multiple Spanning Tree Protocol (MSTP)\n\n Link Aggregation\n\n Combine multiple ports to increase bandwidth\n 8 Aggregation Groups\n Up to 8 ports in each group\n LACP or Static setup\n Supports traffic load balancing\n\n Networking Performance\n\n Switching Capacity: 20 Gbps\n Forwarding Rate: 14.88 Mpps (64 bytes)\n Jumbo Frames up to 9KB\n Packet Buffer

Size: 4.1 Mbit\n\n Multicast\n\n Up to 256 multicast groups\n Multicast Group Filtering / Throttling\n IGMP Snooping V2/V3 (BISS)\n IGMP V2/V3 Querier\n Multicast VLAN registration\n MLD Snooping V1/V2\n\n Immediate Leave\n Report Suppression\n IGMP/MLD Querier\n\n\n\n AAA (Authentication, Authorisation, Accounting)\n\n RADIUS / TACACS+ Authentication for Management\n Multiple AAA Server\n MAC / Inaccessible Authentication bypass\n RADIUS Authentication 802.1X\n\n Accounting\n Guest VLAN\n Port based Authorisation\n\n 802.1X Single/ Multi\n MAC-based\n Web-based\n\n\n Attribute Assignment\n\n User Privilege\n VLAN\n\n\n\n\n TACACS+ Authentication\n\n Port Authorisation\n Accounting\n\n\n\n ONVIF Surveillance Management\n\n Discovery of ONVIF-compliant IP Cameras\n Surveillance Topology\n Real-Time Video Streaming\n ONVIF Device Maintenance\n\n Device Information\n Network Settings Configuration\n Time Settings\n Reboot\n Reset to Factory Default Settings\n Ping Check with Mail Alert on disconnection\n\n\n\n Management\n\n Central Management\n\n Vigor ACS\n Vigor Connect\n Vigor Router Switch Management (requires router firmware support)\n\n\n IPv 4 & IPv 6 Dual-Stack\n LLDP (802.1ab) + MED\n Web User Interface (HTTP or HTTPS)\n Firmware Upgrade/ Backup by HTTP/HTTPS\n HTTP (Non-TLS) can be disabled for increased security\n Configuration Backup/ Restore\n Factory Default\n System Reboot\n Command Line Interface (CLI) via SSH/ Telnet\n Console Port (RJ45) for CLI management\n Open VPN Client with Certificate-based auth\n SNMP v 1, v 2c, v 3 (with Generic Traps)\n RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)\n SNTP (Simple Network Time Protocol)\n\n Diagnostics\n\n Port Status & Usage display\n CPU/RAM Usage display\n MAC Address Table\n Device Check\n Syslog\n Mail Alert\n\n Port Status\n Port Speed Change\n System Restart\n Device Check\n IP Conflict\n ONVIF IP Camera Snapshot\n\n\n Port Mirroring\n Ping Diagnostics\n Port-based Cable Test\n\n Layer 3 Networking Features\n\n Static Route\n VLAN Routing\n DHCP Server (from firmware 2.6.8)\n\n I Pv 4 Features\n\n DHCP Client\n DNS Client\n DHCP Server (from firmware 2.6.8)\n\n Up to 8 subnets\n Option 82, 66, 67\n DHCP Snooping\n DHCP IP Source Guard\n\n\n\n I Pv 6 Features\n\n Auto Configuration\n Static IPv 6 Address & Prefix Length\n Static IPv 6 Default Gateway\n IPv 6 Neighbour Discovery (ND)\n IPv 6 Duplicate Address Detection\n ICMPv 6\n DHCPv 6 Client\n\n General IEEE Standards Compliance\n\n 802.3af Po E\n 802.3at Po E+\n 802.3 10 Base-T\n 802.3u 100 Base-T\n 802.3ab 1000 Base-T\n 802.3x Flow Control\n 802.3 Auto-Negotiation\n 802.1q Tag-based VLAN\n 802.1p Class of Service\n 802.1d STP\n 802.1w RSTP\n 802.1s MSTP\n 802.3ad LACP\n 802.1ad Qin Q\n 802.1x Port Access Control\n 802.1AB LLDP\n 802.3az EEE\n\n Operating Requirements\n\n Power Input Requirements: 100-240VAC\n Power supply: Internal\n Maximum Input Power Consumption: 164.3 Watts\n Cooling: Passively cooled\n Operating Temperature: 0 &176;C to 50 &176;C\n Storage Temperature: -20 &176;C to 70 &176;C\n Operating Humidity: 5% to 90% RH (non-condensing)\n\n Physical Specifications\n\n Dimensions: 319 x 208 x 44 mm (W x D x H)\n Rack mountable: 1U\n Weight: 2.61kg (5lb)\n\n Box Contents\n\n Vigor Switch P2100 Network Switch\n UK IEC13 Power Cable\n 1U Rack Mount Fittings\n Quick Start Guide\n\n ROHS & CE Compliant\n Warranty\n\n Two (2) Year Manufacturer's RTB\n\n\n\n\n\n\n
