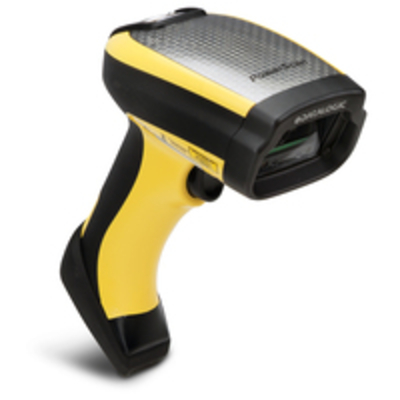

Datalogic PowerScan PD9531 1D/2D Photo Diode Black, Yellow Handheld
Bar Code Reader

Product Description

\n Datalogic Power Scan PD9531 Handheld bar code reader 1D/2D Photo diode Black, Yellow\n \n \n \n \n \n \n Manufacturer:\n Datalogic\n \n \n Category:\n Printers & Scanners\n \n \n Sub-Category:\n Barcode Readers\n \n \n SKU:\n PD9531-HPK1\n \n \n EAN:\n \n \n \n \n \n\n Description\n \n \n Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening & ink jet printing. Each of these methods has specific advantages & disadvantages in terms of durability, cost & ease of reading.\n\n\n\n The Power Scan&132;&162; PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed for DPM applications. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the type of DPM technology used, the code resolution, & the material & surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.\n\n\n\n The intuitive aiming system provides the highest first-pass reading rate. in addition, the Power Scan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users&153; eyes.\n\n\n\n Datalogic&153;s Motionix&132;&162; motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.\n\n\n\n- Water & Particulate Sealing Rating IP65\n\n- Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology\n\n- Handle shape, well-balanced\n \n \n\n Specifications\n \n Scanning Type Handheld bar code reader 2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Maxi Code, Micro QR Code, QR Code Yaw reading angle 0
- 40&176; Tilt reading angle 0
- 360&176; Sensor type Photo diode Scanner type 1D/2 D Pitch reading angle 0
- 40&176; Light levels (direct sunlight)0
- 100000 lx Optical sensor resolution (W x H)864 x 544 pixels Ports & interfaces Connectivity technology Wired Standard interfaces Keyboard wedge, RS-232, USBDesign Type Handheld bar code reader Ro HS compliance Yes International Protection (IP) code IP65 Product colour Black, Yellow Power Power source type DCInput voltage 5 VPerformance Light levels (direct sunlight)0
- 100000 lx Weight & dimensions Width 74 mm Depth 110 mm Height 212 mm Weight 330 g Technical details Type Handheld bar code reader Ro HS compliance Yes International Protection (IP) code IP65 Product colour Black, Yellow Packaging data Cables included USBOperational conditions Storage temperature (T-T)-40
- 70 &176;COperating temperature (T-T)-20
- 50 &176;COperating relative humidity (H-H)0
- 95% Light levels (direct sunlight)0
- 100000 lx Packaging content Cables included USB\n \n \n\n\n\n\n\n
