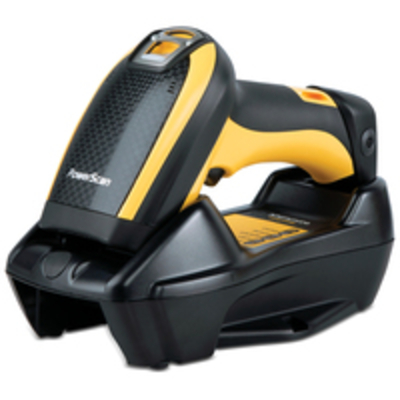

\n Datalogic Power Scan PBT9100 Handheld bar code reader 1D LED Black, Yellow\n \n \n \n \n \n \n Manufacturer:\n Datalogic\n \n \n Category:\n Printers & Scanners\n \n \n Sub-Category:\n Barcode Readers\n \n \n SKU:\n PBT9100-RBK10EU\n \n \n EAN:\n \n \n \n \n \n\n Description\n \n \n The Power Scan PBT9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product & features standard Bluetooth wireless technology. This linear imager introduces Datalogic&153;s innovative new scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.\n\n\n\n The PBT9100 imager also features Datalogic&153;s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented &152; Green Spot&153; technology directly on the code & dual Good Read LEDs on the top of the cap increase visibility at any angle.\n\n\n\n The PBT9100 imager&153;s mechanics have been developed & tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight & well-balanced to ensure optimal operator comfort during scan-intensive operations.\n\n\n\n All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge & USB (Universal Serial Bus).\n \n \n\n Specifications\n \n Scanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 Data Bar Expanded, GS1 Data Bar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Plessey, U.P.C.2D (matrix & stacked) barcodes supported Not supported Yaw reading angle-70
- 70&176; Tilt reading angle-45
- 45&176; Sensor type LEDScanner type 1DPitch reading angle-75
- 75&176; Ports & interfaces Wireless range 100 m Bluetooth version 3.0 Standard interfaces USBDesign Type Handheld bar code reader Protection features Shock resistant LED indicators Yes International Protection (IP) code IP65 Product colour Black, Yellow Power Power consumption 500 m A Power source type Battery Battery life 4 h Number of reads per charge 50000 Input voltage 10
- 30 VBattery technology Lithium-Ion (Li-Ion) Battery capacity 2150 m Ah Weight & dimensions Base dimensions 240 x 108 x 95 mm Width 212 mm Depth 110 mm Height 74 mm Weight 405 g Base weight 380 g Technical details Type Handheld bar code reader Protection features Shock resistant LED indicators Yes International Protection (IP) code IP65 Product colour Black, Yellow Packaging data Cables included USBOperational conditions Storage temperature (T-T)-40
- 70 &176;COperating temperature (T-T)-20
- 50 &176;COperating relative humidity (H-H)0
- 95% Packaging content Cables included USB\n \n \n\n\n\n\n\n
