The DES-1016D is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance whilst providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10 Mbps or 100 Mbps network to multiply bandwidths, boost response time & satisfy heavy load demands. 16 10/100 Mbps Ports The switch provides 16 ports, all supporting the NWay standard. The ports negotiate between 10BASE-T & 100BASE-TX network speeds, as well as between full & half duplex. Flow Control In full duplex mode, the switch's embedded flow control provides a means to protect users against possible data loss during transmission on the network. When connected to a LAN adapter (in a server PC) that supports flow control, the switch sends signals to the PC regarding buffer overrun during peak usage periods. The PC then delays transmission until the switch is ready again to accept new data. Key Features 16 NWay 10/100BASE-TX Fast Ethernet (RJ-45) ports IEEE 802.3 10BASE-T & IEEE 802.3u 100BASE-TX compliant Full & half duplex support for each port All ports support auto-negotiation function MIDI uplink port for easy expansion IEEE 802.3x compliant Flow Control for full-duplex Back-pressure for half-duplex Auto correction of RX polarity reversal 2 Mb RAM buffer dynamically allocated Auto learning of network configuration ...

The first of the Green Ethernet products the DGS-1016D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology Reduces power consumption & creates less heat Extended product life Reduces Operating Costs Power Savings by Number of Connected Ports & Link Status Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings. Power Savings by Cable Length The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power. Overall Power Savings Per Day For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 20% power used for each system. Get the blazing speed of Gigabit Ethernet with the D-Link Giga Express DGS-1016D, an 16-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile & compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space. Power-Packed It features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning & aging, 802.3x Flow Control for full-duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1016D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. Easy to use The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance. It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems. ...

The first of the Green Ethernet products the DGS-1016D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology \n\n Reduces power consumption & creates less heat \n Extended product life \n Reduces Operating Costs\n\n Power Savings by Number of Connected Ports & Link Status\n Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.\n\n Power Savings by Cable Length\n The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.\n\n Overall Power Savings Per Day\n For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 20% power used for each system.\n\n Get the blazing speed of Gigabit Ethernet with the D-Link Giga Express DGS-1016D, an 16-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality.\n\n Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile & compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.\n\n Power-Packed\n It features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning & aging, 802.3x Flow Control for full-duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission.\n\n Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1016D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.\n\n Easy to use\n The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance.\n\n It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems. Feature Feature Value Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 16 Full duplex YMAC address table 8000 entries Switching capacity 32 Gbit/s Store-&-forward Y Maximum data transfer rate 1 Gbit/s Packet buffer memory 0.340 MBSafety CSA + NRTL/CPower over Ethernet (Po E)NOperating temperature (T-T)-10
- 55 &176;CStorage temperature (T-T)0
- 40 &176;COperating relative humidity (H-H)5
- 95% Weight 1.75kg Dimensions (Wx Dx H)280 x 180 x 44 mm Power supply type 100-240VAC, 50/60 Hz I/O ports 10BASE-T, 100BASE-TX & 1000BASE-T


...

The first of the Green Ethernet products the DGS-1016D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology \n\n Reduces power consumption & creates less heat \n Extended product life \n Reduces Operating Costs\n\n Power Savings by Number of Connected Ports & Link Status\n Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.\n\n Power Savings by Cable Length\n The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.\n\n Overall Power Savings Per Day\n For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 20% power used for each system.\n\n Get the blazing speed of Gigabit Ethernet with the D-Link Giga Express DGS-1016D, an 16-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality.\n\n Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile & compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.\n\n Power-Packed\n It features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning & aging, 802.3x Flow Control for full-duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission.\n\n Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1016D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.\n\n Easy to use\n The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance.\n\n It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems. Feature Feature Value Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 16 Full duplex YMAC address table 8000 entries Switching capacity 32 Gbit/s Store-&-forward Y Maximum data transfer rate 1 Gbit/s Packet buffer memory 0.340 MBSafety CSA + NRTL/CPower over Ethernet (Po E)NOperating temperature (T-T)-10
- 55 &176;CStorage temperature (T-T)0
- 40 &176;COperating relative humidity (H-H)5
- 95% Weight 1.75kg Dimensions (Wx Dx H)280 x 180 x 44 mm Power supply type 100-240VAC, 50/60 Hz I/O ports 10BASE-T, 100BASE-TX & 1000BASE-T


...

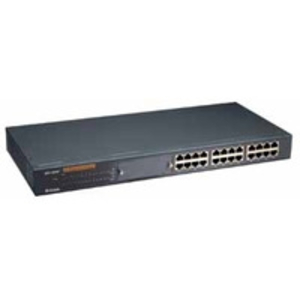

? 48 Gbps switching capacity ? 8K MAC Address Table ? Rack mountable or Desktop Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000 Mbps Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile & compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space. Power-Packed It features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning & aging, 802.3x Flow Control for full-duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. Easy to Install & Maintain The auto features of this switch make installation plug & play & hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000 Mbps) & intelligently adjusts for compatibility & optimal performance. It also features diagnostic LEDs, which display status & activity, allowing you to quickly detect & correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems. ...

Share Your Printers & Multifunction Equipment The DPR-1061 3-Port Print Server provides users with 3 available ports from a single device, & offers print & scan compatibility for those who are using multifunction equipment. This print server allows users to directly send out documents from their PC for fax transmissions. Enjoy sharing your printer & multifunction equipment's printing, faxing, & scanning abilities among the users on your network
- all with a single print server. Simultaneous Operation Of All Devices Equipped with a powerful CPU, large memory, high speed USB (Universal Serial Bus) ports & network data transfer, this print server makes your operations fast. Devices attached to the DPR-1061 can print, scan, & fax at the same time, giving this multi-port print server a similar performance to 3 separate single-port print servers at a fraction of the cost. Access Security & Multiple Os Support The DPR-1061 provides the necessary security by allowing the administrator to configure user access right to the network printers & equipment. It supports a wide range of network OS including: Windows 95/98/ME/NT 4.0/2000/XP, Apple Mac OS with Apple Talk, Linux, Solaris, SCO Unix, IBM AIX & Net Ware 5.x native NDS. Enjoy the flexibility & compatibility in major network OS that this print server has to offer. Remote Printing Support The DPR-1061 supports the Internet Printing Protocol (IPP), enabling remote users to output files to their office printer even when they are away from the site. HP PJL protocol is also supported for bi-directional network printer communication, providing network administrators with critical information about the network printer. Regardless of where you are, never worry about being unable to print out important files ever again with this print server′s convenient functions.
...

The first Green Ethernet technology on the market the DGS-1005D features innovative eco-friendly technology Reduces power consumption & creates less heat Extended product life Reduces Operating Costs Power Savings by Number of Connected Ports & Link Status Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings. Power Savings by Cable Length The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power. Overall Power Savings Per Day For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 27% power used for each system. The D-Link DGS-1005D is a 5-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Power-Packed The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8, 000 MAC address table provides scalability for even the largest networks. Address learning & aging, 802.3x Flow Control for full duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. Easy to use The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance. It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. ...

The first Green Ethernet technology on the market the DGS-1005D features innovative eco-friendly technology \n\n Reduces power consumption & creates less heat \n Extended product life \n Reduces Operating Costs\n\n Power Savings by Number of Connected Ports & Link Status\n Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.\n\n Power Savings by Cable Length\n The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.\n\n Overall Power Savings Per Day\n For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 27% power used for each system.\n\n The D-Link DGS-1005D is a 5-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality.\n\n Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.\n\n Power-Packed\n The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8, 000 MAC address table provides scalability for even the largest networks.\n\n Address learning & aging, 802.3x Flow Control for full duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.\n\n Easy to use\n The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance.\n\n It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. Feature Feature Value Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 5 Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-TFull duplex YMAC address table 8000 entries Switching capacity 10 Gbit/s Maximum data transfer rate 1 Gbit/s Jumbo frames support Y Packet buffer memory 0.112 MBData link protocols Ethernet, Fast Ethernet, Gigabit Ethernet Safety CSAPower consumption (typical)4.5 WPower over Ethernet (Po E)NOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-10
- 70 &176;COperating relative humidity (H-H)10
- 90% Weight 210 g Data transfer rate 1000 Mbit/s Dimensions (Wx Dx H)142 x 107 x 30 mm Connectivity technology Wired I/O ports 5x 10/100/1000BASE-TElectromagnetic emissions CE Mark, FCC Class B


...

The first Green Ethernet technology on the market the DGS-1005D features innovative eco-friendly technology \n\n Reduces power consumption & creates less heat \n Extended product life \n Reduces Operating Costs\n\n Power Savings by Number of Connected Ports & Link Status\n Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on & continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status & reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.\n\n Power Savings by Cable Length\n The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.\n\n Overall Power Savings Per Day\n For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day & powered off 14 hours a day, & connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 27% power used for each system.\n\n The D-Link DGS-1005D is a 5-port 10/100/1000 Mbps Gigabit Switch that delivers power, performance, & reliability in one cost-effective, space-saving design. Increase the speed of your network server & backbone connections, or make Gigabit to the desktop a reality.\n\n Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.\n\n Power-Packed\n The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters & forwards packets at full wire-speed for maximum throughput. An 8, 000 MAC address table provides scalability for even the largest networks.\n\n Address learning & aging, 802.3x Flow Control for full duplex mode, & back pressure flow control for half-duplex mode alleviates traffic congestion & ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, & 1000 Mbps Ethernet devices & other vendor equipment. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.\n\n Easy to use\n The auto features of this gigabit switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) & intelligently adjusts for compatibility & optimal performance.\n\n It also features diagnostic LEDs which display status & activity, allowing you to quickly detect & correct problems on the network. Feature Feature Value Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 5 Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-TFull duplex YMAC address table 8000 entries Switching capacity 10 Gbit/s Maximum data transfer rate 1 Gbit/s Jumbo frames support Y Packet buffer memory 0.112 MBData link protocols Ethernet, Fast Ethernet, Gigabit Ethernet Safety CSAPower consumption (typical)4.5 WPower over Ethernet (Po E)NOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-10
- 70 &176;COperating relative humidity (H-H)10
- 90% Weight 210 g Data transfer rate 1000 Mbit/s Dimensions (Wx Dx H)142 x 107 x 30 mm Connectivity technology Wired I/O ports 5x 10/100/1000BASE-TElectromagnetic emissions CE Mark, FCC Class B


...

The DES-1005D is an unmanaged 10/100 Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10 Mbps or 100 Mbps network to multiply bandwidths, boost response time & satisfy heavy load demands.\n\n\n 5 Auto-sensing 10/100 Mbps Ports\n The switch comes with 5 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet ad Fast Ethernet & integrate. These intelligent ports detect the network speed & auto-negotiate between 100BASE-TX\nand 10BASE-T, as well as between full- & half-duplex.\n\n Flow Control for Secure Transmission\n All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow\ncontrol is available in the full-duplex mode.\n\n Auto-negotiation of MDI/MDIX Cross Over\n All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.\n\n SOHO Plug-&-Play\n With 5 plug-&-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex.\n\n Desktop Power\n With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.\n\n 10/100 Mbps Network Kit\n For network starters, a convenient kit is available for ready installation. This kit

Includes:: a DES-1005D switch, 2 10/100 Mbps Fast Ethernet PCI cards, & 2 6-meter (20-foot) UTP cables.\n\n
Features:\n 5 10/100 Mbps ports\n Per-port auto MDI/MDIX\n All ports support full/half-duplex, network speed autonegotiation\n Per-port 802.3x flow control for protection against data loss\n Auto-learning of network configuration\n Secure store-&-forward switching scheme\n Auto-correction of reverse twisted-pair polarity\n Compact palm-sized Feature Feature Value Basic switching RJ-45 Ethernet ports quantity 5 Networking standards IEEE 802.3u, IEEE 802.3x Copper ethernet cabling technology 100 Base-TX, 10 Base-TFull duplex YMAC address table 2000 entries Maximum data transfer rate 0.1 Gbit/s Data link protocols Ethernet, Fast Ethernet Power consumption (typical)3.6 WOperating temperature (T-T)0
- 50 &176;CStorage temperature (T-T)-10
- 70 &176;COperating relative humidity (H-H)10
- 90% Storage relative humidity (H-H)5
- 90% Data transfer rate 100 Mbit/s Dimensions (Wx Dx H)142 x 32 x 108 mm Packet transfer speed 14880
- 148800 pps Power requirements DC 7.5V/1AI/O ports 5x 10/100 Ethernet portsn 1x Power Adapter port Electromagnetic emissions FCC Class B, CE Mark, VCCI Class B







...
