Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen&132;&162; processors to more productive use. Prime X570, known for its all-around specs & ASUS signature features,

Includes:: a wide range of tuning options for accessible performance.\n\n Foundation of your build\n Hosting the latest Ryzen processor with increased number of cores & bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling & flexible transfer options. It provides all the fundamentals to increase your everyday productivity.\n\n Power delivery enhancements\n The 3rd Gen AMD Ryzen&132;&162; processors boast more cores & bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.\n\n Dual PCIe 4.0 M.2 slots\n Achieve speed with onboard M.2\n Dual PCIe 4.0 M.2 Slot supports up to 22110 & provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.\n\n Safe Slot\n Protect your Graphics Card Investment\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.\n\n ASUS Opti Mem\n Proprietary Memory Design\n ASUS Opti Mem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies & lower latencies.\n\n USB 3.2 Gen 2 Type-A & Type-C\n Ultimate-speed 10 Gbps with USB (Universal Serial Bus) 3.2 Gen 2 onboard\n With backward-compatible USB (Universal Serial Bus) 3.2 Gen 2 Type-A&132;&162; & reversible USB (Universal Serial Bus) 3.2 Gen 2 Type-C&132;&162; ports, you'll experience ultimate connection flexibility & blazing data-transfer speeds of up to 10 Gbps.\n\n USB 3.2 Gen 2 front-panel connector\n Future-proof connectivity\n Prime X570-Pro front panel USB (Universal Serial Bus) 3.2 connector is ready for next-gen PC cases & devices.\n\n Intel Ethernet\n More throughput, less CPU usage\n The latest Intel Ethernet has the advantage of reducing CPU overhead & offering exceptionally high TCP & UDP throughput for faster, smoother data transfer\n\n Pre-mounted I/O\n Set up without slip-ups\n Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X570-Pro, this feature streamlines the installation process for budding builders & savvy enthusiasts alike.\n\n ASUS Node\n A header to keep ahead\n ASUS Node is a proprietary bi-directional interface that allows ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.&1\n\n Cooler by design\n Prime X570-Pro features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.\n\n Multiple temperature sources\n Each header can dynamically reference three thermal sensors, & via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU & CPU-intensive tasks.\n\n Dual pump headers\n A dedicated header that supplies over 3A for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.\n\n 4-pin PWM/DC fan\n Each onboard header supports auto-detection of PWM or DC fans.\n\n Smart Protection\n A dedicated integrated circuit protects each fan header from over-temperature & over-current.\n\n Active Chipset Heatsink Solution\n Dedicated cooling for unthrottled transfers\n PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.\n\n Active Chipset Heatsink Solution
Includes::\n Air Duct: A specially-designed air duct helps the fan generate static pressure & concentrates air flow over the fins.\n Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.\n Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60, 000-hour L10* lifespan.\n* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.\n\n M.2 heatsink\n Keep your SSD chilled\n M.2 drives sit under passive heatsinks to ward off the throttling that can occur with sustained transfers.\n\n Tune it your way\n The Prime X570 series feature software & firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, & helping you to tune your rig to perform the way you want it.\n\n 5-Way Optimization\n One-click overclock & cooling, done!\n One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking & cooling profiles that are tailored for your rig.\n\n- An automated tuning utility that optimizes overclocking & cooling profiles for your unique system configuration.\n- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.\n- Stress test function helps optimize & overclock for CPU- or memory-centric workloads.\n\n Media-acclaimed UEFI BIOS\n The UEFI BIOS is an early waypoint on any PC-building journey, & Prime X570-Pro offers one of the best in the business.\n\n EZ Mode\n Designed for easy setup, EZ Mode presents all the vital settings & stats on one single page. With guided wizards, drag-&-drop simplicity, & one-click convenience to apply important settings, your rig will be up & running in no time.\n\n Advanced Mode\n When you're ready to take a deeper dive into the configuration of your rig, Advanced Mode grants total control. Each section is intuitively organized, & a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, & unleash the full potential of the latest Ryzen processor.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & highlight to help you stay in touch with the ASUS community.\n\n Aura Sync\n Outshine the competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* & it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.\n* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m. \n** RGB LED Extension cables are included. LED Strips & Aura-compatible devices are sold separately. \n\n Addressable Gen 2 RGB header\n Prime X570-Pro's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n AMD X570 chipset\n The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd & 2nd Gen AMD Ryzen&132;&162; /2nd & 1st Gen AMD Ryzen&132;&162; with Radeon&132;&162; Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI&174; & AMD Cross Fire X&132;&162;. It also supports x 16 PCI Express&174; 4.0/3.0 lanes & provides 10 Gb/s USB (Universal Serial Bus) 3.2 Gen 2 ports & 6 Gb/s SATA ports for faster data retrieval.\n\n AMD AM4 Socket for 3rd & 2nd AMD Ryzen&132;&162; /2nd & 1st Gen AMD Ryzen&132;&162; with Radeon&132;&162; Vega Graphics Processors\n The high-performance 3rd Gen AMD Ryzen&132;&162; processors are based on the next-gen 7nm Zen architecture & support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10 Gb/s USB (Universal Serial Bus) 3.2 Gen 2 & x 16 PCI Express&174; 4.0/3.0 lanes for superb performance.\n\n- AMD AM4 Socket: Ready for 3rd & 2nd Gen AMD Ryzen&132;&162; processors\n- Enhanced power solution: 12+2 Dr MOS power stages, Pro Cool connectors, alloy chokes & durable capacitors for stable power delivery\n- 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks & intelligent cooling for CPU or GPU-intensive tasks\n- Industry-leading cooling options: Comprehensive controls for fans & dual pump headers, via Fan Xpert 4 or the acclaimed UEFI\n- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds & enhanced reliability\n- ASUS Opti Mem: Careful routing of traces & vias to preserve signal integrity for enhanced memory overclocking\n- Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB (Universal Serial Bus) 3.2 Gen 2 ports & front-panel header\n- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips Feature Feature Value Processor manufacturer Intel Processor socket Socket AM4 Compatible processor series AMD Ryzen Supported processor sockets Socket AM4 Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133 MHz Maximum internal memory 128 GBMemory channels Dual ECCYUnbuffered memory Y Supported storage drive interfaces M.2, Serial ATARAID levels 0, 1, 10USB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors-, 1 Number of SATA connectors 6 Front panel audio connector Y Number of EATX power connectors 1CPU fan connector Y Number of chassis fan connectors 312V power connector YUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity-, 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity-, 3USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity-, 1 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1 Display Ports quantity 1S/PDIF out port Y Digital audio optical out 1USB connector type USB Type-A, USB Type-CLAN controller Intel&174; I211-ATComponent for PCMotherboard form factor ATXMotherboard chipset family AMDMotherboard chipset AMD X570 Audio output channels 8.0 channels Audio chip Realtek ALC S1220 A Cooling type Passive Windows operating systems supported Windows 10 x 64PCI Express x 16 (Gen 3.x) slots 2BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 6.2 Clear CMOS jumper Y Width 244 mm Depth 305 mm Cables included SATA


...

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen processors to more productive use. Prime X570, known for its all-around specs & ASUS signature features,

Includes:: a wide range of tuning options for accessible performance.\n\n Foundation of your build\n\n Hosting the latest Ryzen processor with increased number of cores & bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling & flexible transfer options. It provides all the fundamentals to increase your everyday productivity.\n\n Tune it your way\n The Prime X570 series feature software & firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, & helping you to tune your rig to perform the way you want it.\n\n 5-Way Optimization\n One-click overclock & cooling, done!\n One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking & cooling profiles that are tailored for your rig.\n\n- An automated tuning utility that optimizes overclocking & cooling profiles for your unique system configuration.\n- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.\n- Stress test function helps optimize & overclock for CPU- or memory-centric workloads.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & highlight to help you stay in touch with the ASUS community.\n\n Aura Sync\n Outshine the competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* & it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.\n\n Addressable RGB LED strip Gen 2 header \n The Prime X570-Pro now has the upgraded, addressable RGB header that is ready for next-generation lighting devices, which can detect how many addressable LEDs are on an attached device, simplifying the setup process & allowing for automatically configured lighting effects.\n\n- Enhanced power solution: Premium components better power efficiency\n- 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks & intelligent cooling for CPU or GPU-intensive tasks\n- Industry-leading cooling options: Comprehensive controls for fans & dual pump headers, via Fan Xpert 4 or the acclaimed UEFI\n- ASUS Opti Mem: Careful routing of traces & vias to preserve signal integrity for enhanced memory overclocking\n- Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB (Universal Serial Bus) 3.2 Gen 2 ports & front-panel header\n- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds & enhanced reliability\n- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMMaximum internal memory 128 GBUnbuffered memory Y Supported storage drive interfaces Serial ATA IIIParallel processing technology support 2-Way Cross Fire X, 2-Way SLI, 3-Way Cross Fire X Maximum resolution 4096 x 2160 pixels USB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 6USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1HDMI version 2.0b Display Ports quantity 1 Display Port version 1.2S/PDIF out port Y Ethernet LANYWi-Fi NLAN controller Intel&174; I211-ATComponent for PCMotherboard form factor ATXMotherboard chipset family AMDMotherboard chipset AMD X570 Audio output channels 8.0 channels Audio chip Realtek ALC S1220 A Windows operating systems supported Windows 10 x 64PCI Express x 16 (Gen 3.x) slots 2 Number of Ultra M.2 (M) slots 1BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 6.2 System management BIOS (SMBIOS) version 3.2 Width 305 mm Depth 244 mm

...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-A provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features.\n ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black & white finish & iridescent metallic nameplate & PCB cover.\n\n Tune It Your Way\n Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.\n\n 5-Way Optimization\n ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking & cooling profiles that are tailored for your rig.\n\n- 5-Way Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration.\n- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.\n- A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads.\n\n ASUS AI Overclocking\n ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings.\n\n Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners.\n\n AI Overclocking at a Glance\n Designed by Experts\n At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.\n\n Predictive Edge\n The algorithm analyzes your CPU & cooling system, & based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage.\n\n Real-time Adjustments\n The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance.\n\n AI Overclocking Guide\n The AI Overclocking Guide provides detailed information & instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.\n\n Core Group Loading\n For high-core-count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups (3 / 5 / 8 / all cores), & it provides target frequency & voltage estimations needed for manual tuning.\n\n AI Overclocking in AI Suite\n Onboard intelligence offers automated overclocking with full, flexible control available via 5-Way Optimization within AI Suite (in Windows).\n\n AI Cooling\n ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature.\n\n Self-Adaptive Fan Tuning\n CPU Temperature Detection\n AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down.\n\n Automated Optimization\n Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance.\n\n Ongoing Monitoring\n AI Cooling continues to monitor the system & adjust fan speed based on current load.\n\n One-click Activation\n AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.\n\n Fan Speed References\n For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings.\n\n UEFI BIOS\n The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.\n\n Advanced Tuning for Serious Tweakers\n An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.\n\n Mem Test 86\n This memory testing software is pre-installed into the UEFI BIOS & lets you pinpoint memory issues with just one click, without the need for a USB (Universal Serial Bus) stick or going into the OS. It stores the memory report in the BIOS archives for reference.\n\n Prediction\n AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance.\n\n AI Overclocking Guide\n Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking.\n\n Search Function\n Quickly & easily find the option or setting you need.\n\n ASUS User Profile\n Port configuration settings between different BIOS versions or share them with friends.\n\n Flex Key\n Remap the reset button on the chassis to toggle Aura lighting, activate the Direct Key to go straight to the UEFI BIOS, or reset the system.\n\n Quick & Simple Setup\n EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time.\n\n AI Overclocking\n Enable AI Overclocking via a shortcut.\n\n Intuitive Graphical Fan Control\n Fine-tune individual fan settings simply by dragging a curve with the mouse.\n\n EZ XMP\n Improve DRAM performance with one click.\n\n Aura On/ Off Mode (Stealth)\n Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.\n\n Cool to the Core\n Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads.\n\n M.2 Heatsink\n Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws & can be moved to other M.2 slots.\n\n VRM Heatsink & Thermal Pads\n Two massive VRM heatsinks & thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. A bundled fan holder provides additional cooling options.\n\n Stack Cool 3+\n 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures.\n\n Cooler by Design\n Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.\n\n Build on a Solid Foundation\n Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options.\n\n Robust Power Design\n Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs.\n\n Pro Cool Connectors\n Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.\n\n 14+2 Power Stages\n A VRM with 14+2 power stages delivers the power & efficiency that the latest Intel processors dem&.\n\n ASUS Opti Mem II\n Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk.\n\n Benefits of ASUS Opti Mem II:\n- enhanced memory stability & compatibility\n- Allows lower memory latencies at equivalent voltages\n- enhanced memory frequency margin\n\n Three M.2 slots (up to 64 Gbps)\n Prime Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives.\n\n PCIe&174; 4.0 Slot\n ASUS Z590 motherboards are designed specifically for 11th Gen Intel&174; Core&132;&162; CPUs, & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.\n\n USB 3.2 Gen 2x 2 Type-C&174;\n Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps.\n\n Thunderbolt&132;&162; 4 Support\n Prime Z590-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.\n\n Intel&174; 2.5 Gb Ethernet\n Intel Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer.\n\n Small Details Make a Big Difference\n Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.\n\n TWO-WAY AI NOISE CANCELATION\n This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls.\n\n Realtek Codec & Unique Design Features for Pristine, Powerful Audio\n Prime Z590-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.\n\n DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs.\n\n Flawless Audio that Immerses You in the Game\n Power Pre-Regulator\n Reduces power-input noise to ensure consistent performance.\n\n Audio Shielding\n Separates analog/digital signal domains, significantly reducing multi-lateral interference.\n\n Separate Layer for Left & Right Tracks\n Ensures minimal crosstalk between audio paths.\n\n Integrated Amplifier\n Capable of driving high-impedance headphones, without rolling-off high or low frequencies.\n\n De-Pop Circuit\n Reduces start-up popping noise to all audio outputs.\n\n Premium Japanese Capacitors\n Premium parts provide an immersive sound signature, with exceptional fidelity.\n\n Aura Sync\n Outshine the Competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers
- & it can all be synced with an ever-growing portfolio of Aura-capable hardware.\n\n Addressable Gen 2 RGB Header\n Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community.\n\n Q-Latch\n The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws.\n\n Safe Slot\n Protect Your Graphics Card\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.\n\n Flex Key\n The Chassis Reset Button " Reassigned\n Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n\n\n Product Model: PRIME Z590-A\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_88641074_1612189373_79_46.pdf\n\n
...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-A provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features.\n ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black & white finish & iridescent metallic nameplate & PCB cover.\n\n Tune It Your Way\n Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.\n\n 5-Way Optimization\n ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking & cooling profiles that are tailored for your rig.\n\n- 5-Way Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration.\n- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.\n- A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads.\n\n ASUS AI Overclocking\n ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings.\n\n Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners.\n\n AI Overclocking at a Glance\n Designed by Experts\n At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.\n\n Predictive Edge\n The algorithm analyzes your CPU & cooling system, & based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage.\n\n Real-time Adjustments\n The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance.\n\n AI Overclocking Guide\n The AI Overclocking Guide provides detailed information & instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.\n\n Core Group Loading\n For high-core-count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups (3 / 5 / 8 / all cores), & it provides target frequency & voltage estimations needed for manual tuning.\n\n AI Overclocking in AI Suite\n Onboard intelligence offers automated overclocking with full, flexible control available via 5-Way Optimization within AI Suite (in Windows).\n\n AI Cooling\n ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature.\n\n Self-Adaptive Fan Tuning\n CPU Temperature Detection\n AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down.\n\n Automated Optimization\n Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance.\n\n Ongoing Monitoring\n AI Cooling continues to monitor the system & adjust fan speed based on current load.\n\n One-click Activation\n AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.\n\n Fan Speed References\n For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings.\n\n UEFI BIOS\n The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.\n\n Advanced Tuning for Serious Tweakers\n An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.\n\n Mem Test 86\n This memory testing software is pre-installed into the UEFI BIOS & lets you pinpoint memory issues with just one click, without the need for a USB (Universal Serial Bus) stick or going into the OS. It stores the memory report in the BIOS archives for reference.\n\n Prediction\n AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance.\n\n AI Overclocking Guide\n Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking.\n\n Search Function\n Quickly & easily find the option or setting you need.\n\n ASUS User Profile\n Port configuration settings between different BIOS versions or share them with friends.\n\n Flex Key\n Remap the reset button on the chassis to toggle Aura lighting, activate the Direct Key to go straight to the UEFI BIOS, or reset the system.\n\n Quick & Simple Setup\n EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time.\n\n AI Overclocking\n Enable AI Overclocking via a shortcut.\n\n Intuitive Graphical Fan Control\n Fine-tune individual fan settings simply by dragging a curve with the mouse.\n\n EZ XMP\n Improve DRAM performance with one click.\n\n Aura On/ Off Mode (Stealth)\n Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.\n\n Cool to the Core\n Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads.\n\n M.2 Heatsink\n Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws & can be moved to other M.2 slots.\n\n VRM Heatsink & Thermal Pads\n Two massive VRM heatsinks & thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. A bundled fan holder provides additional cooling options.\n\n Stack Cool 3+\n 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures.\n\n Cooler by Design\n Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.\n\n Build on a Solid Foundation\n Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options.\n\n Robust Power Design\n Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs.\n\n Pro Cool Connectors\n Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.\n\n 14+2 Power Stages\n A VRM with 14+2 power stages delivers the power & efficiency that the latest Intel processors dem&.\n\n ASUS Opti Mem II\n Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk.\n\n Benefits of ASUS Opti Mem II:\n- enhanced memory stability & compatibility\n- Allows lower memory latencies at equivalent voltages\n- enhanced memory frequency margin\n\n Three M.2 slots (up to 64 Gbps)\n Prime Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives.\n\n PCIe&174; 4.0 Slot\n ASUS Z590 motherboards are designed specifically for 11th Gen Intel&174; Core&132;&162; CPUs, & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.\n\n USB 3.2 Gen 2x 2 Type-C&174;\n Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps.\n\n Thunderbolt&132;&162; 4 Support\n Prime Z590-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.\n\n Intel&174; 2.5 Gb Ethernet\n Intel Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer.\n\n Small Details Make a Big Difference\n Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.\n\n TWO-WAY AI NOISE CANCELATION\n This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls.\n\n Realtek Codec & Unique Design Features for Pristine, Powerful Audio\n Prime Z590-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.\n\n DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs.\n\n Flawless Audio that Immerses You in the Game\n Power Pre-Regulator\n Reduces power-input noise to ensure consistent performance.\n\n Audio Shielding\n Separates analog/digital signal domains, significantly reducing multi-lateral interference.\n\n Separate Layer for Left & Right Tracks\n Ensures minimal crosstalk between audio paths.\n\n Integrated Amplifier\n Capable of driving high-impedance headphones, without rolling-off high or low frequencies.\n\n De-Pop Circuit\n Reduces start-up popping noise to all audio outputs.\n\n Premium Japanese Capacitors\n Premium parts provide an immersive sound signature, with exceptional fidelity.\n\n Aura Sync\n Outshine the Competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers
- & it can all be synced with an ever-growing portfolio of Aura-capable hardware.\n\n Addressable Gen 2 RGB Header\n Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community.\n\n Q-Latch\n The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws.\n\n Safe Slot\n Protect Your Graphics Card\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.\n\n Flex Key\n The Chassis Reset Button " Reassigned\n Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n\n\n Product Model: PRIME Z590-A\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_88641074_1612189373_79_46.pdf\n\n
...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-A provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black & white finish & iridescent metallic nameplate & PCB cover. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. 5-Way Optimization ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking & cooling profiles that are tailored for your rig.
- 5-Way Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
- A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads. ASUS AI Overclocking ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners. AI Overclocking at a Glance Designed by Experts At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels. Predictive Edge The algorithm analyzes your CPU & cooling system, & based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage. Real-time Adjustments The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance. AI Overclocking Guide The AI Overclocking Guide provides detailed information & instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey. Core Group Loading For high-core-count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups (3 / 5 / 8 / all cores), & it provides target frequency & voltage estimations needed for manual tuning. AI Overclocking in AI Suite Onboard intelligence offers automated overclocking with full, flexible control available via 5-Way Optimization within AI Suite (in Windows). AI Cooling ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature. Self-Adaptive Fan Tuning CPU Temperature Detection AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down. Automated Optimization Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance. Ongoing Monitoring AI Cooling continues to monitor the system & adjust fan speed based on current load. One-click Activation AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls. Fan Speed References For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Mem Test 86 This memory testing software is pre-installed into the UEFI BIOS & lets you pinpoint memory issues with just one click, without the need for a USB (Universal Serial Bus) stick or going into the OS. It stores the memory report in the BIOS archives for reference. Prediction AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance. AI Overclocking Guide Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Flex Key Remap the reset button on the chassis to toggle Aura lighting, activate the Direct Key to go straight to the UEFI BIOS, or reset the system. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. AI Overclocking Enable AI Overclocking via a shortcut. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. M.2 Heatsink Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws & can be moved to other M.2 slots. VRM Heatsink & Thermal Pads Two massive VRM heatsinks & thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. A bundled fan holder provides additional cooling options. Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. Cooler by Design Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 14+2 Power Stages A VRM with 14+2 power stages delivers the power & efficiency that the latest Intel processors dem&. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II:
- enhanced memory stability & compatibility
- Allows lower memory latencies at equivalent voltages
- enhanced memory frequency margin Three M.2 slots (up to 64 Gbps) Prime Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. PCIe&174; 4.0 Slot ASUS Z590 motherboards are designed specifically for 11th Gen Intel&174; Core&132;&162; CPUs, & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z590-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 2.5 Gb Ethernet Intel Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls. Realtek Codec & Unique Design Features for Pristine, Powerful Audio Prime Z590-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs. Flawless Audio that Immerses You in the Game Power Pre-Regulator Reduces power-input noise to ensure consistent performance. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Integrated Amplifier Capable of driving high-impedance headphones, without rolling-off high or low frequencies. De-Pop Circuit Reduces start-up popping noise to all audio outputs. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers
- & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws. Safe Slot Protect Your Graphics Card Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. Flex Key The Chassis Reset Button " Reassigned Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)8 Number of SATA III connectors 6 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 2.0 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIINumber of storage drives supported 9 Graphics Parallel processing technology support Not supported Maximum resolution 5120 x 2880 pixels Rear panel I/O ports USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 4S/PDIF out port Yes Microphone in Yes Headphone outputs 5HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Wake-on-LAN ready Yes LAN controller Intel I225-VEthernet interface type 2.5 Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC S1220 A Expansion slots Number of M.2 (M) slots 3PCI Express x 4 slots 1PCI Express x 16 (Gen 4.x) slots 3BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit Video Maximum resolution 5120 x 2880 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_89731546_1623231720_6821_27248.pdf






...

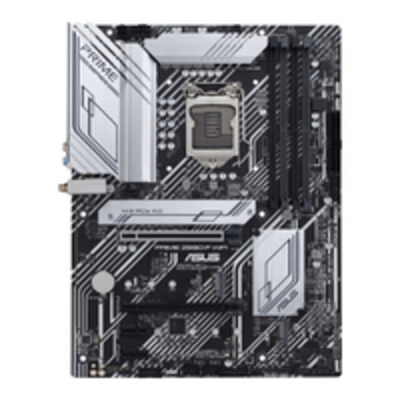

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-P WIFI provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws & can be moved to other M.2 slot. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. Cooler by Design Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs. Pro Cool Connector Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector. 10+1 60A Dr MOS Power Stages A VRM with 10+1 60A Dr MOS power stages delivers the power & efficiency that the latest Intel processors dem&. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II:
- enhanced memory stability & compatibility
- Allows lower memory latencies at equivalent voltages
- enhanced memory frequency margin Three M.2 slots (up to 64 Gbps) Prime Z590-P WIFI offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. PCIe&174; 4.0 Slot ASUS Z590 motherboards are designed specifically for 11th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including one rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 header Support Prime Z590-P WIFI features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174; Wi Fi 6 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Safe Slot Core+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 2.0 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 11, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA IIINumber of storage drives supported 7RAID support Yes Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 1PS/2 ports quantity 1 Microphone in Yes Headphone outputs 5HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Wake-on-LAN ready Yes Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 11, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 192 Mbit Video Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 11, Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 234 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n


...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690-A provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black & white finish, space-shuttle-inspired design elements, metallic nameplate & PCB cover. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. 5-Way Opitmization ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning & dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Easy Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration. A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads. CPU Performance Boost The Turbo V Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats & adjusts overclocking parameters for optimal performance. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance App-Specific Optimization Turbo App means that you can define CPU overclocking, apply fan profiles, prioritize network data & optimize audio settings at the app level, so your system is set up exactly as needed. ASUS AI Overclocking ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners. AI Overclocking at a Glance Designed by Experts At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels. Predictive Edge The algorithm analyzes your CPU & cooling system &, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage. Real-time Adjustments The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance. AI Cooling ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature. Self-Adaptive Fan Tuning CPU Temperature Detection AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down. Automated Optimization Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance. * Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / W_PUMP+/ AIO Pump Ongoing Monitoring AI Cooling continues to monitor the system & adjust fan speed based on current load. One-click Activation AI Cooling can easily be activated via the Fan Xpert 4 dashboard in Armoury Crate. Once activated, it will override all manual controls. Fan Speed References For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. AI Overclocking Enable AI Overclocking via a shortcut. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsink & Thermal Pads The two VRM heatsinks on Prime Z690-A are significantly larger than those found on earlier Z590 motherboards. Together with the thermal pads, they improve heat transfer from the MOSFETs & chokes for better cooling performance. M.2 Backplate An M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted. The backplate

Includes:: the Q-Latch mechanism to allow you to secure or remove an M.2 SSD without the need for traditional screws. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. Dual-Pump Headers A dedicated header supplies over 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs. *AIO Pump header supports 1 amp, & Water Pump+ header supports 3 amps. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-A is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 8+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors 16+1 Dr MOS A VRM with 16+1 Dr MOS delivers the power & efficiency that the latest Intel processors demand Memory DDR5 Performance Enhancement Prime Z690-A enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit & push frequency & timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-A leverages onboard hardware & firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, Prime Z690-A

Includes:: the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit & then presents optimized frequency, timing & voltage profiles that you can effortlessly apply to unleash performance. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Storage Four M.2 slots (up to 64 Gbps) Prime Z690-A offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162;4 Support Prime Z690-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 2.5 Gb Ethernet Intel&174; Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. LANGuard ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. CUSTOMIZATION Audio TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls. Realtek Codec & Unique Design Features for Pristine, Powerful Audio Prime Z690-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise (SNR) ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs. Flawless Audio that Immerses You in the Game Power Pre-Regulator Reduces power-input noise to ensure consistent performance. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layers for Left & Right Tracks Ensures minimal crosstalk between audio paths. Integrated Amplifier Capable of driving high-impedance headphones, without rolling-off high or low frequencies. De-Pop Circuit Reduces start-up popping noise to all audio outputs. Premium Audio Capacitors Premium parts provide a sound signature with exceptional fidelity. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws. Safe Slot & Safe DIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. Flex Key The Chassis Reset Button " Reassigned Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n Internal I/ONumber of M.2 (M) slots 4 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Power fan connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 4 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 11, Windows 10 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GMemory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR5-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 6000, 4800, 5000, 5200, 5400, 5600, 5800 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type 2.5 Gigabit Ethernet Bluetooth No Features Windows operating systems supported Windows 11, Windows 10 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC S1220 A Expansion slots Number of M.2 (M) slots 4PCI Express x 1 (Gen 3.x) slots 1PCI Express x 4 (Gen 1.x) slots 1PCI Express x 16 (Gen 3.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 256 Mbit Clear CMOS button Yes Software Windows operating systems supported Windows 11, Windows 10 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n



...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690-P WIFI D4 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans & all-in-one (Ai O) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans & Ai O cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-P Wi Fi D4 is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 14+1 Dr MOS A VRM with 14+1 Dr MOS delivers the power & efficiency that the latest Intel processors dem&. Memory ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Top layer " ground ring to prevent lateral interference DDR4 5333 (OC) Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Storage Three M.2 slots (up to 64 Gbps) Prime Z690-P Wi Fi D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe&174; 5.0 support to the market. PCIe&174; 5.0 offers twice the data transfer speed of PCIe&174; 4.0, making it robust enough to handle new data-heavy tasks. PCIe&174; 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of&175;PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z690-P Wi Fi D4 features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174;&175; Wi Fi 6&175;module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. * Actual speed varies, & depends on networking conditions. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. CUSTOMIZATION Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. DIY-Friendly Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Safe Slot PCIe&174; 5.0 is 2x faster than PCIe&174; 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe&174; slot to keep a card firmly installed. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Power fan connector Yes Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GProcessor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.2 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10, Windows 11 Drivers included Yes Weight & dimensions Height 305 mm Width 234 mm Packaging content Drivers included Yes Cables included SATAOther features Height 305 mm Packaging content 2 x SATA 6 Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x Support DVD 1 x User guide\n\n\n\n ...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690-P WIFI provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans & all-in-one (Ai O) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans & Ai O cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-P Wi Fi is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 14+1 Dr MOS A VRM with 14+1 Dr MOS delivers the power & efficiency that the latest Intel processors dem&. Memory DDR5 Performance Enhancement Prime Z690-P WIFI enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit & push frequency & timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages onboard hardware & firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, Prime Z690-P WIFI

Includes:: the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit & then presents optimized frequency, timing & voltage profiles that you can effortlessly apply to unleash performance. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Storage Three M.2 slots (up to 64 Gbps) Prime Z690-P Wi Fi offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe&174; 5.0 support to the market. PCIe&174; 5.0 offers twice the data transfer speed of PCIe&174; 4.0, making it robust enough to handle new data-heavy tasks. PCIe&174; 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of&175;PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z690-P Wi Fi features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174;&175; Wi Fi 6&175;module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Learn more Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. CUSTOMIZATION Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. DIY-Friendly Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Safe Slot PCIe&174; 5.0 is 2x faster than PCIe&174; 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe&174; slot to keep a card firmly installed. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 4 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GProcessor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR5-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.2 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10, Windows 11 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n

...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690M-Plus D4 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans & all-in-one (Ai O) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans & Ai O cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690M-Plus D4 is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 10+1 Dr MOS A VRM with 10+1 Dr MOS delivers the power & efficiency that the latest Intel processors dem&. Memory ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Top layer " ground ring to prevent lateral interference DDR4 5333 (OC) Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Storage Three M.2 slots (up to 64 Gbps) Prime Z690M-Plus D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe&174; 5.0 support to the market. PCIe&174; 5.0 offers twice the data transfer speed of PCIe&174; 4.0, making it robust enough to handle new data-heavy tasks. PCIe&174; 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z690M-Plus D4 features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 1 Gb Ethernet Intel&174; Ethernet Connection I219-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Lower CPU workload High TCP & UDP throughput M.2 Slot (key E) Prime Z690M-Plus D4 motherboard comes along with a M.2 Slot (Key E) which can support type 2230 Wi-Fi/BT & Intel&174; CNVi (Integrated Wi-Fi/BT) module* * The Wi-Fi/BT module is purchased separately. Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Safe Slot PCIe&174; 5.0 is 2x faster than PCIe&174; 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe&174; slot to keep a card firmly installed. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel&174; Core&132;&162; i 5, Intel&174; Core&132;&162; i 7, Intel&174; Core&132;&162; i 9, Intel Pentium GProcessor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type Gigabit Ethernet Bluetooth No Features Windows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10, Windows 11 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...
