ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-A provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features.\n ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black & white finish & iridescent metallic nameplate & PCB cover.\n\n Tune It Your Way\n Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.\n\n 5-Way Optimization\n ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking & cooling profiles that are tailored for your rig.\n\n- 5-Way Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration.\n- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.\n- A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads.\n\n ASUS AI Overclocking\n ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings.\n\n Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners.\n\n AI Overclocking at a Glance\n Designed by Experts\n At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.\n\n Predictive Edge\n The algorithm analyzes your CPU & cooling system, & based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage.\n\n Real-time Adjustments\n The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance.\n\n AI Overclocking Guide\n The AI Overclocking Guide provides detailed information & instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.\n\n Core Group Loading\n For high-core-count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups (3 / 5 / 8 / all cores), & it provides target frequency & voltage estimations needed for manual tuning.\n\n AI Overclocking in AI Suite\n Onboard intelligence offers automated overclocking with full, flexible control available via 5-Way Optimization within AI Suite (in Windows).\n\n AI Cooling\n ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature.\n\n Self-Adaptive Fan Tuning\n CPU Temperature Detection\n AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down.\n\n Automated Optimization\n Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance.\n\n Ongoing Monitoring\n AI Cooling continues to monitor the system & adjust fan speed based on current load.\n\n One-click Activation\n AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.\n\n Fan Speed References\n For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings.\n\n UEFI BIOS\n The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.\n\n Advanced Tuning for Serious Tweakers\n An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.\n\n Mem Test 86\n This memory testing software is pre-installed into the UEFI BIOS & lets you pinpoint memory issues with just one click, without the need for a USB (Universal Serial Bus) stick or going into the OS. It stores the memory report in the BIOS archives for reference.\n\n Prediction\n AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance.\n\n AI Overclocking Guide\n Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking.\n\n Search Function\n Quickly & easily find the option or setting you need.\n\n ASUS User Profile\n Port configuration settings between different BIOS versions or share them with friends.\n\n Flex Key\n Remap the reset button on the chassis to toggle Aura lighting, activate the Direct Key to go straight to the UEFI BIOS, or reset the system.\n\n Quick & Simple Setup\n EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time.\n\n AI Overclocking\n Enable AI Overclocking via a shortcut.\n\n Intuitive Graphical Fan Control\n Fine-tune individual fan settings simply by dragging a curve with the mouse.\n\n EZ XMP\n Improve DRAM performance with one click.\n\n Aura On/ Off Mode (Stealth)\n Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.\n\n Cool to the Core\n Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads.\n\n M.2 Heatsink\n Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws & can be moved to other M.2 slots.\n\n VRM Heatsink & Thermal Pads\n Two massive VRM heatsinks & thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. A bundled fan holder provides additional cooling options.\n\n Stack Cool 3+\n 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures.\n\n Cooler by Design\n Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.\n\n Build on a Solid Foundation\n Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options.\n\n Robust Power Design\n Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs.\n\n Pro Cool Connectors\n Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.\n\n 14+2 Power Stages\n A VRM with 14+2 power stages delivers the power & efficiency that the latest Intel processors dem&.\n\n ASUS Opti Mem II\n Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk.\n\n Benefits of ASUS Opti Mem II:\n- enhanced memory stability & compatibility\n- Allows lower memory latencies at equivalent voltages\n- enhanced memory frequency margin\n\n Three M.2 slots (up to 64 Gbps)\n Prime Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives.\n\n PCIe&174; 4.0 Slot\n ASUS Z590 motherboards are designed specifically for 11th Gen Intel&174; Core&132;&162; CPUs, & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.\n\n USB 3.2 Gen 2x 2 Type-C&174;\n Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps.\n\n Thunderbolt&132;&162; 4 Support\n Prime Z590-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.\n\n Intel&174; 2.5 Gb Ethernet\n Intel Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer.\n\n Small Details Make a Big Difference\n Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.\n\n TWO-WAY AI NOISE CANCELATION\n This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls.\n\n Realtek Codec & Unique Design Features for Pristine, Powerful Audio\n Prime Z590-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.\n\n DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs.\n\n Flawless Audio that Immerses You in the Game\n Power Pre-Regulator\n Reduces power-input noise to ensure consistent performance.\n\n Audio Shielding\n Separates analog/digital signal domains, significantly reducing multi-lateral interference.\n\n Separate Layer for Left & Right Tracks\n Ensures minimal crosstalk between audio paths.\n\n Integrated Amplifier\n Capable of driving high-impedance headphones, without rolling-off high or low frequencies.\n\n De-Pop Circuit\n Reduces start-up popping noise to all audio outputs.\n\n Premium Japanese Capacitors\n Premium parts provide an immersive sound signature, with exceptional fidelity.\n\n Aura Sync\n Outshine the Competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers
- & it can all be synced with an ever-growing portfolio of Aura-capable hardware.\n\n Addressable Gen 2 RGB Header\n Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community.\n\n Q-Latch\n The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws.\n\n Safe Slot\n Protect Your Graphics Card\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.\n\n Flex Key\n The Chassis Reset Button " Reassigned\n Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n\n\n Product Model: PRIME Z590-A\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_88641074_1612189373_79_46.pdf\n\n
...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-A provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black & white finish & iridescent metallic nameplate & PCB cover. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. 5-Way Optimization ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking & cooling profiles that are tailored for your rig.
- 5-Way Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, & deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
- A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads. ASUS AI Overclocking ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners. AI Overclocking at a Glance Designed by Experts At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels. Predictive Edge The algorithm analyzes your CPU & cooling system, & based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage. Real-time Adjustments The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance. AI Overclocking Guide The AI Overclocking Guide provides detailed information & instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey. Core Group Loading For high-core-count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups (3 / 5 / 8 / all cores), & it provides target frequency & voltage estimations needed for manual tuning. AI Overclocking in AI Suite Onboard intelligence offers automated overclocking with full, flexible control available via 5-Way Optimization within AI Suite (in Windows). AI Cooling ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature. Self-Adaptive Fan Tuning CPU Temperature Detection AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down. Automated Optimization Under stable system loads, the software then automatically lowers fan speed to the optimal setting, decreasing fan noise without compromising performance. Ongoing Monitoring AI Cooling continues to monitor the system & adjust fan speed based on current load. One-click Activation AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls. Fan Speed References For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Mem Test 86 This memory testing software is pre-installed into the UEFI BIOS & lets you pinpoint memory issues with just one click, without the need for a USB (Universal Serial Bus) stick or going into the OS. It stores the memory report in the BIOS archives for reference. Prediction AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance. AI Overclocking Guide Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Flex Key Remap the reset button on the chassis to toggle Aura lighting, activate the Direct Key to go straight to the UEFI BIOS, or reset the system. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. AI Overclocking Enable AI Overclocking via a shortcut. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. M.2 Heatsink Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws & can be moved to other M.2 slots. VRM Heatsink & Thermal Pads Two massive VRM heatsinks & thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. A bundled fan holder provides additional cooling options. Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. Cooler by Design Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 14+2 Power Stages A VRM with 14+2 power stages delivers the power & efficiency that the latest Intel processors dem&. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II:
- enhanced memory stability & compatibility
- Allows lower memory latencies at equivalent voltages
- enhanced memory frequency margin Three M.2 slots (up to 64 Gbps) Prime Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. PCIe&174; 4.0 Slot ASUS Z590 motherboards are designed specifically for 11th Gen Intel&174; Core&132;&162; CPUs, & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z590-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 2.5 Gb Ethernet Intel Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls. Realtek Codec & Unique Design Features for Pristine, Powerful Audio Prime Z590-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs. Flawless Audio that Immerses You in the Game Power Pre-Regulator Reduces power-input noise to ensure consistent performance. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Integrated Amplifier Capable of driving high-impedance headphones, without rolling-off high or low frequencies. De-Pop Circuit Reduces start-up popping noise to all audio outputs. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers
- & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws. Safe Slot Protect Your Graphics Card Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. Flex Key The Chassis Reset Button " Reassigned Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)8 Number of SATA III connectors 6 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 2.0 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIINumber of storage drives supported 9 Graphics Parallel processing technology support Not supported Maximum resolution 5120 x 2880 pixels Rear panel I/O ports USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 4S/PDIF out port Yes Microphone in Yes Headphone outputs 5HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Wake-on-LAN ready Yes LAN controller Intel I225-VEthernet interface type 2.5 Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC S1220 A Expansion slots Number of M.2 (M) slots 3PCI Express x 4 slots 1PCI Express x 16 (Gen 4.x) slots 3BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit Video Maximum resolution 5120 x 2880 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_89731546_1623231720_6821_27248.pdf






...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-P WIFI provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws & can be moved to other M.2 slot. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. Cooler by Design Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs. Pro Cool Connector Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector. 10+1 60A Dr MOS Power Stages A VRM with 10+1 60A Dr MOS power stages delivers the power & efficiency that the latest Intel processors dem&. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II:
- enhanced memory stability & compatibility
- Allows lower memory latencies at equivalent voltages
- enhanced memory frequency margin Three M.2 slots (up to 64 Gbps) Prime Z590-P WIFI offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. PCIe&174; 4.0 Slot ASUS Z590 motherboards are designed specifically for 11th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including one rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 header Support Prime Z590-P WIFI features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174; Wi Fi 6 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Safe Slot Core+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. 1000+ Compatible devices & components The Prime Z590 series provides superior compatibility with thousands of components & our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences. 8000+ Validation hours Every ASUS motherboard is subjected to more than 8, 000 hours of stringent tests, including burn-in, environmental, compatibility, software & safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment. Temperature & humidity tests Ensures components withstand extreme conditions. Thermal measurement tests Ensures that the system remains cool & stable under the heaviest loads. Insertion tests Every port & connector is put through repeated installation cycles. Aging tests Up to 48-hour aging test ensures reliability. Power-consumption tests Checked for world-class energy efficiency. Temperature & DC margin tests Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures. Thermal-shock tests Ensures ability to survive temperature changes during transportation. Non-operation shock tests Built to withstand jolts that may occur during shipping. Burn-in tests Every component is checked to ensure flawless operation. Installation tests Connector placement is double-checked to ensure hassle-free installation. Drop tests Drop tests from various heights ensure durability. Salt & spray tests Tested for I/O reliability, prolonged lifespan & rust-resistance.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, PCI Express 3.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 3TPM connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 1.4 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 3.0, SATA IIINumber of storage drives supported 7 Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 1S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 5HDMI version 1.4HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Wake-on-LAN ready Yes Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC897 Expansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 192 Mbit Video Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 234 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n


...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; Core&132;&162; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z590-P WIFI provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws & can be moved to other M.2 slot. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. Cooler by Design Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel&174; Core&132;&162; processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs. Pro Cool Connector Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector. 10+1 60A Dr MOS Power Stages A VRM with 10+1 60A Dr MOS power stages delivers the power & efficiency that the latest Intel processors dem&. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II:
- enhanced memory stability & compatibility
- Allows lower memory latencies at equivalent voltages
- enhanced memory frequency margin Three M.2 slots (up to 64 Gbps) Prime Z590-P WIFI offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. PCIe&174; 4.0 Slot ASUS Z590 motherboards are designed specifically for 11th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including one rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 header Support Prime Z590-P WIFI features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Tunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174; Wi Fi 6 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Safe Slot Core+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 2.0 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 11, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA IIINumber of storage drives supported 7RAID support Yes Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 1PS/2 ports quantity 1 Microphone in Yes Headphone outputs 5HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Wake-on-LAN ready Yes Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 11, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel Z590 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 192 Mbit Video Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 11, Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 234 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n


...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690-A provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black & white finish, space-shuttle-inspired design elements, metallic nameplate & PCB cover. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. 5-Way Opitmization ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning & dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Easy Optimization is an automated tuning utility that enhances overclocking & cooling profiles for your unique system configuration. A stress test feature means that you can optimize & overclock for CPU- or memory-centric workloads. CPU Performance Boost The Turbo V Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats & adjusts overclocking parameters for optimal performance. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance App-Specific Optimization Turbo App means that you can define CPU overclocking, apply fan profiles, prioritize network data & optimize audio settings at the app level, so your system is set up exactly as needed. ASUS AI Overclocking ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU & cooling system to predict optimal voltage & frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, & an auto-tuning option is available for beginners. AI Overclocking at a Glance Designed by Experts At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels. Predictive Edge The algorithm analyzes your CPU & cooling system &, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency & voltage. Real-time Adjustments The software monitors workload, system temperature, fan speed & power draw every minute & it makes real-time adjustments to ensure ongoing optimal performance. AI Cooling ASUS AI Cooling function will automatically manage & control motherboard-connected fans to ensure optimal settings based on current system load & temperature. Self-Adaptive Fan Tuning CPU Temperature Detection AI Cooling detects CPU temperatures & uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system & keep fan noise down. Automated Optimization Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance. * Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / W_PUMP+/ AIO Pump Ongoing Monitoring AI Cooling continues to monitor the system & adjust fan speed based on current load. One-click Activation AI Cooling can easily be activated via the Fan Xpert 4 dashboard in Armoury Crate. Once activated, it will override all manual controls. Fan Speed References For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. AI Overclocking Enable AI Overclocking via a shortcut. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsink & Thermal Pads The two VRM heatsinks on Prime Z690-A are significantly larger than those found on earlier Z590 motherboards. Together with the thermal pads, they improve heat transfer from the MOSFETs & chokes for better cooling performance. M.2 Backplate An M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted. The backplate

Includes:: the Q-Latch mechanism to allow you to secure or remove an M.2 SSD without the need for traditional screws. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. Dual-Pump Headers A dedicated header supplies over 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs. *AIO Pump header supports 1 amp, & Water Pump+ header supports 3 amps. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-A is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 8+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors 16+1 Dr MOS A VRM with 16+1 Dr MOS delivers the power & efficiency that the latest Intel processors demand Memory DDR5 Performance Enhancement Prime Z690-A enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit & push frequency & timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-A leverages onboard hardware & firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, Prime Z690-A

Includes:: the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit & then presents optimized frequency, timing & voltage profiles that you can effortlessly apply to unleash performance. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Storage Four M.2 slots (up to 64 Gbps) Prime Z690-A offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including both front & rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162;4 Support Prime Z690-A features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 2.5 Gb Ethernet Intel&174; Ethernet Connection I225-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. LANGuard ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. CUSTOMIZATION Audio TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce background noise from the microphone & incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks & other ambient noises so you can hear & be heard with crystal clarity while gaming or in calls. Realtek Codec & Unique Design Features for Pristine, Powerful Audio Prime Z690-A utilizes a unique audio codec designed in close collaboration with Realtek " the Realtek S1220A. It also features an unprecedented 120 d B signal-to-noise (SNR) ratio for the stereo line out & a 113 d B SNR for the line in, providing pristine audio quality. in addition, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X&174; Ultra adds a spatial audio feature to boost headphones & speakers for enhanced gaming, VR & extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, & objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements & device-level tuning for DTS&174; codecs. Flawless Audio that Immerses You in the Game Power Pre-Regulator Reduces power-input noise to ensure consistent performance. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layers for Left & Right Tracks Ensures minimal crosstalk between audio paths. Integrated Amplifier Capable of driving high-impedance headphones, without rolling-off high or low frequencies. De-Pop Circuit Reduces start-up popping noise to all audio outputs. Premium Audio Capacitors Premium parts provide a sound signature with exceptional fidelity. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive & neatly eliminate traditional screws. Safe Slot & Safe DIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. Flex Key The Chassis Reset Button " Reassigned Flex Key is a front-panel header that lets you customize the reset button on the front panel of your chassis to provide quick access to Aura lighting controls, Direct Key or system reset.\n\n\n\n Internal I/ONumber of M.2 (M) slots 4 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Power fan connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 4 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 11, Windows 10 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GMemory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR5-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 6000, 4800, 5000, 5200, 5400, 5600, 5800 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type 2.5 Gigabit Ethernet Bluetooth No Features Windows operating systems supported Windows 11, Windows 10 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC S1220 A Expansion slots Number of M.2 (M) slots 4PCI Express x 1 (Gen 3.x) slots 1PCI Express x 4 (Gen 1.x) slots 1PCI Express x 16 (Gen 3.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 256 Mbit Clear CMOS button Yes Software Windows operating systems supported Windows 11, Windows 10 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n



...

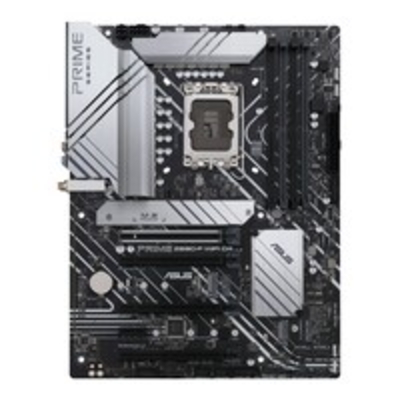

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690-P WIFI provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans & all-in-one (Ai O) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans & Ai O cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-P Wi Fi is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 14+1 Dr MOS A VRM with 14+1 Dr MOS delivers the power & efficiency that the latest Intel processors dem&. Memory DDR5 Performance Enhancement Prime Z690-P WIFI enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit & push frequency & timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages onboard hardware & firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, Prime Z690-P WIFI

Includes:: the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit & then presents optimized frequency, timing & voltage profiles that you can effortlessly apply to unleash performance. ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Storage Three M.2 slots (up to 64 Gbps) Prime Z690-P Wi Fi offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe&174; 5.0 support to the market. PCIe&174; 5.0 offers twice the data transfer speed of PCIe&174; 4.0, making it robust enough to handle new data-heavy tasks. PCIe&174; 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of&175;PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z690-P Wi Fi features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; Wi Fi 6 The Intel&174;&175; Wi Fi 6&175;module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Learn more Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. CUSTOMIZATION Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. DIY-Friendly Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Safe Slot PCIe&174; 5.0 is 2x faster than PCIe&174; 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe&174; slot to keep a card firmly installed. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 4 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GProcessor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR5-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.2 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10, Windows 11 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n

...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime Z690M-Plus D4 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans & all-in-one (Ai O) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans & Ai O cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. COOLING Prime Z690 series is engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks VRM Heatsinks & High-quality Thermal Pads Two massive VRM heatsinks & high-quality thermal pads improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime Z690 series is built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690M-Plus D4 is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 10+1 Dr MOS A VRM with 10+1 Dr MOS delivers the power & efficiency that the latest Intel processors dem&. Memory ASUS Opti Mem II Revisions to the motherboard&153;s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. Benefits of ASUS Opti Mem II: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem II technology were tested with Synopsys HSPICE simulation software Top layer " ground ring to prevent lateral interference DDR4 5333 (OC) Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Storage Three M.2 slots (up to 64 Gbps) Prime Z690M-Plus D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 5.0 Slot The 12th Gen Intel processors bring PCIe&174; 5.0 support to the market. PCIe&174; 5.0 offers twice the data transfer speed of PCIe&174; 4.0, making it robust enough to handle new data-heavy tasks. PCIe&174; 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 2x 2 for transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support Prime Z690M-Plus D4 features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Intel&174; 1 Gb Ethernet Intel&174; Ethernet Connection I219-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Lower CPU workload High TCP & UDP throughput M.2 Slot (key E) Prime Z690M-Plus D4 motherboard comes along with a M.2 Slot (Key E) which can support type 2230 Wi-Fi/BT & Intel&174; CNVi (Integrated Wi-Fi/BT) module* * The Wi-Fi/BT module is purchased separately. Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you&153;ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Safe Slot PCIe&174; 5.0 is 2x faster than PCIe&174; 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe&174; slot to keep a card firmly installed. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Power fan connector Yes Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel Z690 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel&174; Core&132;&162; i 5, Intel&174; Core&132;&162; i 7, Intel&174; Core&132;&162; i 9, Intel Pentium GProcessor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10RAID support Yes Graphics Parallel processing technology support Not supported Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type Gigabit Ethernet Bluetooth No Features Windows operating systems supported Windows 10, Windows 11 Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10, Windows 11 Drivers included Yes Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability & reliability & an enhanced management suite for easier customization. Known as the world's biggest & best-known motherboard br&, ASUS provides world-class after-sales service & guaranteed long-term availability to maximize your investment over the product life cycle & offers a high-quality, TCO-optimized solution for your business computing-needs. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable & reliable motherboards. Offering up to 36-month product lifecycle support & 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express
- server-grade IT management software. ASUS Control Center Express ASUS Control Center Express is an integrated IT monitoring & management software designed to deploy faster, simplify IT operations & improve productivity with comprehensive control & user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs. Optimize IT endpoint management Designed to assist IT staff in monitoring & controlling devices within their corporate networks, & facilitate inventory checking in multiple locations remotely Automate IT maintenance Allows IT staff to schedule automatic updates of the latest BIOS, software & utilities to specific or all devices at off-peak times, enhancing system stability & IT operational flexibility Securely manage all of endpoints Securely manage endpoint configuration, portable storage access & PC software applications by enabling them to create grouping rules on individual devices Internationally Certified Business Motherboard ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety & environmental organizations, ASUS business motherboards provide a safe, secure & sustainable solution, making them the ideal choice for your business. ASUS Self-recovering BIOS ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware. ASUS Secure Boot ASUS business motherboard is set to check the firmware & signature of each piece of boot software. Trusted Platform Module (TPM) Hardware-based security offers better data protection, enhances network security, protects digital identities & ensures platform integrity. Certified NIST SP 800-147 ASUS business motherboard is certified by the national computer security standards. ASUS Trouble Shooting Solution ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error & debugging codes on the integrated LCD display, & get better idea of initialization & recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster & more cost effective. 24/7 Reliability Test Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45&176;C & relative humidity up to 80% to ensure it can handle diverse temperature & humidity range of different location. Anti-moisture Coating Protection against moisture & corrosion An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers & internet cafes. It also minimizes internal corrosion by preventing adhesion & migration of moisture, prolonging the life of the motherboard. Anti-sulfur Resistors Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments. LANGuard Pumped-up throughput. 2.5X higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors ensuring a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. ESD Guards Electrostatic discharge protection ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/-15k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. ASUS Commercial BIOS Kit ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution! Box Headers All USB (Universal Serial Bus) headers are box style, enabling fast connector installation & preventing pin damage. Fixed-position Connectors Connector positions on ASUS business motherboards remain consistent across product generations, protecting training, manufacturing & investments in supporting hardware.\n\n\n\n Internal I/ONumber of M.2 (M) slots 112V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Number of SATA III connectors 4 Number of EATX power connectors 1 Number of COM connectors 1 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes Technical details Motherboard chipset family AMDMotherboard chipset AMD A520 Supported processor sockets Socket AM4 Parallel processing technology support Not supported Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD A520RAID levels 0, 1, 10 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9 Supported processor sockets Socket AM4 Processor socket Socket AM4 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4400, 4600 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIIRAID levels 0, 1, 10 Number of storage drives supported 5 Graphics Parallel processing technology support Not supported Maximum resolution 3840 x 2160 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB connector type USB Type-AUSB 2.0 ports quantity 2VGA (D-Sub) ports quantity 1PS/2 ports quantity 2 Headphone outputs 3HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1DVI-D ports quantity 1COM ports quantity 1 Network Ethernet LANYes Wi-Fi No Wake-on-LAN ready Yes LAN controller Realtek RTL8111 H Ethernet interface type Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD A520 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit Video Maximum resolution 3840 x 2160 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 244 mm Depth 229 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n
...

The ASUSPRO BU400 Ultrabook™ makes business more mobile, durable, secure & productive. Work flexibly anywhere with a weight factor from 1.64kg & a 20mm profile. The BU400 is tested & proven to exceed the demanding MIL-STD 810G military standard, & offers extreme reliability. It is optimized through rigorous drop tests, hinge cycle tests, & panel pressure testing, & uses a reinforced carbon fiber structure, anti-shock hard drive, & spill-resistant keyboard. Security gets reinforced with Trusted Platform Module (TPM) hardware & fingerprint reading, while powerful 3rd gen Intel Core™ processors, Intel v Pro™ Technology, & Intel Small Business Advantage (Intel SBA) add to efficient manageability. World-class award-winning design: slim, stylish, & all pro Starting with people & understanding what users think, feel, & do is how we design ASUSPRO BU400 Series notebooks. They′ve already secured an i F Product Design Award, which known as the Design Oscar" & the highest honor given annually to products that achieve excellence in design. Other major awards include Red Dot (Germany), Good Design (Japan), & an Excellence Award (Taiwan). The ASUSPRO BU400 is an Ultrabook™ for mobile business, offering an ultra-light form factor starting from just 1.64kg. It measures a slim 21mm, with a stylish dark brushed-hairline finish & one-piece construction creating a subtle & completely consistent professional look. Through the use of carbon fiber materials, metal-reinforced corners, & a true-comfort spill-resistant keyboard, the ASUSPRO BU400 easily withstands the rigors of business travel, guaranteeing long-lasting reliability. Slim & light with uncompromising full connectivity The 14′′ ASUSPRO BU400 starts at only 1.64kg, making your business more mobile & flexible. It is just 20mm thick, yet this slim design doesn′t mean reduced connectivity. The BU400 features full I/O: USB (Universal Serial Bus) 3.0, VGA, HDMI, audio port, 2-in-1 card reader, & Kingston lock. All help you work easier & more conveniently everywhere. True-comfort keyboard & precision touchpad Business places great importance on keyboards, as they are vital for professional communications. ASUS engineers have fine-tuned the BU400′s keyboard, providing better click ratios & travel distance. The touchpad has also been optimized, maintaining high precision while offering a bigger touch surface. All give business users superior productivity-enhancing experiences. Extreme reliability
- tested & proven to exceed the demanding US MIL-STD 810G military standard Business & organizational users demand greater reliability, so ASUSPRO BU400 notebooks are strictly quality-tested to much higher industry standards that even exceed the demanding MIL-STD 810G military standard. They prove very durable in drop tests, hinge cycle tests, & panel pressure testing. They also ship with an anti-shock hard drive that

Includes:: a triple protection mechanism to ensure data is always safe. Durable reinforced LCD carbon construction The ASUS BU400′s LCD cover employs durable reinforced carbon construction that is several times sturdier than conventional plastics. This gives the notebook 20% higher panel pressure resistance compared to standard notebooks, offering better damage protection while remaining light. Reinforced with special magnesium-aluminum alloy brackets ASUSPRO BU400 notebooks use a special design that adds tough brackets to the underside of the case for extra strength & to protect the notebook in the event of shocks or drops. Stringent 3-axial/6-angular shock & vibration test As a point of assurance to users, ASUSPRO BU400 hard drives are subjected to 3-axial/6-angular shock & vibration trials in accordance with industry-standard surrogate testing. Shock-resistant hard drives Damage-absorbing sponge cushions designed as additional shields to protect data against shocks or drops experienced by the notebook during transportation. Motion sensor protection mechanism G-sensor hardware & hard drive protection software pre-empt imminent impacts as an additional line of defense in keeping data safe & secure. They use a 3D digital accelerometer with three levels of sensitivity: off, normal, & high. The latter is activated by default, & impact detection remains on at all times. Your business: more secure & manageable New 3rd generation Intel Core™ processors with v Pro™ technology & Intel privacy protection features help IT managers implement added security alongside intelligent performance Performance & protection are top priorities for enterprise IT departments, & so the ASUS BU400 incorporates 3rd generation Intel Core™ v Pro™ processors. These help IT departments protect their business PCs, automate troubleshooting, expedite repair & maintenance tasks, & reduce desk-side & onsite visits. IT departments tap lower total cost of ownership (TCO) & higher operational efficiency. Intel Identity Protection Technology (Intel IPT) adds a layer of hardware-based security, helping prevent unauthorized access to your important business accounts. It is widely regarded by security experts as a more effective approach than software-only authentication. Intel Small Business Advantage (Intel SBA) helps small businesses efficiently manage their PCs in one simple package Intel Small Business Advantage (Intel SBA) The ASUSPRO BU400 features Intel Small Business Advantage, a new computing platform that consists of hardware, software, & firmware to provide unique security & productivity capabilities. It has been specially designed for small businesses that do not have a managed PC environment, it simplifies your IT allowing you to focus on your business & not on your PC. Intel SBA

Includes:: six applications to help organize security & productivity: Software Monitor, Data Backup & Restore, USB (Universal Serial Bus) Blocker, PC Health Center, Energy Saver, & Wireless Display. Embedded TPM security chip: valuable data protected on a deep hardware level Professionals can rest assured that their valuable data is protected with Trusted Platform Module security hardware integrated on the board to hold computer-generated encryption keys. Its hardware-based design helps repel attacks by hackers looking to capture passwords & keys to sensitive data. TPM allows notebooks to run applications more securely, & makes transactions & communications more trustworthy. enhanced security with fingerprint scanning Notebooks incorporating fingerprint scanning take data access authorization & protection to a higher level with a personal touch. RF electronic scanner imaging reads fingerprint patterns, using sensors that are less affected by skin surface conditions, including dry, worn, calloused, dirty or oily skin, which may impair the ability of other sensor technologies to accurately detect fingerprints. Keep data safe, plus trace & locate stolen notebooks with Intel Anti-Theft Technology & Computrace Lo Jack for Laptops The ASUSPRO BU400 utilizes Intel Anti-Theft Technology (Intel AT) to help disable access to the operating system in the event that your notebook is ever lost or stolen, keeping it safe & secure. Notebooks are also bundled with Computrace Lo Jack for Laptops by Absolute Software, giving you the power to remotely locate them if missing. You can also remotely lock & delete data before it falls into the wrong hands. Lo Jack for Laptops s dedicated theft recovery team works with local police to track down lost or stolen notebooks & bring them back to you. Green ASUS ASUS has been leading the industry in eco-friendly processes, minimizing its environmental impact with an initiative dubbed Green ASUS. This covers four areas: green design, green manufacturing, green procurement, & green services. With our green products & our environmentally-friendly approach, we remain focused on safeguarding our planet. ASUSPRO Advance BU400 reduces total cost of ownership & attains the highest environmental standards, certified EPEAT, Energy Star, & Ro HS compliant. For more details on Green ASUS:




...

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability & reliability & an enhanced management suite for easier customization. Known as the world's biggest & best-known motherboard br&, ASUS provides world-class after-sales service & guaranteed long-term availability to maximize your investment over the product life cycle & offers a high-quality, TCO-optimized solution for your business computing-needs.\n\n ASUS Corporate Stable Model\n ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable & reliable motherboards. Offering up to 36-month product lifecycle support & 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express
- server-grade IT management software.\n ASUS Control Center Express\n ASUS Control Center Express is a real-time IT monitoring & management tool designed for business that improves productivity & enhances security, helping prevent unauthorized access & data leaks. The intuitive dashboard enables easy, real-time hardware & software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express " a US$60\n Internationally Certified Business Motherboard\n ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety & environmental organizations, ASUS business motherboards provide a safe, secure & sustainable solution, making them the ideal choice for your business.\n ASUS Shield Enhances system security from bottom to top\n ASUS Self-recovering BIOS\n ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.\n ASUS Secure Boot\n ASUS business motherboard is set to check the firmware & signature of each piece of boot software.\n Trusted Platform Module (TPM)\n Hardware-based security offers better data protection, enhances network security, protects digital identities & ensures platform integrity.\n Certified NIST SP 800-147\n ASUS business motherboard is certified by the national computer security standards.\n ASUS Reliant\n Ensures consistent performance with the finest components & rigorous reliability testing\n PCIe&174; 4.0 Slot\n ASUS Intel 500 series business motherboards are designed specifically for 11th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the devices. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.\n ASUS COM Debug Header\n This 6-1 pin COM debug header allows for faster & more efficient motherboard troubleshooting. IT administrators can view error & debugging codes to get a better idea of initialization & recovery processes when connecting to a debug card.\n 24/7 Reliability Test\n Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45&176;C & relative humidity up to 80% to ensure it can handle diverse temperature & humidity range of different location.\n Anti-moisture Coating\n Protection against moisture & corrosion\n An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers & internet cafes. It also minimizes internal corrosion by preventing dhesion & migration of moisture, prolonging the life of the motherboard.\n Anti-sulfur Resistors\n Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments.\n LANGuard\n Pumped-up throughput. 2.5X higher surge tolerance.\n ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors ensuring a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges.\n Overvoltage Protection\n World-class circuit-protecting power design\n An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.\n Stainless-Steel Back I/O\n 3X corrosion-resistance for greater durability\n Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n ESD Guards\n Electrostatic discharge protection\n ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/-15k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.\n ASUS Management Suite Makes customization & management more efficient\n- BIOS updates\n Update status, latest version & update time\n- AC power loss\n Abnormal power loss events\n- RTC reset\n Time of real-time-clock (RTC) reset\n- Chassis intrusion\n Record of when chassis is opened\n- Hardware changes\n Modifications to CPU, memory or HDDs\n- Hardware status\n USB over current, CPU over temperature, & CPU over voltage events\n Remote IT Management\n The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop & mobile architecture system hardware that allows the motherboard to be managed via the network.\n ASUS Commercial BIOS Kit\n ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!\n- BIOS value Edit Tool Customize the BIOS options\n- BIOS Boot Logo Tool Brand your builds with a customized boot logo\n- OEM Activation (OA) Tools Add or remove the OEM Activation key\n- Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOS\n- Intel&174; Management Engine (Intel&174; ME) Driver Update the Management Engine without flashing the whole BIOS\n\n\n\n\n\n Product Model: PRO B560M-C/CSM\n\n\n
...
