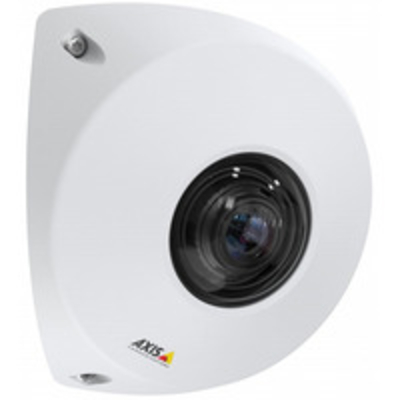

\n Axis P9106-V IP security camera Indoor Ceiling/ Wall 2016 x 1512 pixels\n \n \n \n \n \n \n Manufacturer:\n Axis\n \n \n Category:\n Home Security & Automation\n \n \n Sub-Category:\n Security Cameras\n \n \n SKU:\n 01620-001\n \n \n EAN:\n 7331021066069\n \n \n \n \n\n Description\n \n \n AXIS P91 Network Camera Series\n\n\n\n AXIS P91 Network Cameras are indoor, corner-mounted cameras specifically designed to provide the best field of view & ensure no area is left uncovered. AXIS P9106-V White is a compact & discreet camera delivering up to 3 MP resolution & have a ligature-resistant (also known as anti-ligature) matte white casing. Installation is quick & easy with out-of-the-box optimized corner-to-corner coverage to save time & costs. Even in scenes with strong backlight, the combination of WDR & Zipstream means all the important details can be captured while lowering bandwidth & storage requirements by 50% or more.\n\n\n\n Compact, safe & stylish\n\n\n\n AXIS P9106-V Network Cameras can cover up to 130 degrees horizontally & 95 degrees vertically, without blind spots. These cameras are resistant to shock & vibration & are delivered factory-focused so there&153;s no manual focusing or lens adjustment required. The ligature-resistant (anti-ligature) design of the AXIS P9106-V White helps prevent self-harm. It&153;s ideal for video surveillance of high security environments like police custody suites, correctional facilities, psychiatric wards, as well as hospital recovery rooms, waiting rooms, & interview rooms.\n\n\n\n Thoughtfully simple & cost-effective installation\n\n\n\n In many corner-mounting scenarios, installers are often challenged with wall or ceiling surfaces that are not mounting-friendly, such as mirrors, acrylic glass, & windows. AXIS P9106-V has been specifically designed to allow corner-mounting using only 2 of the 3 surfaces (wall + wall or wall + ceiling). The cameras are also easy to install alone, thanks to innovative screw gaskets that hold the screws in place during mounting. In environments with unique infrastructure requirements, AXIS P9106-V has been designed & tested to be compatible with multiple media converter options such as Po E over Coax (see AXIS T864 Po E+ over Coax Series), or Po E over 2-wire (see 2N 2 Wire). This is especially helpful when installing the camera in elevators, where Po E over 2-wire can be used to connect to the existing travelling cables. Without the need for heavy investment in re-cabling, installation is fast & flexible, keeping costs low & avoiding downtime.\n\n\n\n Easy to operate & maintain\n\n\n\n AXIS P9106-V can be installed in easy-to-reach areas, & you can be confident that it&153;s safe & secure thanks to its vandal-resistant IK10-rated casing. For added security & peace of mind, the camera&153;s IP66-rated casing offers protection from dust & water. The entire camera & network connections are fully accessible from the front, which makes service & maintenance simple, saving time & money. in addition, if the camera is defaced, the abrasion- & chemical-resistant front window is easy to clean with detergents or simple graffiti removers. If damage does occur, the front window can be quickly replaced.\n\n\n\n AXIS P9106-V White\n\n\n\n Looking for a video surveillance solution with synchronized audio in one stream? AXIS P9106-V can be paired with AXIS T6112 Audio & I/O Interface via portcast technology. This with its the perfect setup in waiting rooms & interview rooms, letting you record dialogues, or even communicate audio messages via external speakers. the robust & ligature-resistant (anti-ligature) design of the AXIS P9106-V White makes it perfect for high security installations where there is a risk for vulnerable people to self-harm, such as police custody suites, psychiatric wards, & interrogation rooms.\n \n \n\n Specifications\n \n Performance Number of languages 12 Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian PTZ modes Digital PTZType IP security camera Connectivity technology Wired PTZ control (Pan/ Tilt/ Zoom) Yes Placement supported Indoor Wide Dynamic Range (WDR) Yes Certification EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC 60721-3-5 5M3, NIST SP500-267 Design IK code IK10 Product colour Black, White Mounting type Ceiling/ Wall Protection features Dust resistant, Waterproof International Protection (IP) code IP66 Housing material Aluminium, Polycarbonate, Zinc Camera Minimum illumination 0.34 lx Viewing angle, horizontal 130&176; Viewing angle, vertical 95&176; Tilt angle range-5
- 5&176; Camera shutter speed 1/32500
- 1/5 s Progressive scan Yes Image sensor Sensor type CMOSProgressive scan Yes Optical sensor size 25.4 / 3 mm (1 / 3") Number of sensors 1 Lens system Maximum aperture number 2.4 Fixed focus Yes Fixed focal length 1.8 mm Video Image quality adjustment Brightness, Contrast, Saturation, Sharpness Text caption overlay Yes Privacy masking Yes Bit rate control Variable Bit Rate (VBR) Video compression formats AVC, M-JPEG, MPEG4 Maximum resolution 2016 x 1512 pixels Supported graphics resolutions 320 x 240, 640 x 360, 1920 x 1080 (HD 1080) Frame rate 30 fps Video streaming Yes Total megapixels 3 MPNetworking Networking standards IEEE 802.3af, IEEE 802.3at Quality of Service (Qo S) support Yes Streaming method Multicast Ethernet LANYes Cabling technology 10/100 Base-T (X) Supported network protocols I Pv 4, IPv 6 USGv 6, HTTP, HTTPS, SSL/TLS, Qo S Layer 3 Diff Serv, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPn P, SNMP v 1/v 2c/v 3 (MIB-II), DNS, Dyn DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDPStorage Card reader integrated Yes Built-in HDDNo Compatible memory cards Micro SD (Trans Flash), Micro SDHC, Micro SDXCFlash memory 256 MBPorts & interfaces Ethernet LAN (RJ-45) ports 1 Connectivity technology Wired Security Video motion detection Yes IP address filtering Yes HTTPS encryption Yes Active tampering alarm Yes Password protection Yes Power Power source type Po E Power consumption (max)3.2 WPower consumption (typical)2.8 WCertificates Certification EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC 60721-3-5 5M3, NIST SP500-267 Operational conditions Operating temperature (T-T)-15
- 50 &176;COperating relative humidity (H-H)15
- 85% Storage relative humidity (H-H)-40
- 65% Weight & dimensions Width 146 mm Depth 122 mm Height 92 mm Weight 655 g Packaging content Number of cameras 1 Quick installation guide Yes Other features Video compression formats AVC, M-JPEG, MPEG4\n \n \n\n\n\n\n\n
