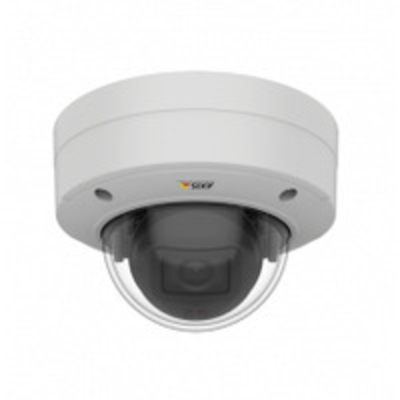

\n Axis M3206-LVE IP security camera Outdoor Dome Ceiling/ Wall 2304 x 1728 pixels\n \n \n \n \n \n \n Manufacturer:\n Axis\n \n \n Category:\n Home\n \n \n Sub-Category:\n Security Cameras\n \n \n SKU:\n 01518-001\n \n \n EAN:\n 7331021064492\n \n \n \n \n \n Description\n \n \n AXIS M3206-LVE delivers an excellent wide-angle view in 4 MP resolution for both indoor & outdoor surveillance. This robust, cost-efficient fixed dome offers best-in-class video quality & built-in IR illumination for clarity even in complete darkness.\n\n\n\n Uncover the darkness\n\n AXIS M3206-LVE Network Camera offers 4 MP & a wide-angle view of 105&176;. It features WDR to give you clarity when there&153;s both dark & light areas in the scene. Plus, with built-in IR illumination, you&153;ll enjoy clear, reflection-free footage in complete darkness so there&153;s no need to spend money lighting your premises at night.\n\n\n\n Ready to connect\n\n AXIS M3206-LVE features edge storage so you can record directly to the camera, providing redundancy in case the network connection is lost. Plus, Zipstream enhanced with H.264 or H.265 significantly lowers bandwidth & storage requirements. It&153;s also possible to connect devices to the I/O ports to trigger alarms or actions, & the connection to the input can be supervised so it sends an alarm if the connection is cut. Furthermore, the HDMI port can be connected to a monitor for public viewing or used as a virtual window for the backdoor or entrance.\n\n\n\n Best-in-class quality\n\n This cost-efficient camera delivers best-in-class video quality & enhanced surveillance capabilities with support for analytics such as AXIS Guard Suite. in addition, you can add support for audio using AXIS T61 Audio & I/O Interface enabling you to listen in to transactions or incidents, or even communicate warnings to intruders. Vandal-resistant & outdoor ready, the camera comes with a weathershield, & can be mounted on walls, ceilings & junction boxes using the included mounting bracket.\n \n \n \n Specifications\n \n Performance Infrared (IR) cut-off filter Yes Type IP security camera Connectivity technology Wired PTZ control (Pan/ Tilt/ Zoom) Yes Placement supported Outdoor Wide Dynamic Range (WDR) Yes Day/night mode Yes Certification EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3 (A)/NMB-3 (A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35\n IEC/EN/UL 62368"1, IEC/EN/UL 60950-22, IEC/EN 62471\n IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250 4X\n NIST SP500-267 Design IK code IK10 Form factor Dome Product colour White Mounting type Ceiling/ Wall International Protection (IP) code IP66 Camera Viewing angle, horizontal 100&176; Viewing angle, vertical 54&176; Tilt angle range 0
- 70&176; Pan range-175
- 175&176; Angle of rotation 360&176; Camera shutter speed 1/32500
- 1/5 s Camera pan control Yes Camera tilt control Yes Progressive scan Yes Image sensor Sensor type CMOSProgressive scan Yes Optical sensor size 25.4 / 2.5 mm (1 / 2.5") Number of sensors 1 Lens system Number of lenses 1 Maximum aperture number 2 Fixed focal length 3.1 mm Night vision Night vision Yes Night vision distance 20 m LED type IRInfra-red wavelength 850 nm Video Image quality adjustment Brightness, Contrast, Saturation, Sharpness Privacy masking Yes Bit rate control Variable Bit Rate (VBR) Video compression formats AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 Maximum resolution 2304 x 1728 pixels Supported graphics resolutions 320 x 240 Supported video modes 720p, 1080p Frame rate 30 fps Video streaming Yes Total megapixels 4 MPNetwork Bluetooth No Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at Quality of Service (Qo S) support Yes Ethernet LANYes Wi-Fi No Supported network protocols I Pv 4, IPv 6 USGv 6, HTTP, HTTPS, SSL/TLS, Qo S L3 Diff Serv, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPn P, SNMP v 1/v 2c/v 3 (MIB-II), DNS, Dyn DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDPStorage Card reader integrated Yes Built-in HDDNo Compatible memory cards Micro SD (Trans Flash), Micro SDHC, Micro SDXCInternal memory 512 MBFlash memory 128 MBPorts & interfaces HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Connectivity technology Wired Security Security algorithms EAP-TLSIP address filtering Yes HTTPS encryption No Password protection Yes Mirror Yes Power Power source type Po E Power consumption (Power over Ethernet (Po E))12.5 WPower consumption (typical)4.2 WCertificates Certification EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3 (A)/NMB-3 (A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35\n IEC/EN/UL 62368"1, IEC/EN/UL 60950-22, IEC/EN 62471\n IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250 4X\n NIST SP500-267 Operational conditions Operating temperature (T-T)-40
- 50 &176;CStorage temperature (T-T)-40
- 65 &176;COperating relative humidity (H-H)10
- 100% Storage relative humidity (H-H)5
- 95% Weight & dimensions Height 104 mm Diameter 14.9 cm Weight 720 g Packaging content Number of cameras 1 Mounting kit Yes Manual Yes Other features Video compression formats AVC, H.264, H.265, HEVC, M-JPEG, MPEG4\n \n \n\n\n\n\n\n
