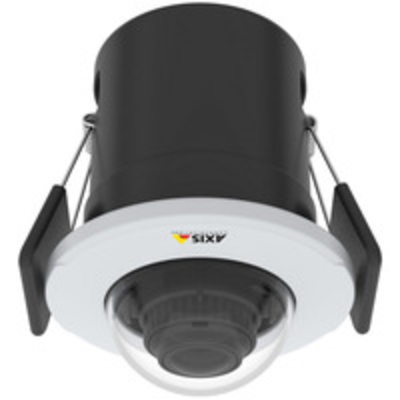

\n Axis M3016 IP security camera Dome Ceiling/ Wall 2304 x 1296 pixels\n \n \n \n \n \n \n Manufacturer:\n Axis\n \n \n Category:\n Home Security & Automation\n \n \n Sub-Category:\n Security Cameras\n \n \n SKU:\n 01152-001\n \n \n EAN:\n 7331021061125\n \n \n \n \n\n Description\n \n \n AXIS M3016 Network Camera\n\n\n\n AXIS M3016 Network Camera is designed for quick & easy recessed installation. Delivering 3 MP video at full frame rate in a small & compact design, AXIS M3016 is perfect for stylish retail stores & other areas that require discreet surveillance.\n\n\n\n Designed for discretion\n\n\n\n AXIS M3016 is seriously discreet. Specially designed for recessed mounting, this small, unobtrusive camera resembles a spotlight. Its cover is optionally available in black & is also easy to repaint to blend in anywhere.\n\n\n\n Best-in-class quality\n\n\n\n You would have to look far to find better video quality in a camera in this class. AXIS M3016 offers 3 MP video at 30 fps, with WDR for excellent video quality both in the brightest & the darkest area of a scene. It also gives you large area coverage with a wide field of view.\n\n\n\n Great on performance. Small on price\n\n\n\n AXIS M3015 comes with the advanced Axis Zipstream technology that keeps storage & bandwidth requirements low & video quality high. The Axis Corridor Format option allows for optimal coverage of isles & corridors. AXIS M3016 is also equipped with a memory slot for optional local video storage. & it&153;s designed for exceedingly fast, easy & cost-effective installation & integration.\n \n \n\n Specifications\n \n Performance Number of languages 11 Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian PTZ modes Digital PTZType IP security camera Connectivity technology Wired PTZ control (Pan/ Tilt/ Zoom) Yes Auto-tracking Yes Wide Dynamic Range (WDR) Yes Certification EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A & B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 62368-1, IEC 60068"2"6, IEC 60068"2"27, IEC 60068"2"2, IEC 60068"2"14 Design Form factor Dome Product colour Black, White Mounting type Ceiling/ Wall Housing material Aluminium, Polycarbonate Camera Minimum illumination 0.35 lx Viewing angle, horizontal 152&176; Viewing angle, vertical 80&176; Tilt angle range-85
- 85&176; Pan range-105
- 105&176; Angle of rotation 350&176; Camera shutter speed 1/30
- 1/32500 s Progressive scan Yes Image sensor Sensor type CMOSProgressive scan Yes Optical sensor size 25.4 / 3 mm (1 / 3") Lens system Maximum aperture number 2.4 Fixed focus Yes Fixed focal length 1.8 mm Video Full HDYes Image quality adjustment Brightness, Contrast, Sharpness Text caption overlay Yes Video compression formats H.264, H.265, HEVC, M-JPEG, MPEG4 Maximum resolution 2304 x 1296 pixels Supported video modes 1080p Frame rate 30 fps Video streaming Yes Networking Bluetooth No Ethernet interface type Fast Ethernet Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at Quality of Service (Qo S) support Yes Streaming method Multicast Ethernet LANYes Cabling technology 10/100 Base-T (X) Wi-Fi No Supported network protocols I Pv 4/v 6, HTTP, HTTPS, SSL/TLS, Qo S Layer 3 Diff Serv, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPn PTM, SNMP v 1/v 2c/v 3 (MIB-II), DNS, Dyn DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDPStorage Card reader integrated Yes Compatible memory cards Micro SD (Trans Flash), Micro SDHC, Micro SDXC, SDFlash memory 512 MBPorts & interfaces Ethernet LAN (RJ-45) ports 1 Connectivity technology Wired Security Intelligent Video Surveillance (IVS) system features People counting Video motion detection Yes IP address filtering Yes HTTPS encryption Yes Password protection Yes Power Power source type Po E Power consumption (max)3.8 WPower over Ethernet (Po E) Yes Power consumption (typical)2.9 WCertificates Certification EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A & B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 62368-1, IEC 60068"2"6, IEC 60068"2"27, IEC 60068"2"2, IEC 60068"2"14 Operational conditions Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-40
- 65 &176;COperating relative humidity (H-H)15
- 85% Weight & dimensions Height 115 mm Diameter 9.1 cm Weight 350 g Packaging content Number of cameras 1 Manual Yes Technical details Lens mount interface M12 Iris Yes Other features Video compression formats H.264, H.265, HEVC, M-JPEG, MPEG4\n \n \n\n\n\n\n\n
