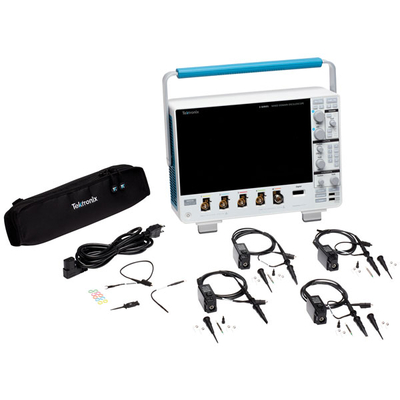

Tektronix 3-AFG Installed Option; Arbitrary Function Generator

Product Description

Tektronix MDO34 3-BW-500 Mixed Domain Oscilloscope Upgrade Options
- Tektronix 3-AFG, The 3 Series MDO optional integrated Arbitrary Function Generator (3-AFG) is perfect for simulating sensor signals within a design or adding noise to signals to perform margin testing. The integrated function generator provides output of predefined waveforms up to 50 MHz for sine, square, pulse, ramp/triangle, DC, noise, sin (x)/x (Sinc), Gaussian, Lorentz, exponential rise/fall, Haversine & cardiac. The arbitrary waveform generator provides 128 k points of record for storing waveforms from the analogue input, a saved internal file location, a USB (Universal Serial Bus) mass storage device, or from an external PC. Transfer waveform files to your 3 Series MDO edit memory via USB (Universal Serial Bus) or LAN or using a USB (Universal Serial Bus) mass storage device to be output from the AFG in the oscilloscope. Refer to the data sheet for further information on the Arbitrary Function Generator (3-AFG) installed option. Tektronix 3-AFG Installed Option; Arbitrary Function Generator
