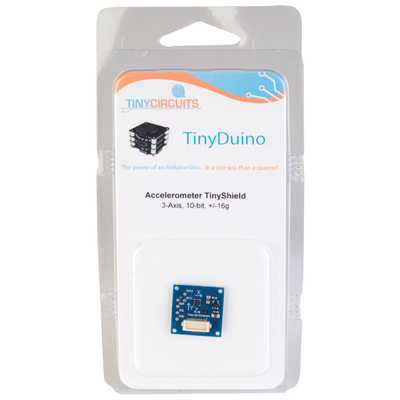

TinyCircuits ASD2611-R Miniature Arduino Compatible Accelerometer. ..

Product Description

Tiny Circuits Small Form Factor
- Tiny Circuits ASD2611-R, This Tiny Circuits Tinyshield accelerometer shield features the high performance & low power Bosch BMA250 10-bit 3-axis accelerometer. The BMA250 allows measurement of acceleration in three perpendicular axes & thus senses tilt, motion, shock, & vibration in your projects. There is also an integrated temperature sensor. Even though the BMA250 is designed to run at 1.8V DC, the Tiny Shield incorporates circuitry to ensure operation over the Tiny Duino operating range up to 5V DC. You can also use this shield with a different MCU, there are 0.1in (2.54mm) pitch solder pads for power, ground, the two I2C signals & two accelerometer interrupt signals along the side of the Tiny Shield. Tiny Circuits ASD2611-R Miniature Arduino Compatible Accelerometer Shield
