Brainboxes ED-538 Ethernet To 4 Relays And 8 Digital Inputs + RS48...

Product Description

Brainboxes ED Series Industrial Ethernet to IO Devices

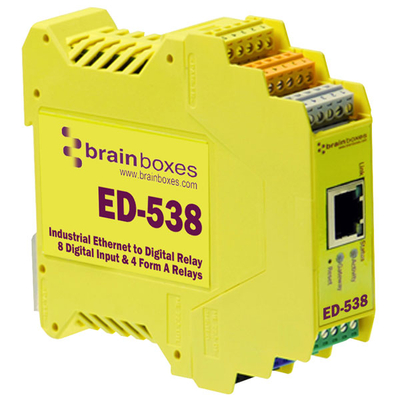

- Brainboxes ED-538, Ethernet to DIO device: 8 non-isolated digital input channels & 4 digital type A relay outputs. Powerful ARM 80 M Hz, 32-bit CPU. Offers robust & intelligent 'control side' devices that provide the interface to systems on the 24V DC factory floor environment, commonly referred to as 'process side'. The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It behaves as a web relay controlled over ethernet. in addition Brainboxes supply a suite of APIs & sample code to communicate with the device using Microsoft. NET framework Visual Basic, C, C++, Java, Javascript, PHP & more. The device can be configured & secured from a web browser & can be installed as a COM port on a Windows PC to give complete backwards compatibility essential for legacy applications. Relay specification: 5A @ 30V DC, 5A @ 250V AC, 5A @ 110V AC. Brainboxes ED-538 Ethernet to 4 Relays & 8 Digital Inputs + RS485 Gateway
