Most Suited to OO HO N Gauge Model Railways This 3 amp stationary decoder is NMRA compliant & has four outputs best thought of as 4 decoders in 1 each with its own subaddress This decoder is used for the operation of points & accessories with PRODIGY ADVANCE & can operate points individually or as part of a routesetting process This decoder measures 55 x 45 x 20mm ...

The Hornby Select unit is an ideal way to enter the digital age of controlling a model railway The following are some of the many features & benefits that the Hornby Select digital Control has to offer Controls up to 10 trains simultaneously provided the necessary power is available The 1 amp power supply included allows for up to three locomotives providing power is available to be running at any one time Supports a maximum four amp power supply 3 amps to the track 1amp to the accessory outlet available separately Incorporates 128 speed steps for smooth control of locomotives Can programme locomotives with up to 99 levels of acceleration deceleration The Select Unit supports up to nine functions per locomotive if required Able to programme up to 59 locomotives or other items containing a locomotive decoder & 40 points or other items that rely on a solenoid for operation Eg Electrically operated signals electrically operated uncouplers & point motors It should be noted that items containing a locomotive decoder should always be programmed between 1 59 This will ensure that the locomotive will function as expected All items connected to Accessory Decoders should be programmed between 60 99 The Select accommodates decoders that incorporate a functioning feed back system Supports Xpress Net protocol Uncontrolled 15V DC analogue accessory outlet 2 digit LCD display External boosters can be supported through the Xpress Net port A standard RJ12 sixway cable can be used to connect the Select to a booster which has an RJ12 socket Up to 9 Select units can be connected together for individual control of 9 locomotives providing power is available The Select can be used as a Walkabout Unit when connected to the Hornby Elite Digital Unit ...

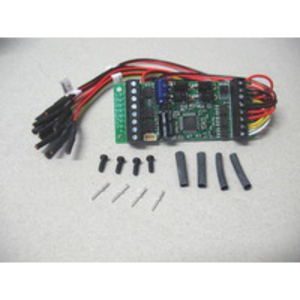

Decoder scale NTT with Plu X12 connector DCC Multiprotocol decoder with load regulation for DC & Faulhaber motors With higher current capacity for small locos with High current demands N TT OOHO Features Regulated Multiprotocol decoder for DCC Motorola with automatic system recognition for analog DC Suitable for DC & Bell armature motors up to 07A 15A peak current Quiet motor running with 1875 K Hz control frequency 14 27 28 31 & 128 speed steps depending on the data format Short 1127 & long 1289999 addresses NMRA compatible Minimum maximum & middle speeds adjustable Speed step table for 14 28 & 31 speed steps Main line programming DCC Shunting speed half speed switched with F3 Direction dependent dimmable lighting switched via F0 Two additional function outputs With solder pads for connecting Uhlenbrock Intelli Sound modules or LISSY Mini transmitter Reacts to DCC brake signal eg from Power 3 Brake diode or braking section in DC operation All outputs have short circuit protection Conventional DC operation with automatic switching between DC & digital mode All CVs programmable by digital devices with DCC & Motorola formats Programmable via register direct CV or page mode in DCC operation Updatable using Flash memory

Dimensions 145 x 83 x 24mm

...

The Hornby Elite Digital Controller is the unit for those who wish to take their train control to a new & advanced level The Elite is more than capable of answering the needs of most railway layouts twin control with press switch function 17 button keyboard wide function LCD screen display four amp power with facilities to accept up to six amps the capabilities of registering 255 locomotive addresses as well as 255 accessory addresses including point control plus a USB (Universal Serial Bus) portal for linking to a PC The Hornby Elite is quite literally designed for the model layout that demands more control The following are just some of the many features & benefits that the Hornby Elite Digital Control has to offer Controls up to 10 trains simultaneously provided the necessary power is available The 4 amp power supply included allows for up to nine locomotives providing power is available to be running at any one time The four amp power supply allows for 3 amps to the track with 1 amp to the accessory outlet Incorporates 128 speed steps for smooth control of locomotives Can programme locomotives with up to 99 levels of acceleration deceleration The Elite Unit supports up to nine functions per locomotive if required Able to programme up to 254 locomotives or other items containing a locomotive decoder & 255 points or other items that rely on a solenoid for operation Eg Electrically operated signals electrically operated uncouplers & point motors The Elite accommodates decoders that incorporate a functioning feed back system Supports Xpress Net protocol A PC interface socket allows for the upload of new firmware & the use of third party applications Uncontrolled 15V DC analogue accessory outlet An LCD screen supports alpha numeric information input External boosters can be supported through the Xpress Net port or by direct connection to the booster outputs A standard RJ12 sixway cable can be used to connect the Select to a booster which has an RJ12 socket Up to 8 Select units can be connected to the Elite for individual control of 9 locomotives providing power is available The Select can be used as a Walkabout Unit when connected to the Hornby Elite Digital Unit The Elite unit is Railcom Lenz Syztems enabled This communication occupancy detection method between a locomotive & controller will not function until the necessary software becomes available This exciting development enables messages to be sent back to a PC via the Xpress Net port Railcom allows communication from the locomotive to the controller Occupancy detection & the relaying of location information to a controller & from a controller to a PC will require occupancy detection hardware & a change to the

Specification of Xpress Net & Railcom Separate Programming Track Outlet The Elite is capable of speed profiling locomotives for double heading To run the elite from your PCLaptop requires a lead that does not come with the product We do not stock the cable but it can be purchased from the following website a targetblank hrefhttpwwwdabscomproductscablestogo 2musb 20abcblblk 63M8htmlqusb cable Click here to visit Dabscomap

...

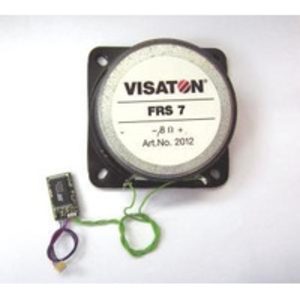

Characteristics Intelligent sound control with up to 40 seconds of original sound coordinated to the operating situation ie speed etc of the locomotive Generates the operating motor sound of the locomotive squealing brakes incidental noises while stationary mechanical devices eg air pumps etc 3 in addition adjustable noises such as whistle bell horn uncoupling sound or door warning signal Sound changes as engine load changes such as updown grade operation reaction to load change can be adjusted The Smart Start When starting the locomotive the sound module stops the decoder from operating until the actual starting of the vehicle synchronises with the sound of the motor The locomotive does not move until the very starting sound begins Adjustable volume & audio muting the sound can be faded or turned off by function key e g during travels into & away from a shadow station Efficient digital output circuitry renders sounds over 3 independent channels Up to three modules can be connected to a locomotive decoder e g for multiengine locomotives Comes with speaker & resonating chamber Locomotive sounds can be downloaded various sounds are available at wwwuhlenbrockde Description The Intellisound sound module is an auxiliary module for locomotive decoders with the standardized SUSI interface & can be identified by the appropriate logo The sound modules supply original faithfully reproduced sounds of real locomotives Using intelligent sound control the sounds produced are adapted to match the locomotives actual operating environment Even when driving uphill & downhill the sounds change to accurately reflect prototypical operation When the locomotive is supposed to start the sound module will stop the motor from working via the decoder until the actual starting of the vehicle synchronises with the sound of the motor A diesel locomotive for instance roars right before it starts The decoder stops the train from moving until the roaring is over & the motor sound begins If the locomotive is stopped the appropriate squealing brake sound is produced While stationary different operating noises for therespective type of locomotive are produced by chance coal shovels compressed air With diesel locomotives the engine startup & shutdown sounds can be heard when this function is switched on & off In addition to the driving motor sound of the locomotive which can be switched on & off using the appropriate function key 3 more sounds can be triggered by function keys Here depending upon the type of locomotive as displayed in the table below whistle horn bell door warning closing signal or uncoupling sounds can be played If the locomotive travels out of the visible range of a model railway facility eg into a shadow station then audio muting can be softly faded out by a special function key By pressing the function key again the sound is gradually faded in adapting itself to the existing driving conditions i e sound synchronized to the motor speed 36190 PIKO Sound Modul Installation of a Sound modul Connecting the SUSIinterface Insert the plug with the red blue grey & black cable into the appropriate socket of your locomotives motor decoder The sound module receives its power & data from the decoder Loudspeaker Each speaker needs a resonator It is sometimes possible to use the locomotive body or the wagon body as resonator If this is not possible then please use the included plastic resonator If using the plastic resonator please make sure that it is glued airtight to the speaker Please do close with glue also the hole of the speaker cables as well as any other mounting hole present on the speakerresonator The speaker is to be mounted inside the locomotive so that it faces the widest possible aperture towards the outside e g close to a locomotive window behind an open grid etc description Soundkit G BR 182 scale G type of product Soundmodul mit Lautsprecher ...

Great for modeling bushes saplings shrubs hedges & especially makes exquisite trees Available in six colors The fine leaf detail is superb & adds a new dimension to a layout A Tree Armature sample is included in each package To use strip cut or break from branches Use the debris to detail your layout Glue to layout with Scenic Glue Make trees using Tree Armatures Hobe Tac & Fine Leaf Foliage Purchase the Scenery Manual for additional information on how to use the Landscaping System ...
