Unique, continuous Easy Rail™ technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. It's also a perfect solution for hardcore gamers. 2 year standard warranty with all PSUs
- simply register your PSU when purchased at http://xfxforce.com/en-gb/ Help/ Support.aspx to obtain a 5 year warranty. Register within 30 days of purchase, & provide proof of purchase for any warranty actions. General +12V Rail Outputs: Single ATX12V 2.2 & ESP12V 2.91 Compliant: Yes Maximum Wattage (W):850 Performance Category: Enthusiast UPC Number:778656058811 Technologies Cross Fire Ready: Yes SLI Ready: Yes Ratings & Efficiencies AC Input Current (Arms):11A
- 5.5A AC Input Frequency (Hz):50/60 Hz AC Input Voltage (Vac):100
- 240 Active Power Factor Correction (PFC): Yes DC Output Voltage Regulation:±3% Efficiency @ Typical Load:up to 90% Energy-Efficiency:80 Plus Bronze Certified Other Features DC to DC Converters (+3.3 & +5V): Yes EZ Grip Connectors: Yes High Reliable 105°C Japanese Capacitors: Yes Solid State Capacitors: Yes Load Range +12V1 (m W):TBA Max +12V1 Output Current (A):70 Max +12V1 Power (W):840 Max +3.3V & +5V combined power (W):125 Max +3.3V Output Current (A):25 Max +5V Output Current (A):25 Max +5VSB Output Current (A):3 Max +5VSB Power (W):15 Max -12V Output Current (A):0.8 Max -12V Power (W):6 Wattage (W):850W Cable Connectors Modular 6+2-pin PCI-E:6 Modular ATX12V / EPS12V: One 4+4-pin, One EPS 12V 8-pin Modular FDD:1 Modular Motherboard Connector:20+4 pin Modular Peripheral: Up to 5 Modular SATA: Up to 10 Safety & Protection Over Current Protection (OCP): Yes Over Power Protection (OPP): Yes Over Temperature Protection: Yes Over Voltage Protection (OVP): Yes Short Circuit Protection (SCP): Yes Under Voltage Protection (UVP): Yes Physical Cooling Fan Size (mm):120 Intake Fan: Airflow (CFM/min):80.5 Intake Fan: Diameter (mm):120 x 120 x 25 mm Intake Fan: Speed:2050 rpm Package

Dimensions (cm):31.9 x 21.0 x 16.3 Package

Dimensions (inch):12.55 x 8.26 x 6.42 Package Weight (Kg):2.76 est. Package Weight (lb):6.08 est. PSU Dimension (cm):8.6 x 14.0 x 16.0 PSU Dimension (inch):3.4 x 5.5 x 6.3 Certifications & Standards C-tick: Yes CB: Yes TUV: Yes






...

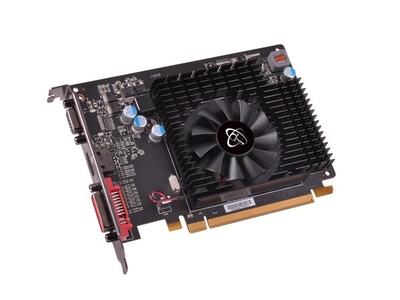

The XFX ATI Radeon HD 5450 graphics card offers everything you need for gaming & HD home entertainment in one package. Do more on your PC with ATI stream technology, which accelerates even the most demanding applications. The XFX ATI Radeon HD 5450 fully supports Microsoft Direct X 11 which enables real-time rendering with ultra-realistic characters & incredible 3D imagery. Specifications GPU
- HD 5450 Memory
- 512MB DDR3 Outputs
- HDMI, DVI, VGA Bus
- PCI-Express



...

The XFX AMD Radeon HD 6400 graphics card delivers discrete graphics performance thats perfect for every day computing. Multitask with AMDs Eye Speed technology & accelerate applications. Eyefinity technology lets you spread work across up to three displays so you can watch movies in vivid HD & multitask with impressive speed. With Direct X 11, the XFX AMD Radeon HD 6400 graphics card gets a performance boost, delivering advance technologies with superb Direct X 11 support. ...

The XFX AMD Radeon HD 6450 graphics card delivers discrete graphics performance that’s perfect for every day computing. Multitask with AMD’s Eye Speed technology & accelerate applications. GPU Clock
- 625 MHz Chipset version
- Caicos Pro Memory Bus
- 64 bit Memory Clock
- 800 MHz Memory Size
- 2 GB Memory Type
- DDR3 Dual link Support
- Y HDMI Ready
- Y Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DVI x 1 Output
- HDMI x 1 Output
- VGA x 1












...

This high-powered card

Includes:: the latest video features as well as second-generation support for Direct

...

Enjoy the latest gaming titles with this fully Microsoft Direct X 11-compatible GPU which offers mind-blowing lifelike HD graphic detail & real Stereoscopic 3D gaming, for a truly immersive HD gaming experience. Expand your visual real estate with ATI Eyefinity Multi-Display Technology which lets you see more & dominate the battlefield. Now with AMD App Acceleration, you can power through even the most bandwidth-hungry media rich applications with blazing speeds. Whether its gaming or productivity, this card can do it all. Chipset version: Juniper XT GPU Clock:850 MHz Memory Bus:128 bit Memory Clock:4.8 GHz Memory
Size:1 GB Memory Type:DDR5 HDMI Ready:Y Max Supported Resolution (ANALOG):2048 x 1536 Max Supported Resolution (DIGITAL):2560 x 1600 Output
- DL-DVI:1 Output
- HDMI:1 Output
- VGA:1 Dual link Support:Y



...

With the 6000 series, XFX is literally putting you in the game. The AMD Radeon HD 6850 is 3-D ready & one of the first HDMI 1.4a & Display Port 1.2 solutions for Stereoscopic 3-D on the market. The AMD Radeon HD 6850 ushers in a new era of gaming that takes users to an entirely new level. The AMD 3-D experience is truly immersive & seamless. AMD has also teamed up with other Open 3-D ecosystem partners to provide consumers with more choice, more innovation & lower cost. Specifications GPU
- AMD HD 6850 Core Clock
- 775 M Hz Memory
- 1GB DDR5 Memory Bus
- 256bit Memory Speed
- 4000 M Hz Outputs
- Dual DVI, Dual Mini Display Port, Single HDMI Interface
- PCI-Express Recommended Power Supply
- 500







...

With the 6000 series, XFX is literally putting you in the game. The AMD Radeon HD 6850 is 3-D ready & one of the first HDMI 1.4a & Display Port 1.2 solutions for Stereoscopic 3-D on the market. The AMD Radeon HD 6850 ushers in a new era of gaming that takes users to an entirely new level. The AMD 3-D experience is truly immersive & seamless. AMD has also teamed up with other Open 3-D ecosystem partners to provide consumers with more choice, more innovation & lower cost. Microsoft Direct X 11 Support ATI Eyefinity Technology AMD HD3D Technology AMD Advanced Parallel Processing Technology Microsoft Windows 7 Support 40nm Process Technology 3rd Generation Tera Scale Engine

Specification Specifications Chipset HD6850 Bus Type PCI-E 2.1 GPU Clock 775 MHz Memory Bus 256 bit Memory Clock 4.0 GHz Memory Size 1 GB Memory Type DDR5 Stream Processors 960 Thermal Solution Fansink Minimum Power Supply Requirement 500 Watt XFX Recommended Power Supply XFX 650W XXX edt PSU Outputs: Max Supported Resolution (ANALOG) 2048 x 1536 Max Supported Resolution (DIGITAL) 2560 x 1600 Output
- Display Port 1 Output
- DVI 2 Output
- HDMI 1




...

With the 6000 series, XFX is literally putting you in the game. The AMD Radeon HD 6850 is 3-D ready & one of the first HDMI & Display Port 1.2 solutions for Stereoscopic 3-D on the market. The AMD Radeon HD 6850 ushers in a new era of gaming that takes users to an entirely new level. The AMD 3-D experience is truly immersive & seamless. AMD has also teamed up with other Open 3-D ecosystem partners to provide consumers with more choice, more innovation & lower cost. This high-speed graphics card outdoes the competition with 800 M Hz, a 4 G Hz memory clock, DP + HDMI + Dual DVI which allows for play across four screens & a shader speed of 800 to ensure that graphics are crisp & life-like. Along with this series XFX debuts the 3E Trilogy, incorporating AMD Eye-Definition (utilizing AMDs HD3D technology & Direct X 11 for explosive performance & stunning effects), AMD Eyefinity (which supports multi-display gaming) & AMD Eyespeed (improves video image quality & application performance for amazing visuals) technologies. The AMD Radeon HD 6850 offers no compromise performance with flawless image quality so users arent just playing the game
- theyre in it. Specifcations GPU
- AMD HD 6850 Memory
- 1GB GDDR5 Core
- 800 M Hz (standard 775 M Hz) Memory Clock
- 4.2 G Hz Outputs
- Dual DVI, HDMI, Display Port Bus
- PCI-Express






...

The AMD Radeon HD 6870 is 3-D ready & one of the first HDMI & Display Port 1.2 solutions for Stereoscopic 3-D on the market. The AMD Radeon HD 6870 ushers in a new era of gaming that takes users to an entirely new level. The AMD 3-D experience is truly immersive & seamless. AMD has also teamed up with other Open 3-D ecosystem partners to provide consumers with more choice, more innovation & lower cost. Along with the series XFX debuts the 3E Trilogy, incorporating AMD eye-definition, AMD Eyefinity & AMD Eyespeed technologies. Specifications GPU
- HD 6870 Memory Size
- 1GB Memory Type
- GDDR5 Core Clock
- 900 M Hz Memory Clock
- 4.2 G Hz Memory Bus
- 256bit Outputs
- DVI x 2, HDMI x 1, Mini Display Port x 2 External Power 6pin
- x 2 Minimum Power Supply Requirement 500 Watt AMD Crossfire Ready
- Yes AMD Eyefinity Technology
- Yes Card Profile
- Double Card

Dimensions (cm)
- 22 x 11.12 x 3.81













...
