ASUS HD6870 Direct CU boosts performance with superior metal components & all-copper cooling 915 M Hz Factory Overclocked edition Super Alloy Power technology delivers 15 Percent performance increase, 2.5 times longer lifespan & 35 Degrees cooler operation 20 Percent Cooler with exclusive Direct CU thermal solution Up to 50% Percent faster clock speed with exclusive Voltage Tweak

Specification Graphics Engine AMD Radeon HD 6870 Bus Standard PCI Express 2.1 Video Memory GDDR5 1GB Engine Clock 915 MHz Memory Clock 4200 MHz (1050 MHz GDDR5 ) RAMDAC 400 MHz Memory Interface 256-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 (via DVI to HDMI adaptor x 1 ) Display Port: Yes x 2 (Regular DP) HDCP Support: Yes Accessories 1 x Cross Fire cable 1 x Power cable 1 x DVI to D-Sub adaptor 1 x DVI to HDMI adaptor Software ASUS Utilities & Driver ASUS Features Direct CU Series Dimensions 11 " x 5 " Inch

...

CPU LGA1150 socket for 4th Generation Intel Core™ i 7/ i 5/ i 3, Pentium/ Celeron Processors Supports 22nm CPU Supports Intel Turbo Boost Technology 2.0* * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. ** Refer to www.asus.com for CPU support list. Chipset
- Intel Z87 Express Chipset Memory 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz, non-ECC, un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details. ** Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors List). Expansion Slots 2 x PCI Express 3.0/2.0 x 16 slots (Single at x 16, Dual at x 8/x 8) 1 x PCI Express 2.0 x 16 slot [black] (Max. at x 4 mode, compatible with PCIe x 1 & x 4 devices) 1 x PCI Express 2.0 x 1 slot VGA Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: HDMI/DVI port
- Supports HDMI with max. resolution 4096x 2160@24 Hz / 2560x 1600@60 Hz
- Supports DVI with Max. resolution 1920x 1200@60 Hz Supports Intel In Tru™ 3D/ Quick Sync Video/ Clear Video HD Technology/ Insider™ Supports up to 2 displays simultaneously Maximum shared memory of 1024MB Multi-GPU support Supports NVIDIA Quad-GPU SLI™ Technology Supports AMD Quad-GPU Cross Fire X™ Technology Storage Intel Z87 Express Chipset:
- 6 x SATA 6 Gb/s ports (brown) with RAID 0, 1, 5, 10 support
- Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology* * These functions will work depending on the CPU installed. * Supports on Intel Core™ processor family with Windows 7 operating systems. ** These SATA ports are for data hard drivers only. ATAPI devices are not supported. LAN Intel I217V Gigabit LAN controller Audio Realtek ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, & Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O USB Intel Z87 Express Chipset- supports ASUS USB (Universal Serial Bus) 3.0 Boost UASP Mode.*
- 2 x USB (Universal Serial Bus) 3.0/2.0 ports at mid-board for front panel support
- 4 x USB (Universal Serial Bus) 3.0/2.0 ports at back panel (blue)
- 8 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel) * The USB (Universal Serial Bus) 3.0 ports only support Windows 7 or later versions. UASP standard only supports Windows 8 Exclusive TUF Features " Ultimate COOL!" Thermal Solution
- TUF Thermal Radar 2 "TUF ENGINE!" Power Design
- 8+2 Digital Phase Power Design
- TUF Components (Choke, Ti-Cap & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility " Safe & Stable!" Guardian Angel
- ESD Guards
- Mem OK! Other Special Features
- USB (Universal Serial Bus) 3.0 Boost featuring speedy USB (Universal Serial Bus) 3.0 transmission
- USB (Universal Serial Bus) BIOS Flashback with USB (Universal Serial Bus) BIOS Flashback Wizard for EZ BIOS download scheduling
- USB (Universal Serial Bus) Charger+ featuring quick-charging function for all smart devices
- ASUS Remote GO! with Cloud GO!, DLNA Media Hub, Remote Desktop, File Transfer
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- AI Suite 3
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS Crash Free BIOS 3
- EZ Update
- Disk Unlocker
- ASUS EZ Flash 2
- Multi-language BIOS Back Panel I/O Ports
- 1 x DVI-D port
- 1 x HDMI port
- 1 x Optical S/PDIF Output
- 1 x LAN (RJ45) port
- 4 x USB (Universal Serial Bus) 3.0/2.0 ports (blue, 1 supports USB (Universal Serial Bus) BIOS Flashback)
- 4 x USB (Universal Serial Bus) 2.0/1.1 ports
- 8-channel Audio I/O ports Internal I/O Connectors
- 1 x USB (Universal Serial Bus) 3.0/2.0 connector supports additional 2 USB (Universal Serial Bus) 3.0/2.0 ports (19-pin; moss green)
- 2 x USB (Universal Serial Bus) 2.0/1.1 connectors support additional 4 USB (Universal Serial Bus) 2.0/1.1 ports
- 6 x SATA 6 Gb/s connectors (brown)
- 1 x CPU Fan connector (4-pin Black) for both 4-pin (PWM mode) & 3-pin (DC mode) CPU coolers control
- 1 x CPU OPT Fan connector (4-pin Black)
- 4 x Chassis Fan connectors (4-pin Black)
- 1 x Assistant Fan connector (3-pin White)
- Front panel audio connector (AAFP)
- 24-pin EATX Power connector
- 8-pin EATX 12V Power connector
- System Panel (Q-Connector)
- 1 x USB (Universal Serial Bus) BIOS Flashback button
- 1 x Mem OK! button
- 1 x Direct Key button
- 1 x DRCT (Direct Key) header
- 3 x T_ Sensor (Thermal Sensor) headers
- 1 x S/PDIF Out header
- 1 x Thunderbolt header
- 1 x TPM header
- 1 x Clear CMOS jumper BIOS
-
- 64 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.7, Wf M2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS
- ASUS EZ Flash 2, ASUS Crash Free BIOS 3, My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions, & ASUS DRAM SPD (Serial Presence Detect) memory information Form Factor
- u ATX Form Factor, 9.6”x 9.6” (24.4cm x 24.4cm)

































































...

TUF m ATX Intel Z97 military-grade motherboard with advanced cooling & even more accessible price LGA1150 Socket for the 5th, New 4th & 4th Generation Intel Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors Intel Z97 Express Chipset TUF ICe
- Your Total Cooling Commander Thermal Radar 2
- Customized Fan Tuning, Complete System Cooling TUF Components [TUF 10K Ti-Caps, TUF New Alloy Choke & MOSFETs; Certified by Military-standard]
- Certified for Tough Duty Server-grade Tests
- Systematically-tested Stability ESD (Anti-Surge)
- Strong ESD Protection for Extended Component Lifespan Specifications CPU Intel Socket 1150 for the 5th/ New 4th/4th Generation Core™ i 7/ Core™ i 5/ Core™ i 3/ Pentium/ Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types * Refer to asus website for CPU support list Chipset Intel Z97 Memory 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs * Refer to asus website for the Memory QVL (Qualified Vendors Lists) Graphics Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: HDMI/DVI/ Display Port ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports Display Port with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel In Tru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays Multi-GPU Support Supports NVIDIA Quad-GPU SLI™ Technology Supports AMD Quad-GPU Cross Fire X™ Technology Expansion Slots 2 x PCIe 3.0/2.0 x 16 (Single at x 16, dual at x 8/x 8, ) 1 x PCIe 2.0 x 16 (x 4 mode, black) 1 x PCIe x 1 Storage Intel Z97 chipset: 6 x SATA 6 Gb/s port (s), brown, Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *1 LAN Intel I218V, 1 x Gigabit LAN Controller (s) Audio Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature :
- Absolute Pitch 192k Hz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port (s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation & greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left & right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone & speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs USB (Universal Serial Bus) Ports Intel Z97 chipset: 6 x USB (Universal Serial Bus) 3.0/2.0 port (s) (4 at back panel, blue, 2 at mid-board) Intel Z97 chipset: 8 x USB (Universal Serial Bus) 2.0/1.1 port (s) (4 at back panel, black, 4 at mid-board) Special Features TUF

Features: TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
- TUF ICe Safe & Stable! Guardian Angel :
- TUF ESD Guards ASUS Exclusive Features :
- Mem OK!
- AI Suite 3
- Ai Charger
- USB (Universal Serial Bus) Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB (Universal Serial Bus) 3.0 Boost
- Disk Unlocker
- Turbo LAN Interactive Home Cloud
- Media Streamer ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector Operating System Support Windows 8.1 Windows 8 Windows 7 Back I/O Ports 1 x DVI-D 1 x Display Port 1 x HDMI 1 x LAN (RJ45) port (s) 4 x USB (Universal Serial Bus) 3.0 (blue) 4 x USB (Universal Serial Bus) 2.0 1 x Optical S/PDIF out 5 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.0 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.0 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x TPM header 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x CPU OPT Fan connector (s) (1 x 4 -pin) 4 x Chassis Fan connector (s) (4 x 4 -pin) 1 x Assistant Fan connector (s) (1 x 3 -pin) 1 x S/PDIF out header (s) 1 x Thunderbolt header (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x DRCT header (s) 1 x Mem OK! button (s) 3 x Thermal sensor connector (s) 1 x Clear CMOS jumper (s) 1 x USB (Universal Serial Bus) BIOS Flashback button (s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.7, Wf M2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, Crash Free BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions, & ASUS DRAM SPD (Serial Presence Detect) memory information Manageability Wf M 2.0, DMI 2.7, WOL by PME, PXE Form Factor m ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm ) Note *1: These functions will work depending on the CPU installed











































...

Get the competitive edge with ROG Strix GS-AX3000, a Wi-Fi 6 gaming router that gives you the fastest, smoothest Wi-Fi gaming connections ever. With ultrafast Wi-Fi speeds up to 3000 Mbps, it's ready for the most intense matches, and with fully customizable ASUS Aura RGB lighting effects, it looks great too. If you take gaming seriously, you need the GS-AX3000! ROG STRIX GS-AX3000 GS-AX3000 dual-band Wi-Fi 6 gaming router, PS5 compatible, Mobile Game Mode, VPN Fusion, lifetime free internet security, Instant Guard, Gear Accelerator, Gaming Port, Adaptive Qo S, port forwarding, ASUS Aura RGB New-generation Wi-Fi 6 – Enjoy ultrafast speeds up to 3000 Mbps with 160 MHz Wi-Fi 6 channels Fully optimized gaming
- Mobile Game Mode, dedicated Gaming Port & Gear Accelerator let you optimize any type of gaming on mobile, console or PC VPN Fusion – Run a VPN & an ordinary internet connection simultaneously, allowing maximum speed even if other network users need to use a VPN More privacy, anywhere – Instant Guard secures public Wi-Fi connections anywhere in the world using GS-AX3000, with just a click ASUS Ai Mesh support – Create a flexible, seamless whole-home mesh network with Ai Mesh-compatible routers
...

Get the competitive edge with ROG Strix GS-AX5400, a Wi-Fi 6 gaming router that gives you fast, smooth Wi-Fi gaming connections. With ultra-fast Wi-Fi speeds up to 5400 Mbps, it's ready for the most intense matches, and with fully customizable ASUS Aura RGB lighting effects, it looks great too. If you take gaming seriously, you need GS-AX5400! GS-AX5400 dual-band Wi-Fi 6 gaming router, PS5 compatible, Mobile Game Mode, VPN Fusion, lifetime free internet security, Instant Guard, Gear Accelerator, Gaming Port, Adaptive Qo S, port forwarding, ASUS Aura RGB New-generation Wi-Fi 6 – Enjoy ultrafast speeds up to 5400 Mbps with 160 MHz Wi-Fi 6 channels Fully optimized gaming – Mobile Game Mode, dedicated Gaming Port & Gear Accelerator let you optimize any type of gaming on mobile, console or PC VPN Fusion – Run a VPN & an ordinary internet connection simultaneously, allowing maximum speed even if other network users need to use a VPN More privacy, anywhere – Instant Guard secures public Wi-Fi connections anywhere in the world using GS-AX5400, with just a click ASUS Ai Mesh support – Create a flexible, seamless whole-home mesh network with Ai Mesh-compatible routers ...

Voltage Tweak: to crank up performance by 50%. Super Alloy Power: Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Microsoft Windows 7 Support: Enable PC users to enjoy an advanced computing experience. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. Graphics Engine Ge Force GT440 Bus Standard PCI Express 2.0 Video Memory 1GB GDDR5 Engine Clock 822 MHz CUDA Cores 96 Shader Clock 1644 MHz Memory Clock 3200 M Hz (800 M Hz GDDR5) Memory Interface 128 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output YES X1 (Native) DVI Output YES X1 (Native DVI-I) HDMI Output YES X1 (Native) HDCP compliant YES Software Bundled ASUS Utilities & Driver Dimension The card size is 8.46 x 5.11 x 1.22 inches ...

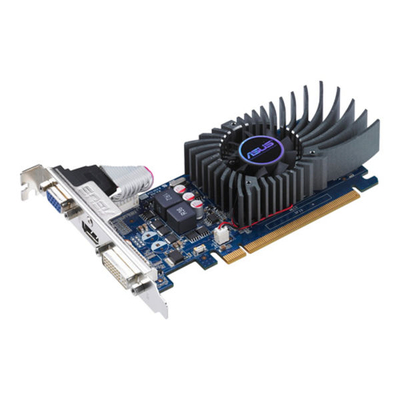

Exclusive 0d B thermal design dissipates heat efficiently without any noise HTPC ready design with low profile bracket bundled Full HD multimedia entertainment with DX11 & HDMI support Specifications Graphics Engine
- NVIDIA Ge Force GT 520 Bus Standard
- PCI Express 2.0 Video Memory
- DDR3 2GB Engine Clock
- 700 MHz Memory Clock
- 1200 MHz (600 MHz DDR3) RAMDAC
- 400 MHz Memory Interface
- 64-bit Resolution
- D-Sub Max Resolution: 2048x 1536, DVI Max Resolution: 2560x 1600 Interface
- D-Sub Output: Yes x 1, DVI Output: Yes x 1, HDMI Output: Yes x 1 HDCP Support
- Yes Low Profile Bracket Bundled
- Yes (1 slots x 2)

Dimensions
- 7.4 " x 4.8 " x 1.6 " Inch













...

Model
- GT610-SL-1GD3-L Graphics Engine
- Ge Force GT610 Bus Standard
- PCI Express 2.0 Open GL
- Open GL 4.1 Video Memory
-




...

This is the Asus GT 610 1GB DDR3 VGA DVI HDMI PCI-E Silent Graphics Card which comes from a leading manufacturer of video cards
-
...

This is the Asus GT 610 1GB DDR3 VGA DVI HDMI PCI-E Graphics Card which is from a leading manufacturer of video cards
- Asus. Asus
...
