Perfect for home theater PC with low profile design & Full HD Blu-ray 3D support 25% longer card lifespan with unique Dust-Proof fan Enhanced durability with GPU Guard & Fuse Protection

Specification Bus Standard PCI Express 2.0 Video Memory DDR3 1G Engine Clock 700 MHz Shader Clock 1400 MHz Memory Clock 1600 MHz (800 MHz DDR3 ) RAMDAC 400 M Hz Memory Interface 128-bit D-Sub Max Resolution 2048 x 1536 DVI Max Resolution 2560 x 1600 D-Sub Output Yes x 1 DVI Output Yes x 1 (DVI-I) HDMI Output Yes x 1 HDCP Support Yes Software Bundled ASUS Utilities & Driver Low Profile Bracket Bundled Yes (1 slots ) x (2 ) Note The card size is 6, 3 inchesx 2.8 inches

...

Voltage Tweak: to crank up performance by 50%. Super Alloy Power: Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Microsoft Windows 7 Support: Enable PC users to enjoy an advanced computing experience. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. Graphics Engine Ge Force GT440 Bus Standard PCI Express 2.0 Video Memory 1GB GDDR5 Engine Clock 822 MHz CUDA Cores 96 Shader Clock 1644 MHz Memory Clock 3200 M Hz (800 M Hz GDDR5) Memory Interface 128 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output YES X1 (Native) DVI Output YES X1 (Native DVI-I) HDMI Output YES X1 (Native) HDCP compliant YES Software Bundled ASUS Utilities & Driver Dimension The card size is 8.46 x 5.11 x 1.22 inches ...

Exclusive 0d B thermal design dissipates heat efficiently without any noise HTPC ready design with low profile bracket bundled Full HD multimedia entertainment with DX11 & HDMI support Specifications Graphics Engine
- NVIDIA Ge Force GT 520 Bus Standard
- PCI Express 2.0 Video Memory
- DDR3 2GB Engine Clock
- 700 MHz Memory Clock
- 1200 MHz (600 MHz DDR3) RAMDAC
- 400 MHz Memory Interface
- 64-bit Resolution
- D-Sub Max Resolution: 2048x 1536, DVI Max Resolution: 2560x 1600 Interface
- D-Sub Output: Yes x 1, DVI Output: Yes x 1, HDMI Output: Yes x 1 HDCP Support
- Yes Low Profile Bracket Bundled
- Yes (1 slots x 2)

Dimensions
- 7.4 " x 4.8 " x 1.6 " Inch













...

Model
- GT610-SL-1GD3-L Graphics Engine
- Ge Force GT610 Bus Standard
- PCI Express 2.0 Open GL
- Open GL 4.1 Video Memory
-




...

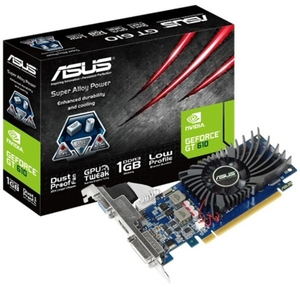

This is the Asus GT 610 1GB DDR3 VGA DVI HDMI PCI-E Silent Graphics Card which comes from a leading manufacturer of video cards
-
...

The powerful new Asus Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card architecture delivers state-of-the-art features. It places you in the frontline of the action in game to highten your experience of all your favourite titles. Features wise It has Direct X 11 with shader model 5 support, GPU accelerated tessellation which allows developers to use more detailed models as it brings thetrue 3D nature of games out in this graphic card. You can see this process in action here & actually switch tessellation settings on or off. The Asus Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card has 2GB of memory on-board which also speeds up the graphics system as more textures can be loaded into memory at one time. PCI express 2.0 further enhances the Asus GT 610’s performance giving it 16 lanes to expand into. The Shader clock raises the bar again to a whopping 1620 MHz with 48 stream processors delivering results, while the core clock zooms along at 820 M Hz. This could be the ultimate visual enhancement to PC systems
- if you have a PC with onboard graphics & fit the Asus Geforce GT 610 GT610-SL-2GD3-L Video Card you will be amazed at the difference this card can make to your PC. It has ground-breaking features that deliver astounding visualization, the 2GB Silent Ge Force GT 610 GT610-SL-2GD3-L Video Card is equipped with NVIDIA CUDA, NVIDIA Phys X & NVIDIA Pure Video Technology HD so it has the latest enhancements to utilize the benefits of major software leaps forward. As well as delivering cutting-edge graphics & sharp image rendering, the Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card means that you can play next-generation games with tessellation technology. The Asus Ge Force GT 610 GT610-SL-2GD3-L Video Card is definitely fit for extreme gamers & movie enthusiasts alike – highly recommended! Manufacturer
- Asus Graphics Engine
- NVIDIA Ge Force GT 610 GT610-SL-2GD3-L Bus Standard
- PCI Express 2.0 Video Memor
- DDR3 2GB Engine Clock
- 810 MHz Memory Clock
- 1.2 GHz (600 MHz DDR3 ) RAMDAc
- 400 MHz Memory Interface
- 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption up to 75 Wno additional PCIe power required Software
- ASUS Utilities & Driver ASUS Features Super Alloy Power Silent Series

Dimensions
- 7.3 " x 4.7 " x 1.6 " Inch NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA Pure Video HD Technology Blu-ray & HD DVD movies are bringing a new level of movie-viewing experience; with high-definition image quality far surpassing standard-definition DVDs. NVIDIA Pure Video HD2 technology provides unsurpassed Blu-ray & HD DVD movie picture quality.












...

Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35°C cooler operation Dust-proof Fan design increases particle resistence & extends card lifespan by up to 25% longer than reference. ASUS low profile HTPC & multimedia-focused graphics cards are optimized for smooth 1280x 1024 streaming & Blu-ray 3D. Plus, low profile brackets bundled for fast setup! GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. Graphics Engine NVIDIA Ge Force GT 620 Bus Standard PCI Express 2.0 Video Memory DDR3 1GB Effective Memory Bandwidth 64-bit Engine Clock 700 MHz CUDA Core 96 Shader Clock 1400 MHz Memory Clock 1200 MHz (600 MHz DDR3 ) Memory Interface 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 HDCP Support: Yes Low Profile Bracket Bundled Yes (1 slots x 2 ) ASUS Features Super Alloy Power

Dimensions 6.5 " x 4.8 " x 0.9 " Inch

...

Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35°C cooler operation Dust-proof Fan design increases particle resistance & extends card lifespan by up to 25% longer than reference. GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. Graphics Engine
- NVIDIA Ge Force GT 620 Bus Standard
- PCI Express 2.0 Video Memory
- DDR3 1GB Engine Clock
- 700 MHz Memory Clock
- 1200 MHz (600 MHz DDR3 ) Memory Interface
- 64-bit Resolution
- D-Sub Max Resolution: 2048x 1536
- DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption
- up to 75 Wno additional PCIe power required ASUS Features Fan Sink Super Alloy Power

Dimensions
- 6.65 " x 4.8 " x 0.9 " Inch











...

Ultra-smooth Full HD 3D Enjoyment Direct contact heatpipes & a large heatsink lower temps by 16% while producing zero noise. Premium alloys in power delivery components defeat heat for cards that run 15% faster & last 2.5 times longer than reference. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface.

Specification
- Graphics Engine
- NVIDIA Ge Force GT 620 Bus Standard
- PCI Express 2.0 Video Memory
- DDR3 2GB Engine Clock
- 700 MHz CUDA Core
- 96 Shader Clock
- 1400 MHz Memory Clock
- 1820 MHz (910 MHz DDR3 ) Memory Interface
- 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 HDCP Support: Yes ASUS Features
- Direct CU Silent Series Power Consumption
- up to 75 Wno additional PCIe power required

Dimensions
- 7.4 " x 4.4 " x 0.6 " Inch















...

Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35°C cooler operation Dust-proof Fan design increases particle resistence & extends card lifespan by up to 25% longer than reference. GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface.

Specification
- Graphics Engine
- NVIDIA Ge Force GT 630 Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine Clock
- 810 MHz CUDA Core
- 96 Shader Clock
- 1620 MHz Memory Clock
- 3.2 GHz (800 MHz GDDR5 ) Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 HDCP Support: Yes ASUS Features Fan Sink Super Alloy Power Power Consumption
- up to 75 Wno additional PCIe power required

Dimensions
- 8.46 " x 5.11 " x 1.22 " Inch














...
