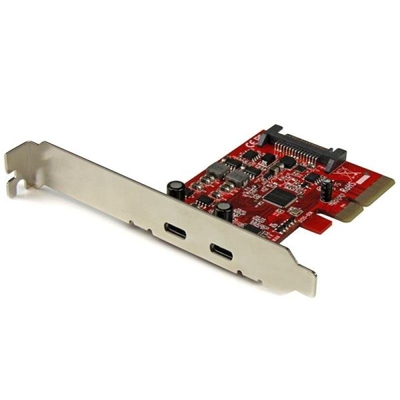

Startech.com 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe

Product Description

Startech.com 2-Port USB (Universal Serial Bus) 3.1 (10 Gbps) Card
- 2x USB (Universal Serial Bus)-C
- PCIe Upgrade your computer to the 10 Gbps speed of USB (Universal Serial Bus) 3.1 Gen 2, by adding two USB (Universal Serial Bus) Type-C ports Transfer files & access USB (Universal Serial Bus) 3.1 devices faster, with up to 10 Gbps throughput Get set for the future of universal connectivity, by adding two USB (Universal Serial Bus)-C ports to your computer Connect high-powered devices using the integrated ports & onboard SATA power connector Works with your existing USB (Universal Serial Bus) 3.0 (5 Gbps) & USB (Universal Serial Bus) 2.0 (480 Mbps) devices, for cost-effective backward compatibility Each USB (Universal Serial Bus) Type-C port delivers up to 3A of power Fits into standard or low-profile systems with a dual-profile design Fast, hassle-free setup PCIe x 4 interface compliant with PCI Express Base

Specification Revision 3.0 USB (Universal Serial Bus)-C ports are Thunderbolt 3 port compatible (10 Gbps data only) Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0, as well as USB (Universal Serial Bus) 3.1 Spec 1.0 & 2.0 Get ready for the future of universal connectivity & high-speed performance. This USB (Universal Serial Bus) 3.1 card adds two USB (Universal Serial Bus)-C ports to your desktop, with a combined bandwidth up to 10 Gbps. With greater bandwidth, you can save time & avoid the performance bottlenecks often associated with other connectivity technologies. Because the card offers USB (Universal Serial Bus) Type-C ports, you can rest assured your computer is compatible with the growing popularity of USB (Universal Serial Bus)-C peripherals. Work faster, with USB (Universal Serial Bus) 3.1 performance By adding 10 Gbps USB (Universal Serial Bus) ports to your computer, you can harness the speed of USB (Universal Serial Bus) 3.1 Gen 2. You can access peripherals at twice the speed of traditional USB (Universal Serial Bus) 3.0 devices. (USB 3.0 is also known as USB (Universal Serial Bus) 3.1 Gen 1.) The card delivers faster file transfer rates, so you can get more work done in less time. With higher data throughput, this PCI Express USB (Universal Serial Bus) 3.1 card is a necessity for external hard drives, hard drive enclosures, & many other USB (Universal Serial Bus) 3.1 peripherals. Plus, the USB (Universal Serial Bus) card integrates a SATA power connector to support high-powered devices, making it ideal to be used with large external storage solutions. Help future proof your computer, with USB (Universal Serial Bus)-C Because it offers two USB (Universal Serial Bus)-C ports, this innovative card enables you to connect the growing number of USB (Universal Serial Bus) Type-C devices today, or in the near future. USB (Universal Serial Bus)-C connectors are small, reversible, & easy-to-use. You can reduce frustration & the risk of damage to your ports by connecting the plug with either side facing up, making insertions easier than past USB (Universal Serial Bus) generations. The card is backward compatible with USB (Universal Serial Bus) 3.0 (5 Gbps) & USB (Universal Serial Bus) 2.0 (480mbps) devices. You can add the card now in preparation for future devices, while still connecting your existing USB (Universal Serial Bus) peripherals using a variety of USB (Universal Serial Bus)-C cables & adapters. Easy to install in different form factors The PCIe USB (Universal Serial Bus)-C card comes equipped with a full-profile bracket, but also

Includes:: a half-height or low-profile bracket, making it easy to install in full or small form-factor desktops or servers. &, the card offers hassle-free installation, with no additional software or drivers required in many natively supported operating systems. The PEXUSB312C is backed by a Star Tech.com 2-year warranty & free lifetime technical support. Applications Deploy at home or in the office, & connect the latest USB (Universal Serial Bus)-C devices, such as HDD enclosures Install the card as a vital hardware component when building a PC Upgrade an older PCIe based desktop from USB (Universal Serial Bus) 3.0 or 2.0 to USB (Universal Serial Bus) 3.1 Gen 2 (10 Gbps) Ideal for backing up files, video editing, & data recovery using high-bandwidth USB (Universal Serial Bus) 3.1 Gen 2 external storage solutions Specifications: Warranty Information Warranty 2 Years Hardware Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia
- ASM1142 Industry Standards USB (Universal Serial Bus) 3.1

Specification Rev. 1.0 USB (Universal Serial Bus)

Specification Rev. 2.0 PCI Express Base

Specification Rev. 3.0 Intel x HCI

Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface USB (Universal Serial Bus) 3.1 Gen 2 Port Style Integrated on Card Ports 2 Performance Maximum Data Transfer Rate 10 Gbps Type & Rate USB (Universal Serial Bus) 3.1 Gen 2
- 10 Gbit/s UASP Support Yes Connector (s) Connector Type (s) 1
- PCI Express x 4 Male External Ports 2
- USB (Universal Serial Bus) Type-C (24 pin) USB (Universal Serial Bus) 3.1 (10 Gbps) Female Internal Ports 1
- SATA Power (15 pin) Plug Software OS Compatibility Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2016 Mac OS X 10.9 to 10.10 Linux 3.5 to 4.4.x LTS version only Special Notes / Requirements Note The card's USB (Universal Serial Bus)-C ports are standard data throughput port. They do not support DP Alt Mode or USB (Universal Serial Bus) Power Delivery. The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5 Gbps. PCI Express Gen 2.0 max throughput is 5 Gbps. PCI Express Gen 3.0 max throughput is 10 Gbps. The available bandwidth (10 Gbps) is shared equally between the two ports. System & Cable Requirements PCI Express enabled computer or server with a PCI Express x 4 slot or higher (x 8, x 16) SATA power connector Environmental Humidity 20~80% RH (Non-condensing) Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Physical Characteristics Product Height 120 mm [4.7 in] Product Length 92 mm [3.6 in] Product Weight 48 g [1.7 oz] Product Width 18 mm [0.7 in]
