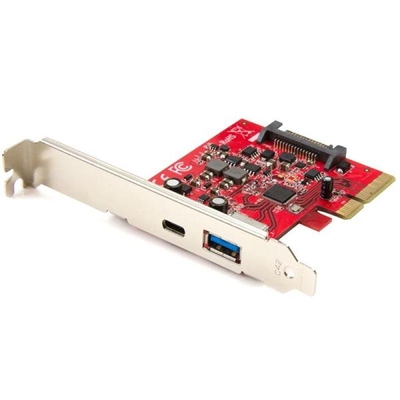

Startech.com 2-Port USB 3.1 (10Gbps) Card - 1x USB-C, 1x USB-A - PCIe

Product Description

Startech.com 2-Port USB (Universal Serial Bus) 3.1 (10 Gbps) Card
- 1x USB (Universal Serial Bus)-C, 1x USB (Universal Serial Bus)-A
- PCIe Upgrade your computer to the 10 Gbps speed of USB (Universal Serial Bus) 3.1 Gen 2, by adding both USB (Universal Serial Bus) Type-C & USB (Universal Serial Bus) Type-A ports Enjoy the faster speed of USB (Universal Serial Bus) 3.1 devices, with up to 10 Gbps throughput Diversify the overall USB (Universal Serial Bus) capabilities of your computer by adding USB (Universal Serial Bus) Type-C & USB (Universal Serial Bus) Type-A ports Connect high-powered devices using the integrated ports & onboard SATA power connector Fits into standard or low-profile systems with a dual-profile design Fast, hassle-free setup Cost-effective backward compatibility, works with USB (Universal Serial Bus) 3.0 & 2.0 devices PCIe x 4 interface compliant with PCI Express Base

Specification Revision 3.0 USB (Universal Serial Bus)-C port is Thunderbolt 3 port compatible (10 Gbps data only) Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0 Compliant with USB (Universal Serial Bus) 3.1 Spec 1.0 & 2.0 This USB (Universal Serial Bus) 3.1 card helps prepare you for the next generation of USB (Universal Serial Bus) connectivity & performance. Now you can access USB (Universal Serial Bus) 3.1 Gen 2 devices at 10 Gbps, which is twice the speed of traditional USB (Universal Serial Bus) 3.0 devices. (USB 3.0 is also known as USB (Universal Serial Bus) 3.1 Gen 1.) Plus, by adding one USB (Universal Serial Bus)-C & one USB (Universal Serial Bus)-A port to your PC, you can easily connect legacy, modern, & future USB (Universal Serial Bus) devices, regardless of the USB (Universal Serial Bus) connector type. Save time, with faster USB (Universal Serial Bus) performance This high-performance USB (Universal Serial Bus) card is a must-have computer upgrade. By adding two 10 Gbps USB (Universal Serial Bus) ports, you can connect high-bandwidth devices & avoid the performance bottlenecks often associated with older connectivity technologies. The PCI Express USB (Universal Serial Bus) 3.1 card lets you transfer files & access devices faster, so you can get more work done by spending less time waiting. The higher data throughput makes the card a necessity for external hard drives, hard drive enclosures, & many other fast-access USB (Universal Serial Bus) 3.1 peripherals. Convenient & simple connectivity, with two types of USB (Universal Serial Bus) ports For connection flexibility, the card offers USB (Universal Serial Bus)-C & USB (Universal Serial Bus)-A ports, so you can bridge the gap between older & newer USB (Universal Serial Bus) devices that use different connectors. Now you can simultaneously connect & access USB (Universal Serial Bus) Type-A & USB (Universal Serial Bus) Type-C devices from the convenience of one card. By adding two types of USB (Universal Serial Bus) ports in one combo card, you can free up space in your PC, & eliminate the nuisance of having different cards for different USB (Universal Serial Bus) devices. Plus, you can rest assured your set for the future, as USB (Universal Serial Bus)-C devices become more popular & more standardized. Plenty of power for bus-powered devices When used with the SATA power connector, the card delivers higher power output than traditional USB (Universal Serial Bus) cards. It offers a 2-amp USB (Universal Serial Bus)-A port, & a 3-amp USB (Universal Serial Bus)-C port, so you can connect many bus-powered devices (for example, portable hard drives), without the need for an external power adapter. Easy to install in different form factors The PCIe USB (Universal Serial Bus) 3.1 card comes equipped with a full-profile bracket, but also

Includes:: a half-height or low-profile bracket, making it easy to install in full or small form-factor desktops or servers. &, the card offers hassle-free installation, with no additional software or drivers required in many natively supported operating systems. The PEXUSB311A1C is backed by a Star Tech.com 2-year warranty & free lifetime technical support. Applications Deploy at home or in the office, & connect the latest USB (Universal Serial Bus)-C devices, such as HDD enclosures Install the card as a vital hardware component when building a PC, or upgrade an older PCIe based desktop from USB (Universal Serial Bus) 3.0 or 2.0 to USB (Universal Serial Bus) 3.1 Gen 2 (10 Gbps) Ideal for backing up files, video editing, & data recovery using high-bandwidth USB (Universal Serial Bus) 3.1 Gen 2 external storage solutions Connect your legacy USB (Universal Serial Bus) devices to your computer Specifications: Warranty Information Warranty 2 Years Hardware Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia
- ASM1142 Industry Standards USB (Universal Serial Bus) 3.1

Specification Rev. 1.0 USB (Universal Serial Bus)

Specification Rev. 2.0 PCI Express Base

Specification Rev. 3.0 Intel x HCI

Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface USB (Universal Serial Bus) 3.1 Gen 2 Port Style Integrated on Card Ports 2 Performance Maximum Data Transfer Rate 10 Gbps Type & Rate USB (Universal Serial Bus) 3.1 Gen 2
- 10 Gbit/s UASP Support Yes Connector (s) Connector Type (s) 1
- PCI Express x 4 Male External Ports 1
- USB (Universal Serial Bus) Type-C (24 pin) USB (Universal Serial Bus) 3.1 (10 Gbps) Female 1
- USB (Universal Serial Bus) 3.1 USB (Universal Serial Bus) Type-A (9 pin, Gen 2, 10 Gbps) Female Internal Ports 1
- SATA Power (15 pin) Plug Software OS Compatibility Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2016 Mac OS X 10.9 to 10.10 Linux 3.5 to 4.4.x LTS version only Special Notes / Requirements Note The card's USB (Universal Serial Bus)-C port is a standard data throughput port. It does not support DP Alt Mode or USB (Universal Serial Bus) Power Delivery. The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5 Gbps. PCI Express Gen 2.0 max throughput is 5 Gbps. PCI Express Gen 3.0 max throughput is 10 Gbps. The available bandwidth (10 Gbps) is shared equally between the two ports. System & Cable Requirements PCI Express enabled computer or server with a PCI Express x 4 slot or higher (x 8, x 16) SATA power connector Environmental Humidity 15~90% RH (Non-condensing) Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Physical Characteristics Product Height 120 mm [4.7 in] Product Length 92 mm [3.6 in] Product Weight 48 g [1.7 oz] Product Width 18 mm [0.7 in]
