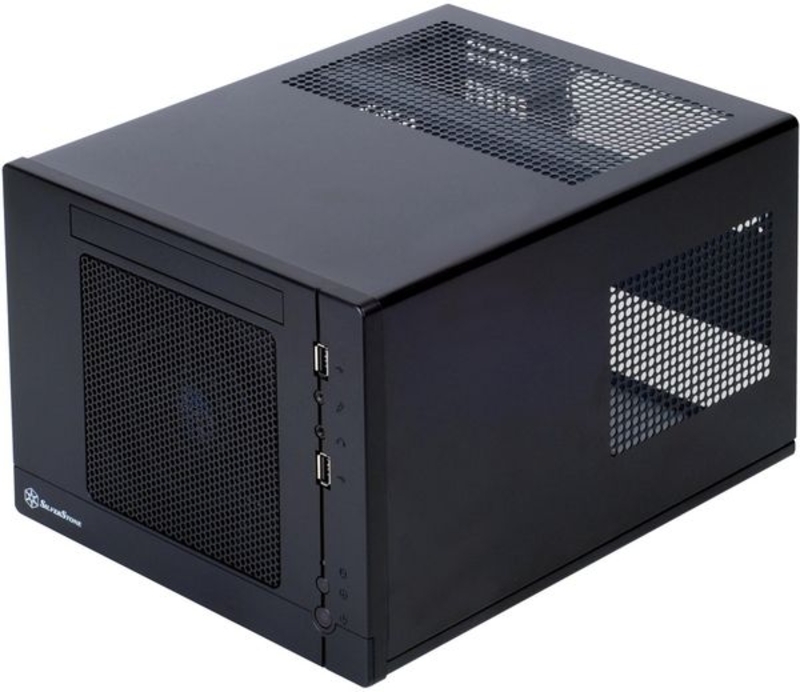

Designed for use with mini-DTX & mini-ITX motherboards, the SG05 is the smallest Sugo yet. However, in keeping with the spirit of its Sugo name, the case is capable of swallowing many standard components while keeping everything cooled. For the first time in a case of this size class, the SG05 is equipped with a low speed 120mm fan that is mounted to create positive air pressure, ensuring good balance of cooling & quietness. Other notable features include the ability to accept 9-inch long graphics card, room for thicker 2.5-inch hard drives such as Western Digitals Veloci Raptor, full-height for retail boxed CPU coolers, & an 80 PLUS certified SFX 300W power supply. For building a fast PC in the smallest possible form factor, the SG05 is without peers.
Features: Ample space for CPU cooling (82mm in height) Elevated standoff for motherboard back side components Unprecedented 120mm fan in mini casing for positive pressure cooling Support 2.5” & 3.5” hard drives Mini-DTX / Mini-ITX motherboard & SFX PSU compatible 80 Plus certified SFX 300W power supply included Standard-length expansion cards support (9 inches) Specifications:
Material: Plastic front panel, 0.6mm SECC body Motherboard: DTX, Mini-ITX Drive Bay External Slim optical x 1 Internal 3.5” x 1, 2.5”x 1 Cooling Front 1 x 120mm intake fan 1200rpm Power Supply SFX 300W with 80 PLUS certification (Silver Stone tuned) Expansion Card: Standard size long cards capable (9”)* Limitation of CPU cooler: 82mm Limitation of PSU: SFX Net Weight: 3.52kg Dimension: 222 mm (W) x 176 mm (H) x 276 mm (D)
