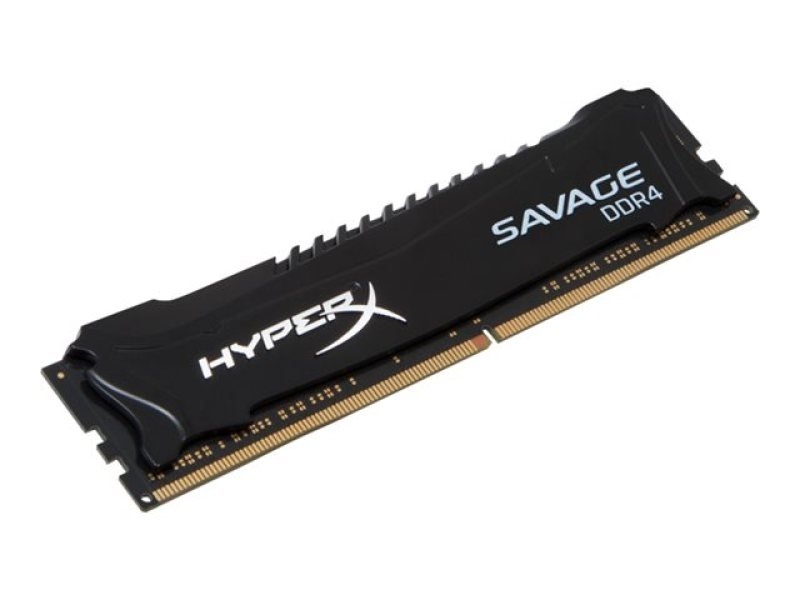

Hyper X Savage 8GB
- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Description Hyper X HX426C13SB2/8 is a 1G x 64-bit (8GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 2 Rx 8, memory module, based on sixteen 512M x 8-bit FBGA components. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2666 at a low latency timing of 13-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2666 CL13-15-15 @1.35V XMP Profile 2: DDR4-2400 CL13-14-14 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC
