Hyper X Predator is designed to outperform & exceed expectations. Boasting ultra-fast frequencies, Predator reigns as the premiere memory line from Hyper X. With an eye-catching design & dense heat spreader, Hyper X Predator adds a ferocious look along with reliably extreme performance in your system. This high performance memory boasts fast frequencies -- from 1866 MHz-2800 MHz. Designed with content creators, over clockers, & extreme PC enthusiasts in mind, Hyper X Predator delivers high performance, ultra-responsive multi-tasking & an overall fast system. It is available in dual & quad channel kits. Hyper X Predator features a densely solid heat spreader for the ultimate thermal dissipation resulting in lasting reliability. With a ferocious design & signature Hyper X colours, your PC will easily stand out from the crowd while having the edge to handle intensive workloads. ...

Features Hyper X HX432C16PB3/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2 Rx 8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.661” (42.20mm)

Specification CL (IDD)
- 17 cycles Row Cycle Time (t R Cmin)
- 45.75ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin)
- 350ns (min.) Row Active Time (t RASmin)
- 32ns (min.) UL Rating
- 94 V
- 0







...

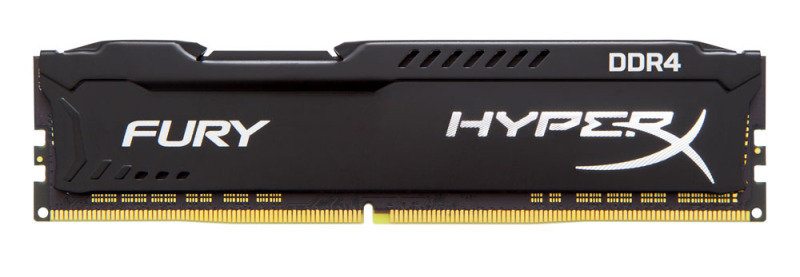

Hyper X Fury 16GB (2X8GB) DDR4 2133 M Hz CL14 DIMM Black Memory Kit DESCRIPTION Hyper X HX424C15FB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (Pn P) Timing Parameters section below. The JEDEC standard electrical & mechanical specifications are as follows: Note: The Pn P feature offers a range of speed & timing options to support the widest variety of processors & chipsets. Your maximum speed will be determined by your BIOS. JEDEC/XMP TIMING PARAMETERS JEDEC/ Pn P: DDR4-2400 CL15-15-15 @1.2V DDR4-2133 CL14-14-14 @1.2V XMP Profile 1: DDR4-2400 CL15-15-15 @1.2V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.75ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 350ns (min.) Row Active Time (t RASmin) 29.125ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation & calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command & address bus Height 1.340” (34.04mm), w/o heatsink

...

Get the upgrade that you need to kick your system’s performance & style into high gear with the Hyper X® FURY RGB SSD. The drive features a smooth, stunning light bar to give your computer a dash of dazzling RGB lighting. It can also daisy-chain to other RGB devices to sync colours & effects 1. Cutting-edge 3D NAND & a Marvell controller give the FURY RGB incredible speeds of 550 MB/s write & 480MB/s read 2 while also making the drive more durable & more efficient. With a top case designed to accentuate its lighting, FURY RGB is the premier SSD for computer builders who don’t want to skimp on performance or looks. Dazzling, dynamic RGB effects Improve your system’s performance & looks! Daisy-chain to other RGB devices Sync up RGB effects across your system internals for a rig that any builder would envy. Up to 10x faster than a hard drive Cutting-edge 3D NAND technology pumps out incredible performance. Aggressive styling Separate yourself from blocky, squared builds with FURY RGB’s fierce design. ...

DESCRIPTION Hyper X HX421S14IBK4/32 is a kit of four 1G x 64-bit (8GB) DDR4-2133 CL14 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit DDR4 FBGA components. Total kit capacity is 32GB. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. This module has been tested to run at DDR4-2133 at a low latency timing of 14-14-14 at 1.2V. Additional timing parameters are shown in the Pn P Timing Parameters section below. The JEDEC standard electrical & mechanical specifications are as follows: Pn P JEDEC TIMING PARAMETERS: JEDEC/ Pn P: DDR4-2133 CL14-14-14 @1.2V DDR4-1866 CL13-13-13 @1.2V XMP Profile 1: DDR4-2133 CL14-14-14 @1.2V SPECIFICATIONS CL (IDD) 14 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0°C to 85°C Storage Temperature -55°C to +100°C * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.18” (30.00mm)

...

Get the upgrade that you need to kick your system’s performance & style into high gear with the Hyper X® FURY RGB SSD. The drive features a smooth, stunning light bar to give your computer a dash of dazzling RGB lighting. It can also daisy-chain to other RGB devices to sync colours & effects 1. Cutting-edge 3D NAND & a Marvell controller give the FURY RGB incredible speeds of 550 MB/s write & 480MB/s read 2 while also making the drive more durable & more efficient. With a top case designed to accentuate its lighting, FURY RGB is the premier SSD for computer builders who don’t want to skimp on performance or looks. Dazzling, dynamic RGB effects Improve your system’s performance & looks! Daisy-chain to other RGB devices Sync up RGB effects across your system internals for a rig that any builder would envy. Up to 10x faster than a hard drive Cutting-edge 3D NAND technology pumps out incredible performance. Aggressive styling Separate yourself from blocky, squared builds with FURY RGB’s fierce design. ...

Hyper X Genesis sets the standard in high-performance memory. Like all Hyper X products, Genesis modules are specifically engineered & designed to meet the rigorous requirements of PC enthusiasts. Genesis offers greater thermal performance, higher frequency speed & lower latency. It′s available in DDR3 in single, dual, triple & quad channel memory kits. It offers impressive speeds up to 2400 M Hz & capacities up to 64GB. Hyper X Genesis is backed by a lifetime warranty & free technical support. ...

Hyper X HX424C15FB/4 is a 512M x 64-bit (4GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (Pn P) Timing Parameters section below. The JEDEC standard electrical & mechanical specifications are as follows: EDEC/ Pn P: DDR4-2400 CL15-15-15 @1.2V. Specifications:
- CL (IDD) 15 cycles
- Row Cycle Time (t R Cmin) 46.75ns (min.)
- Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.)
- Row Active Time (t RASmin) 29.125ns (min.)
- UL Rating 94 V
- 0
- Operating Temperature 0 oC to +85 o C
- Storage Temperature -55 oC to +100 oC

Features:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP
- 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation & calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command & address bus
- Height 1.340” (34.04mm), w/heatsink


























...

Hyper X HX426C15FB/4 is a 512M x 64-bit (4GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Specifications:
- CL (IDD) 15 cycles
- Row Cycle Time (t R Cmin) 45ns (min.)
- Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.)
- Row Active Time (t RASmin) 26.25ns (min.)
- UL Rating 94 V
- 0
- Operating Temperature 0 oC to +85 o C
- Storage Temperature -55 oC to +100 oC

Features:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP
- 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation & calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command & address bus
- Height 1.340” (34.04mm), w/heatsink


























...

Hyper X 64GB (8x 8GB) 2800 M Hz DDR4 CL14 DIMM Memory Hyper X HX428C14SBK8/64 is a kit of eight 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 64GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-15-15 @1.35V XMP Profile 2: DDR4-2666 CL14-14-14 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...
