Expand your view of gaming, productivity, & entertainment & discover a new realm of panoramic computing with ATI Eyefinity advanced multiple-display technology. With the introduction of new GPUs from AMD which are compliant with next-generation Direct X 11, ATI Eyefinity Technology with Display Port connectivity, enables a single GPU to support up to six independent display outputs simultaneously. Feature Support Open GL Cross Fire X Technology ATI Stream Technology ATI Eyefinity Technology ATI Hypermemory Technology Graphics Engine
- RADEON HD6870 Video Memory
- 1GB GDDR5 Engine Clock
- 900 M Hz Memory Clock
- 1050 M Hz (4.2 Gbps) Memory Interface
- 256bit Direct X Support
- 11 Bus Standard
- PCI-E 2.1 Standard Display Connecors
- Dual DVI (DVI-I/DVI-D), HDMI, 2 mini Display Port Maximum Resolution
- VGA 2048x 1536, DVI 2560x 1600, Display Port 2560x 1600, HDMI 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions
- 241.3mmx 111.2mmx 38mm Minimum System Power requirement (W)
- 500W Extention Power Connector
- Two 6-Pin PCI Express Power Connectors















...

Includes: Battlefield 3 Download coupon in the box. Expand your view of gaming, productivity, & entertainment & discover
...

As part of the award-winning PCS series, the PCS+ HD6870 is enhanced with factory overclocked settings & Power Colors outstanding custom cooling solution. The PCS+ HD6870 is sure to deliver immersive gaming performance to hard core gamers. The PCS+ HD6870 clocks in at a fast core speed; with the most advanced GDDR5 onboard memory, it easily enhances data transmission rates & boosts up the gaming performance, ready to tackle all the most demanding game titles. In addition, the PCS+ HD6870 features professional cooling solution. With a 92mm cooling fan & 3 pure core heat pipes, this efficient cooling solution can easily dissipate heat from its cooper base, which fully covers the GPU & cools down the temperature with reference board designs. The PCS system allows more headroom for overclocking capabilities which gamers will be able to tune their rig to maximum performance. ...

Feature Support Open GL Support Cross Fire X™ Technology Support ATI Stream Technology Support ATI Eyefinity Technology Support ATI Hypermemory Technology Display Support With unique PCS cooling technology & attractive cover design, this fantastic cooling solution can decrease operating environment temperature effectively, & enhance headroom for overclocking capabilities. All of these advantages will provide more flexibility for all gamers to take control & tune their rig for maximum performance.

Specification Graphics Engine RADEON HD6870 Video Memory 1GB GDDR5 Engine Clock 940 M Hz Memory Clock 1100 M Hz (4.4 Gbps) Memory Interface 256bit Direct X Support 11 Bus Standard PCIE 2.1 Standard Display Connecors DL-DVI-I/SL-DVI-D/HDMI/2* mini Display Port VGA Output Via Adapter DVI Output DL-DVI-I/ SL-DVI-D Display Port On Board HDMI On Board TV Output HDTV Output HDCP Support Support Maximum Resolution VGA 2048x 1536 DVI 2560x 1600 Display Port 2560x 1600 HDMI 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions 241.3mmx 111.2mmx 38mm Minimum System Power requirement (W) 500W Extention Power Connector Two 6-Pin PCI Express Power Connectors





...

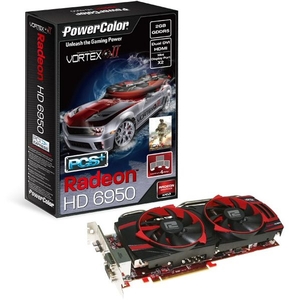

Specification Graphics Engine
- RADEON HD6950 Video Memory
- 1GB GDDR5 Engine Clock
- 800 M Hz Memory Clock
- 1250 M Hz



...

Specifications Graphics Engine
- RADEON HD6950 Video Memory
- 2GB GDDR5 Engine Clock
- 850 M Hz Memory Clock
- 1300 M



...

Specification Graphics Engine
- RADEON HD6970 Video Memory
- 2GB GDDR5 Engine Clock
- 880 M Hz Memory Clock
- 1375 M Hz



...

High Speed 256-bit GDDR5 memory interface PCI Express 2.1 x 16 bus interface Eye-Definition graphics New & advanced architecture Full Direct X 11 support Scalable geometry processing technology Shader Model 5.0 Direct Compute 11 support Dual advanced programmable hardware tessellation units Accelerated multi-threading HDR texture compression Order-independent transparency Open GL 4.1 support Image quality enhancement technology Up to 24x multi-sample & super-sample anti-aliasing modes Adaptive anti-aliasing Enhanced Quality Anti-Aliasing (EQAA) Morphological Anti-Aliasing (MLAA) 16x angle independent anisotropic texture filtering 128-bit floating point HDR rendering AMD Eyefinity multi-display technology 1 Native support for up to 6 simultaneous displays Independent resolutions, refresh rates, color controls, & video overlays Display grouping Combine multiple displays to behave like a single large display AMD Eye Speed visual acceleration 2 AMD Accelerated Parallel Processing (APP) technology 3, 4 Open CL 1.1 Support Direct Compute 11 Double Precision Floating Point Accelerated video encoding, transcoding, & upscaling UVD 3 dedicated video playback accelerator MPEG-4 AVC/H.264 VC-1 MPEG-2 (SD & HD) Multi-View Codec (MVC) MPEG-4 part 2 (Div X, Xvid) Adobe Flash Enhanced Video Quality features Advanced post-processing & scaling Dynamic contrast enhancement & color correction Brighter whites processing (Blue Stretch) Independent video gamma control Dynamic video range control Dual-stream HD (1080p) playback support DXVA 1.0 & 2.0 support AMD HD3D technology 5 Stereoscopic 3D display/glasses support Blu-ray 3D support Stereoscopic 3D gaming 3rd party Stereoscopic 3D middleware software support AMD Cross Fire XTM multi-GPU technology 6 Dual card performance scaling Cutting-edge display support Display Port 1.2 Max resolution: 2560x 1600 per display Multi-Stream Transport 21.6 Gbps bandwidth High bit-rate audio HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xv YCC wide gamut support, & high bit-rate audio Max resolution: 1920x 1200 Dual-link DVI with HDCP Max resolution: 2560x 1600 Integrated HD audio controller Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required Supports AC-3, AAC, Dolby True HD & DTS Master Audio formats AMD Power Play TM power management technology 3 AMD Power Tune technology Intelligent power management hardware Dynamic power management with low power idle state Ultra-low power state support for multi-GPU configurations AMD Catalyst TM graphics & HD video configuration software Software support for Windows 7, Windows Vista, & Windows XP AMD Catalyst TM Control Center
- AMD Catalyst TM software application & user interface for setup, configuration, & accessing features of AMD Radeon products. Unified Graphics display driver
- AMD Catalyst TM software enabling other PC programs & devices to use advanced graphics, video, & features of AMD Radeon TM products. Graphics Engine
- RADEON HD6990 Video Memory
- 4GB GDDR5 Engine Clock
- 830 M Hz / 880 M Hz Memory Clock
- 1250 M Hz (5.0 Gbps) Memory Interface
- 2 X 256bit (256bit) Direct X Support
- 11 Bus Standard
- PCIE 2.1 Standard Display Connectors
- Dual-link DVI-I / 4 X mini Display Port Feature Support Open GL
- Support Cross Fire X„¢ Technology
- Support ATI Stream Technology
- Support ATI Eyefinity Technology
- Support Display Support VGA Output
- Via Adapter DVI Output
- Dual-link DVI-I / 4 X mini Display Port Display Port
- On Board HDMI
- On Board HDCP
- Support Maximum Resolution VGA
- 2048x 1536 DVI
- 2560x 1600 Display Port
- 2560x 1600 HDMI
- 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions
- 305mmx 110mmx 38mm Minimum System Power requirement (W)
- 750W Extention Power Connector
- two 8-pin PCI Express Power connectors





























...

Graphics Engine
- RADEON HD 7730 Video Memory
- 1GB DDR3 Engine Clock
- 800 M Hz Memory Clock
- 800 M Hz x 2 Memory Interface
-




...

Graphics Engine
- RADEON HD7730 Video Memory
- 2GB DDR3 Engine Clock
- 800 M Hz Memory Clock
- 800 M Hz x 2 Memory Interface
-




...
