Open GL Cross Fire X Technology ATI Stream Technology ATI Eyefinity Technology

Specification Graphics Engine
-


...

Specification Graphics Engine
- RADEON HD6850 Video Memory
- 1GB GDDR5 Engine Clock
- 775 M Hz Memory Clock
- 1000 M Hz



...

Get immersed with AMD Eyefinity technology. Get second-generation Direct X 11-capable graphics for an amazing Eye-Definition gaming experience. Get fast applications & brilliant video with AMD App Acceleration visual acceleration technology. GPU
- AMD HD 6850 Memory
- 1GB GDDR5 Engine Clock
- 775 M Hz Memory Clock
- 1000 M Hz x 4 (4 Gbps) Outputs
- DVI, HDMI, Dual Mini Display Port Cooling
- Single slot Cooling solution





...

Get immersed with AMD Eyefinity technology. Get second-generation Direct X 11-capable graphics for an amazing Eye-Definition gaming experience. Get fast applications & brilliant video with AMD App Acceleration visual acceleration technology. Specifications GPU
- AMD HD 6870 Memory
- 1024MB GDDR5 Core
- 900 M Hz Memory speed
- 1050 M Hz Size
- Dual Slot Interface
- PCI-Express Power Consumption
- Sub 225W Outputs
- Dual DVI, Dual Mini Display Port, HDMI







...

Expand your view of gaming, productivity, & entertainment & discover a new realm of panoramic computing with ATI Eyefinity advanced multiple-display technology. With the introduction of new GPUs from AMD which are compliant with next-generation Direct X 11, ATI Eyefinity Technology with Display Port connectivity, enables a single GPU to support up to six independent display outputs simultaneously. Feature Support Open GL Cross Fire X Technology ATI Stream Technology ATI Eyefinity Technology ATI Hypermemory Technology Graphics Engine
- RADEON HD6870 Video Memory
- 1GB GDDR5 Engine Clock
- 900 M Hz Memory Clock
- 1050 M Hz (4.2 Gbps) Memory Interface
- 256bit Direct X Support
- 11 Bus Standard
- PCI-E 2.1 Standard Display Connecors
- Dual DVI (DVI-I/DVI-D), HDMI, 2 mini Display Port Maximum Resolution
- VGA 2048x 1536, DVI 2560x 1600, Display Port 2560x 1600, HDMI 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions
- 241.3mmx 111.2mmx 38mm Minimum System Power requirement (W)
- 500W Extention Power Connector
- Two 6-Pin PCI Express Power Connectors















...

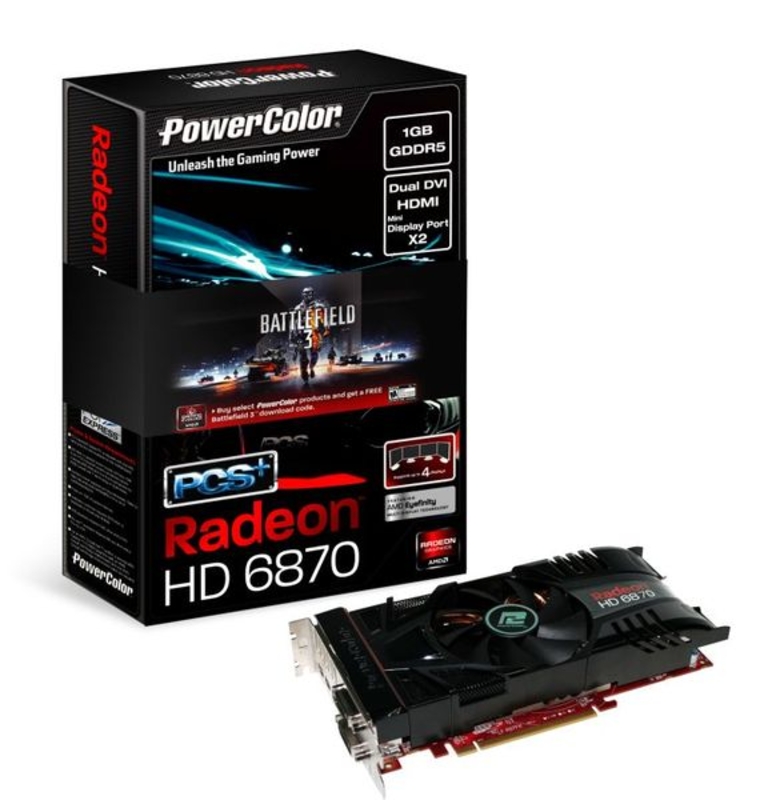

As part of the award-winning PCS series, the PCS+ HD6870 is enhanced with factory overclocked settings & Power Colors outstanding custom cooling solution. The PCS+ HD6870 is sure to deliver immersive gaming performance to hard core gamers. The PCS+ HD6870 clocks in at a fast core speed; with the most advanced GDDR5 onboard memory, it easily enhances data transmission rates & boosts up the gaming performance, ready to tackle all the most demanding game titles. In addition, the PCS+ HD6870 features professional cooling solution. With a 92mm cooling fan & 3 pure core heat pipes, this efficient cooling solution can easily dissipate heat from its cooper base, which fully covers the GPU & cools down the temperature with reference board designs. The PCS system allows more headroom for overclocking capabilities which gamers will be able to tune their rig to maximum performance. ...

Feature Support Open GL Support Cross Fire X™ Technology Support ATI Stream Technology Support ATI Eyefinity Technology Support ATI Hypermemory Technology Display Support With unique PCS cooling technology & attractive cover design, this fantastic cooling solution can decrease operating environment temperature effectively, & enhance headroom for overclocking capabilities. All of these advantages will provide more flexibility for all gamers to take control & tune their rig for maximum performance.

Specification Graphics Engine RADEON HD6870 Video Memory 1GB GDDR5 Engine Clock 940 M Hz Memory Clock 1100 M Hz (4.4 Gbps) Memory Interface 256bit Direct X Support 11 Bus Standard PCIE 2.1 Standard Display Connecors DL-DVI-I/SL-DVI-D/HDMI/2* mini Display Port VGA Output Via Adapter DVI Output DL-DVI-I/ SL-DVI-D Display Port On Board HDMI On Board TV Output HDTV Output HDCP Support Support Maximum Resolution VGA 2048x 1536 DVI 2560x 1600 Display Port 2560x 1600 HDMI 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions 241.3mmx 111.2mmx 38mm Minimum System Power requirement (W) 500W Extention Power Connector Two 6-Pin PCI Express Power Connectors





...

Specification Graphics Engine
- RADEON HD6950 Video Memory
- 1GB GDDR5 Engine Clock
- 800 M Hz Memory Clock
- 1250 M Hz



...

Power Color step up the game with the HD 6950 PCS+ Vortex II Edition card with its custom cooler. Featuring all the latest technology from AMD this 6950 is factory overclocked to 850 M Hz giving excellent performance & the ideal gaming weapon.

Specification Graphics Engine
- Radeon HD 6950 Video Memory
- 2GB GDDR5 Engine Clock
- 850 M Hz Memory Clock
- 1300 M Hz (5.2 Gbps) Memory Interface
- 256bit Direct X Support
- 11 Bus Standard
- PCI-Express 2.1 Standard Display Connecors
- DL-DVI-I/SL-DVI-D/HDMI/2* mini Display Port Cross Fire X Technology Support
- Yes ATI Stream Technology Support
- Yes ATI Eyefinity Technology Support
- Yes Maximum Resolution
- VGA 2048x 1536, DVI 2560x 1600, Display Port 2560x 1600, HDMI 1920x 1200 Power Specs + Board

Dimensions Board

Dimensions
- 275mmx 111.2mmx 38mm Minimum System Power requirement (W)
- 500W Extention Power Connector
- Two 6-Pin PCI Express Power Connectors




















...

Specifications Graphics Engine
- RADEON HD6950 Video Memory
- 2GB GDDR5 Engine Clock
- 850 M Hz Memory Clock
- 1300 M



...
