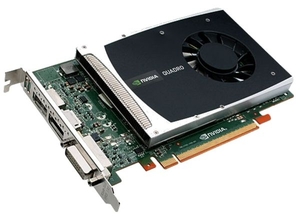

NVIDIA Quadro K2200 4 GB GDDR5 Dual-Link DVI 2x Displayport PCI-E Graphics card Easily support your professional software application base with comprehensive ISV certifications Excellent performance from the ultra-efficient Kepler GPU architecture & ultra fast GDDR5 memory to zip through larger models & datasets Driving up to four digital displays from a single card & managing them with NVIDIA's Mosaic & n View technology Designed to the MXM type A

Specification for compatibility with the HP Z1 G2 workstation NVIDIA Quadro 3D workstation professional graphics solutions Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries. Professionals trust them to deliver the best possible experience in applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Inventor, and many more. NVIDIA Tesla co-processors NVIDIA Tesla GPU parallel processors provide the highest-performance NVIDIA CUDA acceleration for your workflow. Designed for professional systems & demanding professional applications, Tesla GPUs perform the complex calculations required for CAE/CFD calculations, seismic processing, ray-traced rendering, compositing, image processing, physics, and effects many times faster than a CPU. NVIDIA Maximums platform NVIDIA Maximums-powered workstations combine the industry-leading professional 3D graphics capability of NVIDIA Quadro GPUs with the high-performance computing power of NVIDIA Tesla GPUs. Tesla co-processors automatically perform the heavy lifting of rendering or CAE computations, freeing the Quadro GPUs to do what they do best
- enabling rich interactive graphics. With maxims, engineers, artists, designers, and scientists can now interact with high-performance visuals while also performing simulations or renderings on the same system. NVIDIA NVS commercial graphics solutions NVIDIA NVS graphics boards provide robust IT management tools for seamless enterprise deployment. This makes them the trusted solution of choice financial institutions, emergency call centers, digital signage systems, and other mission-critical environments. Product Description NVIDIA Quadro K2200 graphics card
- Quadro K2200
- 4 GB Device Type Graphics card Bus Type PCI Express 2.0 x 16 Graphics Engine NVIDIA Quadro K2200 Memory 4 GB
- GDDR5 CUDA Cores 640 Memory Interface 128-bit Max Resolution 4096 x 2160 Max Resolution Details DVI:2560 x 1600 at 60 Hz / Display Port:4096 x 2160 at 60 Hz / VGA:2048 x 1536 at 85 Hz Max Monitors Supported 3 Interfaces DVI-I (dual link) 2 x Display Port DVI
- with adapter VGA
- with adapter API Supported Open CL, Direct Compute, Direct X 11.1, Open GL 4.4

Dimensions (Wx Dx H) 20.2 cm x 11.1 cm Pricing Type Promo Designed For Workstation Z440, Z640, Z840









...

NVIDIA Quadro K420 1 GB DDR3 Dual-Link DVI-I, Display Port Graphics Card This is Graphics Card is based on NVIDIA Kepler architecture, with 1 GB DDR3 graphics memory, & supports up to four digital displays & one CRT. This Graphics Card is fully qualified on Think Station P500/P700/P900 systems. Specifications Connectors Display Port, 2x DVI-I Video on Planar No Bus PCI Express 2.0 Chipset Nvidia Quadro K420 Description NVIDIA Quadro K420 Graphics Priority 1.0 Graphics Memory 1GB Agency Approvals & Certifications BSMI, C-Tick, CE, FCC, ICES, VCCI Maximum Operating Humidity 90 Maximum Operating Humidity Units % Minimum Operating Humidity 5 Minimum Operating Humidity Units % Maximum Operating Temperature 55 Maximum Operating Temperature Units C Minimum Operating Temperature 0 Minimum Operating Temperature Units C Depth Metric 160.02 Depth 160.02mm Depth Metric Units mm Depth (US) 6.3in Height Metric 68.91 Height 68.91mm Height Metric Units mm Height (US) 2.713in Max Operating Humidity + Units 90% Min Operating Humidity + Units 5% Max Operating Temperature + Units 55C Min Operating Temperature + Units 0C Weight US 0.26 Weight US Units lbs Weight Metric 0.12 Weight Metric Unitskg Warranty Period Three Year Warranty Type Customer Replaceable Unit ...

384 CUDA cores 2 GB of DDR3 GPU memory 128-bit memory interface 29 GB/s memory bandwidth PCI Express 2.0 x 16 system interface 45 Watt maximum power consumption Energy Star certified Ultra-quiet active fansink DVI-I DL + DP 1.2 + DP 1.2 display connectors Drives two directly attached displays Drives up to 4 displays via Display Port 1.2 multi-streaming technology Certified for use with over 200 professional applications Unmatched NVIDIA Quadro professional drivers NVIDIA Mosaic multi-display technology NVIDIA NVIEW desktop management technology NVIDIA multi-GPU compatible ...

NVIDIA Quadro K620 2GB DDR3 DVI-I DVI-D Display Port PCI-E Graphics Card The NVIDIA Quadro K620 offers impressive power-efficient 3D application performance & capability in a low profile design. 2 GB of DDR3 GPU memory with fast bandwidth enables you to create large, complex 3D models, and a flexible single-slot & low-profile form factor makes it compatible with even the most space & power-constrained chassis. Plus, display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions like 4096x 2160 @ 60 Hz with 30-bit color. The Quadro K620 is an excellent card for medium sized product development activities & media creation. Great performance for leading professional applications 2 GB of GPU memory All in a power efficient low-profile form factor for maximum usage flexibility Specifications: Device Type Graphics card
- low profile Bus Type PCI Express 2.0 x 16 Graphics Engine NVIDIA Quadro K620 CUDA Cores 384 Max Resolution 4096 x 2160 at 60 Hz Max Resolution Details DVI (Single-Link):1920 x 1200 / DVI (Dual-Link):2560 x 1600 / Display Port:4096 x 2160 Max Monitors Supported 2 Interfaces DVI-I (dual link) Display Port DVI-D (Single-Link)
- with adapter API Supported Direct X 11, Open CL, Direct Compute, Open GL 4.4 Features Nvidia n VIEW Multi-Display Technology, Nvidia CUDA technology, Nvidia 3D Vision technology, Shader Model 5.0, Nvidia Quadro Mosaic Technology, High Bit Rate 2, Maxwell architecture Memory Size 2 GB Technology DDR3 SDRAM Effective Clock Speed 900 MHz Bus Width 128-bit Bandwidth 29 GBps System Requirements OS Required Linux, Microsoft Windows 7, Windows 8, Windows 8.1 Miscellaneous Power Consumption Operational 45 Watt Included Accessories Full-height bracket Cables Included 1 x Display Port-DVI adapter Depth 16 cm Height 6.89 cm Weight 133 g Pricing Type Promo Manufacturer Warranty Service & Support 1 year warranty

...

Features Easily support your professional software application base with comprehensive ISV certifications. Experience fluid interactions with your 3D models & datasets with 2 GB of DDR3 memory. Get low-profile, single-slot 3D performance that fits within your most compact workstation chassis, & the entire HP Z Workstation lineup, & doesn’t require external power. Drive displays with ultra-high resolutions like 4096 x 2160 @ 60 Hz with 30-bit color & easily manage them with NVIDIA Mosaic & NVIDIA n View technologies. The NVIDIA Quadro K620 2GB is supported on the following HP Z Workstations: Z230 CMT, Z440, Z640, Z840 Overview Enjoy impressive application performance for your more demanding 3D models & datasets with the NVIDIA Quadro K620 graphics card & its 2 GB dedicated memory.

Specification Compatibility The NVIDIA Quadro K620 2GB is supported on the following HP Z Workstations: Z230 CMT, Z440, Z640, Z840

Dimensions Out of Package: 6.89 x 16 cm

Dimensions (case or master carton, metric): 597 x 198 x 250 mm Case or master carton quantity: 10 Count of cartons per pallet layer: 10 Count of layers in pallet: 8 Quantity per Pallet: 800 Packed: 184 x 232 x 57.5 mm Weight Out of Package: 0.133kg Warranty The NVIDIA Quadro K620 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts & labor are available on-site within the next business day. Telephone support is available for parts diagnosis & installation. Certain restrictions & exclusions apply. Additional information P/N: J3G87AA UPC/EAN code: 888793835791 Country of Origin China Whats in the box NVIDIA Quadro K620 2GB Graphics Card; Low Profile bracket; DP to DVI-D adapter; Documentation





...

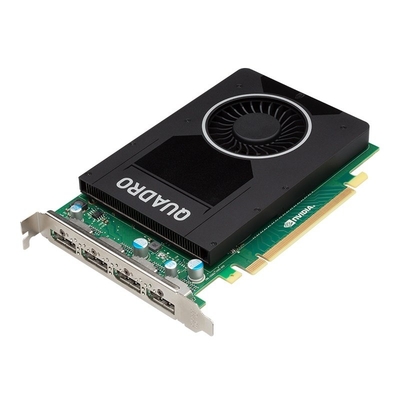

Features Experience ultra-fast visualization & compute horsepower with 4GB ultra-fast GDDR5 memory & CUDA parallel processing. Drive up to four 4K or two 5k displays or one 8K projector with four Display Port 1.2 ports & managed them with included NVIDIA Mosaic™ & NVIDIA n View technologies. Enable immersive collaboration with optional 3D Vision™ & 3D Vision Pro. Boost application performance in real time while staying within the power & thermal envelope of the card with NVIDIA GPU Boost. Easily support your professional software application base with comprehensive ISV certifications. Compatible with Z240 CMT, Z440, Z640, Z840. Overview Get fast performance & work interactively with models & scenes across CAD, DCC, & medical applications with the new Maxwell GPU architecture features of the flexible, single-slot NVIDIA Quadro M2000 graphics card.

Specification Weight 8.43 oz (0.23 kg)

Dimensions (W x D x H) 4.37 x 6.6 in (110 x 167 mm) Whats in the box Graphics Card; Documentation Warranty The NVIDIA Quadro M2000 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts & labor are available on-site within the next business day. Telephone support is available for parts diagnosis & installation. Certain restrictions & exclusions apply.



...

Features NVIDIA Quadro M4000 with NVIDIA Quadro Sync— Ideal for Extreme Performance Single-Slot Form Factor Visualization Environments Get real interactive expression with NVIDIA Quadro—the world’s most powerful workstation graphics. Tackle your most demanding visualization workloads with ease using the advanced NVIDIA Maxwell™ GPU architecture & the flexibility of a single-slot form factor. 8 GB of ultra-fast memory enables the creation & rendering of large, complex models & the computation of massive datasets. A new display engine drives up to four 4K resolutions displays natively (4096 x 2160 at 60 Hz with 30-bit color), or pair up two or more outputs to drive displays greater than 4K. The NVIDIA Quadro Sync board included as part of this turnkey solution synchronizes up to four NVIDIA Maxwell architecture-based GPUs & up to 16 displays or projectors per system. Quadro Sync benefits include the ability to keep multi-projector systems or video walls free of imaging artifacts without impacting performance, the ability to align inputs for multi-input display devices like 4K projectors or panels, proper stereoscopic 3D display across multiple systems, & the ability to align displays or projectors to an external timing source. NVIDIA Mosaic™ technology support allows any application to scale across synchronized displays or projectors & offers features like projector overlap & an integrated geometry & intensity adjustment to enable pixel-accurate display surfaces. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. Overview CUDA Cores 1664 GPU Memory 8 GB GDDR5 Memory Interface 256-bit Memory Bandwidth 192 GB/s System Interface PCI Express 3.0 x 16 Display Connectors DP 1.2 (4) + Stereo Maximum Number of Displays Four Quadro Sync Connectors RJ-45 Framelock + RJ-45 Framelock + BNC Genlock Mosaic Technology Yes, Windows 10, 8.1, 8, 7, & Linux Warranty 3 Years PNY Part Number VCQM4000SYNC-PB Minimum System Requirements Microsoft Windows 10, 8.1, 8, 7, Vista, Linux, or Solaris PCIe x 16 Gen 3 (preferred) expansion slot 2 GB or more of system memory, 8 GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) Package Contains NVIDIA Quadro M4000 professional graphics board Stereo connector bracket 6-pin auxiliary power cable NVIDIA Quadro Sync board Four ribbon connector cables Three cable retention clips Software installation disc for Windows 10, 8.1, 8, 7, & Vista (32- & 64-bit) Printed Quick Start Guide

Specification CUDA Cores 1664 GPU Memory 8 GB GDDR5 Memory Interface 256-bit Memory Bandwidth 192 GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 120 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.40” H x 9.50” L, Single Slot Display Connectors DP 1.2 (4) + Stereo Display Port 1.2 Yes Display Port with Audio Yes DVI-D Dual Link Connector Via optional adapter DVI-D Single-Link Connector Via optional adapter Number of Displays Supported 4 Maximum DP 1.2 Resolution 4096 x 2160 at 60 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.5, Direct X 12 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 10, 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Quadro Sync Connectors RJ-45 Framelock + RJ-45 Framelock + BNC Genlock Quadro Sync Thermal Solution Passive heatsink Quadro Sync Power 6-pin PCIe or SATA power cable Warranty 3 Years PNY Part Number VCQM4000SYNC-PB

...

Featuring NVIDIA’s n View display management software, Quadro NVS business graphics solutions deliver maximum flexibility for single or multi-display options. With productivity enhancing features such as extended Windows Taskbar that spans across multiple displays, gridlines that divide a single large or a multiple display set up into smaller sub-displays, virtual desktops that seamlessly reduce desktop clutter, & profiles that assist with enterprise deployments – users are provided with unprecedented control of the desktop experience. Plus, Quadro NVS solutions are tested for compatibility with industry-leading business applications to meet the needs of today’s most demanding business users. ...

Features CUDA Cores 2560 Peak Single Precision FP32 Performance 8.9 TFLOPS GPU Memory 16 GB GDDR5X Memory Interface 256-bit Memory Bandwidth 288 GB/s System Interface PCI Express 3.0 x 16 Display Connectors DP 1.4 (4) + DVI-D DL (1) + Stereo Overview NVIDIA QUADRO P5000—PERFORMANCE & FEATURES MASTER CHALLENGING PROFESSIONAL WORKFLOWS. The NVIDIA Quadro P5000 combines the latest GPU, memory & display technologies, resulting in outstanding performance & breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems & experience their creations within the most detailed, lifelike & immersive VR environments. in addition, you can create massive digital signage solutions by connecting multiple P5000s via Quadro Sync II. Designs become more complex over time. Visual effects grow in size, complexity, & scope. Scientific visualization & compute challenges continue to push the boundaries of workstation capabilities. VR is changing all facets of entertainment, design, engineering, architecture & medicine. As professional workflows grow in size & complexity the demand for visual compute power grows with it. The new P5000’s carefully tuned balance of graphics & single precision (FP32) compute performance, fast & expansive GDDR5X GPU memory, alongside sophisticated VR hardware & software optimizations coupled with advanced development frameworks, allow the creation of extremely large & complex designs, rapid rendering of photorealistic imagery, & startlingly immersive VR experiences.

Specification CUDA Cores 2560 Peak Single Precision FP32 Performance 8.9 TFLOPS Multi-GPU Scalability NVIDIA SLI HB GPU Memory 16 GB GDDR5X Memory Interface 256-bit Memory Bandwidth 288 GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 180 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.40” H x 10.50” L, Dual Slot Display Connectors DP 1.4 (4) + DVI-D DL + Stereo Display Port with Audio Yes DVI-D Single-Link Connector Via included adapter HDMI Support Via optional adapters VGA Support Via optional adapters Number of Displays Supported 4 Maximum DP 1.4 Resolution HDR 7680 x 4320 at 30 Hz (30-bit color) 5K Display Support HDR 5120 x 2880 at 60 Hz (30-bit color) 4K Display Support HDR 4096 x 2160 at 60 Hz or 3840 x 2160 at 60 Hz Maximum DVI-D DL Resolution 2560 x 1600 at 60 Hz via 3rd party adapter Maximum DVI-D SL Resolution 1920 x 1200 at 60 Hz via included adapter HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync II Compatible Yes (Frame Lock & Genlock) NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.1, Open GL 4.5, Direct X 12.0, Vulkan 1.0 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, & Linux) Warranty 3 Years

...

Features CUDA Cores 3840 Peak Single Precision FP32 Performance 12.0 TFLOPS GPU Memory 24 GB GDDR5X Memory Interface 384-bit Memory Bandwidth 432 GB/s System Interface PCI Express 3.0 x 16 Display Connectors DP 1.4 (4) + DVI-D DL (1) + Stereo Overview UNMATCHED POWER. UNMATCHED CREATIVE FREEDOM. NVIDIA QUADRO P6000—THE WORLD’S MOST POWERFUL WORKSTATION GRAPHICS SOLUTION. The NVIDIA Quadro P6000 is the most advanced pure professional graphics solution ever created, combining the latest GPU, memory & display technologies that result in unprecedented performance & breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems & experience their creations within the most detailed, lifelike & immersive VR environments. in addition, you can create massive digital signage solutions by connecting multiple P6000s via Quadro Sync II. Designs become more complex over time. Visual effects grow in size, complexity, & scope. Scientific visualization & compute problems continue to push the boundaries of workstation capabilities. VR is changing all facets of entertainment, design, engineering, architecture, & medicine. As professional workflows grow in size & complexity, the demand for visual compute power grows with it. Quadro P6000’s Pascal architecture GPU implementation, GDDR5X memory & Display Port 1.4 support synergistically deliver the best overall single precision FP32 performance & professional graphics solutions. The P6000 enables users to create large, complex designs, interactively render photorealistic imagery, & create detailed, lifelike VR experiences.

Specification CUDA Cores 3840 Peak Single Precision FP32 Performance 12.0 TFLOPS Multi-GPU Scalability NVIDIA SLI HB GPU Memory 24 GB GDDR5X Memory Interface 384-bit Memory Bandwidth 432 GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 250 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.40” H x 10.50” L, Dual Slot Display Connectors DP 1.4 (4) + DVI-D DL + Stereo Display Port with Audio Yes DVI-D Single-Link Connector Via included adapter HDMI Support Via optional adapters VGA Support Via optional adapters Number of Displays Supported 4 Maximum DP 1.4 Resolution HDR 7680 x 4320 at 30 Hz (30-bit color) 5K Display Support HDR 5120 x 2880 at 60 Hz (30-bit color) 4K Display Support HDR 4096 x 2160 at 60 Hz or 3840 x 2160 at 60 Hz Maximum DVI-D DL Resolution 2560 x 1600 at 60 Hz via 3rd party adapter Maximum DVI-D SL Resolution 1920 x 1200 at 60 Hz via included adapter HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync II Compatible Yes (Frame Lock & Genlock) NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.1, Open GL 4.5, Direct X 12.0, Vulkan 1.0 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, & Linux) Warranty 3 Years

...
