FEATURES & DESIGN PNY PREVAILPRO Mobile Workstation Where Computing Performance & Mobility Becomes One Compact, Mobile & Performant for the Most Demanding Users Every PNY PREVAILPRO Mobile Workstation has gone through rigorous testing & a process of hardware optimization in order to provide operation reliability for professional workstation users. Configurable with NVIDIA Quadro P3000 or P4000, the device also offers different options for storage, memory & screen resolution, hence designed to be both scalable for workloads & a powerhouse for heavy, complex computing tasks. Powerful Performance 7th generation Intel Core™ i 7-7700HQ quad-core Kaby Lake processor in PNY PREVAILPRO provides both speed & performance with Hyper Threading & Turbo Boost. Professional 3D Graphics PNY PREVAILPRO integrates NVIDIA Quadro P3000/P4000 to deliver desktop-level performance with great mobility, allowing visual computing professionals across various industries to work with large, complex designs, render photo-realistic imagery, & develop intricate & life-like VR experiences. Expand Your Visual Workspace Expand your visual workspace with up to 3 external 4K UHD displays (3840x 2160 at 60 Hz) with HDR colour support that lets you view your creations in stunningly lifelike & vivid detail. Revolutionize Your Workflow The arrival of Virtual Reality (VR) is revolutionizing professional workflows. Scenes & models, photorealistically rendered by the GPU, can now be explored in immersive virtual reality. VR technology makes it possible to work with designs at scale using natural interactions, allowing users to hold models in their hands, walk through entire buildings, or rehearse complex surgical procedures Processor Intel Core™ i 7-7700HQ 2.8 G Hz Base (Turbo up to 3.8 G Hz) 6MB Smart Cache Memory 32GB 2400 M Hz DDR4 Configuration 2 x 16GB Hard Drive 512GB M.2 PCIe SSD 2TB Hard Disk Drive Optical Drive None Software Operating System: Windows 10 Pro Display 15.6” UHD 60 Hz Display, LED Backlit 3840x 2160 (Ultra HD) Graphics NVIDIA Quadro P4000 8GB Audio SOUND BLASTER X-FI MB5 High Definition Audio S/PDIF digital output Built in array microphone Built in dual speakers ANSP™ 3D sound technology on headphone output Networking Built in 10/100/1000 Mb Base-TX Ethernet LAN Intel Dual Band Wireless-AC 8265, 2x 2 AC + BT 4.2 M.2 2230 (Windstorm Peak) Power Supply Full Range AC adapter, AC in 100~240V, 50~60 Hz, DC output 19.5V, 7.7A, 150W Embedded 4 cell Li-Polymer battery pack, 55WH Battery life: 300 minutes (with UMA mode, 55WH Battery)

Dimensions Width 380mm Depth 248mm Height 18mm Weight 2.2kg Interfaces Left: Security lock slot DC power connector HDMI™ 2.0 with HDCP 2x Mini Display Port 1.3 2x Type-C USB (Universal Serial Bus) 3.1 Gen 2 ports 2x USB (Universal Serial Bus) 3.1 Gen 1 ports Right: 3.5mm Head phone jack 3.5mm 2-in-1 Audio Jack (Microphone S/PDIF optical output) USB (Universal Serial Bus) 3.1 Gen 1 port 6-in-1 Card Reader RJ-45 1000BASE-T Ethernet port

...

Extreme Performance With read & write speeds of up to 890 MB/s & 900 MB/s respectively, this portable SSD provides transfer speeds of up to 30 times faster than a USB (Universal Serial Bus) 3.0 flash drive Sleek & Compact A sleek, aluminum design that fits comfortably in the palm of your h&, making it the perfect solution for life on the go USB (Universal Serial Bus) 3.1 Gen 2 Boasts blazing fast speeds characteristic of USB (Universal Serial Bus) 3.1 Gen 2 interface, & is backwards compatible with USB (Universal Serial Bus) 3.0 & USB (Universal Serial Bus) 2.0 host devices Expanded Connectivity Access your data anytime, anywhere, from a vast array of host devices, both USB (Universal Serial Bus)-A & USB (Universal Serial Bus)-C enabled, with the included USB (Universal Serial Bus) Type-C toC cable & USB (Universal Serial Bus) Type-C to A cable, right in the box Overview The Pro Elite USB (Universal Serial Bus) 3.1 Gen 2 Type-C Portable SSD is the next generation in mobile storage, boasting not only increased storage capacity, but also exceptional performance. It’s designed to be a mobile storage solution superior to previous generations of USB (Universal Serial Bus)-A portable SSD’s, as well as traditional USB (Universal Serial Bus) 3.0 flash drives, allowing for even faster transfer & storage of files on the go. The Pro Elite USB (Universal Serial Bus) 3.1 Gen 2 Type-C Portable SSD is compatible with both USB (Universal Serial Bus)-C & USB (Universal Serial Bus)-A host devices, & the included Acronis True Image Data Protection Software easily backs up data. ...

The PNY PRO Elite USB (Universal Serial Bus) 3.0 Flash Drive is built for speed, boasting not only expanded capacity but also exceptional performance, making it the ideal solution for extreme users working with the largest files & most demanding applications. With read speeds of up to 400MB/s & write speeds up to up to 250MB/s, the PRO Elite USB (Universal Serial Bus) 3.0 Flash Drive is up to 80x faster than standard PNY USB (Universal Serial Bus) 2.0 Flash Drives. The PRO Elite is designed with both performance & convenience in mind, & is the perfect solution for transferring & storing large documents, high-resolution photos, & HD videos quicker & easier than ever before. It is compatible with USB (Universal Serial Bus) 3.0 equipped PC & Mac desktop & laptop computers, & backwards compatible with USB (Universal Serial Bus) 2.0. Features Capacity 512GB Interface USB (Universal Serial Bus) 3.0 Max Read Speed Up to 400MB/s Max Write Speed Up to 250MB/s Compatibility USB (Universal Serial Bus) 3.0 equipped host devices, backwards compatible with USB (Universal Serial Bus) 2.0 Environmental Conditions Operating Temperature: 0° to 60° C Storage Temperature: -25° to 85° C ...

Delivering the industrys best-in-class performance across leading CAD & DCC applications, the NVIDIA Quadro 2000 by PNY mid-range professional graphics solution features Scalable Geometry Engine technology & 1GB of GDDR5 memory for fast processing of complex models & scenes. The NVIDIA Quadro 2000 provides an affordable, high performance experience that can transform how engineers, designers & animators work every day, supports Microsoft Direct X 11.0, Open GL 4.1 & Shader Model 5.0 hardware acceleration, & drives a variety of displays including: CRTs, Digital Flat Panels, Projectors, & HDTVs. GPU Memory Size
- 1 GB GDDR5 Memory Interface
- 128-bit Memory Bandwidth
- 41.6 GB/s CUDA Parallel Processing Cores
- 192 Display Connectors
- DVI-DL + DP +DP




...

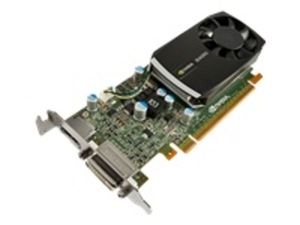

NVIDIA Quadro 400 delivers superior professional application performance & capabilities compared to consumer graphics. Designed for efficiency, Quadro 400 consumes less than 35 W & has a low-profile footprint flexible enough to fit into any workstation. Advanced capabilities such as Mosaic & n View technologies allow you to span & efficiently manage your entire Windows desktop across multiple displays. All of which means you can design, iterate & deliver higher quality results in less time. ...

If you're an artist, designer, or video professional with an Apple Mac Pro, you can accelerate your entire workflow with the NVIDIA Quadro 4000 for Mac graphics solution. Delivering excellent graphics performance across a broad range of design, animation & video applications, Quadro 4000 for Mac means that you can do more, faster. ...

NVIDIA Quadro 5000G by PNY Technologies, is an ideal solution for applications requiring unprecedented levels of immersive realism or interactive visualization that utilize Frame Lock or genlock functionality to choreograph multi-device film & video environments, or visualization clusters for effects rendering, scientific or engineering use. Frame Lock synchronizes the display channels from multiple workstations, creating a single "virtual display", that can be driven by a multi-system cluster for performance scalability. Using the NVIDIA Quadro 5000G by PNY, scientists & engineers can develop scalable, open standards driven, visualization clusters that can dramatically outperform expensive proprietary solutions at a fraction of their cost. Genlock allows graphics output to be synchronized to an external source, typically for film & broadcast video applications. Offering GDDR5 graphics memory, 352 NVIDIA CUDA parallel processing cores & built on the Fermi architecture, the NVIDIA Quadro 5000 by PNY is a true technological delivering ultra-fast performance across a broad range of design, animation & video applications. The NVIDIA Quadro 5000 by PNY graphics board significantly raises the bar for high performance visualization & computation providing the ability to drive a variety of display types including: CRTs, digital flat panels, projectors & HDTVs. ...

Offering 2.5 GB of GDDR5 graphics memory, 352 NVIDIA CUDA™ parallel processing cores & built on the innovative Fermi architecture, the NVIDIA Quadro 5000 by PNY is a true technological breakthrough delivering ultra-fast performance across a broad range of design, animation & video applications. Using the Quadro 5000 graphics solution, your work flows — you can design, render & deliver higher quality projects in less time. The NVIDIA Quadro 5000 by PNY offers ECC memory & fast double precision to ensure the accuracy & fidelity of your work. Quadro is designed to run computationally intensive applications such as ray tracing, video processing & computational fluid dynamics; supports Direct X 11.0, Open GL 4.1 & Shader Model 5.0 hardware acceleration, & drives a variety of display types including: CRTs, Digital Flat Panels, Projectors & HDTVs. GPU Memory
- 2.5 GB GDDR5 Memory Interface
- 320-bit Memory Bandwidth
- 120 GB/sec CUDA Parallel Processing Cores
- 352 ECC (Error Correcting Code)
- Yes High Performance Double Precision
- Yes Maximum Power Consumption
- 150W Energy Star Compliant
- Yes Physical

Dimensions
- 4.376” H x 9.50” L Dual Slot Display Connectors
- DVI-DL + DP + DP + ST Number of Displays Supported
- 2 DP
- Yes DVI
- Yes VGA
- Yes Graphics Bus
- PCI Express 2.0 x 16 Thermal Solution
- Active 3D Vision Pro
- Support via 3-pin Mini-DIN G-Sync
- Version Available HD SDI Capture/ Output
- Version Available Maximum Digital Resolution
- 2560 x 1600 at 60 Hz Graphics APIs
- Direct X 11, Open GL 4.0 & Shader Model 5.0 Compute APIs
- NVIDIA CUDA, Direct Compute & Open CL























...

Offering 6 GB of GDDR5 graphics memory, 448 NVIDIA CUDA™ parallel processing cores & built on the innovative Fermi architecture, the NVIDIA Quadro 6000 by PNY is a true technological breakthrough delivering excellent performance across a broad range of design, animation & video applications. Using the Quadro 6000 graphics solution, your work flows — you can design, render & deliver higher quality projects in less time. The NVIDIA Quadro 6000 by PNY offers ECC memory & fast double precision to ensure the accuracy & fidelity of your work. Quadro is designed to run computationally intensive applications such as ray tracing, video processing & computational fluid dynamics; supports Direct X 11.0, Open GL 4.1 & Shader Model 5.0 hardware acceleration, & drives a variety of display types including: CRTs, Digital Flat Panels,

Specification
- Memory
- 6 GB GDDR5 Memory Interface
- 384-bit Memory Bandwidth
- 144 GB/sec CUDA Parallel Processing Cores
- 448 ECC (Error Correcting Code)
- Yes High Performance Double Precision
- Yes Maximum Power Consumption
- 204W Energy Star Compliant
- Yes Physical

Dimensions
- 4.376" H x 9.75" L Dual Slot Display Connectors
- DVI-DL + DP + DP + ST Number of Displays Supported
- 2 DP
- Yes DVI
- Yes VGA
- Yes Graphics Bus
- PCI Express 2.0 x 16 Thermal Solution
- Active 3D Vision Pro
- Support via 3-pin Mini-DIN G-Sync
- Version Available HD SDI Capture/ Output
- Version Available Maximum Digital Resolution
- 2560 x 1600 at 60 Hz Graphics APIs
- Open GL 4.1, Direct X 11.0 & Shader Model 5.0 Compute APIs
- NVIDIA CUDA, Direct Compute & Open CL


























...

768MB GDDR3 frame buffer 192-bit memory interface 38.4GB/sec memory bandwidth DVI dual link & two Display Port PCI Express x 16 Gen 2 bus interface (compatible with Gen 1) 59W maximum power consumption Create innovative designs with the NVIDIA Quadro FX 1800 by PNY professional graphics solution architected for leading-edge manufacturing & design companies. The next generation solution within the most requested mid-range professional graphics family, Quadro FX 1800 provides a balanced price & performance combination. Featuring the NVIDIA CUDA™ parallel computing architecture, 30-bit color accuracy, & automatic configuration of application display settings for optimal performance, the Quadro FX 1800 sets the standard for power efficiency while delivering a rich user experience. ...
