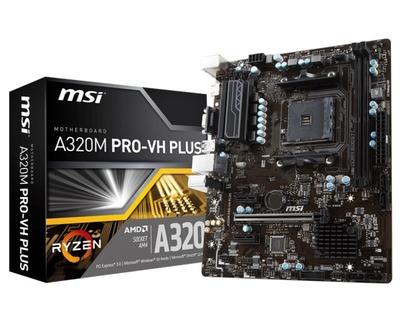

MSI A320M PRO-VH PLUS Socket AM4 DDR4 M-ATX Motherboard

Product Description

Features Supports AMD RYZEN series processors & 7th Gen A-series / Athlon™ Processors for socket AM4 Support DDR4 1866/2133/2400/2667/2933 (OC)/3200 (OC) Mhz DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience EZ Debug LED: Easiest way to troubleshoot X-Boost: Great tool to boost your USB (Universal Serial Bus) & Storage performance Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection & efficiency Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites & search function WHQL certified for Windows 10 Overview MAKING YOUR LIFE EASIER IS OUR BUSINESS Combining quality you can rely on with top performance & clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier & supporting your business with super stable, reliable & long-lasting top performance. STAY COOL Cooling your PC is essential for reliable performance. Weve made sure to include enough fan headers with full control to allow you to cool your system to the max. ENJOY THE LATEST VIDEO STANDARDS Supporting the latest display connectors for new technologies (OLED, HDR) & legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user. PROFESSIONAL SOUND QUALITY Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

Specification CPU • Supports AMD RYZEN series processors & 7th Gen A-series/ Athlon™ processors for Socket AM4 * This function will be supported depend on the CPU. Chipset • AMD A320 Chipset Main Memory • 2 x DDR4 memory slots, support up to 32GB • Support DDR4 1866/2133/2400/2667/2933 (OC)/3200 (OC) Mhz* • Dual channel memory architecture • Supports ECC UDIMM memory (non-ECC mode) • Support non-ECC UDIMM memory * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz. * Please refer www.msi.com for more information on compatible memory Slots • 1 x PCIe 3.0 x 16 slots
- RYZEN series processors support x 16 mode
- 7th Gen A-series/ Athlon™ processors support x 8 mode • 2 x PCIe 3.0 x 1 slots Onboard Graphics • 1 x HDMI™ port, supports a maximum resolution of 4096x 2160@24 Hz* • 1 x VGA port, supports a maximum resolution of 2048x 1280@60 Hz, 1920x 1200@60 Hz * Only support when using a 7th Gen A-series/ Athlon™ processor * Maximum shared memory of 2048 MB Storage • AMD A320 Chipset • 4 x SATA 6 Gb/s ports • Supports RAID 0, RAID1 & RAID 10 USB (Universal Serial Bus) • AMD A320 Chipset
- 6 x USB (Universal Serial Bus) 3.1 Gen 1 (Super Speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) connector)
- 6 x USB (Universal Serial Bus) 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) connector) Audio • Realtek ALC887 Codec
- 7.1-Channel High Definition Audio LAN • 1 x Realtek 8111H Gigabit LAN controller Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6 Gb/s connectors
- 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (supports additional 2 USB (Universal Serial Bus) 3.1 Gen 1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 2 x Serial port connector
- 1 x Clear CMOS jumper Back Panel I/O Ports
- 1 x PS/2 keyborard/ mouse combo port
- 2 x USB (Universal Serial Bus) 2.0 Type-A ports
- 1 x HDMI™ port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Type-A ports
- 3 x audio jacks Dimension • 9.3 in. x 7.4 in. (23.6 cm x 18.7 cm) • m-ATX Form Factor Mounting • 6 mounting holes
