Kingston’s KC1000 solid-state drive is a high-performance PCIe NVMe™ solution that is over 2x faster than SATA-based SSDs & 40x faster than a 7200RPM hard-disk drive*. Using a PCIe Gen 3.0 x 4 interface & an 8-channel Phison PS5007-E7 controller, this drive features 8 cores & 2x the DRAM to help power users blaze through even the toughest projects with high-speed data transfers of up to 2500MB/s*. KC1000 uses native OS drivers & is NVMe 1.2 compliant which allows users to take full advantage of the high throughput, IOPS & low latency that is available to systems that support NVMe. This protocol was designed specifically to support Flash-based storage versus SATA, which was developed for traditional spinning disks. It removes performance bottlenecks & provides the system with instant access to the device once the SSD is installed. KC1000 is easily installed in either a standard M.2 or PCI Express socket using the M.2 2280 or the optional half-height, half-length add-in card for greater design-in flexibility when used by system builders. There is a range of capacities available from 240GB to 960GB**, & the KC1000 is backed by a limited five-year warranty*** & legendary Kingston support. ...

. rpd-row { overflow: hidden; padding: 30px 0; border-bottom: 1px solid eee; }. rpd-row h 3 { font-
Size:22px; }. rpd-row
...

M.2 SATA SSD Kingston’s M.2 SATA solid-state drive features a thin, compact form factor that saves space in small-design embedded systems, appliances & ultra-thin computing devices. It meets the M.2 industry standard & integrates into designs with next-generation connectors. It’s caseless to allow for easier design-in & lighter weight than a cased SSD & to match today’s thin-&-light systems. Its 2280 module optimises performance with advanced garbage collection, wear-levelling & TRIM support to keep performance consistent over the life of the drive. Dev Sleep, a new addition to the SATA

Specification, is an efficient power-management option that minimises power consumption & extends battery life. It also features firmware-based power loss protection to maintain data integrity. This enables the drive to recover if there’s ever an unsafe shutdown. For added peace of mind, the M.2 SATA SSD is backed by a three-year warranty, free technical support & legendary Kingston reliability. Features Popular M.2 Size — 22mm width, 80mm length NAND Flash memory based — shock resistant with lower power consumption Supports Intel’s SRT — combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration Supports S.M.A.R.T. — monitors the status of your drive Supports TRIM — maintains maximum performance of compatible operating systems Guaranteed — 3-year warranty & free technical support Form factor: M.2 2280 Interface: SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 Capacities 1: 120GB, 240GB Baseline Performance 2: Compressible Data Transfer (ATTO): 550MB/s Read & 520MB/s Write Incompressible Data Transfer (AS-SSD & Crystal Disk Mark): 500MB/s Read & 330MB/s Write IOMETER Maximum Random 4k Read/ Write: 120GB — up to 66, 000/ up to 65, 000 IOPS 240GB — up to 65, 000/ up to 65, 000 IOPS Random 4k Read/ Write: 120GB — up to 46, 000/ up to 13, 500 IOPS 240GB — up to 46, 000/ up to 26, 000 IOPS PCMARK Vantage HDD Suite Score: 56, 000 PCMARK 8 Storage Score: 120GB – 4, 900 240GB – 4, 800 Power Consumption: 0.06 W Idle / 0.1 W Avg / 1.01W (MAX) Read / 3.08 W (MAX) Write Storage temperatures: -40°C ~ 85°C Operating temperatures: 0°C ~ 70°C Dimensions: 80mm x 22mm x 3.5mm Weight: 7.36g Vibration operating: 2.17G Peak (7–800 Hz) Vibration non-operating: 20G Peak (10–2000 Hz) Life expectancy: 1 million hours MTBF Warranty/support: 3-year warranty with free technical support Total Bytes Written (TBW)3: 120GB: 230TB 1.8 DWPD4 240GB: 420TB 1.75 DWPD4- Shock: Resistant up to 1500G

...

Get more life out of your computer & maximise your existing investment by replacing your old hard drive with a Kingston SSDNow V300 solid-state drive. It’s the most cost-efficient way to dramatically improve the responsiveness of your system — & it’s less disruptive than migrating your data to a new system. SSDNow V300 features an LSI Sand Force controller customised for Kingston & optimised for next-generation Flash memory to deliver the utmost in quality & reliability from two leading SSD brands. Because it’s made with solid-state components & has no moving parts, it’s shock-proof & withstands drops & bumps. SSDNow V300 is easy to install & available in kits that include all the accessories you’ll need, including the software to clone your files & OS in minutes. It’s backed by a three-year warranty, free technical support & legendary Kingston reliability. Features Faster
- improves speed of loading applications & system boot up Reliable
- with no moving parts, solid-state drives are less likely to fail than standard hard drives Economical
- design optimised to make migrating to an SSD more affordable Convenient
- all-in-one kits with all the components for easy installation Multiple capacities
- to fit your workload Form factor
- 2.5-inch drive available in 7.0mm with adapter to fit in 9.5mm systems Silent
- cool & silent operation Guaranteed
- three-year warranty, free technical support

Specification Capacity: 240GB Form factor: 2.5" Interface: SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 Sequential reads: SATA Rev. 3.0 up to: 450MB/s Sequential writes: SATA Rev. 3.0 up to: 450MB/s Maximum random 4k read/write: up to 85, 000 / up to 43, 000 IOPS PCMARK Vantage HDD Suite score: 57, 000 Power consumption: 0.640 W idle / 1.423 W read / 2.052 W write Storage temperatures: -40°C~85°C Operating temperatures: 0°C~70°C Dimensions: 69.8mm x 100.1mm x 7mm Weight: 86g Vibration operating: 2.17G peak (7–800 Hz) Vibration non-operating: 20G peak (10–2000 Hz) Life expectancy: 1 million hours MTBF Warranty/support: three-year manufacturer warranty with free technical support Kit
Includes:: 2.5" USB (Universal Serial Bus) enclosure 3.5" bracket & mounting screws SATA data & power cables Installation video (DVD) 7mm to 9.5mm adapter










...

Everyday business SSDs offer performance & affordability. Kingston’s SSDNow V+200 features a second-generation SATA-III Sand Force processor for best-in-class sequential read/write speeds combined with asynchronous NAND for exceptional quality & performance at an affordable price. It’s the perfect balance of performance & affordability & easy to integrate into corporate asset refresh cycles. Because data integrity is important, you need to make sure the SSD you choose takes data protection seriously. V+200 offers data integrity protection that features Dura Class Technology plus RAISE for advanced data reliability. It’s designed to negate the performance impact of software encryption, so you can regain the performance lost & increase your user experience. Most business systems are SATA-II, but the V+200 is SATA-III & backwards compatible all the way to SATA-I. It therefore allows you the flexibility to future-proof your purchase. V+200 comes with a three-year warranty, 24/7 technical support & legendary Kingston reliability. Features & Benefits Dramatic performance increase for any system upgrade Multiple capacities — the right capacity to meet your Endurance — data integrity protection featuring Dependable — RAISE for advanced data reliability Secure — self-encrypting drive technology Durable — Dura Write optimises writes to extend endurance Reliable — three-year warranty Specifications Form factor 2.5" Interface SATA-III (6 Gb/s), SATA-II (3 Gb/s), SATA-I (1.5 Gb/s) Capacity 240GB Sequential reads SATA-III
- 535MB/s, SATA-II
- 280MB/s Sequential writes SATA-III = 480MB/s, SATA-II
- 260MB/s Sustained random 4k read/write = 36, 000/43, 000 IOPS Max random 4k read/write = 85, 000/43, 000 IOPS Warranty/support three-year warranty with free 24/7 support Power consumption 0.565 W (TYP) idle / 1.795 W (TYP) Read / 2.065 W (TYP) Write Storage temperatures -40°C ~ 85°C Operating temperatures 0°C ~ 70°C

Dimensions 69.85 x 100 x 9.5mm Weight 115 grams Vibration operating 2.17G Vibration non-operating 20G MTBF 1, 000, 000 hrs This SSD is designed for use in desktop & notebook computer workloads, & is not intended for server environments.




...

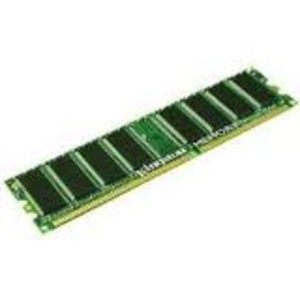

Kingstons KHX1600C9D3T1BK6/24GX is a kit of six 512M x 64-bit (4GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM), 2 Rx 8 memory modules, based on sixteen 256M x 8-bit FBGA components per module. Each module kit supports Intel XMP (Extreme Memory Profiles). Total kit capacity is 24GB. Each module kit has been tested to run at DDR3-1600 at a low latency timing of 9-9-9-27 at 1.65V. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 240-pin DIMM uses gold contact fingers. Features JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667 M Hz f CK for 1333 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock Programmable CAS Write Latency (CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB: Height 2.401” (61.00mm) w/ heatsink, double sided component Technical Specifications CL (IDD) 9 cycles Row Cycle Time (t R Cmin) 49.5ns (min.) Refresh to Active/ Refresh 160ns (min.) Command Time (t RFCmin) ve Time (t RASmin) 36ns (min.) Power (Operating) 1.410 W* (per module) UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC


...

Kingstons KHX1600C9D3T1BK6/24GX is a kit of six 512M x 64-bit (4GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM), 2 Rx 8 memory modules, based on sixteen 256M x 8-bit FBGA components per module. Each module kit supports Intel XMP (Extreme Memory Profiles). Total kit capacity is 24GB. Each module kit has been tested to run at DDR3-1600 at a low latency timing of 9-9-9-27 at 1.65V. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: Technical Specifications: JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667 M Hz f CK for 1333 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9-8-7-6 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock Programmable CAS Write Latency (CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does notallow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ Pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB: Height 2.401” (61.00mm) w/ heatsink, double sided component CL (IDD): 9 cycles Row Cycle Time (t R Cmin): 49.5ns (min.) Refresh to Active/ Refresh: 160ns (min.) Row Active Time (t RASmin): 36ns (min.) Power (Operating): 1.410 W (per module) UL Rating: 94 V
- 0 Operating Temperature: 0oC to 85oC Storage Temperature: -55oC to +100oC


...

Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write speeds up to 2, 100/1, 700MB/s*, which is 3 to 4 times faster than a SATA-based SSD, & 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, & quicker loading time. The efficient performance & single-sided M.2 2280 (22x 80mm) design makes NV1 ideal for thin notebooks & systems with limited space. Available in capacities from 250GB – 2TB** to give you all the space you need for applications, documents, photos, videos, & more. NVMe PCIe SSD Performance Ideal for laptops & small form factor PCs Capacities up to 2TB ...

Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x 4 NVMe controller. NV2 delivers read/write speeds up to 3, 500/2, 800MB/s* with lower power requirements & lower heat to help optimize your system’s performance & deliver value without sacrifice. The compact single-sided M.2 2280 (22x 80mm) design expands storage up to 2TB** while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, & DIY motherboards. Available in capacities from 250GB – 2TB** to give you all the space you need for applications, documents, photos, videos, & more. ...

Kingston’s Data Traveler 100 G3 (DT100G3) USB (Universal Serial Bus) Flash drive is compliant with USB (Universal Serial Bus) 3.0 specifications to take advantage of technology in newer notebooks, desktop PCs & digital devices. DT100G3 makes it easier than ever to store & transfer documents, presentations, music, video & more. DT100G3 features a sleek, cost-effective design to make adding to the USB (Universal Serial Bus) 3.0 experience a minimal investment. Available in capacities from 16GB–256GB2, DT100G3 is backward compatible with USB (Universal Serial Bus) 2.0 & has a five-year warranty. Features Stylish black-on-black, sliding cap design Ideal USB (Universal Serial Bus) 3.0 storage device Capacities from 16GB to 256GB ...
