Specifications Bus Type PCI-E 3.0 GPU Clock Ture:1366 M Hz OC+:xxxx M Hz Stream Processors 2304 Memory Bus 256 bit Memory Clock Ture:8.0 G Hz OC+:xxxx G Hz Memory Size 8 GB Memory Type DDR5 Card Profile Dual Thermal Solution DD Fansink Outputs Dual link Support Y Max Supported Resolution (DIGITAL) 4096 x 2160 Output
- Display Port 3 Output
- HDMI 1 Output
- DL-DVI-D 1 Features Display Port ready 1.4 HDMI Ready 2.0b Requirements External Power
- 8-pins 1 Minimum Power Supply Requirement 500 watt XFX Recommended Power Supply XFX 550W PSU Technologies AMD Free Sync™ 2 technology Y Radeon™ Chill Y Re Live Capture Y Direct X 12 Y Vulkan™ Y AMD Virtual Super Resolution (VSR) Y Radeon™ Software Y AMD Cross Fire™ Technology Y AMD XConnect™ Ready Y AMD Eyefinity Technology Y Open CL™ Support Y Polaris Architecture Y AMD Liquid VR™ technology Y Certifications Ro HS Y Package Contents 8-pin to 6-pin power cable 1 Driver Disk Installation Guide 1 Installation DVD 1



...

Specifications Model Number RX-590P8DFD6 Product Name AMD Radeon™ RX 590 Product Description XFX RADEON RX 590 FATBOY 8GB OC+ 1600M D5 3x DP HDMI DVI Bus Type PCI-E 3.0 GPU Clock OC+:1600 M Hz BIOS:1580 M Hz Stream Processors 2304 Memory Bus 256 bit Memory Clock OC+:8.0 G Hz BIOS:8.0 G Hz Memory Size 8 GB Memory Type DDR5 Card Profile Dual Thermal Solution 2.5 Slot DD fansink Outputs Dual link Support Y Max Supported Resolution (DIGITAL) 4096 x 2160 Output
- Display Port 3 Output
- HDMI 1 Output
- DL-DVI-D 1 Display Port ready 1.4 HDMI Ready 2.0b Requirements External Power
- 8-pins 1 External Power
- 6-pins 1 Minimum Power Supply Requirement 500 watt XFX Recommended Power Supply XFX 550W PSU Technologies AMD Free Sync™ 2 technology Y Radeon™ Chill Y Re Live Capture Y Direct X 12 Y Vulkan™ Y AMD Virtual Super Resolution (VSR) Y Radeon™ Software Y AMD Cross Fire™ Technology Y AMD XConnect™ Ready Y AMD Eyefinity Technology Y Open CL™ Support Y Polaris Architecture Y AMD Liquid VR™ technology Y Package Contents 8-pin to 6-pin power cable 1 6-pin to 4-pin power cable 1 Driver Disk Installation Guide 1 Installation DVD 1




...

The XFX Black Edition 850 watt modular power supply gives you the power you need with a brilliant combination of form & function. Giving more than just life to your PC, this power supply allows easy cable management with modular connectors which helps increase airflow. With tight voltage regulation & high efficiency operation up to 90% (80 Plus Gold) this power supply will give you exactly what you need to keep your gaming charged & ready. Input Voltage Range AC 100
- 240 V Frequency Required 47
- 63 Hz Power Output Connectors Details 1 x 4 PIN mini-power connector, 5 x 4 PIN internal power, 10 x 15 pin Serial ATA power, 6 x 8 pin PCI Express power with detachable 2 pin section, 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 1 x power 24 pin ATX with detachable 4 pin section, 1 x power 8 pin EPS12V Output Voltage +3.3, +5, ±12 V ± 3% Power Capacity 850 Watt Output Current +12V1
- 70 A, +3.3V
- 25 A, +5V
- 25 A, +5VSB
- 3 A, -12V
- 0.8 A 80 PLUS Certification 80 PLUS Gold






...

Easy Rail Technology Provides Maximum Power. Unique, continuous Easy Rail technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. It's also a perfect solution for hardcore gamers. Product Features 450W of continuous power at 50°C Tight voltage regulation (±5%) High efficiency operation up to 85% (80 Plus Bronze) Single, high power +12V rail (up to 53A/636W) High quality Japanese brand capacitor (105°C) Quiet 135mm ball bearing fan provides superior cooling Supports multiple high-end graphic adaptors (AMD Cross Fire Ready) Supports the latest ATX12V & EPS12V standards Active PFC with Universal AC input Energy Star 40 & Ro HS compliant 5-Year Limited Warranty ...

Unique, continuous Easy Rail™ technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. It's also a perfect solution for hardcore gamers. 2 year standard warranty with all PSUs
- simply register your PSU when purchased at http://xfxforce.com/en-gb/ Help/ Support.aspx to obtain a 5 year warranty. Register within 30 days of purchase, & provide proof of purchase for any warranty actions. General +12V Rail Outputs: Single ATX12V 2.2 & ESP12V 2.91 Compliant: Yes Maximum Wattage (W):850 Performance Category: Enthusiast UPC Number:778656058811 Technologies Cross Fire Ready: Yes SLI Ready: Yes Ratings & Efficiencies AC Input Current (Arms):11A
- 5.5A AC Input Frequency (Hz):50/60 Hz AC Input Voltage (Vac):100
- 240 Active Power Factor Correction (PFC): Yes DC Output Voltage Regulation:±3% Efficiency @ Typical Load:up to 90% Energy-Efficiency:80 Plus Bronze Certified Other Features DC to DC Converters (+3.3 & +5V): Yes EZ Grip Connectors: Yes High Reliable 105°C Japanese Capacitors: Yes Solid State Capacitors: Yes Load Range +12V1 (m W):TBA Max +12V1 Output Current (A):70 Max +12V1 Power (W):840 Max +3.3V & +5V combined power (W):125 Max +3.3V Output Current (A):25 Max +5V Output Current (A):25 Max +5VSB Output Current (A):3 Max +5VSB Power (W):15 Max -12V Output Current (A):0.8 Max -12V Power (W):6 Wattage (W):850W Cable Connectors Modular 6+2-pin PCI-E:6 Modular ATX12V / EPS12V: One 4+4-pin, One EPS 12V 8-pin Modular FDD:1 Modular Motherboard Connector:20+4 pin Modular Peripheral: Up to 5 Modular SATA: Up to 10 Safety & Protection Over Current Protection (OCP): Yes Over Power Protection (OPP): Yes Over Temperature Protection: Yes Over Voltage Protection (OVP): Yes Short Circuit Protection (SCP): Yes Under Voltage Protection (UVP): Yes Physical Cooling Fan Size (mm):120 Intake Fan: Airflow (CFM/min):80.5 Intake Fan: Diameter (mm):120 x 120 x 25 mm Intake Fan: Speed:2050 rpm Package

Dimensions (cm):31.9 x 21.0 x 16.3 Package

Dimensions (inch):12.55 x 8.26 x 6.42 Package Weight (Kg):2.76 est. Package Weight (lb):6.08 est. PSU Dimension (cm):8.6 x 14.0 x 16.0 PSU Dimension (inch):3.4 x 5.5 x 6.3 Certifications & Standards C-tick: Yes CB: Yes TUV: Yes






...

The XFX AMD Radeon HD 6400 graphics card delivers discrete graphics performance thats perfect for every day computing. Multitask with AMDs Eye Speed technology & accelerate applications. Eyefinity technology lets you spread work across up to three displays so you can watch movies in vivid HD & multitask with impressive speed. With Direct X 11, the XFX AMD Radeon HD 6400 graphics card gets a performance boost, delivering advance technologies with superb Direct X 11 support. ...

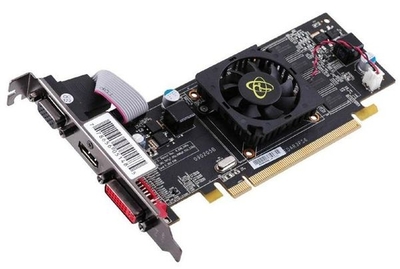

The XFX AMD Radeon HD 6450 graphics card delivers discrete graphics performance that’s perfect for every day computing. Multitask with AMD’s Eye Speed technology & accelerate applications. GPU Clock
- 625 MHz Chipset version
- Caicos Pro Memory Bus
- 64 bit Memory Clock
- 800 MHz Memory Size
- 2 GB Memory Type
- DDR3 Dual link Support
- Y HDMI Ready
- Y Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DVI x 1 Output
- HDMI x 1 Output
- VGA x 1












...

This high-powered card

Includes:: the latest video features as well as second-generation support for Direct

...

This visually brilliant XFX AMD Radeon 6670 graphics card delivers impressive enhancements for entertainment & gaming. Discover a superior visual experience with AMD’s Eye Speed technology which offers increased speed & third-generation video enhancements for a crisp, vivid HD viewing experience. Specifications GPU
- HD 6670 Memory
- 1GB DDR3 Outputs
- DVI, VGA, HDMI Bus
- PCI-Express



...

Enjoy the latest gaming titles with this fully Microsoft Direct X 11-compatible GPU which offers mind-blowing lifelike HD graphic detail & real Stereoscopic 3D gaming, for a truly immersive HD gaming experience. Expand your visual real estate with ATI Eyefinity Multi-Display Technology which lets you see more & dominate the battlefield. Now with AMD App Acceleration, you can power through even the most bandwidth-hungry media rich applications with blazing speeds. Whether its gaming or productivity, this card can do it all. Chipset version: Juniper XT GPU Clock:850 MHz Memory Bus:128 bit Memory Clock:4.8 GHz Memory
Size:1 GB Memory Type:DDR5 HDMI Ready:Y Max Supported Resolution (ANALOG):2048 x 1536 Max Supported Resolution (DIGITAL):2560 x 1600 Output
- DL-DVI:1 Output
- HDMI:1 Output
- VGA:1 Dual link Support:Y



...
