TUF m ATX Intel Z97 military-grade motherboard with advanced cooling & even more accessible price LGA1150 Socket for the 5th, New 4th & 4th Generation Intel Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors Intel Z97 Express Chipset TUF ICe
- Your Total Cooling Commander Thermal Radar 2
- Customized Fan Tuning, Complete System Cooling TUF Components [TUF 10K Ti-Caps, TUF New Alloy Choke & MOSFETs; Certified by Military-standard]
- Certified for Tough Duty Server-grade Tests
- Systematically-tested Stability ESD (Anti-Surge)
- Strong ESD Protection for Extended Component Lifespan Specifications CPU Intel Socket 1150 for the 5th/ New 4th/4th Generation Core™ i 7/ Core™ i 5/ Core™ i 3/ Pentium/ Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types * Refer to asus website for CPU support list Chipset Intel Z97 Memory 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs * Refer to asus website for the Memory QVL (Qualified Vendors Lists) Graphics Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: HDMI/DVI/ Display Port ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports Display Port with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel In Tru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays Multi-GPU Support Supports NVIDIA Quad-GPU SLI™ Technology Supports AMD Quad-GPU Cross Fire X™ Technology Expansion Slots 2 x PCIe 3.0/2.0 x 16 (Single at x 16, dual at x 8/x 8, ) 1 x PCIe 2.0 x 16 (x 4 mode, black) 1 x PCIe x 1 Storage Intel Z97 chipset: 6 x SATA 6 Gb/s port (s), brown, Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *1 LAN Intel I218V, 1 x Gigabit LAN Controller (s) Audio Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature :
- Absolute Pitch 192k Hz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port (s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation & greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left & right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone & speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs USB (Universal Serial Bus) Ports Intel Z97 chipset: 6 x USB (Universal Serial Bus) 3.0/2.0 port (s) (4 at back panel, blue, 2 at mid-board) Intel Z97 chipset: 8 x USB (Universal Serial Bus) 2.0/1.1 port (s) (4 at back panel, black, 4 at mid-board) Special Features TUF

Features: TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
- TUF ICe Safe & Stable! Guardian Angel :
- TUF ESD Guards ASUS Exclusive Features :
- Mem OK!
- AI Suite 3
- Ai Charger
- USB (Universal Serial Bus) Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB (Universal Serial Bus) 3.0 Boost
- Disk Unlocker
- Turbo LAN Interactive Home Cloud
- Media Streamer ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector Operating System Support Windows 8.1 Windows 8 Windows 7 Back I/O Ports 1 x DVI-D 1 x Display Port 1 x HDMI 1 x LAN (RJ45) port (s) 4 x USB (Universal Serial Bus) 3.0 (blue) 4 x USB (Universal Serial Bus) 2.0 1 x Optical S/PDIF out 5 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.0 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.0 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x TPM header 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x CPU OPT Fan connector (s) (1 x 4 -pin) 4 x Chassis Fan connector (s) (4 x 4 -pin) 1 x Assistant Fan connector (s) (1 x 3 -pin) 1 x S/PDIF out header (s) 1 x Thunderbolt header (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x DRCT header (s) 1 x Mem OK! button (s) 3 x Thermal sensor connector (s) 1 x Clear CMOS jumper (s) 1 x USB (Universal Serial Bus) BIOS Flashback button (s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.7, Wf M2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, Crash Free BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions, & ASUS DRAM SPD (Serial Presence Detect) memory information Manageability Wf M 2.0, DMI 2.7, WOL by PME, PXE Form Factor m ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm ) Note *1: These functions will work depending on the CPU installed











































...

Get the competitive edge with ROG Strix GS-AX3000, a Wi-Fi 6 gaming router that gives you the fastest, smoothest Wi-Fi gaming connections ever. With ultrafast Wi-Fi speeds up to 3000 Mbps, it's ready for the most intense matches, and with fully customizable ASUS Aura RGB lighting effects, it looks great too. If you take gaming seriously, you need the GS-AX3000! ROG STRIX GS-AX3000 GS-AX3000 dual-band Wi-Fi 6 gaming router, PS5 compatible, Mobile Game Mode, VPN Fusion, lifetime free internet security, Instant Guard, Gear Accelerator, Gaming Port, Adaptive Qo S, port forwarding, ASUS Aura RGB New-generation Wi-Fi 6 – Enjoy ultrafast speeds up to 3000 Mbps with 160 MHz Wi-Fi 6 channels Fully optimized gaming
- Mobile Game Mode, dedicated Gaming Port & Gear Accelerator let you optimize any type of gaming on mobile, console or PC VPN Fusion – Run a VPN & an ordinary internet connection simultaneously, allowing maximum speed even if other network users need to use a VPN More privacy, anywhere – Instant Guard secures public Wi-Fi connections anywhere in the world using GS-AX3000, with just a click ASUS Ai Mesh support – Create a flexible, seamless whole-home mesh network with Ai Mesh-compatible routers
...

Get the competitive edge with ROG Strix GS-AX5400, a Wi-Fi 6 gaming router that gives you fast, smooth Wi-Fi gaming connections. With ultra-fast Wi-Fi speeds up to 5400 Mbps, it's ready for the most intense matches, and with fully customizable ASUS Aura RGB lighting effects, it looks great too. If you take gaming seriously, you need GS-AX5400! GS-AX5400 dual-band Wi-Fi 6 gaming router, PS5 compatible, Mobile Game Mode, VPN Fusion, lifetime free internet security, Instant Guard, Gear Accelerator, Gaming Port, Adaptive Qo S, port forwarding, ASUS Aura RGB New-generation Wi-Fi 6 – Enjoy ultrafast speeds up to 5400 Mbps with 160 MHz Wi-Fi 6 channels Fully optimized gaming – Mobile Game Mode, dedicated Gaming Port & Gear Accelerator let you optimize any type of gaming on mobile, console or PC VPN Fusion – Run a VPN & an ordinary internet connection simultaneously, allowing maximum speed even if other network users need to use a VPN More privacy, anywhere – Instant Guard secures public Wi-Fi connections anywhere in the world using GS-AX5400, with just a click ASUS Ai Mesh support – Create a flexible, seamless whole-home mesh network with Ai Mesh-compatible routers ...

Perfect for home theater PC with low profile design & Full HD Blu-ray 3D support 25% longer card lifespan with unique Dust-Proof fan Enhanced durability with GPU Guard & Fuse Protection

Specification Bus Standard PCI Express 2.0 Video Memory DDR3 1G Engine Clock 700 MHz Shader Clock 1400 MHz Memory Clock 1600 MHz (800 MHz DDR3 ) RAMDAC 400 M Hz Memory Interface 128-bit D-Sub Max Resolution 2048 x 1536 DVI Max Resolution 2560 x 1600 D-Sub Output Yes x 1 DVI Output Yes x 1 (DVI-I) HDMI Output Yes x 1 HDCP Support Yes Software Bundled ASUS Utilities & Driver Low Profile Bracket Bundled Yes (1 slots ) x (2 ) Note The card size is 6, 3 inchesx 2.8 inches

...

Voltage Tweak: to crank up performance by 50%. Super Alloy Power: Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Microsoft Windows 7 Support: Enable PC users to enjoy an advanced computing experience. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. Graphics Engine Ge Force GT440 Bus Standard PCI Express 2.0 Video Memory 1GB GDDR5 Engine Clock 822 MHz CUDA Cores 96 Shader Clock 1644 MHz Memory Clock 3200 M Hz (800 M Hz GDDR5) Memory Interface 128 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output YES X1 (Native) DVI Output YES X1 (Native DVI-I) HDMI Output YES X1 (Native) HDCP compliant YES Software Bundled ASUS Utilities & Driver Dimension The card size is 8.46 x 5.11 x 1.22 inches ...

Model
- GT610-SL-1GD3-L Graphics Engine
- Ge Force GT610 Bus Standard
- PCI Express 2.0 Open GL
- Open GL 4.1 Video Memory
-




...

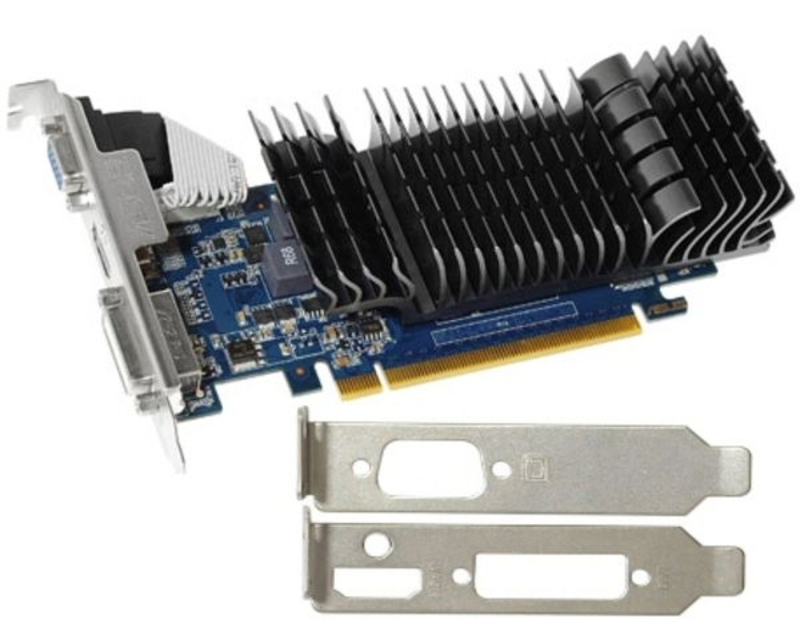

This is the Asus GT 610 1GB DDR3 VGA DVI HDMI PCI-E Silent Graphics Card which comes from a leading manufacturer of video cards
-
...

This is the Asus GT 610 1GB DDR3 VGA DVI HDMI PCI-E Graphics Card which is from a leading manufacturer of video cards
- Asus. Asus
...

The powerful new Asus Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card architecture delivers state-of-the-art features. It places you in the frontline of the action in game to highten your experience of all your favourite titles. Features wise It has Direct X 11 with shader model 5 support, GPU accelerated tessellation which allows developers to use more detailed models as it brings thetrue 3D nature of games out in this graphic card. You can see this process in action here & actually switch tessellation settings on or off. The Asus Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card has 2GB of memory on-board which also speeds up the graphics system as more textures can be loaded into memory at one time. PCI express 2.0 further enhances the Asus GT 610’s performance giving it 16 lanes to expand into. The Shader clock raises the bar again to a whopping 1620 MHz with 48 stream processors delivering results, while the core clock zooms along at 820 M Hz. This could be the ultimate visual enhancement to PC systems
- if you have a PC with onboard graphics & fit the Asus Geforce GT 610 GT610-SL-2GD3-L Video Card you will be amazed at the difference this card can make to your PC. It has ground-breaking features that deliver astounding visualization, the 2GB Silent Ge Force GT 610 GT610-SL-2GD3-L Video Card is equipped with NVIDIA CUDA, NVIDIA Phys X & NVIDIA Pure Video Technology HD so it has the latest enhancements to utilize the benefits of major software leaps forward. As well as delivering cutting-edge graphics & sharp image rendering, the Ge Force GT 610-series silent 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card means that you can play next-generation games with tessellation technology. The Asus Ge Force GT 610 GT610-SL-2GD3-L Video Card is definitely fit for extreme gamers & movie enthusiasts alike – highly recommended! Manufacturer
- Asus Graphics Engine
- NVIDIA Ge Force GT 610 GT610-SL-2GD3-L Bus Standard
- PCI Express 2.0 Video Memor
- DDR3 2GB Engine Clock
- 810 MHz Memory Clock
- 1.2 GHz (600 MHz DDR3 ) RAMDAc
- 400 MHz Memory Interface
- 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption up to 75 Wno additional PCIe power required Software
- ASUS Utilities & Driver ASUS Features Super Alloy Power Silent Series

Dimensions
- 7.3 " x 4.7 " x 1.6 " Inch NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA Pure Video HD Technology Blu-ray & HD DVD movies are bringing a new level of movie-viewing experience; with high-definition image quality far surpassing standard-definition DVDs. NVIDIA Pure Video HD2 technology provides unsurpassed Blu-ray & HD DVD movie picture quality.












...

Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35°C cooler operation Dust-proof Fan design increases particle resistence & extends card lifespan by up to 25% longer than reference. ASUS low profile HTPC & multimedia-focused graphics cards are optimized for smooth 1280x 1024 streaming & Blu-ray 3D. Plus, low profile brackets bundled for fast setup! GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. Graphics Engine NVIDIA Ge Force GT 620 Bus Standard PCI Express 2.0 Video Memory DDR3 1GB Effective Memory Bandwidth 64-bit Engine Clock 700 MHz CUDA Core 96 Shader Clock 1400 MHz Memory Clock 1200 MHz (600 MHz DDR3 ) Memory Interface 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 HDCP Support: Yes Low Profile Bracket Bundled Yes (1 slots x 2 ) ASUS Features Super Alloy Power

Dimensions 6.5 " x 4.8 " x 0.9 " Inch

...
