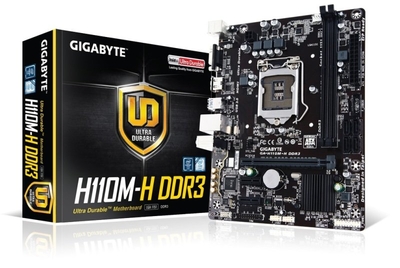

GIGABYTE Intel H110 GA-H110M-H (Socket 1151) Micro ATX Motherboard
DDR3
Supports 6th Generation Intel Core™ Processor Dual Channel DDR3/ DDR3L, 2 DIMMs Audio Noise Guard with High Quality Audio Capacitors HDMI 1.4, D-sub ports for multiple display Realtek GbE LAN with cFosSpeed Internet Accelerator Software All new GIGABYTE™ APP Center, simple and easy use Support Intel Small Business Basics GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR3/ DDR3L memory, bringing cutting edge features and ultimate performance to your next PC build. Specification CPU Support for Intel Core i7 processors/Intel Core i5 processors/IntelCore i3 processors/Intel Pentium processors/IntelCeleron processors in the LGA1151
package L3 cache varies with CPU Chipset Intel H110 Express Chipset Memory 2 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules Onboard Graphics Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset:4 x SATA 6Gb/s connectors USB 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power
connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
package L3 cache varies with CPU Chipset Intel H110 Express Chipset Memory 2 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules Onboard Graphics Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset:4 x SATA 6Gb/s connectors USB 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power
connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
%20Micro%20ATX%20Motherboard%20DDR3 "Pin It")
Product Description
Reviews/Comments
Add New
Intelligent Comparison
Available
MSI Intel H170M-A PRO Socket 1151 Micro ATX Motherboard Ebuyer
£52.49
Available
*MSI Intel H110M GAMING Socket 1151 MATX Motherboard Ebuyer
£56.99
Available
Gigabyte H110M-S2H Socket LGA 1151 Micro ATX Motherboard Ebuyer
£54.76
