GIGABYTE Ultra Durable VGA Series Powered by NVIDIA Ge Force GTX 680 GPU Integrated with the first 4096MB GDDR5 memory & 256-bit memory interface Features Dual link DVI-I/ DVI-D/ HDMI/ Display Port with HDCP protection Core Clock: Base / Boost clock:1071 / 1137 MHz PCI-E 3.0 interface System power supply requirement: 550W

Specification
- Chipset
- Ge Force GTX 680 PCB Form
- ATX Core Clock
- Base clock: 1071 MHz
- Boost clock: 1137 MHz (standard Base clock: 1006 MHz Boost clock: 1058 MHz) Shader Clock
- N/A Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 4096 MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 I/O
- Dual-link DVI-Ix 1, DVI-Dx 1, Display Portx 1, HDMIx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H=62 mm, L=295 mm, W=129 mm Power requirement
- 550 W





















...

GPU
- Ge Force GTX 670 Core Base Clock
- 980 M Hz (standard 915 M Hz) Core Boost Clock
- 1058 M Hz (standard 980 M Hz) Memory
-



...

GIGABYTE Ultra Durable VGA Series Powered by NVIDIA Ge Force GTX 680 GPU Integrated with the first 2048MB GDDR5 memory & 256-bit memory interface Features Dual-link DVI-I/ DVI-D / HDMI / Display Port Boost clock OC to 1137 M Hz Support NVIDIA 3D Vision TM Surround & SLI technologies System power supply requirement: 550W

Specification
- Chipset Ge Force
- GTX 680 PCB Form
- ATX Core Clock
- Base clock: 1071 MHz / Boost clock: 1137 MHz Shader Clock
- N/A Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 2048MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 I/O
- HDMI * 1, DVI-I * 1, DVI-D*1, Display Port *1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H=43 mm, L=275 mm, W=136.6 mm Power requirement
- 550 W




















...

GIGABYTE Super Overclock Series Powered by NVIDIA Ge Forece GTX 680 GPU Integrated with the first 2048MB GDDR5 memory & 256-bit memory interface Features Dual-link DVI-I / DVI-D / HDMI / Display Port Equipped GIGABYTE WINDFORCE 5X thermal design Core Clock: Base / Boost clock:1137 / 1202 MHz Support PCI Express 3.0 x 16 bus interface Support NVIDIA 3D Vision™ Surround & SLI technologies Support NVIDIA CUDA™ Technology Support NVIDIA Phys X™ Technology Support NVIDIA FXAA / TXAA Technology Support NVIDIA Adaptive Vertical Sync Technology System power supply requirement: 650W

Specification
- Chipset
- Ge Force GTX 680 PCB Form
- ATX Core Clock
- Base clock: 1137 MHz
- Boost clock: 1202 MHz Shader Clock
- N/A Memory Clock
- 6200 MHz Process Technology
- 28 nm Memory Size
- 2048MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 I/O
- Dual-link DVI-Ix 1, DVI-Dx 1, Display Portx 1, HDMIx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H= 64mm, L=303 mm, W=148 mm Power requirement
- 650 W





















...

Specifications GPU
- Nvidia Ge Force GTX 680 Core Clock
- 1006 M Hz Core Boost Clock
- 1058 M Hz Memory Clock
- 6008 M



...

GIGABYTE Ultra Durable VGA Series Powered by NVIDIA Ge Force GTX 680 GPU Integrated with the first 4096MB GDDR5 memory & 256-bit memory interface Features Dual link DVI-I/ DVI-D/ HDMI/ Display Port with HDCP protection Core Clock: Base / Boost clock:1071 / 1137 MHz PCI-E 3.0 interface System power supply requirement: 550W

Specification
- Chipset
- Ge Force GTX 680 PCB Form
- ATX Core Clock
- Base clock: 1071 MHz
- Boost clock: 1137 MHz (standard Base clock: 1006 MHz Boost clock: 1058 MHz) Shader Clock
- N/A Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 4096 MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 I/O
- Dual-link DVI-Ix 1, DVI-Dx 1, Display Portx 1, HDMIx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H=62 mm, L=295 mm, W=129 mm Power requirement
- 550 W





















...

Gigabyte GV N680OC-2GD features Phys X technology. NVIDIA Phys X is the next big thing in gaming! Delivering physics in games is no easy task. Its an extremely compute-intensive environment based on a unique set of physics algorithms that require tremendous amounts of simultaneous mathematical & logical calculations. The best way to get real-time physics, such as explosions that cause dust & debris, characters with life-like motion or cloth that drapes & tears naturally is with an NVIDIA Phys X -ready Ge Force processor. ...

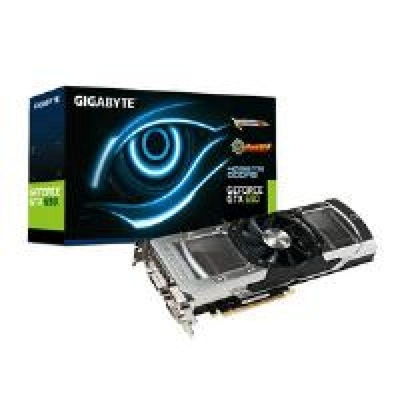

Specifications Graphics Engine
- NVIDIA Ge Force GTX 690 Bus Standard
- PCI Express 3.0 Open GL
- Open GL 4.2 Video Memory
-



...

Gigabyte Ge Force GTX 750 2GB GDDR5 Dual-Link DVI HDMI Display Port PCI-E Graphics Card Chipset Ge Force GTX 750 Memory Clock 5000 MHz Core Clock Base:1059 M Hz Boost:1137 M Hz (Standard- Base:1020 M Hz Boost:1085 M Hz) Process Technology 28 nm Memory Size 2048 MB Memory Bus 128 bit Card Bus PCI-E 3.0 Memory Type GDDR5 Direct X 11.2 Open GL 4.4 PCB Form Low Profile Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 4 I/O Dual-link DVI-I*1/ Display Port/HDMI*2 Card size L=175mm, W=121mm, H=42mm Power requirement 400W ...

Gigabyte GV-N760OC-4GD 4GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm & four 6mm cooper heat-pipes, inclined fans, & GIGABYTE g Triangle Coolh technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature. Chipset Ge Force
- GTX 760 Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 4096 MB Memory Bus
- 256 bit Core Clock
- Base / Boost clock F1085 (std.980) / 1150 (std.1033) MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O: DVI-I*1 DVI-D*1 Display Port*1 HDMI*1 Card size
- L=292mm, W=129mm, H=43mm Power requirement
- 500W (with one 6-pin & one 8-pin external power connectors) NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.















...
