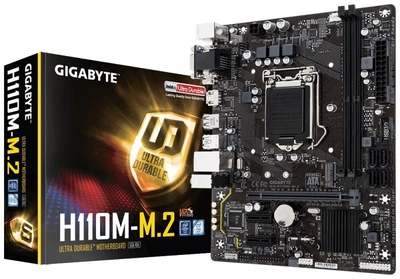

Gigabyte GA-H110M-M.2 Socket 1151 DDR4 MATX Motherboard

Product Description

Features Supports 7th / 6th Generation Intel Core™ Processors Dual Channel DDR4, 2 DIMMs Ultra-Fast M.2 with PCIe Gen 2 x 2 & SATA mode support 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting HDMI 1.4, DVI-D, D-sub ports for multiple display Intel Gb E LAN with c Fos Speed Internet Accelerator Software All new GIGABYTE™ APP Center, simple & easy use Support Intel Small Business Basics Overview Fast Onboard Storage with 10 Gb/s M.2 GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interface for M.2 SSD devices. Intel Gb E LAN with c Fos Speed Internet Accelerator Software Intel Gbe LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. High Quality Onboard Audio Design Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers. USB (Universal Serial Bus) 3.0 Ports Onboard With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB (Universal Serial Bus) 2.0. in addition, backwards compatibility with USB (Universal Serial Bus) 2.0 assures users legacy USB (Universal Serial Bus) 2.0 devices will still work.

Specification CPU Support for 7th/6th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package * For 7th Generation Intel Core™ processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H110 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (All of the PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA x 2 SSD support) 4 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot ON/OFF Charge Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit (for 7th Generation Intel processors) Support for Windows 10 64-bit/ Windows 8.1 64-bit/ Windows 7 32-bit/64-bit (for 6th Generation Intel processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
