Gigabyte GA-F2A88XM-DS2 Socket FM2+ VGA DVI-D Micro ATX Motherboard Specifications: APU FM2+ Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" for more information.) Chipset: AMD A88X Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.& Scaron; Dual channel memory architecture & Scaron; Support for DDR3 2400 (OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics APU with integrated AMD Radeon HD 8000/7000 series graphics: * To use the onboard graphics ports, you must install an AMD APU with integrated graphics. 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 2560x 1600 * Support for 2560x 1600 resolution requires both a monitor & cable that support Dual Link DVI. * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 2 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN: Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x PCI Express x 1 slot (The PCI Express x 1 slot conforms to PCI Express 2.0 standard.) 1 x PCI slot Multi-Graphics Technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics. Storage Interface Chipset:4 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, RAID 10, & JBOD USB (Universal Serial Bus) Chipset: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 8 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection APU/ System temperature detection APU/ System fan speed detection APU/ System fan speed control * Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model. Support for Smart Recovery 2 Support for ON/OFF Charge Bundle Software: Norton Internet Security (OEM version) Operating System Support for Windows 8.1/8/7 32-bit/64-bit * If you plan to install Windows 8.1, please download the latest drivers from GIGABYTE's website. Support for Windows XP 32-bit * To support Windows XP 32-bit, you must install an AMD FM2 Trinity APU. * It requires Service Pack 3 to support Windows XP driver installation. Form Factor: Micro ATX Form Factor; 22.5cm x 17.4cm ...

Specifications APU FM2+ Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" on Gigabyte website for more information) Chipset AMD A88X Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Dual channel memory architecture Support for DDR3 2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" on Gigabyte website for more information) Onboard Graphics APU with integrated AMD Radeon HD 8000/7000 series graphics: * To use the onboard graphics ports, you must install an AMD APU with integrated graphics 1 x D-Sub port, supporting a maximum resolution of 1920x 1200 1 x DVI-D port, supporting a maximum resolution of 2560x 1600 * Support for 2560x 1600 resolution requires both a monitor & cable that support Dual Link DVI. * The DVI-D port does not support D-Sub connection by adapter 1 x HDMI port, supporting a maximum resolution of 4096x 2160 * The resolution of 4096x 2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x 1200 when using an FM2 APU * Support for HDMI 1.4a version Maximum shared memory of 2 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 1 x PCI Express x 1 slot (The PCIEX4 & PCI Express x 1 slots conform to PCI Express 2.0 standard) 1 x PCI slot Multi-Graphics Technology Support for AMD Cross Fire technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics Storage Interface Chipset: 8 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, RAID 10, & JBOD USB (Universal Serial Bus) Chipset: 4 USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6 Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection APU/ System temperature detection APU/ System fan speed detection APU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install BIOS 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model Support for Smart Recovery 2 Support for ON/OFF Charge Operating System Support for Windows 8.1/8/7 32-bit/64-bit * If you plan to install Windows 8.1, please download the latest drivers from GIGABYTE's website Support for Windows XP 32-bit * To support Windows XP 32-bit, you must install an AMD FM2 Trinity APU Form Factor Micro ATX Form Factor; 24.4cm x 17.4cm ...

Gigabyte GA-F2A88XM-HD3P Socket FM2+ VGA DVI-D HDMI Micro ATX Motherboard GIGABYTE Ultra Durable Motherboards GIGABYTE FM2+ series motherboards support the latest AMD A-series processor with integrated AMD Radeon R-series graphics which features enhanced performance, power efficiency & support native PCIe 3.0 interfaces, bringing cutting edge features & ultimate performance to your next PC build. Fast USB (Universal Serial Bus) 3.1 Solution The latest USB (Universal Serial Bus) 3.1 offers a staggering 10 Gb/s transfer speed, 2x faster than USB (Universal Serial Bus) 3.0 & backward compatibility with existing USB (Universal Serial Bus) devices. Specifications APU FM2+ Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" for more information.) Chipset AMD A88X Memory 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. * The maximum 64 GB of system memory can be supported using 32GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Dual channel memory architecture Support for DDR3 2400 (OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: * To use the onboard graphics ports, you must install an AMD APU with integrated graphics. 1 x D-Sub port, supporting a maximum resolution of 1920x 1200 1 x DVI-D port, supporting a maximum resolution of 2560x 1600 * Support for 2560x 1600 resolution requires both a monitor & cable that support Dual Link DVI. * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160 * The resolution of 4096x 2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x 1200 when using an FM2 APU. * Support for HDMI 1.4a version. Support for up to 3 displays at the same time Maximum shared memory of 2 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 1 x PCI Express x 1 slot (The PCIEX4 & PCI Express x 1 slots conform to PCI Express 2.0 standard.) 1 x PCI slot Multi-Graphics Technology Support for 2-Way AMD Cross Fire Technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics. Support for AMD Eyefinity technology Storage Interface Chipset: 8 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, RAID 10, & JBOD USB (Universal Serial Bus) Chipset: 4 USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) ASMedia USB (Universal Serial Bus) 3.1 Controller: 2 x USB (Universal Serial Bus) 3.1 Type-A ports (red) on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6 Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Type-A ports (red) 2 x USB (Universal Serial Bus) 3.0/2.0 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection APU/ System temperature detection APU/ System fan speed detection APU overheating warning APU/ System fan fail warning APU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Cloud Station Easy Tune Smart Time Lock Game Controller Smart Recovery 2 System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for ON/OFF Charge Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm ...

Socket FM2+ supports AMD FM2+/FM2 A-series APU GIGABYTE Ultra Durable 4 Plus Technology IR Digital 4+2 phase APU power design GIGABYTE UEFI Dual BIOS Features dual HDMI/ Dual-link DVI ports for Full HD 1080 & HDCP support Features Dual Band 802.11ac 867 Mbps + BLUETOOTH 4.0 wireless solution 4 USB (Universal Serial Bus) 3.0 ports with transfer rates of up to 5 Gbps 4 SATA3 ports with up to 6 Gbps link speed & RAID 0, 1, 5, 10 support GIGABYTE On/ Off Charge technology with 3x USB (Universal Serial Bus) power design APU FM2+ Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" on Gigabyte website for more information) Chipset AMD A88X Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Dual channel memory architecture Support for DDR3 2400 (OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules “ Memory support is dependent on memory module compatibility & system OS”. (Please refer " Memory Support List" for more information.) Onboard Graphics APU with integrated AMD Radeon HD 8000/7000 series graphics: * To use the onboard graphics ports, you must install an AMD APU with integrated graphics. 1 x DVI-D port, supporting a maximum resolution of 2560x 1600 * Support for 2560x 1600 resolution requires both a monitor & cable that support Dual Link DVI. * The DVI-D port does not support D-Sub connection by adapter. 2 x HDMI ports, supporting a maximum resolution of 4096x 2160 * The resolution of 4096x 2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x 1200 when using an FM2 APU. * Support for HDMI 1.4a version. Maximum shared memory of 2 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Wireless Communication module Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Bluetooth 4.0, 3.0+HS, 2.1+EDR Support for 11ac wireless standard & up to 867 Mbps data rate * Actual data rate may vary depending on environment & equipment. * Supports Windows 7/8/8.1 only. Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x mini-PCI Express slot for the wireless communication module Multi-Graphics Technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics. Storage Interface Chipset: 4 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, RAID 10, & JBOD USB (Universal Serial Bus) Chipset: Up to 4 USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Up to 6 USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x HDMI ports 1 x DVI-D port 2 x antenna connectors 2 x USB (Universal Serial Bus) 3.0/2.0 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection APU/ System temperature detection APU/ System fan speed detection APU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model Support for Smart Recovery 2 Support for ON/OFF Charge Support for Wi-Fi Share Support for Cloud Station Operating System Support for Windows 8.1/8/7 32-bit/64-bit * If you plan to install Windows 8.1, please download the latest drivers from GIGABYTE's website Support for Windows XP 32-bit * To support Windows XP 32-bit, you must install an AMD FM2 Trinity APU * Bundled wireless communication module does not support Windows XP Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm ...

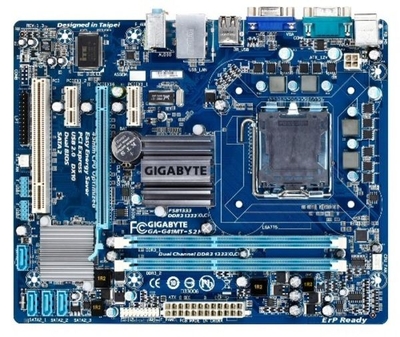

CPU Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/ Intel Core 2 Duo processor/ Intel Pentium processor/ Intel Celeron processor in the LGA775 package L2 cache varies with CPU (Please refer "CPU Support List" on Gigabytes website for more information.) Front Side Bus 1333/1066/800 MHz FSB Chipset North Bridge: Intel G41 Express Chipset South Bridge: Intel ICH7 Memory DDR3: 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory Support for DDR3 1333 (O.C.)/1066/800 MHz memory modules DDR2: 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Support for DDR2 1066 (O.C.)/800/667 MHz memory modules Dual channel memory architecture (Note: Mixed mode, populating DDR2 & DDR3 memory modules simultaneously is not supported. Please refer " Memory Support List" for the latest supported memory speeds & memory modules.) Onboard Graphics North Bridge: 1 x D-Sub port Audio Realtek ALC887 codec High Definition Audio 2/4/5.1-channel LAN Atheros Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 1 x PCI Express x 1 slot 2 x PCI slots Storage Interface South Bridge: 1 x IDE connector supporting ATA-100/66/33 & up to 2 IDE devices 4 x SATA 3 Gb/s connectors supporting up to 4 SATA 3 Gb/s devices i TE I/O Controller Chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB (Universal Serial Bus) South Bridge: Up to 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 on the back panel, 4 via the USB (Universal Serial Bus) brackets connected to the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller ITE 8720 H/W Monitoring System voltage detection CPU temperature detection CPU/ System fan speed detection CPU overheating warning CPU/ System fan fail warning CPU fan speed control * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install. BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model. Support for Easy Energy Saver * Due to the hardware limitation, you must install the Intel Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver. Support for SMART Recovery Support for Auto Green Support for ON/OFF Charge Support for Q-Share Operating System Support for Microsoft Windows 7/ Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website. ...

CPU Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/ Intel Core 2 Duo processor/ Intel Pentium processor/ Intel Celeron processor in the LGA775 package L2 cache varies with CPU (Please refer "CPU Support List" on the Gigabyte website for more information.) Front Side Bus 1333/1066/800 MHz FSB Chipset North Bridge: Intel G41 Express Chipset South Bridge: Intel ICH7 Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333 (O.C.)/1066/800 MHz memory modules (Please refer " Memory Support List" on Gigabyte website for more information.) Onboard Graphics North Bridge: 1 x D-Sub port Audio VIA audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 1 x PCI Express x 1 slot 2 x PCI slots Storage Interface South Bridge: 1 x IDE connector supporting ATA-100/66/33 & up to 2 IDE devices 4 x SATA 3 Gb/s connectors supporting up to 4 SATA 3 Gb/s devices USB (Universal Serial Bus) South Bridge: Up to 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x IDE connector 4 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller i TE IT8720/IT8718 chip H/W Monitoring System voltage detection CPU temperature detection CPU/ System fan speed detection CPU overheating warning CPU/ System fan fail warning CPU fan speed control * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install. BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model. Support for Easy Energy Saver * Due to the hardware limitation, you must install the Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver. Support for Smart Recovery Support for ON/OFF Charge Support for 3TB+ Unlock Support for Q-Share Operating System Support for Microsoft Windows 7/ Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 19.4cm ...

Features Supports 7th / 6th Generation Intel Core™ Processors Dual Channel DDR4, 2 DIMMs Ultra-Fast M.2 with PCIe Gen 2 x 2 & SATA mode support 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting HDMI 1.4, DVI-D, D-sub ports for multiple display Intel Gb E LAN with c Fos Speed Internet Accelerator Software All new GIGABYTE™ APP Center, simple & easy use Support Intel Small Business Basics Overview Fast Onboard Storage with 10 Gb/s M.2 GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interface for M.2 SSD devices. Intel Gb E LAN with c Fos Speed Internet Accelerator Software Intel Gbe LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. High Quality Onboard Audio Design Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers. USB (Universal Serial Bus) 3.0 Ports Onboard With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB (Universal Serial Bus) 2.0. in addition, backwards compatibility with USB (Universal Serial Bus) 2.0 assures users legacy USB (Universal Serial Bus) 2.0 devices will still work.

Specification CPU Support for 7th/6th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package * For 7th Generation Intel Core™ processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H110 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (All of the PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA x 2 SSD support) 4 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot ON/OFF Charge Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit (for 7th Generation Intel processors) Support for Windows 10 64-bit/ Windows 8.1 64-bit/ Windows 7 32-bit/64-bit (for 6th Generation Intel processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.


...

Gigabyte Intel H110 Socket LGA 1151 VGA DVI-D HDMI Micro ATX Motherboard GIGABYTE Ultra Durable Motherboards GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core processors, a 14nm desktop CPU which features enhanced performance, power efficiency & support for DDR4 memory, bringing cutting edge features & ultimate performance to your next PC build. Fast USB (Universal Serial Bus) 3.1 Solution The latest USB (Universal Serial Bus) 3.1 offers a staggering 10 Gb/s transfer speed, 2x faster than USB (Universal Serial Bus) 3.0 & backward compatibility with existing USB (Universal Serial Bus) devices. High Quality Onboard Audio Design Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional users. Specifiactions: CPU: Support for Intel Core i 7 processors/ Intel Core i 5 processors/ Intel Core i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset
- Intel H110 Express Chipset Memory: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics: Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1 GB Audio: Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN
- Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slot conforms to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Chipset+ASMedia ASM1142 chip: 1 x USB (Universal Serial Bus) Type-C port on the back panel, with USB (Universal Serial Bus) 3.1 support 1 x USB (Universal Serial Bus) 3.1 Type-A port (red) on the back panel Chipset: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x USB (Universal Serial Bus) 3.1 Type-A port (red) 1 x USB (Universal Serial Bus) Type-C„¢ port, with USB (Universal Serial Bus) 3.1 support 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller
- i TE I/O Controller Chip H/W Monitoring: System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Easy RAID Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) c Fos Speed Operating System: Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor
- Micro ATX Form Factor; 22.6cm x 17cm




...

Gigabyte H170 Socket 1151 VGA DVI-D HDMI ATX Motherboard GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core™ processors, a 14nm desktop CPU which features enhanced performance, power efficiency & support for DDR3 memory, bringing cutting edge features & ultimate performance to your next PC build. Specifications CPU: Support for Intel Core i 7 processors/ Intel Core i 5 processors/ Intel Core i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset
- Intel H170 Express Chipset Memory 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1866 (OC)/1600/1333 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN
- Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 2 x PCI slots Multi-Graphics Technology
- Support for 2-Way AMD Cross Fire technology Storage Interface Chipset: 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, & RAID 10 * Refer to "1-7 Internal Connectors, for the supported configurations with the M.2, SATA Express, & SATA connectors. USB (Universal Serial Bus) Chipset: 8 x USB (Universal Serial Bus) 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB (Universal Serial Bus) 3.0/2.0 headers 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller
- i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Easy RAID Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Smart Response Technology c Fos Speed Operating System Support for Windows 10/8.1/7* * Please download “ Windows USB (Universal Serial Bus) Installation Tool” to install Windows 7. Form Factor ATX Form Factor; 30.5cm x 19.9cm



...

Supports 6th Generation Intel Core™ Processor Dual Channel DDR4, 4 DIMMs 2-Way Graphics with Premium PCIe Lane PCIe Gen 3 x 4 M.2 Connector with up to 32 Gb/s Data Transfer (PCIe NVMe & SATA SSD support) 2 SATA Express Connectors for up to 16 Gb/s Data Transfer 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting Realtek Green Gb E LAN with c Fos Speed Internet Accelerator Software APP Center Including Easy Tune™ & Cloud Station™ Utilities GIGABYTE UEFI Dual BIOS™ Technology Support Intel Small Business Basics GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core™ processors, a 14nm desktop CPU which features enhanced performance, power efficiency & support for DDR4 memory, bringing cutting edge features & ultimate performance to your next PC build. GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interface for M.2 SSD devices. CPU Support for Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H170 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 2 x PCI slots Multi-Graphics Technology Support for 2-Way AMD Cross Fire™ technology Storage Interface Chipset: 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, & RAID 10 * Refer to "1-7 Internal Connectors, for the supported configurations with the M.2, SATA Express, & SATA connectors. USB (Universal Serial Bus) Chipset: 8 x USB (Universal Serial Bus) 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB (Universal Serial Bus) 3.0/2.0 headers 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Easy RAID Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Operating System Support for Windows 10/8.1/7* * Please download “ Windows USB (Universal Serial Bus) Installation Tool” to install Windows 7. Form Factor ATX Form Factor; 30.5cm x 19.9cm ...
