The Fractal Design Define R4 is the latest in the Define Series of computer cases offering minimalistic & stunning Scandinavian ...

Define R5 White
- Window The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently
...

The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow & cooling capabilities. Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front. Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption. Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels. Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case. Newly configured front door with dual side mounting to better fit your work space Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation & removal The HDD cage system holds up to eight 3.5” or 2.5” drives & is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components. Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design The new & innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick & easy access to the system. Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans. Specifications ATX, Micro ATX, Mini ITX motherboard compatibility 7 expansion slots 2
- 5.25" bays (removable) 8
- 3.5" HDD positions (can also accommodate 2.5" units); 2
- 2.5" dedicated SSD unit positions 4
- Modu Vent™ plates
- three in the top & one in the side 9
- fan positions (2 Fractal Design Dynamic GP14 140mm fans included) Filtered fan slots in the front & bottom CPU coolers up to 180mm in height ATX PSUs up to 190/170 mm with a bottom 120/140mm fan installed; when not using any bottom fan location longer PSUs up to 300mm can be used Graphics cards up to 310 mm in length with the top HDD cage installed; with the top cage removed, graphics cards up to 440 mm in length may be installed 20
- 3.5cm of space for cable routing behind the motherboard plate Velcro straps included for easy cable management Front door can switch opening direction via dual mounting system Left side panel features Quick Release System for easy access & provides a secure closure of side panel Right side panel features smart captive thumbscrews so no thumbscrews are lost Colours available: Black, Titanium (black case, titanium front panel), White Case

Dimensions (Wx Hx D): 232 x 451 x 521mm Case

Dimensions
- with feet/screws/protrusions: 232 x 462 x 531mm Net weight: 10.7kg Package

Dimensions (Wx Hx D): 327 x 615 x 540mm Package weight: 12.5kg Cooling system Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed) Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed) Top: 3
- 120/140 mm fan (not included) Bottom: 2 – 120/140 mm fan (not included) Side: 1 – 120/140 mm fan (not included) Fan controller: 3 step fan controller for up to 3 fans Dust filters: Bottom & front intakes Water cooling compatibility Front – 360, 280, 240, 140 & 120 mm radiators of all thicknesses (requires removal of drive bays) Top – 420, 360, 280, 240, 140 & 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 & 140 mm radiators) (420 & 360 mm radiators require removal of the ODD bay) Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm) Rear – 120 or 140 mm radiator Front interface 2 USB (Universal Serial Bus) 3.0 + 2 USB (Universal Serial Bus) 2.0 Audio in/out Power button with LED (blue) HDD activity LED (blue) Reset button Package contents Define R5 computer case User manual Accessory box Additional information EAN/GTIN-13: 7350041082620 UPC: 817301012621 Product code: FD-CA-DEF-R5-WT














...

Define R5 Black The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Define R5
- Definition of Silence The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense soundabsorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics cards. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features • Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not c ompromising on airflow & cooling capabilities. • Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front. • Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption. • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels. • Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case. • Newly configured front door with dual side mounting to better fit your work space. • Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans.
...

Define R5 Black The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Define R5
- Definition of Silence The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense soundabsorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics cards. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow & cooling capabilities. Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front. Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption. Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels. Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case. Newly configured front door with dual side mounting to better fit your work space. Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans.
...

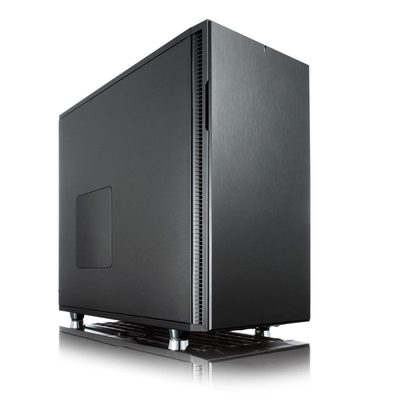

The Fractal Design Define R5 Blackout Edition is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 Blackout Edition case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned all black Dynamic Series fans. The Define R5 Blackout Edition was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features
- Optimally designed for silent computing, while not compromising on airflow & cooling capabilities.
- Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front.
- Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
- Including two all-black Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
- Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case.
- Newly configured front door with dual side mounting to better fit your work space
- Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation & removal
- The HDD cage system holds up to eight 3.5” or 2.5” drives & is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
- The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components.
- Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design
- The new & innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick & easy access to the system.
- Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans.
- Define R5 Blackout edition is available with window side panel Specifications ATX, Micro ATX, Mini ITX motherboard compatibility 7 expansion slots 2
- 5.25" bays (removable) 8
- 3.5" HDD positions (can also accommodate 2.5" units); 2
- 2.5" dedicated SSD unit positions 4
- Modu Vent™ plates
- three in the top & one in the side 8
- fan positions (2 all-black Fractal Design Dynamic GP14 140mm fans included) Filtered fan slots in the front & bottom CPU coolers up to 180mm in height ATX PSUs up to 190/170 mm with a bottom 120/140mm fan installed; when not using any bottom fan location longer PSUs up to 300mm can be used Graphics cards up to 310 mm in length with the top HDD cage installed; with the top cage removed, graphics cards up to 440 mm in length may be installed 20
- 3.5cm of space for cable routing behind the motherboard plate Velcro straps included for easy cable management Front door can switch opening direction via dual mounting system Left side panel features Quick Release System for easy access & provides a secure closure of side panel Right side panel features smart captive thumbscrews so no thumbscrews are lost Colours available: Black Case

Dimensions (Wx Hx D): 232 x 451 x 521mm Case

Dimensions
- with feet/screws/protrusions: 232 x 462 x 531mm Net weight: 10.3kg Package

Dimensions (Wx Hx D): 327 x 615 x 540mm Package weight: 12.2kg Cooling system Front: 2 – 120/140 mm fans (included is 1 all-black Fractal Design Dynamic GP14 fan, 1000 RPM speed) Rear: 1 – 120/140 mm fan (included is 1 all-black Fractal Design Dynamic GP14 fan, 1000 RPM speed) Top: 3
- 120/140 mm fan (not included) Bottom: 2 – 120/140 mm fan (not included) Fan controller: 3 step fan controller for up to 3 fans Dust filters: Bottom & front intakes Water cooling compatibility Front – 360, 280, 240, 140 & 120 mm radiators of all thicknesses (requires removal of drive bays) Top – 420, 360, 280, 240, 140 & 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 & 140 mm radiators) (420 & 360 mm radiators require removal of the ODD bay) Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm) Rear – 120 or 140 mm radiator Front interface 2 USB (Universal Serial Bus) 3.0 + 2 USB (Universal Serial Bus) 2.0 Audio in/out Power button with LED (white) HDD activity LED (white) Reset button



























...

Define R5 Titanium Window The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Define R5
- Definition of Silence The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense soundabsorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics cards. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow & cooling capabilities. Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front. Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption. Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels. Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case. Newly configured front door with dual side mounting to better fit your work space. Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans.
...

Define R5 Titanium The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Define R5
- Definition of Silence The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful & expansive air & liquid cooling support, presented in a stunning Scandinavian inspired construction. The Define R5 case reaches the highest level of silent computing through strategically placed dense soundabsorbing material, Modu Vent™ fan vent covers & finely tuned Dynamic Series fans. The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives & all modern graphics cards. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your dem&. Key features Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow & cooling capabilities. Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top & 360mm in the front. Equipped with new tool-less Modu Vent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption. Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels. Maintaining a dust-free interior with the help of dust filters that cover front & bottom air intakes that are easy to access from the front on the case. Newly configured front door with dual side mounting to better fit your work space. Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans.
...

Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest & largest step in the legacy of the world-renowned Define Series. Seamless tempered glass & sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support & storage flexibility. Six 3.5”/2.5” drives & two 2.5” drives can be installed with precision placement in countless configurations throughout the case. The spacious & fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub & support for radiators up to 420mm, making it the perfect platform for building your dream water loop. enhanced third generation Modu Vent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup. Expanding on the timeless elegant form & silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation & flexible framework with limitless potential. Key features Optimized for silence with high-density industrial dampening on side, top & front panels Reversible front door with anodized aluminum cover & dual mounting system for adaptability with elegance Nine fan positions with intuitive layout & clear airflow paths offer massive cooling capacity Nexus+ Smart Hub offers superior fan control of six additional case fans & three extra PWM devices via your motherboard Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed helping ensure superior airflow via two intake fans & a single exhaust. Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, & up to 280 mm in the base Power supply shroud & Modular Storage Plate conceal HDD trays & excess cabling for a clean, clutter-free interior Third generation Modu Vent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel Easy-to-clean high airflow nylon filters on the front, top, & base with full PSU coverage & front access for convenience Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support & clear air flow paths Vertical 2.5 slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x 16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility & secure fastening (sold separately) Highly modular interior

Includes:: six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, & cable routing Customizable 2.5” storage solution consists of two brackets & a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud Compatible with Fractal Design Connect D1 USB (Universal Serial Bus) 3.1 Gen 2 Type-C Upgrade Kit for ultra-fast file transfers & fast charging (sold separately, requires a compatible motherboard) Package contents Define R6 computer case User manual Accessory box Additional information EAN: 7350041085867 UPC: 817301015868 Product code: FD-CA-DEF-R6-BK 3.5"/2.5" Universal drive brackets 6 Dedicated 2.5" drive brackets 2 Expansion slots 7 + 2 vertical Motherboard compatibility e ATX (up to 285mm wide), ATX, m ATX, ITX Power supply type ATX Front ports 2 x USB (Universal Serial Bus) 3.0, 2 x USB (Universal Serial Bus) 2.0 Total fan mounts 9 Front fan 3 x 120 mm or 2 x 140 mm, 2 x Dynamic X2 GP-14 included Top fan Standard layout: 3 x 120 or 2 x 140 Open layout: 3 x 120/140 mm Rear fan 1 x 120/140 mm 1 x Dynamic X2 GP-14 included Bottom fan 2 x 120/140 mm Dust filters Bottom fan + PSU Front fans Top panel Front radiator 120/240/360 mm 140/280 mm Top radiator Standard layout:
- 120/240/360 mm (max 3.5cm motherboard component height) Open layout:
- 120/240/360 mm
- 140/280/420 mm (max 3.5cm motherboard component height) Rear radiator 120 mm Bottom radiator 120/240 mm 140/280 mm PSU max length 300 mm GPU max length Max 440mm with front fan mounted Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300mm. CPU cooler max height 185 mm Cable routing space 23 mm Cable routing grommets Yes Fixed velcro straps Yes Tool-less push-to-lock Both side panels Captive thumbscrews HDD brackets, SSD brackets Left side panel Industrial sound-dampened steel Right side panel Industrial sound-dampened steel Case

Dimensions (Lx Wx H) 543 x 233 x 465 mm Case

Dimensions w/o feet/protrusions/screws 535 x 233 x 448 mm Net weight 12.4kg Package

Dimensions (Lx Wx H) 560 x 347 x 650mm Package weight 14.4kg










...

esigned from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest & largest step in the legacy of the world-renowned Define Series. Seamless sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support & storage flexibility. Six 3.5”/2.5” drives & two 2.5” drives can be installed with precision placement in countless configurations throughout the case. The spacious & fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub & support for radiators up to 420mm, making it the perfect platform for building your dream water loop. enhanced third generation Modu Vent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup. Expanding on the timeless elegant form & silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation & flexible framework with limitless potential. KEY FEATURES Optimized for silence with high-density industrial dampening on side, top & front panels USB (Universal Serial Bus) 3.1 Gen 2 Type-C with Fast Charging support & up to 10 Gbps transfer speeds Reversible front door with anodized aluminum cover & dual-handed mounting system for adaptability with elegance Nine fan positions with intuitive layout & clear airflow paths offer massive cooling capacity Nexus+ Smart Hub offers superior fan control of six additional case fans & three PWM devices via your motherboard Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans & a single exhaust Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, & 280 mm in the base Power supply shroud & Modular Storage Plate conceal HDD trays & excess cabling for a clean, clutter-free interior Third generation Modu Vent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation in the top panel Easy-to-clean high airflow nylon filters on the front, top, & base with full PSU coverage & front access for convenience Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support & clear air flow paths Vertical 2.5 slot GPU mount showcases your graphics hardware with full visibility (PCIe riser sold separately) Highly modular interior

Includes:: six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, & cable routing Customizable 2.5” storage solution consists of two brackets & a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud SPECIFICATIONS 3.5"/2.5" Universal drive brackets - 6 Dedicated 2.5" drive brackets - 2 Dedicated 5.25" drive bracket - 1 (removable) Expansion slots - 7 + 2 vertical Motherboard compatibility - EATX (up to 285 mm wide), ATX, m ATX, ITX Power supply type - ATX Front ports - 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C, 2 x USB (Universal Serial Bus) 3.0, 2 x USB (Universal Serial Bus) 2.0, Audio I/O Total fan mounts - 9 Front fan - 3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included) Top fan - Standard layout: 3 x 120 or 2 x 140, Open layout: 3 x 120/140 mm Rear fan - 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) Bottom fan - 2 x 120/140 mm Dust filters - Bottom fan + PSU, Front fans, Top panel Front radiator - 120/240/360 mm, 140/280 mm Top radiator - Standard layout: 120/240/140/360 mm (max 3.5cm motherboard component height), Open layout: 120/240/360 mm, 140/280/420 mm (max 3.5cm motherboard component height) Rear radiator - 120 mm Bottom radiator - 120/240 mm, 140/280 mm PSU max length - 300 mm GPU max length - Max 440 mm with front fan mounted, Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm. CPU cooler max height - 185 mm Cable routing space - 23 mm Cable routing grommets - Yes Fixed velcro straps - Yes Tool-less push-to-lock - Both side panels Captive thumbscrews - HDD brackets, SSD brackets Right side panel - Industrial sound-dampened steel

Dimensions - Define R6 USB (Universal Serial Bus)-C
- TG Case

Dimensions (Lx Wx H) - 543 x 233 x 465 mm Case

Dimensions w/o feet/protrusions/screws - 535 x 233 x 448 mm Net weight - 12.4kg Package

Dimensions (Lx Wx H) - 535 x 325 x 650 mm Package weight - 14.2kg PACKAGE CONTENTS Define R6 USB (Universal Serial Bus)-C
- computer case User manual Accessory box











...
