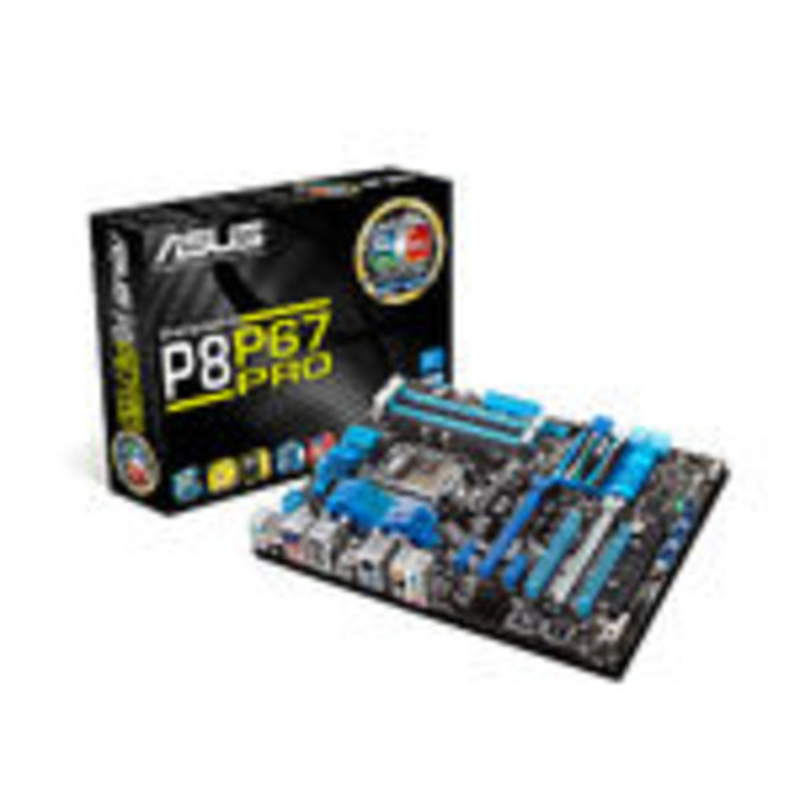

*EX Display*Asus P8P67 PRO P67 Socket 1155 USB 3.0 Bluetooth 8 Channel
Audio ATX Motherboard (Includes Back Plate Only)

Product Description

*EX Display* Asus P8P67 PRO P67 Socket 1155 USB (Universal Serial Bus) 3.0 Bluetooth 8 Channel Audio ATX Motherboard (
Includes: back plate only) * No driver cd/cables or manual included* * Only

Includes:: Back plate* ** Please note** Intel Sandybridge P67 & H67 Motherboards SATA issue. The issue has been raised that devices connected to SATA Ports 2-5 may degrade over time. Devices connected to SATA ports 0 & 1 are not affected & can be used as normal. There is NO issue with Sandybridge Processors, only P67 & H67 Motherboards are potentially affected. Dual Intelligent Processors 2 with DIGI+ VRM BT GO! (Bluetooth)
- Diverse BT Enjoyment, New Technology Lifestyle EFI BIOS (EZ Mode)
- Flexible & Easy BIOS Interface Quad USB (Universal Serial Bus) 3.0/SATA 6 Gb/s Support
- Double Access, Double Convenience Intel LAN Support
- Faster Transfer Speed The worlds first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips
- EPU (Energy Processing Unit) & TPU (Turbo V Processing Unit). New generation Dual Intelligent Processors 2 with DIGI+ VRM digital power design launch control into a new era. The digital architecture delivers twice the precision power, intelligently adjusting PWM voltage & frequency modulation with minimal power loss through BIOS tuning & an exclusive user interface to increase the boards overclocking range while performance reaches its full potential. It also adjusts VRM frequencies dynamically, cutting radiation interference by half & decreasing Vcore power noise for CPU to enhance system stability through enabling VRM spread spectrum. ASUS DIGI+ VRM digital power design empowers users with superior flexibility & perfect precision to ensure optimized performance, extreme system stability & greater power efficiency.

Specification CPU Intel Socket 1155 for Intel 2nd Generation Core„¢ i 7 Processor/ Core„¢ i 5 Processor/ Core„¢ i 3 Processor/ Support Intel 32nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for Intel CPU support list Chipset Intel P67 Express Chipset Memory 4 x DIMM, Max. 32 GB, DDR3 2200 (O.C.)*/2133 (O.C.)/1866 (O.C.)/1600/1333/1066 Non-ECC, Un-buffered Memory Dual Channel memory architecture Supports Intel Extreme Memory Profile (XMP) * According to Intel SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details. * Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default. * Please refer to www.asus.com or user manual for Memory QVL. Expansion Slots 2 x PCIe 2.0 x 16 (single at x 16 or dual at x 8/x 8 mode) 1 x PCIe 2.0 x 16 * [ Black] (max. at x 4 mode, compatible with PCIe x 1 & x 4 devices) 2 x PCIe 2.0 x 1 2 x PCI * The PCIe x 16_3 slot shares bandwidth with PCIe x 1_1 slot, PCIe x 1_2 slot, USB3_34 & ESATA12. The PCIe x 16_3 runs at x 1 mode by default for system resource optimization. (PCIe x 1_2 will be disabled.) Multi-GPU Support Supports NVIDIA Quad-GPU SLI„¢ Technology Supports ATI Quad-GPU Cross Fire X„¢ Technology Storage Intel P67 Express Chipset 2 x SATA 6.0 Gb/s ports (gray) 4 x SATA 3.0 Gb/s ports (blue) Intel Rapid Storage Technology Support RAID 0, 1, 5, 10 Marvell 9120 controller 2 x SATA 6.0 Gb/s ports (navy blue)* JMicron JMB362 SATA controller 2 x External SATA 3.0 Gb/s ports* * These SATA ports are for data hard drives only. ATAPI devices are not supported. LAN Intel 82579 Gigabit LAN Dual interconnect between the Integrated LAN controller & Physical Layer (PHY) Bluetooth Bluetooth v 2.1 + EDR ASUS BT GO! Utility Audio Realtek ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- DTS Surround Sensation Ultra PC
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O IEEE 1394 VIA 6308P controller supports 2 x 1394a port (s) (one at mid-board; one at back panel) USB NEC USB (Universal Serial Bus) 3.0 controllers
- 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports at mid-board for front panel support, 2 ports at back panel (blue)) Intel P67 Express Chipset
- 12 x USB (Universal Serial Bus) 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel) ASUS Unique Features ASUS Dual Intelligent Processors 2 with DIGI+ VRM: ASUS EPU
- EPU, EPU switch ASUS TPU
- Auto Tuning, Turbo V, TPU switch ASUS Digital Power Design
- Industry leading Digital 12+2 Phase Power Design
- ASUS DIGI+ VRM Utility ASUS BT GO! (Bluetooth)
- Folder Sync, BT Transfer, Shot & Send, BT to Net, Music Player, Personal Manager, BT Turbo Remote ASUS Exclusive Features
- Mem OK!
- AI Suite II
- AI Charger
- Anti Surge
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stylish Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Tuner
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 2 ASUS Q-Design
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM Overclocking Features Precision Tweaker 2
- v Core: Adjustable CPU voltage at 0.005V increment
- v CCIO: Adjustable I/O voltage at 0.00625V increment
- v CCSA: 144-step system agent voltage control
- v DRAM Bus: 160-step Memory voltage control
- v PCH: 90-step Chipset voltage control
- v CPU_PLL: 160-step CPU & PCH PLL voltage control SFS (Stepless Frequency Selection)
- BCLK/PEG frequency tuning from 80 M Hz up to 300 M Hz at 0.1 M Hz increment Overclocking Protection
- ASUS C.P.R. (CPU Parameter Recall) Back Panel I/O Ports 1 x Bluetooth module 1 x PS/2 Mouse (green) 1 x PS/2 Keyboard (violet) 2 x External SATA (1 x Power e SATA) 1 x IEEE 1394a 1 x LAN (RJ45) port (s) (Intel LAN) 2 x USB (Universal Serial Bus) 3.0/2.0 ports (blue) 6 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x S/PDIF Out (1 for Coaxial, 1 for Optical) 8 -Channel Audio I/O Internal I/O Connectors 1 x USB (Universal Serial Bus) 3.0/2.0 connector (s) supports additional 2 USB (Universal Serial Bus) ports (19-pin) 3 x USB (Universal Serial Bus) 2.0/1.1 connector (s) support additional 6 USB (Universal Serial Bus) ports 1 x Mem OK! Button 4 x SATA 6.0 Gb/s connectors (2 x gray; 2 x navy blue) 4 x SATA 3.0 Gb/s connectors (blue) 1 x IEEE 1394a connector 1 x CPU Fan connector (s) (4-pin) 2 x Chassis Fan connector (s) (1 x 4-pin; 1 x 3-pin) 1 x Power Fan connector (s) (3-pin) 1 x TPU switch 1 x EPU switch 1 x S/PDIF Out connector 24-pin EATX Power connector 8-pin EATX 12V Power connector Front panel audio connector System Panel (Q-Connector) BIOS 32 Mb Flash ROM, EFI AMI BIOS, , EFI AMI BIOS, Pn P, DMI2.0, Wf M2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS Crash Free BIOS 3 Manageability Wf M 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE Accessories Users manual 2 x SATA 3.0 Gb/s cables 2 x SATA 6.0 Gb/s cables 1 x Q-Shield 2 in 1 Q-connector 1 x ASUS USB (Universal Serial Bus) 3.0 Bracket 1 x ASUS SLI bridge connector Support Disc Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm )
