Intel Prebuilt Bundle With Gigabyte GA-H61M-S2PV Socket 1155
Motherboard Intel Pentium G630 Processor And Corsair 4GB Vengeance
Blue Memory

Product Description

EBUYER has done the testing for you

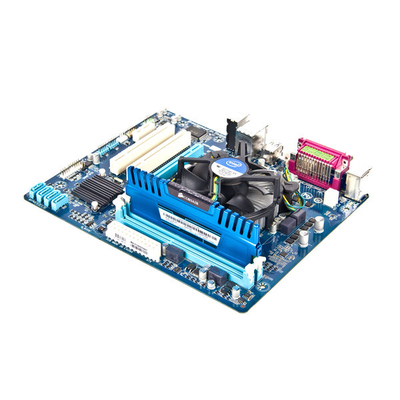

- EBUYER has now launched pre-built & fully tested bundles consist of Motherboard, memory & processor. Our new bundles have been fully tested before they ship & all the components are fitted on the board. Our pre-built bundles are built & tested ensuring the most amount of care is taken in the selection process. This Intel bundle consists of the following items:- Gigabyte Socket 1155 GA-H61M-S2PV Rev 2.0 Motherboard Intel Pentium G630 Socket 1155 BX80623G630 Processor Corsair 4GB (1x 4GB) Vengeance Blue CMZ4GX3M1A1600C9B Memory stick System specifications Processor Specifications The Intel Pentium processor delivers great desktop & mobile performance, low power enhancements, & multitasking for everyday computing. Model
- Pentium G630 Socket
- 1155 Frequency
- 2.7 G Hz Cores
- 2 Threads
- 2 L3 Cache
- 3MB Max TDP
- 65W Graphics Base Frequency
- 850 M Hz Graphics Max Dynamic Frequency
- 1.1 G Hz Memory Specifications Corsair Vengeance DDR3 memory modules are designed with overclockers in mind. Vengeance DIMMs are built using RAM specially selected for their high-performance potential. Aluminum heat spreaders help dissipate heat, & provide the aggressive look that you want in your gaming rig. Size
- 4GB Kit (1 x 4GB) Performance Profile
- XMP Heat Spreader
- Vengeance Memory Configuration
- Dual Channel Memory Type
- DDR3 Package
- Memory Pin
- 240 Package
- Memory Format
- DIMM Tested Voltage
- 1.5 SPD Voltage
- 1.5 Speed Rating
- PC3-12800 (1600 M Hz) SPD Speed
- 1333 Mhz Tested Speed
- 1600 Mhz Tested Latency
- 9-9-9-24 SPD Latency
- 9-9-9-24 Motherboard Specifications Chipset Intel H61 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 1920x 1200 * The DVI-D port does not support D-Sub connection by adapter. Audio Realtek ALC887 audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN 1 x Atheros 8151 LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) * PCIE Gen.3 is dependent on CPU & expansion card compatibility. 1 x PCI Express x 1 slot (The PCI Express x 1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots Storage Interface Chipset: 4 x SATA 3 Gb/s connectors supporting up to 4 SATA 3 Gb/s devices USB (Universal Serial Bus) Chipset: Up to 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x D-Sub port 1 x DVI-D port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller i TE IT8728 chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the CPU/ System fan speed control function is supported will depend on the CPU/ System cooler you install. BIOS 2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Recovery 2 Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model. Support for ON/OFF Charge Operating System Support for Microsoft Windows 8/7/ Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 20cm
