Outdoor 4G Antenna for Dray Tek LTE Routers 4G/LTE routers such as the Dray Tek Vigor 2862 Lac can provide highly resilient connectivity by utilising mobile broadb&, either as the main Internet connection or as a backup connection for the building. The Outdoor 4G Antennas for Dray Tek LTE Routers can improve 4G, 3G & LTE signal reception for any Dray Tek Vigor LTE router, expanding coverage & improving speeds, by allowing you to locate the antenna in a location which receives a strong signal. Installation of outdoor antennas enables or improves 4G/LTE connectivity into locations where it’s typically inaccessible. For instance, in a comms cabinet, or in parts of a building that otherwise cannot receive mobile signal, due to building layout or location. Simply placing the antennas physically outdoors normally provides a significant signal boost over what can be achieved within a building, potentially improving speeds through better access to LTE bands & nearby mobile cell towers. The antennae can also be installed inside a building, perhaps just run outside the location/room which has poor coverage. The Outdoor 4G Antennas for Dray Tek LTE Routers support all currently used 4G, 3G & 2G frequency bands from 700 M Hz to 2.7 G Hz. The antennas are Omni-Directional, designed for vertical orientation to receive signal from any nearby mobile cell tower, without requiring careful or sensitive aiming during installation. Install a pair of Outdoor 4G Antennas around 0.5m to 1m apart to enable the MIMO (Multiple In, Multiple Out) capability of 4G & LTE wireless networks, further improving speeds & connection resilience. For best results, separate the antennas horizontally in built-up areas & vertically in open areas. The Outdoor 4G Antennas for Dray Tek LTE Routers are weatherproof & ideal for permanent outdoor installation either on a pole or wall. Fixings are provided suitable for either (poles not included). The N-type connector on each antenna provides a secure & weather resistant antenna connection, which links to the router’s SMA antenna connectors with a suitable cable. Each Outdoor 4G Antenna requires an N-plug to SMA cable for installation, such as our own 5 metre cable (model: CAB-LTEA5, supplied separately). You can use your own shorter or longer cables instead, ensuring the right connectors & always keep cable lengths to a minimum to avoid unncessary signal loss. ...

This product is a magnetic base and extension cable compatible with the LTE antennae included with Dray Tek Vigor routers that integrate an LTE modem, such as the Vigor 2620 Ln. This allows your aerials to be positioned to avoid any obstructions or enclosures which are obscuring the router. Adjust the LTE antennas into the optimum location / direction to increase signal strength & throughput. This is especially useful if the router is installed in a rack inside a comms cabinet because if the aerials are inside the cabinet their signal will be severely impeded. The 1M extension cable allows the aerials to be positioned outside of the cabinet & the magnetic base means that it can be attached to the side of a cabinet if the metal is magnetic. The magnetic antenna bases are supplied in pairs, purchase a single set to extend the antenna positions for both of the routers antennae. The antenna is not included
- that is supplied with your 4G/LTE rouiter. The LTE antenna aerials supplied with Dray Tek LTE modem routers can twist & tilt at their base, which allows for optimum positioning once connected to the ANT-BAS1 base. Key Features Magnetic base 1M Extension cable Kit
Includes: 2 extension bases Extend 4G LTE aerials away from the router Allows aerials to be located in the optimum position Compatible with Dray Tek Vigor routers with integrated LTE modems Suitable for use with all 4G LTE & 3G frequency bands in use in the UK Available in black only Suitable for indoor use only Can be wall mounted (use 3M Command strips, not included)

...

High-Gain Aerial Dual-Band Compatible (2.4 Ghz & 5.8 Ghz) Unidirectional Signal Coverage Suitable for all Dray Tek routers & access Points Compatible with 802.11a, b, g, n & 802.11ac Frequency Range: 2400-2500 Mhz & 5150-5850 Mhz 7.5d Bi Gain in horizontal plane (5.8 Ghz) 10d Bi Gain in horizontal plane (2.4 Ghz) HPBW: 70 ° / 60 ° (H/V @ 2.4 Ghz) HPBW: 60 ° / 30 ° (H/V @ 5 Ghz) Optional Magnetic base (ANT-BAS1) or fit directly to router/AP Available in black only. Indoor use only. The Dray Tek ANT-2520 is a replacement aerial for any Dray Tek router or wireless access point. It provides up to a 10d Bi gain (vs. the 2 or 3 d Bi standard aerial supplied with the product) in one direction
- i.e. the router or access point's wireless signal is concentrated more in one direction rather than being spread equally in all directions (omnidirectional
- like the standard included aerials). The ANT-2520 can increase coverage in your environment, by creating a narrower & therefore more concentrated radiation pattern. The ANT-2520 is supplied singly; you can purchase 2, 3 or 4 to suit your router or access point
- it is recommended that all aerials on your router are the same type though some devices allow the use of less aerials than there are sockets. You can use less than 3, but all TX/RX sockets must be populated. The ANT-2520 is a dual band aerial so can be used for either 2.4 Ghz or 5.8 Ghz operation, or both simultaneously. It is also suitable for 802.11ac operation (5.8 Ghz). The aerial twists 90 degrees left or right & can tilt at its base to allow for optimum coverage/spread, or to allow for router wall mounting. You can also use an optional magnetic base
- useful if your router is in a rack, or the optional base can be wall mounted using suitable adhesive pads (e.g. 3M Command Strips).



...

Draytek CAB-LTEA5 coaxial cable 5 m SMA RG-58AU Black ...

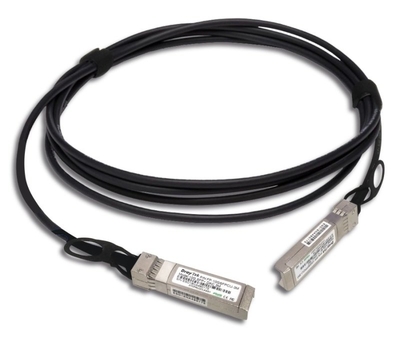

Key Features SFP & SFP+ Direct Attach Cable Self-Locking on insertion for reliable installation Pull-Tab for easy removal 1 Gb E & 10 Gb E Capable Available in 1 Meter & 3 Meter Cable Lengths SFP Direct Attach Cable for Switch Uplinks Use Dray Tek DAC-CX10 SFP cables to connect directly to the SFP module port of a Dray Tek switch or router, such as the Dray Tek Vigor Switch P2500 50-port switch & Dray Tek Vigor 3900 router. The DAC-CX10 cable is a cost effective interlink cable between switches, routers & servers, with throughput from 1 Gigabit per second, up to 10 Gigabits per second depending on the devices being connected. A " Direct Attach Cable" or "DAC" connects SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fiber transceivers, or SFP to RJ-45 transceivers. This significantly simplifies the connection process & reduces cost, while still ensuring reliable operation. For instance, if both devices support 10 Gigabit transfer rates through SFP+, instead of using two SFP+ Fiber transceivers & optical fiber, simply connect the DAC-CX10-01M cable between the two for an up to 10 Gbps link. The DAC-CX10 is available in 3 Meter & 1 Meter cable length variants, with its cable shielded to protect from nearby electrical interference. The SFP module locks securely into place when fitted into a switch to avoid unintended removal. Remove the DAC-CX10 by pulling the attached pull-tab to unlock it from the SFP module slot. ...

Key Features Compatible with Vigor AP-900 Original PSU Replacement It is vital that you order & use the correct power supply to avoid inconvenience or damage your product. Polarity, voltage, AC/DC & DC plug type vary between models. You should only use an original PSU supplied by Dray Tek; The usage of any unapproved 3rd party power supply which has not undergone our rigourous safety & operational testing & will invalidate your warranty & may permanently damage your product.. When selecting your PSU, refer to the actual product itself, not the original PSU, the box, invoice or other documentation. The replacement PSU you receive may differ in appearance to the original but if you have ordered the correct model, it will be compatible/suitable
- please check if in any doubt.
...

Dray Tek PSU for Vigor IPPBX 2820, Vigor 2800 Series, Vigor 2910 Series, Vigor 2820 V Sn, Vigor 2850 Vn, Vigor 2760 Series, Vigor 2762 Series, Vigor 2860 Series, Vigor 2832 Series, ** Vigor 2862 Series, Vigor 2925 Vnp, Vigor BX 2000, Vigor BX 2000AC, Vigor 130only **NOTE: NOT FOR USE WITH Vigor 2862 Vac OR any Access Points AP It is vital that you order & use the correct power supply to avoid inconvenience or damage your product. Polarity, voltage, AC/DC & DC plug type vary between models. You should only use an original PSU supplied by Dray Tek. Key Features Official Power supply from Draytek AC ADAPTER MODEL: 2ABL030F Input: 100-240V 50/60 Hz 1.0A Output: 12V 2.5A Works with following Series Vigor IPPBX 2820, Vigor 2800 Series, Vigor 2910 Series, Vigor 2820 V Sn, Vigor 2850 Vn, Vigor 2760 Series, Vigor 2762 Series, Vigor 2860 Series Vigor 2832 Series, Vigor 2862 Series**, Vigor 2925 Vnp, Vigor BX 2000, Vigor BX 2000AC, Vigor 130only NOTE: **NOT FOR USE WITH Vigor 2862 Vac OR any Access Points AP ...

It is vital that you order & use the correct power supply to avoid inconvenience or damage your product. Polarity, voltage, AC/DC & DC plug type vary between models. You should only use an original PSU supplied by Dray Tek; The usage of any unapproved 3rd party power supply which has not undergone our rigourous safety & operational testing & will invalidate your warranty & may permanently damage your product.. When selecting your PSU, refer to the actual product itself, not the original PSU, the box, invoice or other documentation. The replacement PSU you receive may differ in appearance to the original but if you have ordered the correct model, it will be compatible/suitable
- please check if in any doubt. DRAYPSU17 Vigor 2862 Vac only
...

Key Features HDMI-over-IP Extender Companion Device for Vigor Switch V1281 One-to-one or one-to-many (sender-to-receiver) Infrared Remote Control signals sent back to source UK Power Adaptor (BS1362 compliant) The Dray Tek HVE290 takes an HDMI input from your video device (Satellite Receiver, DVD/ Blu-Ray player, Cable TV box etc.) & converts it into an IP signal on standard CAT5e/CAT6 cable which can then be distributed by Dray Teks Vigor Switch V1281. Ports on the Vigor Switch 1281 not used for video can be used for normal data networking. The HVE290 comes as a pair (sender & receiver) although additional receiver units are available separately too. The sender unit connects to your video source (HDMI) & to the Vigor Switch V1281 (RJ45 sockets). The receiver unit connects back to your Vigor Switch 1281 & outputs to your TV, screen or projectors HDMI input, elsewhere in your building. The HVE290 uses a video codec designed to balance bandwidth conservation with frame rate
- i.e. to reduce dropping frames in fast-moving scenes which can cause jerkiness, particularly on larger screens or projectors in panning shots. The HVE290 also provides full HD with up to 36-bit colour to ensure you get great resolution & picture fidelity, even on a large screen & can transmit regular PCM Stereo, Dolby surround or DTS sources to the receivers. The HVE290 can also downscale or upscale when youre using a one-to-many configuration with screens of different resolutions (e.g. transmit a 1080P picture & display it on a 720P & 1080P screen simultaneously).
...

Key Features HDMI-over-IP Extender Companion Device for Vigor Switch V1281 One-to-one or one-to-many (sender-to-receiver) Infrared Remote Control signals sent back to source UK Power Adaptor (BS1362 compliant) The Dray Tek HVE290 takes an HDMI input from your video device (Satellite Receiver, DVD/ Blu-Ray player, Cable TV box etc.) & converts it into an IP signal on standard CAT5e/CAT6 cable which can then be distributed by Dray Teks Vigor Switch V1281. Ports on the Vigor Switch 1281 not used for video can be used for normal data networking. The HVE290 comes as a pair (sender & receiver) although additional receiver units are available separately too. The sender unit connects to your video source (HDMI) & to the Vigor Switch V1281 (RJ45 sockets). The receiver unit connects back to your Vigor Switch 1281 & outputs to your TV, screen or projectors HDMI input, elsewhere in your building. The HVE290 uses a video codec designed to balance bandwidth conservation with frame rate
- i.e. to reduce dropping frames in fast-moving scenes which can cause jerkiness, particularly on larger screens or projectors in panning shots. The HVE290 also provides full HD with up to 36-bit colour to ensure you get great resolution & picture fidelity, even on a large screen & can transmit regular PCM Stereo, Dolby surround or DTS sources to the receivers. The HVE290 can also downscale or upscale when youre using a one-to-many configuration with screens of different resolutions (e.g. transmit a 1080P picture & display it on a 720P & 1080P screen simultaneously).
...
