Asus Strix X99 Gaming Socket LGA 2011-v 3 8-Channel HD Audio ATX Motherboard Specifications: CPU New Intel Core i 7 X-Series Processors on LGA 2011-v 3 socket Supports 22nm CPU Support Intel Turbo Boost Max Technology 3.0* * The support of these features depends on the CPU types. Chipset Intel X99 Chipset Memory "8 x DIMM, max. 128GB DDR4 3333 (O.C.)*/3300 (O.C.)*/3000 (O.C.)*/2800 (O.C.)*/2666 (O.C.)*/2400 (O.C.)*/2133 MHz, non-ECC, un-buffered memory" Quad channel memory architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details. Expansion Slots 3 x PCIe 3.0/2.0 x 16 slots (supports x 16, x 16/x 16, x 8/x 16/x 8 mode with 40-LANE CPU; x 16, x 16/x 8, x 8/x 8/x 8 mode with 28-LANE CPU) [CPU] 1 x PCIe 2.0 x 16 slot (max. at x 4 mode) [PCH] 2 x PCIe 2.0 x 1 slot* * PCIE X 1_1 slot shares bandwidth with WI-FI+BT port at back panel. The PCIEX1_1 could be enabled in BIOS. Multi-GPU Support Supports NVIDIA 3-Way/2-Way SLI Technology Supports AMD 3-Way/2-Way Cross Fire X Technology Storage New Intel Core i 7 X-Series Processors 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIE SSDs only)* 1 x U.2 port, (support PCIe 3.0 x 4 NVM Express storage)* * The M.2 slot shares bandwidth with U.2 port Intel X99 Chipset 1 x SATA Express, compatible with 2 x SATA 6.0 Gb/s ports 8 x SATA 6 Gb/s ports Supports Intel Smart Response Technology, Intel Rapid Recovery Technology* * These functions will work depending on the CPU installed. LAN Intel I218-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) & physical layer (PHY) Anti-surge LANGuard ROG Game First Technology Wireless& Bluetooth Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO support Bluetooth v 4.1, 4.0LE, 3.0+HS Audio Supreme FX 8-Channel High Definition Audio CODEC Supreme FX Shielding Technology Dual Headpone Amplifiers Jack-detection, Multi-streaming, & Front Panel Jack-retasking Optical S/PDIF out port at back panel Audio

Features: Sonic Radar II USB (Universal Serial Bus) Intel X99 Chipset
- supports ASUS USB (Universal Serial Bus) 3.0 Boost: 5 x USB (Universal Serial Bus) 3.0 ports (1 ports at back panel [blue], 4 ports at mid-board) 8 x USB (Universal Serial Bus) 2.0 ports (4 ports at back panel, 4 ports at mid-board)* * 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port. ASMedia USB (Universal Serial Bus) 3.0 controller
- supports ASUS USB (Universal Serial Bus) 3.0 Boost: 3 x USB (Universal Serial Bus) 3.0 ports (At back panel [blue]) ASMedia USB (Universal Serial Bus) 3.1 controller
- supports ASUS USB (Universal Serial Bus) 3.1 Boost: 2 x USB (Universal Serial Bus) 3.1 ports (1 x Type-A [red] & 1 x Type-C ports at back panel)* * USB3.1_EC1 & USB3.1_EA2 ports at back panel will be disabled when the PCIEX4_1 slot is occupied by an X4 bandwidth device. ROG Exclusive Features ROG RAMCache ROG CPU-Z Special Features Media Streamer ASUS Exclusive Features AI Suite 3 USB (Universal Serial Bus) 3.1 Boost AI Charger+ Push Notice Disk Unlocker ASUS EZ DIY USB (Universal Serial Bus) BIOS Flashback ASUS Crash Free BIOS 3 ASUS EZ Flash 3 Mem OK! ASUS Q-Design Q-Code Q-Shield Q-Connector Q-LED (CPU, DRAM, VGA, Boot Device LED) Q-Slot Q-DIMM Back I/O Ports 1 x USB (Universal Serial Bus) BIOS Flashback button 1 x PS/2 keyboard/mouse combo port 4 x USB (Universal Serial Bus) 2.0 ports 4 x USB (Universal Serial Bus) 3.0 ports 2 x USB3.1 ports (1 x Type-A [red] & 1 x Type-C ports) 1 x Anti-surge LAN (RJ45) port 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac & Bluetooth v 4.1) 5 x Audio jacks 1 x Optical S/PDIF out Internal I/O Ports 2 x USB (Universal Serial Bus) 3.0 connectors support additional 4 USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 2.0 connectors support additional 4 USB (Universal Serial Bus) 2.0 ports [one connector via ROG_EXT header] 1 x SATA Express connector (compatible with 2 SATA 6 Gb/s ports) 8 x SATA 6 Gb/s connectors 1 x ROG extension (ROG_EXT) header 1 x 4-Pin Water pump connector 1 x 4-Pin H_AMP_fan connector 1 x 4-Pin CPU fan connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin Chassis fan connectors 1 x 5-Pin Extension fan connector 1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector 1 x 4-pin EATX 12V power connector 1 x Power-on button 1 x Reset button 1 x Mem OK! button 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x Thunderbolt header (5-pin) for ASUS Thunderbolt EX III series support 1 x Front panel audio connector (AAFP) 1 x COM connector 1 x RGB Header 1 x TPM connector 1 x System panel connector 1 x Thermal sensor connector 1 x CPU_OV 1 x DRCT 1 x Clear CMOS jumper (2-pin) 1 x XMP Switch BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.7, Wf M2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, Crash Free BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions & ASUS DRAM SPD (Serial Presence Detect) memory information. Manageability Wf M2.0, DMI2.7, WOL by PME, PXE Software Drivers Anti-virus software (OEM version) ASUS Utilities Operating System Support Windows 10* Windows 8.1 Windows 7 *64-bit supported only Form Factor ATX Form Factor, 12x 9.6 (30.5cm x 24.4cm)




...

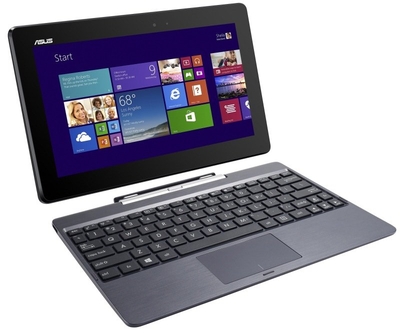

Appearance Aluminium: steel grey Processor Intel Atom Bay Trail-T, Z3740 processor 1.33 to 1.8 G Hz 2M Cache Memory 2GB DDR3 RAM Hard Drive 32GB SSD Optical Drive None Software Operating System: Windows 8.1 (32bit) Microsoft Office full version included SKYPE Maxx Audio ASUS Win flash ASUS Live Update e Manual ASUS Web Storage Sync Agent ASUS Smart Gesture ATK Package (ASUS On Screen Display) ASUS Product Registration program KBFilter driver ASUS Installation Wizard Display 10.1” LED backlit slim TFT Wide view LCD display HD 1366x 768 16:9 Display type: (Typical 250-nit), 17ms response time NTSC 50% Glare support touch panel Graphics Intel HD Graphics Gen 7 Audio Built-in speaker Built-in microphone Input Devices Touchscreen Chiclet Keyboard ASUS 253.6mm keyboard with 17.43mm key pitch Networking WLAN: 802.11bgn Bluetooth 4.0 (Single band) LAN: 10/100/1000 Mbps Power Supply 10W AC Adapter Output: 5V DC, 2A, 10W Input: 100~240V AC, 50/60 Hz universal 31 W Hrs, 8060m Ah, 1S2P, 2-cell Li-ion polymer Battery pack Up to 11 hours battery

Dimensions 0.89kg (Without Battery) 1.03kg (with 2 cell battery) Tablet: 0.52kg (with 2 cell Battery) Dock: 0.50kg (with 0 cell Battery) 26.3 (W) x 17.1 (D) x 2.36 ~ 2.36 (H) cm 26.3 (W) x 17.1 (D) x 1.05 ~ 1.05 (H) cm Interfaces 1 x USB (Universal Serial Bus) 3.0 1 x Micro USB2.0 1 x Headphone-out & Audio-in Combo Jack 1 x micro HDMI Expansion Card Reader Warranty / Miscellaneous 1 Year Manufacturer Warranty 1.2 Mega Pixel web camera (Fixed type)

...

Processor Intel Atom Bay Trail-T, Z3740 processor 1.33 to 1.8 G Hz 2M Cache Memory 2GB DDR3 RAM Hard Drive 32GB SSD with Unlimited ASUS Web Storage (1 year trial) Optical Drive None Software Operating System: Windows 8.1 32bit Display 10.1” LED backlit slim TFT Wide view LCD display HD 1366x 768 16:9 Display type: (Typical 250-nit), 17ms response time NTSC 50% Glare support touch panel Graphics Intel HD Graphics Gen 7 Audio Built-in speaker Built-in microphone Input Devices Touchscreen Chiclet Keyboard ASUS 253.6mm keyboard with 17.43mm key pitch Networking WLAN: 802.11bgn Bluetooth 4.0 (Single band) LAN: 10/100/1000 Mbps Power Supply 10W AC Adapter Output: 5V DC, 2A, 10W Input: 100~240V AC, 50/60 Hz universal 31 W Hrs, 8060m Ah, 1S2P, 2-cell Li-ion polymer Battery pack Up to 11 hours battery

Dimensions 0.89kg (Without Battery) 1.03kg (with 2 cell battery) Tablet: 0.52kg (with 2 cell Battery) Dock: 0.50kg (with 0 cell Battery) 26.3 (W) x 17.1 (D) x 2.36 ~ 2.36 (H) cm 26.3 (W) x 17.1 (D) x 1.05 ~ 1.05 (H) cm Interfaces 1 x USB (Universal Serial Bus) 3.0 1 x Micro USB2.0 1 x Headphone-out & Audio-in Combo Jack 1 x micro HDMI Expansion Card Reader Warranty / Miscellaneous 1 Year Manufacturer Warranty 1.2 Mega Pixel web camera (Fixed type)

...

Processor Intel Atom Bay Trail-T, Z3740 processor 1.33 to 1.8 G Hz 2M Cache Memory 2GB DDR3 RAM Hard Drive 64GB SSD Optical Drive None Software Operating System: Windows 8 Pro Display 10.1” LED backlit slim TFT Wide view LCD display HD 1366x 768 16:9 Display type: (Typical 250-nit), 17ms response time NTSC 50% Glare support touch panel Graphics Intel HD Graphics Gen 7 Audio Built-in speaker Built-in microphone Input Devices Touchscreen Chiclet Keyboard ASUS 253.6mm keyboard with 17.43mm key pitch Networking WLAN: 802.11bgn Bluetooth 4.0 (Single band) LAN: 10/100/1000 Mbps Power Supply 10W AC Adapter Output: 5V DC, 2A, 10W Input: 100~240V AC, 50/60 Hz universal 31 W Hrs, 8060m Ah, 1S2P, 2-cell Li-ion polymer Battery pack Up to 11 hours battery

Dimensions 0.89kg (Without Battery) 1.03kg (with 2 cell battery) Tablet: 0.52kg (with 2 cell Battery) Dock: 0.50kg (with 0 cell Battery) 26.3 (W) x 17.1 (D) x 2.36 ~ 2.36 (H) cm 26.3 (W) x 17.1 (D) x 1.05 ~ 1.05 (H) cm Interfaces 1 x USB (Universal Serial Bus) 3.0 1 x Micro USB2.0 1 x Headphone-out & Audio-in Combo Jack 1 x micro HDMI Expansion Card Reader Warranty / Miscellaneous 1 Year Manufacturer Warranty 1.2 Mega Pixel web camera (Fixed type)

...

Processor Intel Atom Bay Trail-T, Z3740 processor 1.33 to 1.8 G Hz 2M Cache Memory 2GB DDR3 RAM Hard Drive 64GB SSD Optical Drive None Software Operating System: Windows 8 Pro (32bit) Display 10.1” LED backlit slim TFT Wide view LCD display HD 1366x 768 16:9 Display type: (Typical 250-nit), 17ms response time NTSC 50% Glare support touch panel Graphics Intel HD Graphics Gen 7 Audio Built-in speaker Built-in microphone Input Devices Touchscreen Chiclet Keyboard ASUS 253.6mm keyboard with 17.43mm key pitch Networking WLAN: 802.11bgn Bluetooth 4.0 (Single band) LAN: 10/100/1000 Mbps Power Supply 10W AC Adapter Output: 5V DC, 2A, 10W Input: 100~240V AC, 50/60 Hz universal 31 W Hrs, 8060m Ah, 1S2P, 2-cell Li-ion polymer Battery pack Up to 11 hours battery

Dimensions 0.89kg (Without Battery) 1.03kg (with 2 cell battery) Tablet: 0.52kg (with 2 cell Battery) Dock: 0.50kg (with 0 cell Battery) 26.3 (W) x 17.1 (D) x 2.36 ~ 2.36 (H) cm 26.3 (W) x 17.1 (D) x 1.05 ~ 1.05 (H) cm Interfaces 1 x USB (Universal Serial Bus) 3.0 1 x Micro USB2.0 1 x Headphone-out & Audio-in Combo Jack 1 x micro HDMI Expansion Card Reader Warranty / Miscellaneous 1 Year Manufacturer Warranty 1.2 Mega Pixel web camera (Fixed type)

...

Processor Intel Atom Bay Trail-T Z3775 1.46 G Hz Up to 2.39 G Hz Quad Core 2MB Cache Memory 2GB Hard Drive 64GB e MMC Optical Drive None Software Windows 8.1 Pro 32bit Microsoft Office 2013 Trial Display 10.1” Touchscreen Resolution 1366 x 768 LED Back-lit Networking 802.11agn Bluetooth 4.0 Power Supply 10W AC Adapter Output: 5V DC, 2A, 10W Input: 100~240V AC, 50/60 Hz universal 31 W Hrs, 1S2P, 2-cell Li-ion Polymer Battery Pack

Dimensions Width 236mm Depth 171mm Height 10.5-21.4mm Weight 1.09kg Warranty 1 Year Manufacturer warranty 1.2 Mega Pixel web camera (Fixed type)

...

Technical Specifications Processor Intel Quad-Core Atom Bay Trail-T, Z3775 1.46 G Hz Up to 2.39 GHz 2 MB cache Memory 2GB On board memory Hard Drive 32GB e MMC 500GB 5400RPM 2.5” HDD Optical Drive None Software Operating System: Windows 8.1 (32bit) Microsoft Office 2013 Trial 30 days Display 11.6” HD Ultra Slim Touch Screen LED-backlit Resolution 1366 x 768 Audio Built-in array microphone Built-in speaker Sonic Master Input Devices Illuminated Chiclet Keyboard ASUS 268mm keyboard with 18.4mm key pitch Networking Integrated 802.11 a/b/g/n Built-in Bluetooth V4.0 LAN 10/100 Mbps Power Supply 33W adapter output: 19V 1.75A input: 100-240V AC, 50/60 Hz universal 38 W Hrs, 2S1P, 2-cell Li-ion Polymer Battery Pack

Dimensions Width 305mm Depth 200mm Height 26mm Weight 1.65kg Interfaces 1 x USB (Universal Serial Bus) 3.0 1 x USB (Universal Serial Bus) 2.0 1 x Micro USB (Universal Serial Bus) 2.0 1 x HDMI 1 x Line-in Jack 1 x Headphone-out Jack 1 x Headphone-out & Audio-in Combo Jack Warranty/ Misc HD web camera + 5 Mega Pixel rear camera with Auto Focus

...

Appearance Vertical hairline with metal Processor Intel Core™ i 5-4200U 1.6 G Hz 3M Cache, Up to 2.30 GHz Mobile Intel HM86 Express Chipset Memory 4GB DDR3 RAM Hard Drive SATA3 256G M.2 SSD Optical Drive None Software Operating System: Windows 8 (64bit) Display 13.3” LED-backlit slim TFT LCD display, Resolution: FHD 1920x 1080 16:9 Aspect Ratio Display type (typical: 350 nits) 25ms response time NTSC:72% Glare Support touch panel Graphics Intel HD Graphics 4400 Audio Built-in speaker Built-in microphone Sonic Master Input Devices HD web camera Seamless Chiclet Keyboard ASUS 302mm keyboard with 19mm full size key pitch Touchpad Networking WLAN: 802.11bgn Bluetooth 4.0 (Single band) LAN: 10/100/1000 Mbps Power Supply 45W AC Adapter Output: 19V DC, 2.37A, 45W Input: 100~240V AC 50/60 Hz universal

Dimensions 34.2 (W) x 21.8 (D) x 2.40 ~ 2.40 (H) cm Tablet: 0.90kg (with 4 cell Battery) Dock: 0.80kg (with % cell Battery)" Interfaces SD only Card Reader 1 x USB (Universal Serial Bus) 3.0 1 x Headphone-out jack 1 x micro HDMI Warranty 1 Year Manufacturer Warranty

...

One TAICHI, Two Screens – Endless Flexibility ASUS TAICHI™ is an incredible fusion of notebook & tablet for unparalleled mobile flexibility. Lid open, TAICHI is a powerful notebook with a crystal-clear Full HD screen, Intel Core™ processor & backlit keyboard. Lid closed, TAICHI is a lightweight tablet with a slim, tapered profile & a multi-touch Full HD screen for intuitive fingertip control with Windows 8. 1. Notebook mode Lift the lid with one smooth motion & TAICHI becomes a fully featured notebook. The Full HD 11.6” or 13.3” screen features IPS technology for a vibrant image with wide viewing angles. The backlit keyboard with ambient light control & large multi-touch touchpad make light of productivity tasks, too. 2. Tablet mode Close the lid & TAICHI instantly be becomes a tablet with an 11.6” or 13.3” Full HD display. 10-point capacitive multi-touch gives complete fingertip control & the supplied stylus works just like a pen on paper for accurate handwritten notes & sketches, plus IPS technology keeps the image bright & clear. Built-in motion sensors also make TAICHI™ the ideal for mobile gaming, while dual-band Wi-Fi & Bluetooth 4.0 connect to the latest wireless devices. 3. Mirror mode TAICHI is more than just a mere table or notebook — mirror mode offers a unique way to share information. Mirror mode shows the same image on both back-to-back screens, so it’s perfect for showing a presentation without the need for a bulky projector or clumsy external monitor, or sharing a movie without worrying about where everyone will sit. IPS technology gives a wide 178° viewing angle, which means everyone gets the best view, too. 4. Dual-Screen mode In Dual Screen mode, TAICHI is no longer one computer — it’s two. Each back-to-back screen can be used separately with different apps: one with the keyboard & multi-touch touchpad; the other with the multi-touch screen & stylus. Dual-Screen mode is also ideal for presentations & the supplied Screen Share app lets the presenter see the script on one screen while the audience views slides on the other. Processor Intel Core i 7-3517U 1.9 G Hz Turbo Boost up to 3 G Hz 2 Cores 4MB Cache Memory 4GB RAM Hard Drive 256GB Solid State Drive Optical Drive None Software Operating System: Windows 8 64bit Display 11.6" Duo FHD IPS Touch, Finger Touch & stylus (Pen) on Screen A Graphics Intel HD Graphics Audio Integrated Speakers Input Devices Keyboard & Touchpad Touchscreen Networking WLAN: 802.11ABGN + WIDI Bluetooth 4.0 Warranty / Miscellaneous 1 Year MAnufacturer Warranty 5M Webcam & HD dual Webcam ...

Processor Intel Core i 7-3517U 1.9 G Hz Turbo Boost up to 3 G Hz 2 Cores 4MB Cache Memory 4GB RAM Hard Drive 256GB Solid State Drive Optical Drive None Software Operating System: Windows 8 64bit Display 11.6" Duo FHD IPS Touch, Finger Touch & stylus (Pen) on Screen A Graphics Intel HD Graphics Audio Integrated Speakers Inout Devices Keyboard & Touchpad Touchscreen Networking WLAN: 802.11ABGN + WIDI Bluetooth 4.0 Warranty / Miscellaneous 1 Year MAnufacturer Warranty 5M Webcam & HD dual Webcam ...
