Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling & ventilation capabilities with exceptional expandability, in a sleek & stylish Scandinavian form. The Define XL R2, which

Includes:: Fractal Design’s innovative Modu Vent™ feature, has an updated internal layout that offers greater expandability, modularity & flexibility, including capacity for 9 PCI cards & two HDD cages that can be repositioned to provide more space for water cooling radiators. Key features High density noise-reducing material for an optimal silent case Patented Modu Vent™ design allowing the user to choose between optimal silence or maximum airflow. With a new internal layout & additional PCI expansion slots, it can harbor the most powerful enthusiast systems. Both HDD cages can be removed or repositioned
- Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount. The case can fit water cooling equipment in the front, top, rear & bottom without major modifications. Three-speed fan controller is strategically integrated in the front panel & supports up to 3 fans Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases New tool-less front fan holder makes switching front fans a breeze Specifications ATX, Micro ATX, mini-ITX, E-ATX & XL-ATX motherboard compatibility 4
- 5.25" bays 8
- 3.5" HDD trays
- all compatible with SSDs A total of 9 expansion slots 3
- Modu Vent™ plates – two in the top & one in the side 7
- Fan positions (3 fans included) Filtered fan slots in front & bottom CPU coolers up to 170 mm tall (when no fan is installed in the side panel) PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be used Graphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed
- With the top cage removed, graphics cards up to 480mm in length may be installed 26 mm of space for cable routing behind the motherboard plate Thick rubber grommets on all holes on the motherboard plate Colors available: Black Pearl, Titanium Grey Case

Dimensions (Wx Hx D): 232 x 559 x 560mm Net weight: 16.4kg Package

Dimensions (Wx Hx D): 322 x 637 x 655mm Package weight: 19kg Cooling system Front: 1
- 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed); 1
- 120/140mm fan (not included) Rear: 1
- 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Top: 2
- 120/140mm fans (not included) – positions also support 240/280mm slim radiators Bottom: 1
- 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Side: 1
- 120/140mm fan (not included) Fan controller: 1
- Integrated fan controller for up to 3 fans (included) Water cooling compatibility: Front – 240mm radiator when HDD cages are removed or repositioned Top – 240 & 280mm when using slim radiators Bottom – 120mm radiators Rear – 120 & 140mm radiators Front interface 2
- USB (Universal Serial Bus) 3.0, 2
- USB (Universal Serial Bus) 2.0 Audio in/out Power button with LED (blue) Reset button Fan controller (behind door) Package contents Define XL R2 computer case Accessory box User manual





















...

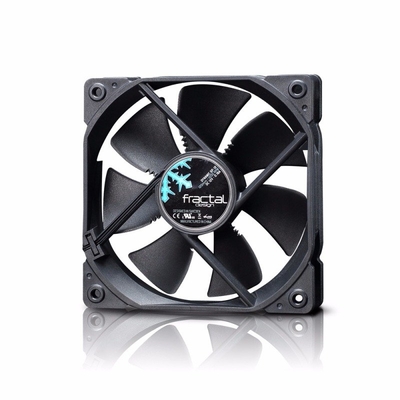

Fractal Design Dynamic Series Gp-12 (120mm) Computer Case Fan Fractal Design FD-FAN-DYN-GP12-BK. Suitable for: Computer case, Type: Fan, Fan diameter: 12 cm. Colour of product: Black, Cable length: 0.5 m. Power supply: 1.44 W, Maximum current: 0.18 A.

Width: 12 cm,

Depth: 12 cm,

Height: 2.5 cm. Bearing technology: Hydraulic Product description Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing & a true FDB bearing Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Optimized fan geometry for a good balance between static pressure & maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise & unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant & therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing & diffusing humming noise produced when the blades pass the stator struts

Includes:: a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient & quiet fan environment. The customized design of the Dynamic Series fans contributes to a beautiful, cool build Specifications Design Cable length 0.5 m Colour of product Black Other features Bearing technology Hydraulic Performance Fan diameter 12 cm Maximum air pressure 0.88 mm H2O Maximum airflow 52.3 cfm Maximum spin speed 1200 RPM Mean time between failures (MTBF) 40000 h Mounting hole pattern (Wx D) 105 x 105 mm Noise level (high speed) 19.4 d B Suitable for Computer case Type Fan Power Maximum current 0.18 A Power supply 1.44 W Voltage 12 Technical details Fan connector 3-pin Weight &

Dimensions Depth 12 cm Height 2.5 cm Package depth 12.2 cm Package height 2.6 cm Package width 14.2 cm Weight 200 g Width 12 cm









...

Fractal Design Dynamic GP-12 & GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet. Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio. The Dynamic Series fans come in two color combinations: all-black & the classic Fractal Design signature color scheme with white blades & black frame. Key features Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing & a true FDB bearing Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Optimized fan geometry for a good balance between static pressure & maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise & unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant & therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing & diffusing humming noise produced when the blades pass the stator struts

Includes:: a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient & quiet fan environment. The customized design of the Dynamic Series fans contributes to a beautiful, cool build Specifications Fan GP-12 Size [mm] 120*120*25mm Color available White blades, black frame Screw hole pattern 105*105mm Connector 3-pin fan header Bearing Hydraulic Number of blades 7 Rotational speed [RPM] 1200 Acoustical noise [d B (A)] 19.4 Maximum air flow [CFM] 52.3 Maximum pressure [mm H2O] 0.88 Actual input power [W] 1.44 Maximum rated input current [A] 0.18 Nominal input voltage [V] 12 Minimum startup voltage [V] 4 MTBF [hours] 40, 000 Unit weight [g] 119 Package weight [g] 160 Cable length [mm] 500 Cable type Black ribbon cable

...

Fractal Design Dynamic Series Gp-14 (140mm) Computer Case Fan Fractal Design Dynamic GP-12 & GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet. Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio. The Dynamic Series fans come in two color combinations: all-black & the classic Fractal Design signature color scheme with white blades & black frame. Key features Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing & a true FDB bearing Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Optimized fan geometry for a good balance between static pressure & maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise & unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant & therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing & diffusing humming noise produced when the blades pass the stator struts

Includes:: a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient & quiet fan environment. The customized design of the Dynamic Series fans contributes to a beautiful, cool build Specifications Fan GP-14 Size [mm] 140*140*25mm Colors available Black blades, black frame Screw hole pattern 125*125mm Connector 3-pin fan header Bearing Hydraulic Number of blades 7 Rotational speed [RPM] 1000 Acoustical noise [d B (A)] 18.9 Maximum air flow [CFM] 68.4 Maximum pressure [mm H2O] 0.71 Actual input power [W] 1.7 Maximum rated input current [A] 0.20 Nominal input voltage [V] 12 Minimum startup voltage [V] 4 MTBF [hours] 40, 000 Unit weight [g] 142 Package weight [g] 190 Cable length [mm] 500 Cable type Black ribbon cable

...

Fractal Design Dynamic Series Gp-14 (140mm) Computer Case Fan (black/white) Fractal Design FD-FAN-DYN-GP14-WT. Suitable for: Computer case, Type: Fan, Fan diameter: 14 cm. Colour of product: Black, White, Cable length: 0.5 m. Power supply: 1.7 W, Maximum current: 0.2 A.

Width: 14 cm,

Depth: 14 cm,

Height: 2.5 cm. Bearing technology: Hydraulic Product description Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing & a true FDB bearing Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Optimized fan geometry for a good balance between static pressure & maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise & unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant & therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing & diffusing humming noise produced when the blades pass the stator struts

Includes:: a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient & quiet fan environment. The customized design of the Dynamic Series fans contributes to a beautiful, cool build Specifications Design Cable length 0.5 m Colour of product Black, White Other features Bearing technology Hydraulic Performance Fan diameter 14 cm Maximum air pressure 0.71 mm H2O Maximum airflow 68.4 cfm Maximum spin speed 1000 RPM Mean time between failures (MTBF) 40000 h Mounting hole pattern (Wx D) 125 x 125 mm Noise level (high speed) 18.9 d B Suitable for Computer case Type Fan Power Maximum current 0.2 A Power supply 1.7 W Voltage 12 Technical details Fan connector 3-pin Weight &

Dimensions Depth 14 cm Height 2.5 cm Package depth 14.2 cm Package height 2.6 cm Package width 16.7 cm Weight 250 g Width 14 cm









...

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS Gold certified efficiency. Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation & the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions. Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum. The Edison M is a highly reliable choice, for both gaming computers & powerful workstations. Key Features Modular construction to assist with a clean build with only the most essential cables permanently attached 80PLUS Gold efficiency with a 5 year warranty on the PSU ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs DC-DC design for enhanced system stability & maximum 12V output Tight voltage regulation: +/- 2% for +12V & +/- 3% for minor rails Japanese electrolytic capacitors, rated at 105°C; Japanese & Taiwanese solid polymer capacitors Extra long ATX 12V cable Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection Sleek look to add to the overall design of your build 80 PLUS Gold certified efficiency Edison M PSUs meet the 80 PLUS Gold

Specification for providing power at an extremely competitive price point, priving excellent value. in addition, because Edison M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. superb Electrical Performance Fractal Design Edison M Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C at full load or 50°C at 80% load. Compliant with the latest standards Edison M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92 High end capacitors Edison M PSUs feature Japanese electrolytic capacitors, rated at 105°C as well as Japanese & Taiwanese solid polymer capacitors. Silent, temperature-controlled 120mm FDB fan Generally, larger fans move more air with less noise than smaller fans: Edison M Series PSUs are equipped with a 120mm FDB bearing, which keeps noise levels at a minimum. Extra-long ATX12V cable Edison M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Computer protection Edison M PSUs feature a full suite of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection.

...

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS Gold certified efficiency. Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation & the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions. Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum. The Edison M is a highly reliable choice, for both gaming computers & powerful workstations. Key Features Modular construction to assist with a clean build with only the most essential cables permanently attached 80PLUS Gold efficiency with a 5 year warranty on the PSU ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs DC-DC design for enhanced system stability & maximum 12V output Tight voltage regulation: +/- 2% for +12V & +/- 3% for minor rails Japanese electrolytic capacitors, rated at 105°C; Japanese & Taiwanese solid polymer capacitors Extra long ATX 12V cable Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection Sleek look to add to the overall design of your build 80 PLUS Gold certified efficiency Edison M PSUs meet the 80 PLUS Gold

Specification for providing power at an extremely competitive price point, priving excellent value. in addition, because Edison M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. superb Electrical Performance Fractal Design Edison M Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C at full load or 50°C at 80% load. Compliant with the latest standards Edison M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92 High end capacitors Edison M PSUs feature Japanese electrolytic capacitors, rated at 105°C as well as Japanese & Taiwanese solid polymer capacitors. Silent, temperature-controlled 120mm FDB fan Generally, larger fans move more air with less noise than smaller fans: Edison M Series PSUs are equipped with a 120mm FDB bearing, which keeps noise levels at a minimum. Extra-long ATX12V cable Edison M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Computer protection Edison M PSUs feature a full suite of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection.

...

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS Gold certified efficiency. Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation & the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions. Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum. The Edison M is a highly reliable choice, for both gaming computers & powerful workstations. Key Features Modular construction to assist with a clean build with only the most essential cables permanently attached 80PLUS Gold efficiency with a 5 year warranty on the PSU ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs DC-DC design for enhanced system stability & maximum 12V output Tight voltage regulation: +/- 2% for +12V & +/- 3% for minor rails Japanese electrolytic capacitors, rated at 105°C; Japanese & Taiwanese solid polymer capacitors Extra long ATX 12V cable Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection Sleek look to add to the overall design of your build 80 PLUS Gold certified efficiency Edison M PSUs meet the 80 PLUS Gold

Specification for providing power at an extremely competitive price point, priving excellent value. in addition, because Edison M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. superb Electrical Performance Fractal Design Edison M Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C at full load or 50°C at 80% load. Compliant with the latest standards Edison M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92 High end capacitors Edison M PSUs feature Japanese electrolytic capacitors, rated at 105°C as well as Japanese & Taiwanese solid polymer capacitors. Silent, temperature-controlled 120mm FDB fan Generally, larger fans move more air with less noise than smaller fans: Edison M Series PSUs are equipped with a 120mm FDB bearing, which keeps noise levels at a minimum. Extra-long ATX12V cable Edison M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Computer protection Edison M PSUs feature a full suite of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection.

...

Era is a unique & elegantly understated feat of both design & technical engineering — a compact chassis free from the excessive restrictions traditionally associated with small form factor systems. Wrapped in aluminum & offering a variety of top inserts ranging from premium wood to tempered glass, Era blends into any environment. Despite a modest 16 liter footprint, it readily accommodates dual slot GPUs, AIO water cooling units up to 240 mm, high-end processors, & up to four storage devices. Compact, sophisticated & stylish, Era redefines the small form factor for those looking to make a design statement without sacrificing the power & functionality of professional grade hardware. Main Features Compact, uniquely designed aluminum exterior available in five colors Versatile interior supporting professional grade hardware Stylish top panel designed to match the color of your case Additional steel mesh top panel included for higher airflow Small, flexible, & space efficient with volume just over 16 liters Supports Dual Slot graphics cards up to 295 mm in length Excellent water cooling support via removable radiator bracket allowing 240 mm or dual 120 mm radiators Two storage brackets, each capable of mounting a single 3.5" HDD or two 2.5" SSDs Efficient chimney design optimizes airflow across five total fan positions Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently & effectively Install SFX or ATX PSUs up to 200 mm in length with innovative adjustable brackets that maximize flexibility Magnetic top panel & tool-less latching side panels allow easy access Easy-to-clean, high airflow nylon filters on the top, sides & base USB (Universal Serial Bus) 3.1 Gen 2 Type-C with support for fast charging & speeds up to 10 Gbps ...

SMALL FOOTPRINT, BIG IMPACT Imagined with Intel & created by Fractal Design, the ERA ITX is a compact chassis free from restrictions usually associated with small form factors cases, this unique & elegant case has taken design & technical engineering to all new heights. Built from high-quality aluminium available in 5 different colours & a range of interchangeable top inserts the ERA ITX blends into any environment. Even with a modest 16 litre footprint it can still accommodate dual-slot GPUs, AIO cooling systems up to 240mm, high-end processors & up to four storage devices. Compact, Sophisticated & stylish, ERA is for those looking to make a design statement with a small form factor system without sacrificing power & functionality of high-end hardware. just simply add water Due to the size of most AIO cooling systems, they usually arent considered when comparing small form factor PCs however ERA features a removable radiator bracket that allows for 240mm or dual 120mmm radiators to give you robust liquid cooling. SUPER FLEXIBLE STORAGE The Era ITX

Includes:: two storage brackets, each can support 1x 3.5" HDD or 2.5" SSDs A NEW ERA IN AIRFLOW Though compact in size the ERA boasts an effective chimney design to optimise the airflow around your system across a total of five fan positions, this case also

Includes:: 1x 80mm Fractal Design SSR3 fan to exhaust heat silently but still with a high level of efficiency & to further reinforce the above, the ERA also houses easy-to-clean, high-airflow nylon dust filters at the top, sides & base of the chassis. INTERCHANGEABLE TOP PANEL The expertly colour-coordinated wood & tempered glass top panels can easily be switched out to the included steel-mesh panel to increase the amount of airflow that is available to the ERA. SFX OR ATX? YES Due to the innovations Fractal Design have made with their adjustable brackets you have total flexibility with your PSU mounting height in order to maximise the amount of internal space available to you. EASY ACCESS Magnetic top panel & tool-less latching side panels make for near effortless maintenance. FRONT-PANEL TYPE-C USB (Universal Serial Bus) 3.1 Gen 2 Type-C with support for superfast charging. LARGE GPU SUPPORT Allows dual-slot graphics cards up to 295mm in length.



...
