Star Tech.com 4K HDMI over IP Receiver for ST12MHDLAN4K Use this 4K receiver with your HDMI extender over IP kit (ST12MHDLAN4K) to scale the extender to additional displays for your video wall or other digital signage applications Key features Versatile video distribution with support for large multi-display presentations, video walls, video switching & point-to-point extension Astonishing picture quality over IP with support for 4K at 30 Hz resolution Free mobile app makes it easy to manage switching video wall control (i OS / Android / Chrome browser) ...

Star Tech.com 4K HDMI Splitter
- HDMI Splitter 1 In 2 Out Connect your HDMI audio/video source to two displays simultaneously,
...

Star Tech.com 4K HDMI Splitter HDMI Splitter 1 In 4 Out 4-Port Connect your HDMI audio/video source to four displays simultaneously, using this HDMI splitter box that supports 4K at 60 Hz resolution Key features Astonishing picture quality with support for 4K 60 Hz & HDR Support for 7.1 surround sound audio Supports 4:4:4 chroma subsampling even at 4K 60 Hz with bandwidth up to 18 Gbps ...

<iframe width="550" height="300" src="https://www.youtube.com/embed/v Rb Aqjy JTVw" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> Laptop Docking Station Mac & Windows 60W Power Delivery 4K 60 DP + HDMI This TAA compliant triple 4K USB (Universal Serial Bus) C Dock for Mac & Windows connects your USB (Universal Serial Bus)-C laptop to triple 4K monitors: 2x Display Port (Display Link) 1x HDMI (DP Alt Mode) Triple 4K monitor USB (Universal Serial Bus) Type C dock for Dell XPS & other USBC laptops Connect USB (Universal Serial Bus) devices with 5 x USB (Universal Serial Bus) 3.0 ports (1x C/4x A) Reliable Gb E port Triple monitor docking station w/ 60W Power Delivery Also connects to USB (Universal Serial Bus) 3.0 laptops with a USB (Universal Serial Bus)-A port using a USB (Universal Serial Bus)-C to A cable (sold separately) ...

Control 4 systems using a single peripheral set, with dual DVI console connections & multiple picture-in-picture display modes. The SV431DVIUAQV 4-Port DVI KVM Switch with Quad-View Display lets you control 4 systems using a single peripheral set, with dual DVI console connections & multiple picture-in-picture display modes. The DVI USB (Universal Serial Bus) KVM features an integrated 2-port USB (Universal Serial Bus) 2.0 hub for connecting additional peripherals to share, plus Star Tech.com has included the necessary DVI, USB (Universal Serial Bus) & audio cables for a ready-to-use solution. The Quad-View function integrates a quad screen splitter into the KVM switch to offer several picture-in picture display modes so you can monitor some or all of the connected PCs on the primary console display while interacting with the active PC on the secondary display. ...

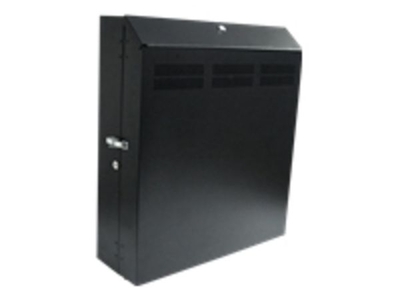

Wall-mount your server or networking equipment horizontally or vertically Versatile & secure installation options for side-mounting standard rack mount equipment, or vertically mounting any equipment Rack depth allows installation of equipment that would typically be impossible to mount in a small form factor rack, such as deep servers & high power PCs Lockable top cover & body restricts unauthorized users from tampering with equipment; the multiple locks even allow for varied security levels on the single rack The RK419WALVSGB 4U 19-inch Secure Horizontal Wall-Mountable Server Rack is a lockable, solid steel storage rack that provides a robust solution for wall mounting telecom, network or server equipment, &

Includes:: two 120mm fans, for enhanced airflow. This 4U rack can be mounted to a wall in a server room, office, or above a doorway in rooms lacking the space for a full-size rack, to expand your workspace & keep your equipment protected from unauthorized access. The bracket mounting holes (used to mount to a wall or desk) are positioned at 16-inches apart, matching standard stud measurements for easy installation. Constructed to EIA-RS310 standards, the wallmount server rack allows equipment to be mounted horizontally, & offers a hinged lockable front cover as well as a lockable body. Alternatively, non-rackmount equipment can be mounted vertically with the included bottom cover, using the rack as a wall case. Backed by a Star Tech.com Lifetime warranty. What’s in the box RK419WALVS 4U Wallmount rack Set of Keys UK to EU plug converter 10-32 Panel Screws

...

The RK419WALVO 4U 19-inch Steel Side Mount Rack is a Wall Mountable 4U solid steel rack, providing a robust solution for mounting your telecom, network or server equipment. This server rack can be mounted in a server room, office, or above a doorway in rooms lacking the floor space for a full-size rack, expanding your workspace & keeping your equipment easily accessible. The rack is constructed to EIA-RS310 standards & allows equipment to be mounted horizontally, leaving the front & back open for easy access to LEDs, configuration buttons & cabling. Alternatively, with the included bottom cover plate, your equipment can be mounted vertically; non-rackmount equipment can be installed using the rack as a wall case. The bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16-inches apart, matching standard construction stud measurements for easy installation. ...

Star Tech.com 4x SATA Power Splitter Adapter Cable Add three extra SATA power outlets to your Power Supply 1x SATA Power Plug to 4x SATA Power Receptacle Durable construction The PYO4SATA SATA power splitter cable (1-to-4) features a SATA male power connector that connects to a single computer power supply SATA connector, & breaks out into four SATA female power connectors. The SATA power splitter cable overcomes the limit of the number of SATA drives that can be installed in the system, based on available PSU power connections, & eliminates the cost of having to upgrade the power supply to accommodate additional SATA drives. The Star Tech.com Advantage Offers maximum system expandability without having to upgrade a computer power supply for the sake of SATA (power) connections Easy to use & install Applications Power up to 4 SATA drives from a single Serial ATA power supply connection Specifications Warranty Information Warranty Lifetime Connector (s) Connector A 1
- SATA Power (15 pin) Plug Connector B 4
- SATA Power (15 pin) Receptacle Physical Characteristics Cable Length 400 mm [15.7 in] Color Black Product Height 16.5 mm [0.6 in] Product Length 400 mm [15.7 in] Product Weight 34 g [1.2 oz] Product Width 29 mm [1.1 in] Wire Gauge 18 AWG Packaging Information Package Quantity 1 Shipping (Package) Weight 0kg [0.1 lb] What's in the Box Included in Package 1
- 4 SATA Power Splitter Cable Adapter
- M/F



...

Startech.com 4x 4 HDMI Matrix Switch with Picture-&-Picture Multiviewer or Video Wall Share & switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-&-Picture Increase your communication power by linking four HDMI audio/video sources with four HDMI displays Get the whole picture by outputting multiple inputs on the same display or mix-&-match inputs across mutiple displays Save cost & screen real estate by combining multiple inputs per individual display with Full Matrix Picture-&-Picture support Mounting hardware included Support for video resolutions up to 1920x 1200 / 1080p Full matrix configuration supporting three different picture-&-picture modes per display: Matrix Mode (1x 1) / Dual Mode (2x 1) / TV Wall Mode (4x 1) Remote control using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included) Choose which audio source is outputted with your combined video sources The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-&-Picture (PAP) gives you the power to seamlessly combine & distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display. See the Whole Picture The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-&-picture modes per display: Matrix Mode (1x 1) / Dual Mode (2x 1) / Quad Mode (4x 1) / TV Wall Mode (1x 4). Control Your Output Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-&-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using RS232 serial, your local TCP/IP network, or the included IR remote control. Increase the Versatility of Your Displays The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-&-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate & saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently & broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy & professional installation. The VS424HDPIP is backed by a Star Tech.com 2-year warranty & free lifetime technical support. The Star Tech.com Advantage See the whole picture by adding multiple HDMI sources to the same display with picture-&-picture Control your output & make your digital signage operation easier with remote control operation using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control) Increase the versatility of your display & save money, with the picture-&-picture technology reducing the number of displays required with up to four video sources on the same display Applications Add multi-screen configurations to your boardroom, for enhanced collaboration & idea sharing Use in your digital signage applications to provide multiple video sources on the same screen, & distribute to four different locations Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks & video broadcasting facilities Monitor multiple security sources (cameras) simultaneously Specifications Warranty Information Warranty 2 Years Hardware Audio Yes Cabling HDMI Output Signal HDMI Ports 4 Performance Audio Specifications 7.1 Surround Sound Maximum Digital Resolutions 1920x 1200 Supported Resolutions 1920x 1200 1920x 1080 1280x 720 640x 480 Wide Screen Supported Yes Connector (s) Connector A 4
- HDMI (19 pin) Female Connector B 4
- HDMI (19 pin) Female Connector Type (s) 1
- DB-9 (9 pin, D-Sub) Male 1
- RJ-45 Female 1
- Ir DA (Infrared, SIR/FIR) Indicators LED Indicators 1
- Power LED 1
- Menu LED (OSD) 2
- Menu Operation LED (+ / -) 4
- Output Selection LED (A / B / C / D) 4
- Input Selection LED (1 / 2 / 3 / 4) 1
- Mode Selection LED (Matrix / Dual / Wall) 1
- Save LED 1
- Lock LED Power Input Current 1 A Input Voltage 100 ~ 240 AC Output Current 3 A Output Voltage 12 DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Environmental Humidity 20%
- 90 % RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Physical Characteristics Color Black Enclosure Type Aluminum Product Height 49 mm [1.9 in] Product Length 436 mm [17.2 in] Product Weight 2807 g [99.1 oz] Product Width 250 mm [9.8 in]













...

The STHDBTRX works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat 5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display. Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense & hassle of running multiple devices with an HDMI matrix switch & extender in one clutter-free system. Because the signal is extended using standard Cat 5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors. For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender & receiver cables. Warranty Information Warranty 2 Years Hardware Ports 1 Cabling Cat 5 UTP or better Audio Yes Chipset ID Valens chipset Output Signal HDMI Connector (s) Connector A 1
- RJ-45 Female Connector B 1
- HDMI (19 pin) Female 1
- Ir DA (Infrared; SIR/FIR) Female Performance Audio Specifications 7.1 Surround Sound Max Distance 70 m / 230 ft Maximum Digital Resolutions 1920x 1200/1080p Physical Characteristics Color Black Enclosure Type Aluminum Product Length 110 mm [4.3 in] Product Width 75 mm [3 in] Product Height 22 mm [0.9 in] Product Weight 215 g [7.6 oz] Indicators LED Indicators 1
- Power 1
- Link 1
- Mode 1
- Link 1
- HDCP Power Input Voltage 100 ~ 240 AC Input Current 0.5 A Output Voltage 5 DC Output Current 2 A Environmental Operating Temperature -5 to 35°C (-41 to 95 °F) Storage Temperature -5 to 35°C (-41 to +95 °F) Humidity 5 to 90 % RH Packaging Information Shipping (Package) Weight 558 g [19.7 oz] What's in the Box Included in Package 1
- HDMI Receiver unit 1
- Mounting brackets 1
- IR kit (transmitter/receiver) 1
- Universal Power Adapter (NA/UK/EU/AUS) 1
- Quick Install Guide












...
