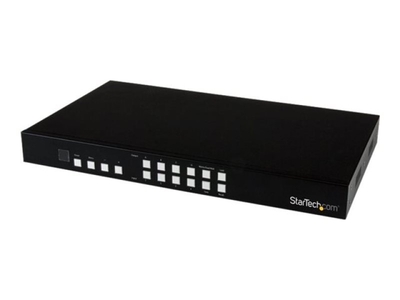

Startech.com 4x4 HDMI Matrix Switch With Picture-and-Picture
Multiviewer Or Video Wall

Startech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture Increase your communication power by linking four HDMI audio/video sources with four HDMI displays Get the whole picture by outputting multiple inputs on the same display or mix-and-match inputs across mutiple displays Save cost and screen real estate by combining multiple inputs per individual display with Full Matrix Picture-and-Picture support Mounting hardware included Support for video resolutions up to 1920x1200 / 1080p Full matrix configuration supporting three different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / TV Wall Mode (4x1) Remote control
using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included) Choose which audio source is outputted with your combined video sources The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display. See the Whole Picture The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different
picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4). Control Your Output Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using RS232 serial, your local TCP/IP network, or the included IR remote control. Increase the Versatility of Your Displays The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and
saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation. The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage See the whole picture by adding multiple HDMI sources to the same display with picture-and-picture Control your output and make your digital signage operation easier
with remote control operation using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control) Increase the versatility of your display and save money, with the picture-and-picture technology reducing the number of displays required with up to four video sources on the same display Applications Add multi-screen configurations to your boardroom, for improved collaboration and idea sharing Use in your digital signage applications to provide multiple video sources on the same screen, and distribute to four different locations Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks and video broadcasting facilities
Monitor multiple security sources (cameras) simultaneously Specifications Warranty Information Warranty 2 Years Hardware Audio Yes Cabling HDMI Output Signal HDMI Ports 4 Performance Audio Specifications 7.1 Surround Sound Maximum Digital Resolutions 1920x1200 Supported Resolutions 1920x1200 1920x1080 1280x720 640x480 Wide Screen Supported Yes Connector(s) Connector A 4 - HDMI (19 pin) Female Connector B 4 - HDMI (19 pin) Female Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male 1 - RJ-45 Female 1 - IrDA (Infrared, SIR/FIR) Indicators LED Indicators 1 - Power LED 1 - Menu LED (OSD) 2 - Menu Operation LED (+ / -) 4 - Output Selection LED (A / B / C / D) 4 - Input Selection LED (1 / 2 / 3 / 4) 1 - Mode Selection LED (Matrix / Dual / Wall) 1 - Save LED 1 - Lock LED Power Input Current 1 A Input
Voltage 100 ~ 240 AC Output Current 3 A Output Voltage 12 DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Environmental Humidity 20% - 90 % RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Physical Characteristics Color Black Enclosure Type Aluminum Product Height 49 mm [1.9 in] Product Length 436 mm [17.2 in] Product Weight 2807 g [99.1 oz] Product Width 250 mm [9.8 in]
