Specifications Graphics Engine
- AMD Radeon HD 6670 Video Memory
- GDDR5 1GB Engine Clock
- 810 MHz Memory Clock
- 4 GHz



...

Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35°C cooler operation Dust-proof fan design dissipates heat efficiently & extends card lifespan by 25% longer Specifications Graphics Engine
- AMD Radeon HD 6670 Bus Standard
- PCI Express 2.1 Video Memory
- DDR3 2GB Engine Clock
- 800 MHz Memory Clock
- 1800 MHz (DDR3 ) Memory Interface
- 128-bit Resolution
- DVI Max Resolution 2560x 1600 Interface
- D-Sub x 1, DVI x 1 (DVI-D), HDMI x 1 Power Consumption Up to 75W no additional PCIe power required ASUS Features Fan Sink Super Alloy Power

Dimensions 6.6 " x 4.6 " Inch









...

Direct CU copper heat pipes directly contact with the GPU for rapid heat dissipation for 20%* cooler operation compared to reference Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation Graphics Engine AMD Radeon HD 6770 Bus Standard PCI Express 2.1 Video Memory GDDR5 1GB Engine Clock 850 MHz Memory Clock 4000 MHz (1000 MHz GDDR5 ) RAMDAC 400 MHz Memory Interface 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1, Yes x 1 (via HDMI to DVI adaptor x 1) HDMI Output: Yes x 1 HDCP Support: Yes Accessories 1 x HDMI to DVI adaptor 1 x Power cable Software ASUS Utilities & Driver Dirt 3 coupon x 1 ASUS Features Direct CU Series Super Alloy Power

Dimensions 9.64 " x 5.71 " x 1.57 " Inch

...

Factory Overclocked at 790 M Hz for 10 M Hz higher than clock performance Boost up to 50%* higher with ASUS exclusive Voltage Tweak Exclusive Direct CU thermal solution reaches 20% cooler Immersive multi-display gaming experience with advanced Eyefinity technology Direct CU Precision mounted Direct CU copper heatpipes in direct contact with the GPU for rapid heat dissipation – creating 20%* cooler & quiet performance in idle. Voltage Tweak Full throttle overclocking with exclusive ASUS Voltage Tweak via Smart Doctor – boosting 50%* more speed, performance & satisfaction!

Specification Graphics Engine AMD Radeon HD 6850 Bus Standard PCI Express 2.1 Video Memory GDDR5 1GB Effective Memory Bandwidth 256-bit Engine Clock 790 MHz Memory Clock 4000 MHz (1000 MHz GDDR5 ) RAMDAC 400 MHz Memory Interface 256-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories 1 x Cross Fire cable 2 x Power cable 1 x DVI to D-Sub adaptor ASUS Features Direct CU Series Dimensions 10.24 " x 4.84 " Inch

...

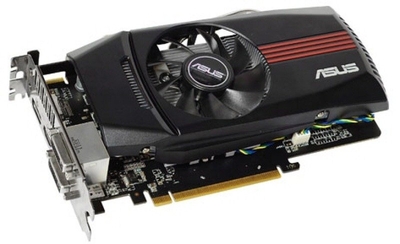

Asus HD 7750 1GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. AMD Eyefinity technology extends your viewing landscape across multiple monitors. New PCIe 3.0 delivers double the bandwidth per lane of PCIe 2.0 for faster GPU–CPU communication. Specifications: Graphics Engine
- AMD Radeon HD 7750 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 820 MHz Memory Clock
- 4600 MHz (1150 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 128-bit Resolution
- D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface
- D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories
- 1 x DVI to D-Sub adaptor Power Consumption
- up to 75 Wno additional PCIe power required Software
- ASUS Utilities & Driver ASUS Features
- Fan Sink

Dimensions
- 7.8 " x 5 " x 1.7 " Inch















...

Combining 28nm AMD GPU technology with Direct CU cooling & overclocking Direct CU utilizes direct-contact GPU heatpipes for 20% cooler & significantly quieter performance than reference. GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. AMD Eyefinity™ technology extends your viewing landscape across multiple monitors. New PCIe 3.0 delivers double the bandwidth per lane of PCIe 2.0 for faster GPU–CPU communication.

Specification
- Graphics Engine
- AMD Radeon HD 7770 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 1120 MHz Memory Clock
- 4600 MHz (1150 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 2 HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption
- up to 150W1 additional 6 pin PCIe power consumption required ASUS Features Direct CU Series TOP Series Super Alloy Power 9.3 " x 5.5 " x 1.7 " Inch










...

Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust & particle resistance. GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% & enhance power efficiency by 15%, widen the voltage modulation range, & improve overall stability & longevity by 2.5 times longer than reference Specifications Graphics Engine
- AMD Radeon HD 7770 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 1000 MHz Memory Clock
- 4500 MHz (1125 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption
- up to 150W1 additional 6 pin PCIe power required

Dimensions
- 7.5 " x 5.3 " x 1.5 " Inch










...

For a limited time on selected cards only whilst stocks last with purchases from 9th April 2013 receive a free download coupon for Bioshock Infinite. Coupon will be added to the basket on checkout. This offer is only valid whilst stocks last. An upper mid-range graphics card, the ASUS HD 7790 Direct CU II delivers good gaming & multimedia performance AMD Radeon HD 7790 GPU & 1GB GDDR5 video memory. Thanks to its proprietary thermal design, the HD 7790 Direct CU II offers considerable overclocking overhead that can be exploited with the exclusive ASUS GPU Tweak utility. GPU Tweak makes it easy to increase core & memory speeds, change voltages, regulate fan speeds, & create individual profiles for different games. ASUS goes beyond reference requirements by implementing the innovative Direct CU II thermal design. It consists of dual 80mm fans specially-picked for quiet operation, copper heatpipes that contact the GPU directly, & an aluminum shroud for better heat dissipation. The HD 7790 Direct CU II runs at 20% (7°C) lower operating temperatures than a reference card, & is also significantly quieter than reference while offering better stability & product longevity. ...

The ASUS HD 7790 Direct CU II graphics card improves performance through the use of a 1075 M Hz GPU & proprietary Direct CU II thermal innovation. It runs 20% cooler & significantly quieter than reference HD 7790 designs, allowing for better overclocking. The higher performance ceiling can be tapped by exclusive GPU Tweak, a user-friendly graphics card tuning utility. The HD 7790 Direct CU II offers great value Direct X 11.1 gaming & multimedia performance with power-efficient 28nm GPU technology. It supports the newest PC games in mid to high settings in 1080p, & can easily handle high definition multimedia content acceleration. Graphics Engine
- AMD Radeon HD 7790 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 1075 MHz Memory Clock
- 6400 MHz (1600 MHz GDDR5 ) Memory Interface
- 128-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption up to 150W 1 additional 6 pin PCIe power required

Dimensions 8.5 " x 5.1 " x 1.5 " Inch 21.59 x 12.95 x 3.81 Centimeter








...

Direct CU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler & vastly quieter performance than reference. Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% & enhance power efficiency by 15%, widen the voltage modulation range, & improve overall stability & longevity by 2.5 times longer than reference. GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface Specifications Graphics Engine
- AMD Radeon HD 7850 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 860 MHz Memory Clock
- 4800 MHz (1200 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 256-bit Resolution
- D-Sub Max Resolution: 2048x 1536, DVI Max Resolution: 2560x 1600 Interface
- D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output
- Yes x 2 HDMI Output
- Yes x 1 Display Port
- Yes x 1 (Regular DP) HDCP Support
- Yes Power Consumption
- up to 150W additional 6 pin PCIe power required ASUS Features
- Direct CU Series

Dimensions
- 9.8 " x 4.4 " x 1.5 " Inch

















...
