Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Based on ASUS Direct CU architecture, which uses copper heat pipes in direct contact with the GPU to speed up heat dissipation for over 20% cooler performance, Direct CU II takes cooling further with twin 100 mm fans for 600% airflow. Specifications Graphics Engine
- NVIDIA Ge Force GTX 580 Bus Standard - PCI Express 2.0 Video Memory
- GDDR5 1536MB Engine Clock
- 782 MHz Memory Clock
- 4008 MHz (1002 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 384-bit DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 (DVI-I) HDMI Output
- Yes x 1 Display Port
- Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x DVI to D-Sub adaptor 1 x Extended SLI cable ASUS Features Direct CU Series Super Alloy Power

Dimensions
- 11.5 " x 5 " Inch Note
- To have the best cooling performance ASUS ENGTX580 DCII/2DIS/1536MD5 extends the Fansink to 2.5 slot, please check your motherboard slot space before SLI Dual 8pin Power Connector is required for the best performance













...

TOP-selected 1137 M Hz cores run 79 M Hz higher than reference for smoother gameplay. ASUS Direct CU cards operate 20% cooler & much quieter than reference in every model. DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface.

Specification
- Graphics Engine
- NVIDIA Ge Force GTX 650 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 1137 MHz CUDA Core
- 384 Memory Clock
- 5000 MHz (1250 MHz GDDR5 ) Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 2 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes ASUS Features Direct CU Series OC Series Super Alloy Power Power Consumption
- up to 150W1 additional 6 pin PCIe power required

Dimensions
- 9.65 " x 4.72 " x 1.56 " Inch













...

ASUS Ge Force GTX 650: no power plugs, just graphics power! Premium alloys in power delivery components defeat heat for cards that run 15% faster & last 2.5 times longer than reference Resist dust & particles for 25% longer graphics card longevity GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface Power-plug free cards get you instant graphics upgrades with just motherboard power Specifications Graphics Engine
- NVIDIA Ge Force GTX 650 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock
- 1071 MHz CUDA Core
- 384 Memory Clock
- 5000 MHz (1250 MHz GDDR5 ) Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption up to 75 Wno additional PCIe power required

Dimensions 7.79 " x 4.54 " x 1.54 " Inch 19.78 x 11.53 x 3.91 Centimeter








...

With selected cards purchased from 18th march 2014 whilst stock last receive a FREE game download coupon for Free 2 Play your new Geforce GTX graphics card just earned you £90 in game for Warface, Path of Exile, & Heroes of Newerth (£30 for each game). Offer on selected cards only, not available on ex-display cards. Graphics Engine
- NVIDIA Ge Force GTX 650 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 1058 MHz CUDA Core
- 384 Memory Clock
- 5000 MHz (1250 MHz GDDR5 ) Memory Interface
- 128-bit D-Sub Max Resolution
- 2048x 1536 DVI Max Resolution
- 2560x 1600 D-Sub Output
- Yes x 1 DVI Output
- Yes x 2 (DVI-D) HDMI Output
- Yes x 1 HDCP Support
- Yes Power Consumption
- up to 150W 1 additional 6 pin PCIe power required ASUS Features
- Direct CU Series, Super Alloy Power

Dimensions
- 9.65 " x 4.72 " Inch Note Specifications are subject to change without notice. PCB color & bundled software versions are change without notice.

















...

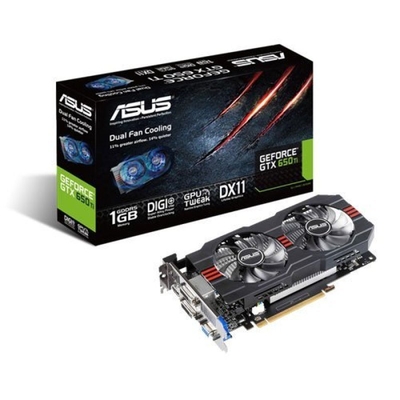

TOP-selected 954 M Hz cores run 26 M Hz higher than reference for smoother gameplay. Direct CU II achieves 20% lower temps with direct-contact copper heatpipes, plus 3X quieter & 6X more powerful twin fan operation. DIGI+ VRM with Super Alloy Power delivers precise digital power for superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. NVIDIA 3D Surround™ technology to expand displays on up to four monitors at once Specifications
- Graphics Engine
- NVIDIA Ge Force GTX 650 Ti Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 954 MHz CUDA Core
- 768 Memory Clock
- 5400 MHz (1350 MHz GDDR5 ) Memory Interface
- 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 2 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes ASUS Features Direct CU Series OC Series Super Alloy Power Power Consumption
- up to 150W1 additional 6 pin PCIe power required

Dimensions
- 10.79 " x 4.72 " x 1.3 " Inch











...

OC-selected 1085 MHz core, 52 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with direct-contact copper heatpipes & much quieter than reference. Premium alloys in power delivery components defeat heat for cards that run 15% faster & last 2.5 times longer than reference. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Specifications Graphics Engine
- NVIDIA Ge Force GTX 650 Ti Boost Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock
- GPU Boost Clock: 1085 MHz / GPU Base Clock: 1020 MHz CUDA Core
- 768 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 192-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes ASUS Features Direct CU Series OC Series Super Alloy Power

Dimensions 8.46 " x 4.8 " x 1.49 " Inch 21.5 x 12.2 x 3.8 Centimeter









...

TOP-selected 1085 M Hz cores run 105 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with twice the dissipation area & 6X greater airflow than conventional design. DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Graphics Engine
- NVIDIA Ge Force GTX 660 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock: GPU Boost Clock: 1085 MHz GPU Base Clock: 1020 MHz CUDA Core
- 960 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 192-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface: DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption
- up to 150W1 additional 6 pin PCIe power required Software
- ASUS GPU Tweak & Driver ASUS

Features: Direct CU Series OC Series Super Alloy Power

Dimensions
- 10.2 " x 5.2 " x 1.5 " Inch













...

Asus Direct CU II thermal design utilizes all-copper heatpipes to run 20% cooler. Acclaimed DIGI+ VRM with 6-phase Super Alloy Power technology delivers precise digital power & enhanced durability for stable overclocking. Specifications Graphics Engine
- Nvidia Ge Force GTX 660 Bus Standard
- PCI-Express 3.0 Video Memory
- 2048MB GDDR5 GPU Boost Clock
- 1085 M Hz GPU Base Clock
- 1020 M Hz Cuda Cores
- 960 Memory Clock
- 6008 M Hz (1502 M Hz GDDR5) Memory Interface
- 192bit Outputs
- Dual DVI, Display Port, HDMI HDCP compliant
- Yes









...

TOP-selected 1085 M Hz cores run 105 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with twice the dissipation area & 6X greater airflow than conventional design. DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Specifications Graphics Engine
- Nvidia Ge Force GTX 660 Bus Standard
- PCI-Express 3.0 Video Memory
- 2048MB GDDR5 GPU Boost Clock
- 1085 M Hz GPU Base Clock
- 1020 M Hz Cuda Cores
- 960 Memory Clock
- 6008 M Hz (1502 M Hz GDDR5) Memory Interface
- 192bit Outputs
- Dual DVI, Display Port, HDMI HDCP compliant
- Yes Power consumption
- Up to 150W (1 x 6pin power adapter required)










...

Video Memory
- 2048MB GDDR5 GPU boost Clock
- 980 MHz GPU base Clock
- 915 MHz CUDA cores
- 1344 Memory Clock
- 6008




...
