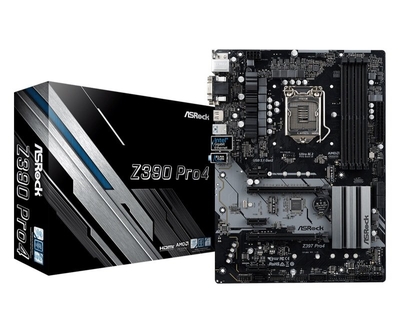

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) 10 Power Phase Design Supports DDR4 4300 M Hz+ (OC) 2 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ & Cross Fire X™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type-A+C), 6 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 2 Rear) Intel Gigabit LAN ASRock Polychrome SYNC Overview RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in LED illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. * The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/ Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs & length within 2 meters. * The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) & length within 2 meters. * The built-in LED on this motherboard can only present a single RED color. The colorful RGB illumination is only supported with external devices via RGB headers. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability & is able to deliver ultimate network experience to users! PCI-E STEEL SLOTS The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Specification Gaming Armor Memory
- 15μ Gold Contact in DIMM Slots Internet
- Intel LAN Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4300+ (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots
- 2 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4: single at x 16 (PCIE2); dual at x 16 (PCIE2) / x 4 (PCIE4))
- 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™ & Cross Fire X™
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module & Intel CNVi (Integrated Wi Fi/BT) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled. *** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 3 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)
- 1 x Performance Mode / Easy OC Header * Support in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP, CHA_FAN2/WP & CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock Phantom Gaming Tuning
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST Form Factor
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)








































































































...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 4300 M Hz+ (OC) 2 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ & Cross Fire X™ Graphics Output Options: HDMI Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 8 USB (Universal Serial Bus) 3.2 Gen 1 (4 Front, 4 Rear) Intel Gigabit LAN ASRock Polychrome SYNC Overview Armor Your VR Machine Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software & drivers. Motherboard is the key to connect every critical components & ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components & rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB This motherboard features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Supports PCIe Gen 3 x 4 & SATA3 Type 22110 M.2 The PCIe Gen 3 x 4 Ultra M.2 interface pushes data transfer speeds up to 32 Gb/s. In addition, it is also ready for higher capacity & even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. ASRock Intel 4-Layer Memory POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties & performance.
...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Phantom Gaming 2.5 Gigabit LAN, Intel Gigabit LAN Digital PWM, 12 Power Phase Supports DDR4 4300+ (OC) MHz 3 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 (Key E) For Wi Fi NVIDIA Quad SLI™, AMD 3-Way Cross Fire X™ Graphics Output Options: HDMI, D-Sub, Display Port 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Creative Sound Blaster Cinema 5 8 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (1 Type-A + 1 Type-C) 9 USB (Universal Serial Bus) 3.1 Gen 1 (1 Front Type-C, 4 Front Type-A, 4 Rear) ASRock Polychrome SYNC Overview Phantom Gaming 2.5 Gb/s LAN The intelligent Phantom Gaming 2.5 Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers & high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster & uncompromised connectivity experience for gaming, file transfers & backups. Fully Supports 9th Gen Intel Core Processors The motherboard is designed to make the best out of 9th Generation Intel Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming & reinforced system stability for taking on all sorts of arduous computing tasks. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. CREATIVE SOUND BLASTER™ CINEMA5 A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics & punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.
...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Phantom Gaming 2.5 Gigabit LAN, Intel Gigabit LAN Digital PWM, 10 Power Phase Supports DDR4 4300+ (OC) MHz 3 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 (Key E) For Wi Fi NVIDIA NVLink™ & Quad SLI™, AMD 3-Way Cross Fire X™ Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Creative Sound Blaster Cinema 5 8 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.2 Gen 2 10 Gb/s (1 Type-A + 1 Type-C) 9 USB (Universal Serial Bus) 3.2 Gen 1 (1 Front Type-C, 4 Front Type-A, 4 Rear) ASRock Polychrome SYNC Overview Phantom Gaming 2.5 Gb/s LAN The intelligent Phantom Gaming 2.5 Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers & high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster & uncompromised connectivity experience for gaming, file transfers & backups. 2.5G ETHERNET, HIGH TCP & UDP THROUGHPUT Going beyond gaming! ASRock 2.5 Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring & unleash the stunning performance especially for gaming. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB ASRock motherboards deliver stunning performance & superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis & any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space & allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current & driving up to 50A continuous current for each phase, thus providing enhanced thermal result & superior performance.
...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 4500 M Hz+ (OC) 1 PCIe 3.0 x 16 Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 1 Intel Thunderbolt™ 3 Type-C 4 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 4 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (Rear) 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Intel Gigabit LAN Intel 2T2R Dual Band 802.11ac Wi Fi (2.4/5 G Hz), supports up to 1.73 Gbps wireless network & BT v 5.0 ASRock Polychrome SYNC Overview RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. * The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/ Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs & length within 2 meters. * The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) & length within 2 meters. Intel Thunderbolt™ 3 Type-C Experience the worlds fastest connectivity with ASRocks Intel Thunderbolt™ ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt™ devices with a single wire. The highly desirable reversible USB (Universal Serial Bus) Type-C interface delivers breathtaking bandwidth & also supports USB (Universal Serial Bus) PD 2.0 charging up to 12V@3A (36W). Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best. CREATIVE SOUND BLASTER™ CINEMA5 A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics & punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

Specification Gaming Armor Power
- Hi-Density Power Connector Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet
- Intel LAN Cooling
- 8 Layer PCB
- 4 x 2oz copper
- Heat Pipe Design Audio
- Creative Sound Blaster™ Cinema 5 Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s) ASRock Super Alloy
- Premium 60A Power Choke
- 60A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB Intel 802.11ac Wi Fi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- Digi Power design
- 7 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 4500+ (OC) / 4333 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, VTT DDR, PCH +1.0, VCCIO, VCCPLL_V5, VCCST_SFR, VCCSA, VCCPLL, VCCPLL_V4, V_PEGRCOMP Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: HDMI, Display Port 1.2 & Intel Thunderbolt™ 3
- Supports Triple Monitor
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz
- Supports Intel Thunderbolt™ 3 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP with HDMI 2.0, Display Port 1.2 & Intel Thunderbolt™ 3
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0, Display Port 1.2 & Intel Thunderbolt™ 3 * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 5 LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Wireless LAN
- Intel 802.11ac Wi Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 1733 Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO Slots
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module & Intel CNVi (Integrated Wi Fi/BT) (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports PCIe riser cards to extend one x 16 slot to two x 8 slots Supports NVMe SSD as boot disks Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Connector
- 1 x Chassis Intrusion Header
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x Chassis Fan Connector (4-pin)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x USB (Universal Serial Bus) 2.0 Header (Supports 2 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * Supports in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. ***** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x HDMI Port
- 1 x Display Port 1.2
- 1 x Intel Thunderbolt™ 3 (Compatible with USB (Universal Serial Bus) 3.1 Gen 2 & USB (Universal Serial Bus)-C Display)*
- 1 x Optical SPDIF Out Port
- 4 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Supports USB (Universal Serial Bus) PD 2.0 up to 12V@3A (36W) charging Software & UEFI Software
- ASRock Phantom Gaming Tuning
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x ASRock Wi Fi 2.4/5 GHz Antenna
- 2 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
- 4 x 2oz copper OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)
































































































































...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 4266 M Hz+ (OC) 2 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ & Cross Fire X™ Graphics Output: Display Port, HDMI 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nichicon Fine Gold Series Audio Caps 6 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.2 Gen 2 (Rear Type A+C) 6 USB (Universal Serial Bus) 3.2 Gen 1 (4 Front, 2 Rear) Intel Gigabit LAN Polychrome RGB SYNC Overview Steel Legend represents the philosophical state of rock-solid durability & irresistible aesthetics. Built around most demanding specs & features, the Steel Legend series aims at daily users & mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable & reliable performance. A motherboard that fulfills every task – with style! Dual USB (Universal Serial Bus) 3.2 Gen 2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.2 Gen 2 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.2 Gen 2 devices & to deliver up to 10 Gbps data transfer rates 2 FULL COVERAGE M.2 ARMOR Dual massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. PREMIUM 60A POWER CHOKE ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced & enhanced Vcore voltage to the motherboard. PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely. ...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) IR Digital PWM, 12 Power Phase design Supports DDR4 4200+ (OC) 3 PCIe 3.0 x 16, 2 PCIe 3.0 x 1 NVIDIA Quad SLI™, AMD 3-Way Cross Fire X™ Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Purity Sound™ 4 & DTS Connect 8 SATA3, 3 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 5 USB (Universal Serial Bus) 3.1 Gen 2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A) 8 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 4 Rear) Dual Intel Gigabit LAN Intel 802.11ac Wi Fi + BT 4.2 ASRock Polychrome SYNC Hyper BCLK Engine II Overview AQUANTIA 10 Gb/s BASE-T Ethernet The new 10 Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIAs AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat 6 cable. The 10 Gb/s Ethernet not only fully compatible with 5 Gb/s, 2.5 Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation & gaming PC. Fully Supports 9th Gen Intel Core Processors The motherboard is designed to make the best out of 9th Generation Intel Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming & reinforced system stability for taking on all sorts of arduous computing tasks. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. 2T2R 802.11ac Wi Fi Dual Band (2.4/5 GHz) No one has time for weak Wi Fi signals & sluggish internet! Thats why this motherboard comes with an exclusive 2T2R 802.11ac Wi Fi 2.4/5 Ghz (160 Mhz) module that supports up to 1.73 Gbps wireless networks & Bluetooth v 5.0. Experience up to 289% speed boost compared to your old Wi Fi! * The doubled bandwidth 160 M Hz with the max. speed up to 1.73 Gbps is only supported with 802.11ac Wave 2 router. Dual Intel LAN Users are able to connect two LAN cables to this motherboards rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective. * Teaming is supported on Windows 10 RS2 & above.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock Front Panel Type C USB (Universal Serial Bus) 3.1 Gen 2 Header (10 Gb/s)
- ASRock Rear USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s)
- ASRock Rear USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB Intel 802.11ac Wi Fi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- IR Digital PWM
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4200+ (OC)/ 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/ Cache, GT Core/ Cache, DRAM, VTT DDR, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Dual graphics output: Support HDMI & Display Port 1.2 ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI & Display Port 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI & Display Port 1.2 Ports * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE * Teaming is supported on Windows 10 RS2 & above. Wireless LAN
- Intel 802.11ac Wi Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433 Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II Slots
- 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE5: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 4 (PCIE4) / x 4 (PCIE5))*
- 2 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™
- Supports NVIDIA Quad SLI™ & SLI™
- Supports NVIDIA NVLink™ with dual NVIDIA Ge Force RTX series graphics cards**
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks **NVIDIA NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA if necessary. Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_2 & M2_3), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** *M2_1, SATA3_0 & SATA3_1 share lanes. If either one of them is in use, the others will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. M2_3, SATA3_4 & SATA3_5 share lanes. If either one of them is in use, the others will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Intel Z390) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB (Universal Serial Bus) 3.1 Gen 2 Header (ASMedia ASM1562 Retimer)
- 1 x Performance Mode / Easy OC Header
- 1 x Dr. Debug with LED * Support in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x HDMI Port
- 1 x Display Port 1.2
- 1 x Optical SPDIF Out Port
- 3 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s) (Re Driver) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Re Driver) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Intel Z390) (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Software & UEFI Software
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 2 x ASRock Wi Fi 2.4/5 GHz Antennas
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI, CPU Cold Bug Killer Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)






































































































































...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) AQUANTIA 10 Gigabit LAN, Dual Intel Gigabit LAN IR Digital PWM, 12 Power Phase design Supports DDR4 4200+ (OC) 3 PCIe 3.0 x 16, 2 PCIe 3.0 x 1 NVIDIA Quad SLI™, AMD 3-Way Cross Fire X™ Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Purity Sound™ 4 & DTS Connect 8 SATA3, 3 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 5 USB (Universal Serial Bus) 3.1 Gen 2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A) 8 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 4 Rear) Intel 2T2R Dual Band 802.11ac Wi Fi (2.4/5 G Hz), supports up to 1.73 Gbps wireless network & BT v 5.0 ASRock Polychrome SYNC Hyper BCLK Engine II Overview AQUANTIA 10 Gb/s BASE-T Ethernet The new 10 Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIAs AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat 6 cable. The 10 Gb/s Ethernet not only fully compatible with 5 Gb/s, 2.5 Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation & gaming PC. Fully Supports 9th Gen Intel Core Processors The motherboard is designed to make the best out of 9th Generation Intel Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming & reinforced system stability for taking on all sorts of arduous computing tasks. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. 2T2R 802.11ac Wi Fi Dual Band (2.4/5 GHz) No one has time for weak Wi Fi signals & sluggish internet! Thats why this motherboard comes with an exclusive 2T2R 802.11ac Wi Fi 2.4/5 Ghz (160 Mhz) module that supports up to 1.73 Gbps wireless networks & Bluetooth v 5.0. Experience up to 289% speed boost compared to your old Wi Fi! * The doubled bandwidth 160 M Hz with the max. speed up to 1.73 Gbps is only supported with 802.11ac Wave 2 router. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock Front Panel Type C USB (Universal Serial Bus) 3.1 Gen 2 Header (10 Gb/s)
- ASRock Rear USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s)
- ASRock Rear USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB AQUANTIA 10G LAN Intel 802.11ac Wi Fi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- IR Digital PWM
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4200+ (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/ Cache, GT Core/ Cache, DRAM, VTT DDR, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Dual graphics output: Support HDMI & Display Port 1.2 ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI & Display Port 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI & Display Port 1.2 Ports * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect LAN 1 x 10 Gigabit LAN 10/100/1000/2500/5000/10000 Mb/s (AQUANTIA AQC107):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports PXE 2 x Gigabit LAN 10/100/1000 Mb/s (1 x Intel I219V, 1 x Intel I211AT):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE * Teaming is supported on Windows 10 RS2 & above. Wireless LAN
- Intel 802.11ac Wi Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 1733 Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO Slots
- 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE5: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 4 (PCIE4) / x 4 (PCIE5))*
- 2 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™
- Supports NVIDIA Quad SLI™ & SLI™
- Supports NVIDIA NVLink™ with dual NVIDIA Ge Force RTX series graphics cards**
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks **NVIDIA NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA if necessary. Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_2 & M2_3), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** *M2_1, SATA3_0 & SATA3_1 share lanes. If either one of them is in use, the others will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. M2_3, SATA3_4 & SATA3_5 share lanes. If either one of them is in use, the others will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Intel Z390) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB (Universal Serial Bus) 3.1 Gen 2 Header (ASMedia ASM1562 Retimer)
- 1 x Performance Mode / Easy OC Header
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED * Support in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x HDMI Port
- 1 x Display Port 1.2
- 1 x Optical SPDIF Out Port
- 3 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s) (Re Driver) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Re Driver) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Intel Z390) (Supports ESD Protection)
- 3 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Software & UEFI Software
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 1 x ASRock Wi Fi 2.4/5 GHz Antenna
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI, CPU Cold Bug Killer Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)











































































































































...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 4300 M Hz+ (OC) 2 PCIe 3.0 x 16, 2 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (1 Type-A + 1 Type-C) 8 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 4 Rear) Intel Gigabit LAN Overview Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability & is able to deliver ultimate network experience to users! 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium 45A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4300+ (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots
- 2 x PCI Express 3.0 x 16 Slots (PCIE1/PCIE4: single at x 16 (PCIE1); dual at x 16 (PCIE1) / x 4 (PCIE4))
- 2 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™ & Cross Fire X™
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module & Intel CNVi (Integrated Wi Fi/BT) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_2 is occupied, SATA3_4 & SATA3_5 will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion & Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)
- 1 x Performance Mode / Easy OC Header * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP & CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock A-Tuning
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)


































































































...

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 4000 M Hz+ (OC) 1 PCIe 3.0 x 16 Graphics Output Options: 2 x HDMI, Display Port 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 6 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (5 Rear Type-A, 1 Rear Type-C) 2 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front) Dual Intel Gigabit LAN Intel 802.11ac Wi Fi + BT 4.2 Overview Dual Intel LAN Users are able to connect two LAN cables to this motherboards rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective. Dual Band 802.11ac Wi Fi No one has time for weak Wi Fi signals & sluggish internet! Thats why this motherboard comes with a 802.11ac Wi Fi (2.4G / 5G Wi Fi) module which supports wireless networks & Bluetooth v 4.2. Triple Monitor Graphics, graphics & even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors & use them simultaneously without installing another graphics card. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection

Includes:: various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium 60A Power Choke
- Dual-Stack MOSFET (DSM)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel 802.11ac Wi Fi ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 9th & 8th Gen Intel Core™ Processors (Socket 1151)
- Digi Power design
- 6 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z390 Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 4000+ (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: Display Port 1.2 & 2 x HDMI ports
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI & Display Port 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI & Display Port 1.2 Ports * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE * Teaming is supported on Windows 10 RS2 & above. Wireless LAN
- Intel 802.11ac Wi Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433 Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II Slots
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Fan Connector (4-pin)**
- 1 x Chassis/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB (Universal Serial Bus) 2.0 Header (Supports 2 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. *** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 2 x HDMI Ports
- 1 x Display Port 1.2
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 5 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock A-Tuning
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock Wi Fi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/ Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)




































































































...
