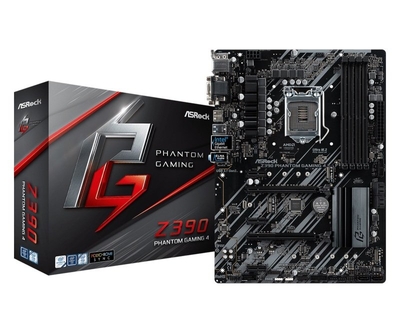

ASRock Z390 Phantom Gaming 4 1151 DDR4 ATX Motherboard
Features Supports 9th and 8th Gen Intel Core™ processors (Socket 1151) 10 Power Phase Design Supports DDR4 4300MHz+ (OC) 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi AMD Quad CrossFireX™ and CrossFireX™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear) Intel Gigabit LAN ASRock Polychrome SYNC Overview RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB In addition to the built-in LED illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also
synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. *The built-in LED on this motherboard can only present a single RED color. The colorful RGB illumination is only supported with external devices via RGB headers. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s
U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! PCI-E STEEL SLOTS The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Specification Gaming Armor Memory - 15μ Gold Contact in DIMM Slots Internet - Intel LAN Unique Feature ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer
Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - Digi Power design - 10 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking Chipset - Intel Z390 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory:
64GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment Graphics - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)* - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Slots - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)) - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s
Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled. ***Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector - 1 x COM Port Header - 1 x TPM
Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header *Support in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A
(24W) fan power. CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Phantom Gaming Tuning - ASRock Polychrome RGB - ASRock Key Master - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock
Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST Form Factor - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. *The built-in LED on this motherboard can only present a single RED color. The colorful RGB illumination is only supported with external devices via RGB headers. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s
U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! PCI-E STEEL SLOTS The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Specification Gaming Armor Memory - 15μ Gold Contact in DIMM Slots Internet - Intel LAN Unique Feature ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer
Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - Digi Power design - 10 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking Chipset - Intel Z390 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory:
64GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment Graphics - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)* - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Slots - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)) - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s
Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled. ***Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector - 1 x COM Port Header - 1 x TPM
Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header *Support in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A
(24W) fan power. CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Phantom Gaming Tuning - ASRock Polychrome RGB - ASRock Key Master - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock
Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST Form Factor - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
