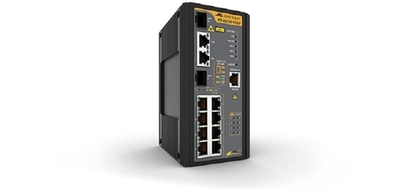

Allied Telesis IS230-10GP - 8 Ports Manageable Ethernet Switch
Allied Telesis IS230-10GP 8 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - DIN Rail Mountable, Wall Mountable The Allied Telesis IS230 Series is a multipurpose product line of managed layer 2 switches ideal for industrial applications, including manufacturing, rail transportation (telecommunication and signaling), road transportation (traffic control), and Smart Cities. With fanless operation and a wide operating temperature range of -40° to 75°C, the robust IS230 Series easily tolerates harsh and demanding environments, such as those found in industrial and outdoor deployments. An integrated voltage regulator ensures the PoE output voltage always stays at the rated value, regardless of any fluctuations in the input voltage
of powered devices. An extended input voltage range makes the IS230 Series ideal for deployment in traffic control cabinets. Network resiliency The IS230 Series supports highly stable and reliable network switching. You can customize the IS230 with X-Ring protocol to prevent network connection failure. X-Ring protocol recovers network faults within 20ms. It supports couple-ring, dual-ring and dual-homing network topologies. Dual-homing is available even if the other network is running a different ring protection protocol such as RSTP or STP. Securing the Network Edge Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be
segregated into a pre-determined part of the network. This offers network guests Internet access, while ensuring the integrity of private network data. Quality of Service Comprehensive wire-speed QoS provides flow-based traffic management with Port/Tag Base and Type of Service prioritization. Bandwidth control limits ingress/ egress traffic and broadcast/ multicast/flooded unicast packets. Gigabit and Fast Ethernet support The IS230 Series offers combo ports supporting both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). Support for both SFP types allows organizations to stay within budget even as they migrate to faster technologies. Configurable power budget On PoE-sourcing IS230 switches, all LAN ports source POE+ up to 30W. You can configure both the overall power
budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU). Dual power inputs The IS230 Series provides redundant power inputs for higher system reliability; the power inputs are protected against reverse polarity and over-current. The integrated voltage regulator allows a wide input voltage range and ensures the PoE output voltage always stays at the rated value, regardless the fluctuation on input voltage. ECO friendly The IS230 Series are Energy Efficient Ethernet (EEE) devices. They facilitate power saving by switching off parts of the LAN that are not transmitting or recieving data. This sophisticated feature can significantly reduce operating costs,
by reducing the power requirements of the switch and any associated cooling equipment.
of powered devices. An extended input voltage range makes the IS230 Series ideal for deployment in traffic control cabinets. Network resiliency The IS230 Series supports highly stable and reliable network switching. You can customize the IS230 with X-Ring protocol to prevent network connection failure. X-Ring protocol recovers network faults within 20ms. It supports couple-ring, dual-ring and dual-homing network topologies. Dual-homing is available even if the other network is running a different ring protection protocol such as RSTP or STP. Securing the Network Edge Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be
segregated into a pre-determined part of the network. This offers network guests Internet access, while ensuring the integrity of private network data. Quality of Service Comprehensive wire-speed QoS provides flow-based traffic management with Port/Tag Base and Type of Service prioritization. Bandwidth control limits ingress/ egress traffic and broadcast/ multicast/flooded unicast packets. Gigabit and Fast Ethernet support The IS230 Series offers combo ports supporting both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). Support for both SFP types allows organizations to stay within budget even as they migrate to faster technologies. Configurable power budget On PoE-sourcing IS230 switches, all LAN ports source POE+ up to 30W. You can configure both the overall power
budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU). Dual power inputs The IS230 Series provides redundant power inputs for higher system reliability; the power inputs are protected against reverse polarity and over-current. The integrated voltage regulator allows a wide input voltage range and ensures the PoE output voltage always stays at the rated value, regardless the fluctuation on input voltage. ECO friendly The IS230 Series are Energy Efficient Ethernet (EEE) devices. They facilitate power saving by switching off parts of the LAN that are not transmitting or recieving data. This sophisticated feature can significantly reduce operating costs,
by reducing the power requirements of the switch and any associated cooling equipment.
