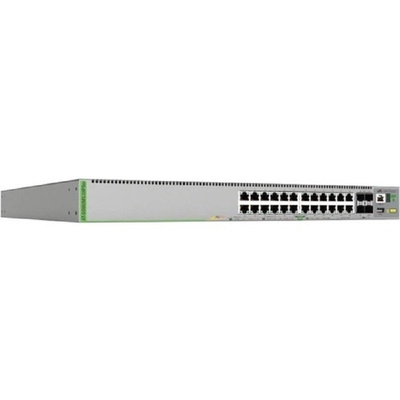

Allied Telesis CentreCOM GS980MX GS980MX/28PSM - 24 Ports Manageable
Layer 3 Switch
Allied Telesis CentreCOM GS980MX GS980MX/28PSM 24 Ports Manageable Layer 3 Switch - 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet - 5GBase-T, 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - Power Supply - 70 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable Stackable Multi-Gigabit Layer 3 Lite Switches The Allied Telesis Centre COM GS980MX Series of Layer 3 Gigabit switches feature high-capacity, resiliency and easy management. Power over Ethernet models with Multi-Gigabit support make them an ideal solution for high-speed connectivity at the network edge. Overview Allied Telesis GS980MX Series are high-performing, feature-rich, and versatile for today's networks. With Gigabit/Multi-Gigabit
ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the GS980MX Series enable flexible deployment and a resilient solution. The Power over Ethernet models offer 2.5G and 5G Multi-Gigabit ports to support connecting and powering high-speed Wi-Fi 6 wireless networks, and other high bandwidth applications. The GS980MX/10HSm can provide up to 90 Watts (PoE++) per port. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting, and more. Specifications Performance 10KB L2 and 9KB L3 jumbo frames 4094 configurable VLANs Up to 16K MAC addresses 1GB DDR3 SDRAM 256MB NAND flash memory Packet Buffer memory: 1.5MB Expandability Stack up to 4 units in a
VCStack Diagnostic tools Active Fiber Monitoring detects tampering on optical links Built-In Self test (BIST) Cable fault locator (TDR) Find-me device locator Automatic link flap detection and port shutdown Optical Digital Diagnostic Monitoring (DDM) Ping polling for IPv4 and IPv6 Port mirroring Trace Route for IPv4 and IPv6 Uni-Directional Link Detection (UDLD) IP Features Equal Cost Multi Path (ECMP) routing Static routing and RIP for IPv4 Static routing for IPv6 Device management over IPv6 networks with SNMPv6, Telnetv6, SSHv6 IPv6 hardware ACLs Log to IPv6 hosts with Syslog v6 IPv6 Ready certified Management Front panel 7-segment LED provides at-a-glance status and fault information Allied Telesis Autonomous Management Framework (AMF) enables powerful centralized management and
zero-touch device installation and recovery Manage the GS980MX Series with Vista Manager EX-our graphical single-pane-of-glass monitoring and management tool for AMF networks, which also supports wireless and third party devices AMF Security (AMF-Sec) enables a self-defending network-managing the GS980MX Series (or other AMF switches) to automatically block the spread of malware by quarantining suspect end user devices Console management port on the front panel for ease of access
ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the GS980MX Series enable flexible deployment and a resilient solution. The Power over Ethernet models offer 2.5G and 5G Multi-Gigabit ports to support connecting and powering high-speed Wi-Fi 6 wireless networks, and other high bandwidth applications. The GS980MX/10HSm can provide up to 90 Watts (PoE++) per port. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting, and more. Specifications Performance 10KB L2 and 9KB L3 jumbo frames 4094 configurable VLANs Up to 16K MAC addresses 1GB DDR3 SDRAM 256MB NAND flash memory Packet Buffer memory: 1.5MB Expandability Stack up to 4 units in a
VCStack Diagnostic tools Active Fiber Monitoring detects tampering on optical links Built-In Self test (BIST) Cable fault locator (TDR) Find-me device locator Automatic link flap detection and port shutdown Optical Digital Diagnostic Monitoring (DDM) Ping polling for IPv4 and IPv6 Port mirroring Trace Route for IPv4 and IPv6 Uni-Directional Link Detection (UDLD) IP Features Equal Cost Multi Path (ECMP) routing Static routing and RIP for IPv4 Static routing for IPv6 Device management over IPv6 networks with SNMPv6, Telnetv6, SSHv6 IPv6 hardware ACLs Log to IPv6 hosts with Syslog v6 IPv6 Ready certified Management Front panel 7-segment LED provides at-a-glance status and fault information Allied Telesis Autonomous Management Framework (AMF) enables powerful centralized management and
zero-touch device installation and recovery Manage the GS980MX Series with Vista Manager EX-our graphical single-pane-of-glass monitoring and management tool for AMF networks, which also supports wireless and third party devices AMF Security (AMF-Sec) enables a self-defending network-managing the GS980MX Series (or other AMF switches) to automatically block the spread of malware by quarantining suspect end user devices Console management port on the front panel for ease of access
