Blade distinction edition / Blue Fan controller on front panel with USB (Universal Serial Bus) 3.0 por Support high-end VGA cards up to 430mm Advanced cable management Supports 2.5 SSD/HDD Colour Black Material SPCC 0.7mm with black coating interior

Dimensions 207 x 521.5 x 491.5 mm (Wx Dx H) Motherboard type Micro ATX / ATX 5.25" external bays x 3 3.5" external bays x 1 Internal bays 5 x 3.5 HDD, 3 x 2.5 SSD/HDD Cooling system front: 2 x 120mm (1 x 120 mm with LED included) or 1 x 140mm top: 1 x 170mm (included) or 2 x 120mm or 2 x 140mm rear: 1 x 120mm (included) or 1 x 80mm or 1 x 92mm buttom: 1 x 120mm or 1 x 140mm Fan controller Controls 6 fans simultaneously with 40W combined maximum wattage PCI backplate 7 USB (Universal Serial Bus) ports 2 x USB (Universal Serial Bus) 3.0, 4 x USB (Universal Serial Bus) 2.0 HD Audio HD audio in/out Product code A-ATX02BL-01 / A-ATX02RD-01

...

A-ATX-02RD-01 “ Blade distinction edition / Red Fan controller on front panel with USB (Universal Serial Bus) 3.0 port Support high-end VGA cards up to 430mm Advanced cable management Supports 2.5 SSD/HDD Colour Black Material SPCC 0.7mm with black coating interior

Dimensions 207 x 521.5 x 491.5 mm (Wx Dx H) Motherboard type Micro ATX / ATX 5.25" external bays x 3 3.5" external bays x 1 Internal bays 5 x 3.5 HDD, 3 x 2.5 SSD/HDD Cooling system front: 2 x 120mm (1 x 120 mm with LED included) or 1 x 140mm top: 1 x 170mm (included) or 2 x 120mm or 2 x 140mm rear: 1 x 120mm (included) or 1 x 80mm or 1 x 92mm buttom: 1 x 120mm or 1 x 140mm Fan controller Controls 6 fans simultaneously with 40W combined maximum wattage PCI backplate 7 USB (Universal Serial Bus) ports 2 x USB (Universal Serial Bus) 3.0, 4 x USB (Universal Serial Bus) 2.0 HD Audio HD audio in/out Product code A-ATX02BL-01 / A-ATX02RD-01

...

This cable management kit is a multi purpose tidy kit to protect cables, improve airflow & show off your PC mod with style. This kit
Includes:: cable wrap 10mm
- 1.5m, cable wrap 16mm
- 1.0m, cable ties 200mm x 10pcs, cable ties 100mm x 20 pcs, self adhesive cable claps x 10pcs.


...

Smart connection of five fans from single motherboard PWM header, enables quiet operation of performance systems, length: 45cm. • Supports 5 PWM fans from a single motherboard PWM header • Black braided cable Application 5 PWM fans from single PWM header Designed for 4pin PWM fans Cable length 45cm PSU connector 4pin Molex Fan connector 5 x 4pin PWM (one with RPM feedback for motherboard) Product code AK-CBFA03-45 ...

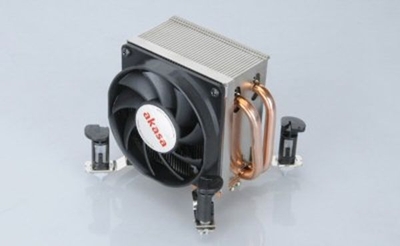

Hi-engineered aluminium heatsink with large full height copper core Multi-directional fins for maximum system cooling Embedded 8cm PWM fan with S-Flow blades & long life HDB bearing Intel approved push pins provide maximum compatibility Dual mounting for Intel LGA775 & LGA1156 platforms High performance thermal interface is pre-applied Total height of less than 30mm Ultra compact & low noise cooler for Intel Core 2 Duo, Core i 3 & Core i 5 (73W) CPUs. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC & SFF systems. Aluminium heatsink with full height copper core & quiet HDB bearing fan ensure high efficiency & long life. High engineered multi directional aluminium heatsink maximizes heat dissipation & PWM fan provides optimal CPU, motherboard & VRM cooling with minimal noise levels. Intel approved pushpins ensure easy installation, reliable retention & maximum compatibility on both LGA775 & LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPUs up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean & easy installation. Socket type Intel LGA775, LGA1156 Cooler dimension 87.2 x 85.2 x 29.5 mm Heatsink material Aluminum with copper insert Weight 205 g Installation Push pins Fan dimension ˆ…74 x 15 mm Fan speed 600
- 3000 RPM (PWM controlled) Max airflow 33.50 CFM (56.7 m 3/h) Max air pressure 3.76 mm H2O Noise level 18.9
- 31.9 d B (A) Current rating 0.19 A Voltage rating 12V DC Bearing type HDB Fan life expectancy 50, 000 hours Fan connector 4pin PWM

...

Netbooks PCs ultra compact design makes them extremely portable & practical. The portable nature of netbooks requires a cooler which matches their popular style. Akasa Centaurus is light, portable, quiet, & does a good job of cooling; it is also comfortable on your lap, enabling you to use your netbook for as long as you need without worrying about overheating. The lightweight & portable Centaurus cooler with built in 8 cm. fan powered directly from the netbook provides perfect ventilation on the go & cooling with style. ...

Material
- SPCC steel 1.0mm with black coating interior Panel material
- Aluminium Motherboards types
- Thin mini-ITX with


...

Material
- Aluminium with anodized black Panel material
- Aluminium Motherboards types
- Thin mini-ITX with DC onboard






...

Akasa Fan control 3.5" brushed aluminium panel with three channel fan controller ¢ Brushed aluminium panel ¢ Three channel fan controller ¢ 10W available for each fan control channel ¢ 3pin / 4pin PWM fan connector compatible ¢ Super Speed USB (Universal Serial Bus) 3.0 devices connection, USB (Universal Serial Bus) 3.0 port backwards compatible with USB (Universal Serial Bus) 2.0 Fan connection: 3 x 4 pin, compatible with 3pin fan Power input connector 4-pin PSU molex with pass through connector Input voltage
- DC 12V Output voltage
- DC 6-12V (±10%) Output current
- Max 0.83A (Per channel) Max data transfer rate 5 Gb/s (USB3.0) & 480 Mb/s (USB2.0) USB (Universal Serial Bus) 3.0 connector internal motherboard USB (Universal Serial Bus) 3.0 connector USB (Universal Serial Bus) 3.0 port
- 2 Dimension 101.5 x 95 x 24.4 mm Product code AK-FC-06U3BK



...

Akasa FC. Six Brushed aluminium panel gives you control of six fans The FC.SIX has a brushed aluminium panel & gives you control of six fans. Designed to accommodate six 20W fans with speed control down to Zero RPM. ¢ Brushed aluminium panel ¢ Six channel fan controller ¢ 20W available for each fan control channel ¢ Fan speed control to zero RPM ¢ 3pin / 4pin PWM fan connector compatible ¢ LED operation indicator Application Fan control for 5.25 PC bay Number of channels
- 6 fans Fan voltage control
- DC 0-12V (±10%) Max load Max 1.67A (Per channel) Knobs length
- 10.2mm Input voltage DC 5V, DC12V Dimension 148.5 x 41.5 x 88 mm Product code
- AK-FC-08BKV2



...
