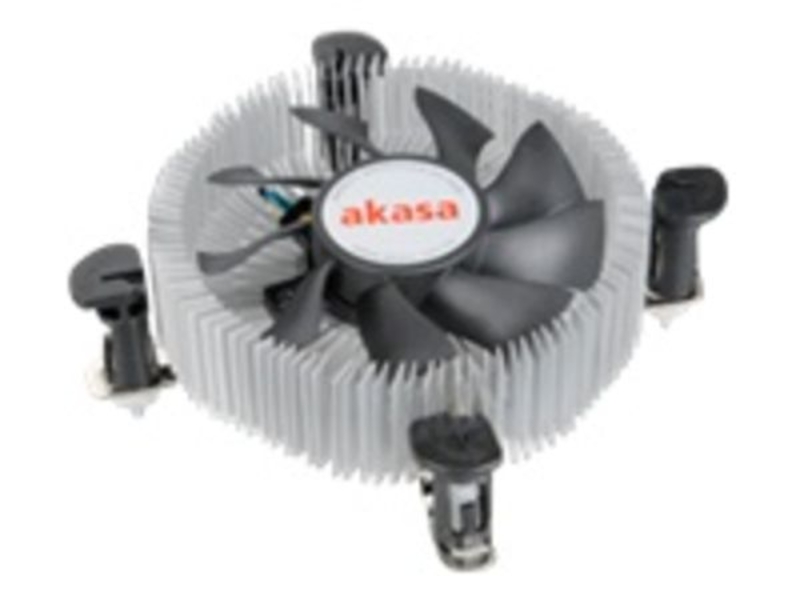

Akasa CCE-7106HP Socket 775, 1156 CPU Cooler Designed For M-ITX
Systems
Hi-engineered aluminium heatsink with large full height copper core Multi-directional fins for maximum system cooling Embedded 8cm PWM fan with S-Flow blades and long life HDB bearing Intel approved push pins provide maximum compatibility Dual mounting for Intel LGA775 and LGA1156 platforms High performance thermal interface is pre-applied Total height of less than 30mm Ultra compact and low noise cooler for Intel Core 2 Duo, Core i3 and Core i5 (73W) CPUs. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC and SFF systems. Aluminium heatsink with full height copper core and quiet HDB bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal
CPU, motherboard and VRM cooling with minimal noise levels. Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPUs up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation. Socket type Intel LGA775, LGA1156 Cooler dimension 87.2 x 85.2 x 29.5 mm Heatsink material Aluminum with copper insert Weight 205 g Installation Push pins Fan dimension ˆ…74 x 15 mm Fan speed 600 - 3000 RPM (PWM controlled) Max airflow 33.50 CFM (56.7 m3/h) Max air pressure 3.76 mmH2O
Noise level 18.9 - 31.9 dB(A) Current rating 0.19 A Voltage rating 12V DC Bearing type HDB Fan life expectancy 50, 000 hours Fan connector 4pin PWM
CPU, motherboard and VRM cooling with minimal noise levels. Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPUs up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation. Socket type Intel LGA775, LGA1156 Cooler dimension 87.2 x 85.2 x 29.5 mm Heatsink material Aluminum with copper insert Weight 205 g Installation Push pins Fan dimension ˆ…74 x 15 mm Fan speed 600 - 3000 RPM (PWM controlled) Max airflow 33.50 CFM (56.7 m3/h) Max air pressure 3.76 mmH2O
Noise level 18.9 - 31.9 dB(A) Current rating 0.19 A Voltage rating 12V DC Bearing type HDB Fan life expectancy 50, 000 hours Fan connector 4pin PWM
