Take the world’s fastest graphics processor & boost the performance further with the ZOTAC Ge Force GTX TITAN AMP! Edition. Engineered as the ultimate gamers graphics card, the ZOTAC Ge Force GTX TITAN AMP! Edition elevates performance to another level with higher frame rates & a smoother gaming experience. NVIDIA GPU Boost 2.0 technology enables the ZOTAC Ge Force GTX Titan AMP! Edition to dynamically boost performance with higher average clocks than previously available for that extra performance push in demanding gaming situations. NVIDIA Surround technology enables the ZOTAC Ge Force GTX Titan AMP! Edition to drive up to three displays smoothly for immersive triple-display gaming capabilities. Specifications Interface
- PCI Express 3.0 x 16 (Compatible with 1.1) Chipset Manufacturer
- NVIDIA GPU
- Ge Force GTX TITAN Core clock
- 902 MHz (base) 954 MHz (boost) Stream Processors
- 2, 688 Memory Clock
- 6608 MHz Memory Size
- 6GB Memory Interface
- 384-bit Memory Type
- GDDR5 Direct X
- Direct X 11.1 (feature level 11_0) Open GL
- Open GL 4.3 Ports DVI
- 2 HDMI
- 1 Display Port
- 1 VGA
- With included adapter General RAMDAC
- 400 MHz Max Resolution
- 2560 x 1600 SLI Supported
- 3-way Cooler
- With fan (dual-slot) Dual-Link DVI Supported
- Yes Windows 7 Capability
- Certified for Windows 8 / 7




















...

Embrace supercomputing power with the ZOTAC Ge Force GTX TITAN Black for unrivaled gaming performance & superior visual realism. With the DNA of the world’s fastest supercomputer, the ZOTAC Ge Force GTX TITAN Black harnesses that power to take PC gaming to the next level of detail & clarity. New GPU Boost 2.0 technology enables the ZOTAC Ge Force GTX TITAN Black to dynamically boost performance with higher average clocks than previously available for that extra performance push in demanding gaming situations. NVIDIA Surround technology enables the ZOTAC Ge Force GTX TITAN Black to drive up to three displays smoothly for immersive triple-display gaming capabilities. Interface
- PCI Express 3.0 x 16 (Compatible with 1.1) Chipset Manufacturer
- NVIDIA GPU
- Ge Force GTX TITAN Core clock
- 889 MHz (base) 980 MHz (boost) Cores
- 2, 880 Memory Clock
- 7000 MHz Memory Size
- 6GB Memory Interface
- 384-bit Memory Type
- GDDR5 Direct X
- Direct X 11.2 (feature level 11_0) Open GL
- Open GL 4.4 DVI
- 2 HDMI
- 1 Display Port
- 1 RAMDAC
- 400 MHz Max Resolution
- 2560 x 1600 (120 Hz) (DL-DVI) 4K (60 Hz) (Display Port) 4K (30 Hz) (HDMI) SLI Supported
- 3-way Cooler
- With fan (dual-slot) Dual-Link DVI Supported
- Yes Supported OS
- Certified for Windows 8 / 7 Direct X 11.2 (feature level 11_0) Power
- 250W 8pin & 6pin




















...

FEATURES NVIDIA GPU Boost 2.0 technology NVIDIA Adaptive Vertical Sync Technology NVIDIA SMX shader architecture NVIDIA Phys X technology NVIDIA CUDA technology NVIDIA 3D Vision Surround support NVIDIA SLI ready (3-way-SLI) SPECIFICATIONS 2 x NVIDIA Ge Force GTX GPU (GK110) 5, 760 processor cores (2, 880 per GPU) 12GB GDDR5 (6GB per GPU) 768-bit memory bus (384-bit per GPU)375 Engine clock (base): 705 MHz (boost): 876 MHz Memory clock: 7000 MHz PCI Express 3.0 (compatible with 1.1)* CONNECTORS Display Port 1.2 (4K ready) 2 x DL-DVI VGA (with included adapter) 1 x HDMI Quad simultaneous display capable HDCP compliant SLI bridge connectors (3-way SLI) HDTV READY ED 480p HD 720p HD 1080i Full HD 1080p Quad Full HD (4K) SOFTWARE COMPATIBILITY NVIDIA Ge Force driver Microsoft Direct X 12 Open GL 4.4 Microsoft Windows 7/8 x 86/x 64

Dimensions

Height: 111.15mm (4.376in)

Width: 266.7mm (10.5in) Box

Height: 340mm (13.39in)

Width: 268mm (10.55in)

Depth: 95mm (3.74in) POWER REQUIREMENTS 700-watt power supply recommended 375-watt max power consumption











...

Experience unprecedented performance from a small form factor system with the Intel 7 series powered ZOTAC mainboard the ultimate mini ITX solution for gamers & enthusiasts. The Intel 7 series powered ZOTAC mainboard embraces 3rd Generation Intel (R) Core (tm) family processors for unmatched performance, outstanding energy efficiency & high definition capable graphics processing. A PCI Express 3. 0 x 16 expansion slot is available on the Intel 7 series powered ZOTAC mainboard for gamers that desire running the latest discrete ZOTAC graphics cards for life like visuals & out of this world 3D performance. Storage expansion capabilities are plentiful on the Intel 7 series powered ZOTAC mainboard with SATA 6. 0 Gb / s, SATA 3. 0 Gb / s & m SATA ports internally while USB (Universal Serial Bus) 3. 0 & USB (Universal Serial Bus) 2. 0 are available for external expansion. ...

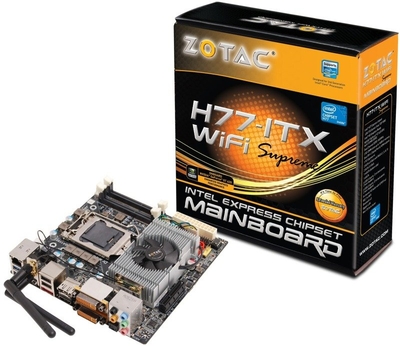

Experience unprecedented performance from a small form factor system with the Intel 7-series powered ZOTAC mainboard -- the ultimate mini-ITX solution for gamers & enthusiasts. The Intel 7-series powered ZOTAC mainboard embraces 3rd Generation Intel Core family processors for unmatched performance, outstanding energy efficiency & high-definition capable graphics processing. A PCI Express 3.0 x 16 expansion slot is available on the Intel 7-series powered ZOTAC mainboard for gamers that desire running the latest discrete ZOTAC graphics cards for life like visuals & out of this world 3D performance. Storage expansion capabilities are plentiful on the Intel 7-series powered ZOTAC mainboard with SATA 6.0 Gb/s, SATA 3.0 Gb/s & m SATA ports internally while USB (Universal Serial Bus) 3.0 & USB (Universal Serial Bus) 2.0 are available for external expansion. Model
- H77ITX-A-E Form Factor
- Mini-ITX Chipset
- Intel H77 Express CPU Socket
- LGA 1155 Onboard Video
- Intel HD Graphics 2500/4000 ready Onboard Audio
- 1 x HD Audio Port (7.1-channel), 1 x Digital Optical S/PDIF output, 1 x Front panel audio header Onboard LAN
- 1 x 10/100/1000 Mbps Ethernet port Memory Size
- Up to 16GB Memory Slots
- 2 x 240-pin DIMM Memory Type
- DDR3 1600 SATA
- 3 x SATA 3 Gb/s, 2 x SATA 6 Gb/s, 1 x e SATA (SATA 3 Gb/s) RAID
- 0, 1, 0+1, 5 Video Ports
- 1 x HDMI, 1 x DVI-I DVI
- 1 HDMI
- 1 Display Port
- 1 USB (Universal Serial Bus) Ports
- 4 x USB (Universal Serial Bus) 3.0 ports (2 on back panel, 2 via header), 8 x USB (Universal Serial Bus) 2.0 ports (4 on back panel, 4 via header) PCI
- 1 x PCI Express x 16 (PCIe 3.0 ready), 1 x Mini PCI Express (occupied by Wi Fi module), 1 x m SATA

















...

Experience a perfect synergy of performance & energy-efficiency with the ZOTAC M880G-ITX Wi Fi platform featuring AMD Vision„¢ technology. The ZOTAC M880G-ITX Wi Fi combines the power of a AMD Turion„¢ II Neo K625 dual-core processor with a ATI Radeon„¢ HD 4200 series graphics processor to deliver stunning high-definition video playback, excellent multi-tasking performance & superior energy-efficiency in a mini-ITX form factor. ATI Avivo„¢ HD technology delivers full-hardware decode of Blu-ray high-definition content for flawless playback & vivid visuals with the ZOTAC M880G-ITX Wi Fi. Expansion with the ZOTAC M880G-ITX Wi Fi is plentiful with one PCI Express x 1 slot, 6 SATA 6.0 Gb/s, 2 USB (Universal Serial Bus) 3.0 ports & up to 6 USB (Universal Serial Bus) 2.0 ports.

Specification Chipset Manufacturer AMD Chipset M880G + SB820M GPU ATI Radeon„¢ HD 4200 series CPU Compatibility Name AMD Turion„¢ II Neo K625 Dual-core, 1.5 GHz Socket NA (integrated CPU) Front-side bus Hyper Transport 3.0 Memory Memory Type DDR3 Memory Speed 800 MHz Slots 2 x 240-pin DIMM Capacity Up to 8GB Expansion Slots 1 x PCI Express x 1 1 x Mini PCI Express (Occupied by Wi Fi card) 3D API Direct X Direct X 10.1 Open GL Open GL 2.0 Networking Ethernet 10/100/1000 Mbps Wi Fi 802.11n/g/b Audio Analog 6-ch HD Digital S/PDIF Ports DVI 1 (HDCP) (Dual-Link DVI-I) HDMI 1 (HDCP w/7.1-channel Audio) VGA With included adapter SATA 6 (SATA 6.0 Gbps) PS/2 1 (Keyboard) Serial Port serial port header USB (Universal Serial Bus) Ports 2 x USB (Universal Serial Bus) 3.0 (back panel), 6 x USB (Universal Serial Bus) 2.0 (4 on back panel, 2 on pin header) Cooler Active (with fan) Form Factor mini-ITX OS Compatibility Windows Vista/7 premium ready Maximum Resolution 2048x 1536 Wake-On Support Overclocking features

...

Experience the power of high-performance 3rd Generation Intel Core processors with the palm-sized ZOTAC ZBOX nano with Intel HD Graphics 4000. By fusing an energy-efficient & powerful 3rd Generation Intel Core processor with the palm-sized form factor, the ZOTAC ZBOX nano with Intel HD Graphics 4000 delivers an unmatched combination of size & performance that is perfect for everyday work & casual use. Intel HD Graphics 4000 graphics processing enhances the ZOTAC ZBOX nano with Intel Quick Sync technology for lightning-fast video conversions & Intel Clear Video HD technology for smooth high-quality Blu-ray 3D playback capabilities. An exclusive ZOTAC nano RAID storage accessory included with the ZOTAC ZBOX nano with Intel HD Graphics 4000 enables users to harness the lightning-fast performance of two m SATA SSD* modules for superior performance in RAID 0 or enhanced data security with RAID 1. *m SATA SSDs not included. Product Name: Product Name
- ZBOX nano ID63 PLUS Chipset: Manufacturer
- Intel Chipset
- HM77 Express GPU
- Intel HD Graphics 4000 CPU Compatibility: Name
- Intel Core i 3 3227U (dual-core) (1.9 GHz) Socket
- NA (integrated CPU) Frontside Bus
- NA Memory: Memory Type
- DDR3 Memory Speed
- 1600 MHz Slots
- 1 x 204-pin SODIMM Capacity
- 4GB DDR3 (Up to 8GB) 3D API: Direct X
- Direct X 11 Open GL
- Open GL 3.1 Networking; Ethernet
- 10/100/1000 Mbps Wi Fi
- 802.11n/g/b + Bluetooth 4.0 Audio: Analog
- Combo Headphone / mini-Optical S/PDIF jack, Microphone jack Digital
- 8-ch HDMI Storage: Hard Drive
- 500GB 5400RPM HDD Optical Drive Memory Card Reader
- 7-in-1 (MMC/SD/SDHC/SDXC/MS/MS Pro/x D) Ports: DVI
- NA HDMI
- 1 Display Port
- 1 SATA
- NA e SATA
- 1 IDE
- NA PS2
- NA Serial Port
- NA USB (Universal Serial Bus) Ports
- 4 USB (Universal Serial Bus) 3.0 (on back panel) 2 USB (Universal Serial Bus) 2.0 (on front) Firewire
- NA Cooler: Cooler
- Smartfan Form Factor: Form Factor- mini-PC OS Compatibility Windows
- User installed (Windows 7/8 ready) Other: Graphics Output
- 1 x HDMI / 1 x Display Port































...

Zotac NVIDIA Ge Force GT 730 1GB DDR3 VGA DVI HDMI PCI-E Low Profile Graphics Card Upgrade to dedicated graphics & memory for unmatched high-definitionvisuals & performance with the ZOTAC Ge Force GT 730. Hardware accelerated Blu-ray 3D playback enables the ZOTAC Ge Force GT 730 to render stunning stereoscopic high-definition video with compatible displays & playback software. Advanced Dolby True HD & DTS-HD Audio lossless multi-channel HD audio bitstreaming ensures the ZOTAC Ge Force GT 730 delivers rich audiophile-class audio to match the beautiful visuals. NVIDIA Surround technology with tripledisplay support enables the ZOTAC Ge Force GT 730 to deliver unmatched gaming immersion & maximum productivity. FEATURES NVIDIA Adaptive Vertical Sync technology NVIDIA Surround technology NVIDIA Unified Architecture NVIDIA Phys X technology NVIDIA CUDA technology Hardware Video Decode Acceleration Blu-ray 3D ready HDMI xv YCC Color & Deep Color technologies Lossless audio bitstream capable SPECIFICATIONS NVIDIA Ge Force GT 730 GPU 384 processor cores 1GB DDR3 64-bit memory bus Engine clock: 902 MHz Memory clock: 1800 MHz PCI Express 2.0 (x 8 lanes) CONNECTORS 1 x DL-DVI-D 1 x VGA 1 x HDMI Triple simultaneous display capable HDCP compliant POWER REQUIREMENTS 300-watt power supply recommended 25-watt max power consumption HDTV READY ED 480p HD 720p HD 1080i Full HD 1080p Quad Full HD (4K) SOFTWARE COMPATIBILITY NVIDIA Ge Force driver Microsoft Direct X 12 (feature level 11_0) Open GL 4.4 Microsoft Windows Vista/7/8 x 86/x 64 ...

Zotac NVIDIA Ge Force GT 730 1GB DDR5 VGA DVI HDMI PCI-E Low Profile Graphics Card Upgrade to dedicated graphics & memory for unmatched high-definitionvisuals & performance with the ZOTAC Ge Force GT 730. Hardware accelerated Blu-ray 3D playback enables the ZOTAC Ge Force GT 730 to render stunning stereoscopic high-definition video with compatible displays & playback software. Advanced Dolby True HD & DTS-HD Audio lossless multi-channel HD audio bitstreaming ensures the ZOTAC Ge Force GT 730 delivers rich audiophile-class audio to match the beautiful visuals. NVIDIA Surround technology with tripledisplay support enables the ZOTAC Ge Force GT 730 to deliver unmatched gaming immersion & maximum productivity. FEATURES NVIDIA Adaptive Vertical Sync technology NVIDIA Surround technology NVIDIA Unified Architecture NVIDIA Phys X technology NVIDIA CUDA technology Hardware Video Decode Acceleration Blu-ray 3D ready HDMI xv YCC Color & Deep Color technologies Lossless audio bitstream capable SPECIFICATIONS NVIDIA Ge Force GT 730 GPU 384 processor cores 1GB DDR5 64-bit memory bus Engine clock: 902 MHz Memory clock: 5010 MHz PCI Express 2.0 (x 8 lanes) CONNECTORS 1 x DL-DVI 1 x VGA 1 x HDMI Triple simultaneous display capable HDCP compliant POWER REQUIREMENTS 300-watt power supply recommended 49-watt max power consumption HDTV READY ED 480p HD 720p HD 1080i Full HD 1080p Quad Full HD (4K) SOFTWARE COMPATIBILITY NVIDIA Ge Force driver Microsoft Direct X 12 (feature level 11_0) Open GL 4.4 Microsoft Windows Vista/7/8 x 86/x 64 ...

Zotac NVIDIA Ge Force GT 730 2GB DDR5 VGA DVI HDMI PCI-E Low Profile Graphics Card Upgrade to dedicated graphics & memory for unmatched high-definitionvisuals & performance with the ZOTAC Ge Force GT 730. Hardware accelerated Blu-ray 3D playback enables the ZOTAC Ge Force GT 730 to render stunning stereoscopic high-definition video with compatible displays & playback software. Advanced Dolby True HD & DTS-HD Audio lossless multi-channel HD audio bitstreaming ensures the ZOTAC Ge Force GT 730 delivers rich audiophile-class audio to match the beautiful visuals. NVIDIA Surround technology with tripledisplay support enables the ZOTAC Ge Force GT 730 to deliver unmatched gaming immersion & maximum productivity. FEATURES NVIDIA Adaptive Vertical Sync technology NVIDIA Surround technology NVIDIA Unified Architecture NVIDIA Phys X technology NVIDIA CUDA technology Hardware Video Decode Acceleration Blu-ray 3D ready HDMI xv YCC Color & Deep Color technologies Lossless audio bitstream capable SPECIFICATIONS NVIDIA Ge Force GT 730 GPU 384 processor cores 2GB DDR5 64-bit memory bus Engine clock: 902 MHz Memory clock: 5010 MHz PCI Express 2.0 (x 8 lanes) CONNECTORS 1 x DL-DVI 1 x VGA 1 x HDMI Triple simultaneous display capable HDCP compliant POWER REQUIREMENTS 300-watt power supply recommended 49-watt max power consumption HDTV READY ED 480p HD 720p HD 1080i Full HD 1080p Quad Full HD (4K) SOFTWARE COMPATIBILITY NVIDIA Ge Force driver Microsoft Direct X 12 (feature level 11_0) Open GL 4.4 Microsoft Windows Vista/7/8 x 86/x 64 ...
